HTG-680-4 CE approved concrete floor grinding machine

Feedback Ratings
  • 1-4 Sets
    US $7766.00
  • >=5 Sets
    US $7060.00
Model Number:
HTG-680-4
- + available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Manual
Place of Origin:
Fujian, China (Mainland)
Brand Name:
High Tech Grinding
Voltage:
220V/240V 380V/440V, 220v/380v Three phase
Power(W):
11KW
Dimension(L*W*H):
135*85*120cm
Weight:
380kg
Certification:
CE SGS ISO9001
Warranty:
Motor1 Year, Gear 2years.
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Concrete Polishing Machine
Motor:
11KW
Inverter:
Delta15KW
Working width:
680mm
Grinding disc:
230mm*4
Motor rotating speed:
350rpm-1950rpm
MOQ:
1 set
Keyword:
Floor grinder
Water tank:
23L

Packaging & Delivery

Selling Units:
Single item
Single package size:
122X77X130 cm
Single gross weight:
464.0 KG
Package Type:
Using the standard wooden packing
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 10 To be negotiated
Product Description

Product Application

High Tech Grinding surface treatment have achieved unique balance between devices power, design and tooling speed, efficiency. With patented four-disc planetary technology makes High Tech Grinding Machine standing out from other machines; it provides users with unprecedented control performance from the pre-treatment, grinding and polishing of concrete flooring to stone repairing and polishing. With the High Tech Grinding surface treatment equipment, you can be ensured that the floor not only beautiful but also wear-resistant and good-quality.

SPECIFICATIONS

Power
Motor power
HP
15
Packing Size
cm
135*85*120cm
Voltage
V
220-240V/380-440V three phase

Main performance parameters
Working width
mm
680
Rotating speed (max. & min.)
rpm
350-1950
Tool holder diameter
mm
4*230

Other parameters
Weight of machine
KG
380
Additional weight
KG
40
Water tank capacity
L
23

Main Features

1. Gear driven, provide strong grinding efficiency;

2. Planetary rotatory gearbox design, patent in China to double your project efficiency;
3. 10HP with 600mm working width, good for concrete, marble, granite and terrazzo polishing;
4. Side water tank design, easy to add water to prevent water go inside motor;
5. Floating dust cover, no need to mount on and off when changing abrasives.

Certifications
Detailed Images

Main Features

Name: Control panel
Function:
Emergency switch,forward & reverse function,Led design, speed control switch,easy to operate

Machine Parts

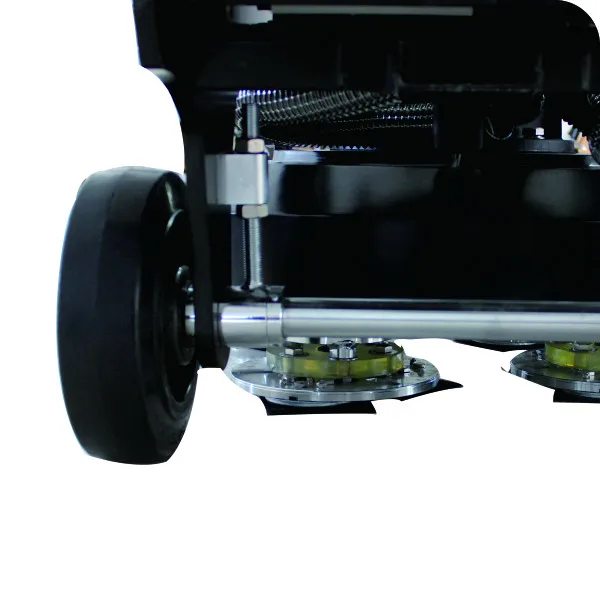

Name: Wheel
Function: Easy to transport

Main Features

Name: vacuum connector
Function: Connect with industrial vacuum cleaner to achieve the dustless grinding environment.

Our Service


* We have more than 200 persons in our factory, including engineers team, sales team , technology team ect.
* Engineers are available to provide technology support overseas.


* Seminar in march one time every year, exchange experience all over the world.

Packing & Delivery
Packaging
Size
135*85*120cm
Weight
380kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

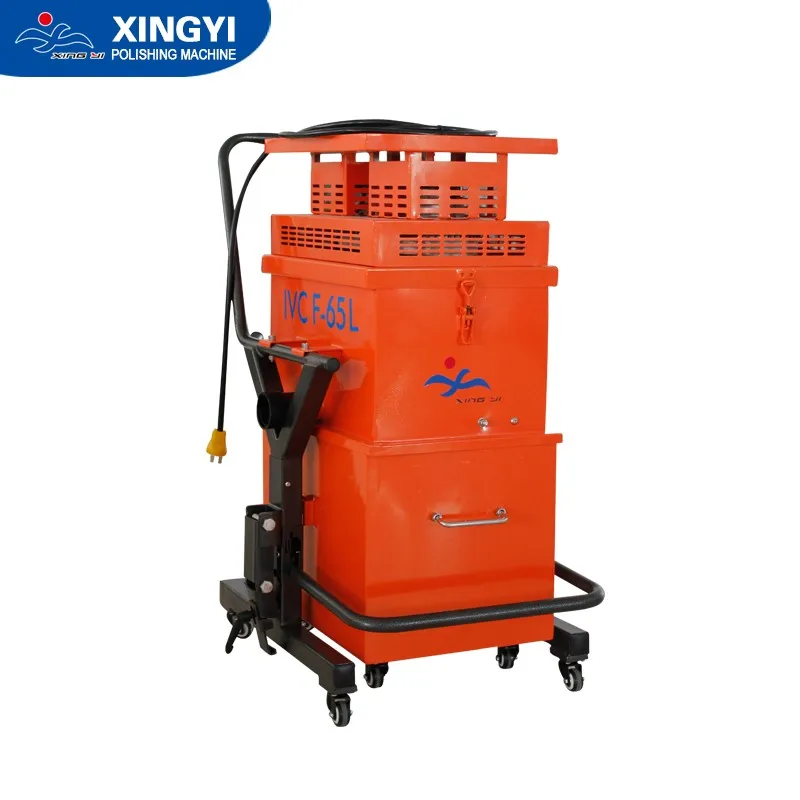

IVC F-65L
