Hall rotary effect encoder 5 Vdc supply 0-5V analogue output magnetic sensor encoder

Feedback Ratings
  • 1-9 Pieces
    $52.00
  • >=10 Pieces
    $46.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $54.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT

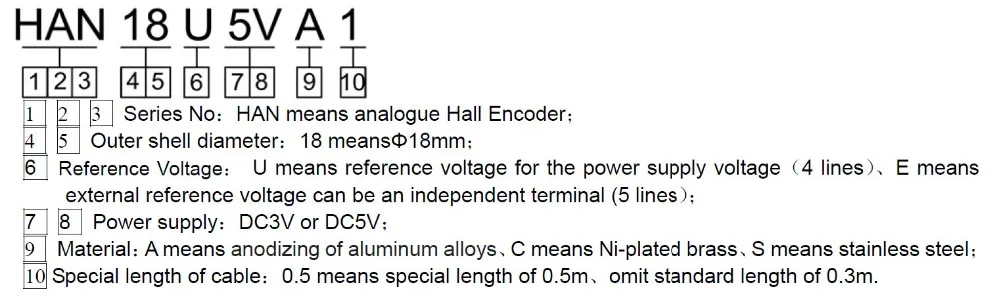

Model Number:
HAN18U5VA1
Usage:
Magnetic Sensor
Theory:
Hall Sensor
Output:
Analog Sensor
resolution:
1024
shaft loading:
radial 10N axial 5N
work temperature:
-40~+85 celsius
protection garde:
IP65
anti-vibration:
10~2000hz
storage temperature:
-40~+85 celsius
starting torque:
<=3Ncm
flange line:
13
shaft diameter:
4mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X14X12 cm
Single gross weight:
0.3 kg
Package Type:
carton box
Lead Time :
Quantity(Piece) 1 - 30 >30
Est. Time(days) 5 To be negotiated
Product Description

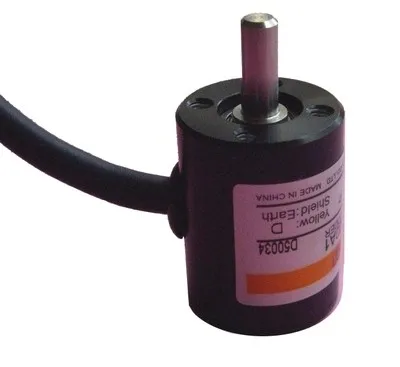

Hall rotary effect encoder 5 Vdc supply 0-5V analogue output magnetic sensor encoder

Hall effect rotary encoder measure angle, 3v or 5v power supply, magnetic rotary encoder ,shell diameter 18,28mm, shaft diameter 4,6mm.

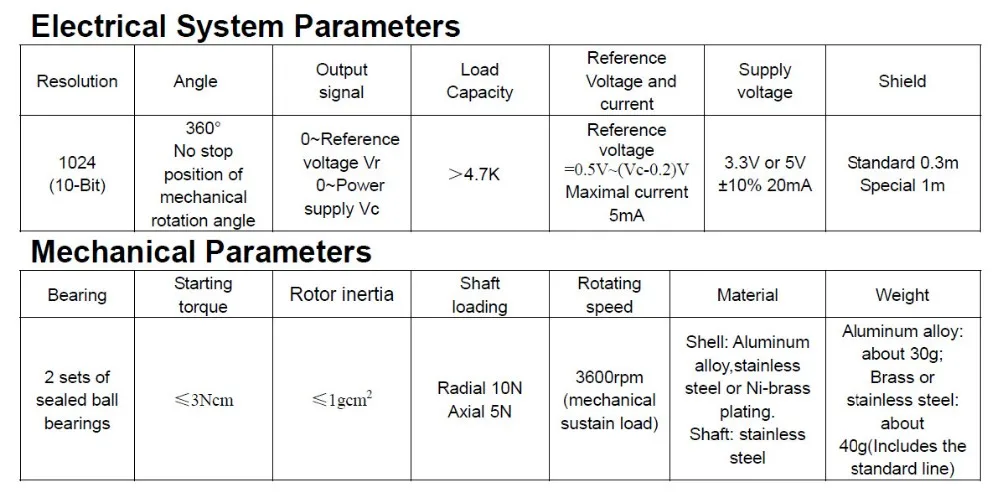

KEY Features:


Non-contact transducing technology
Accuracy ±0.1%
Power supply 3V or 5V
The maximum output range of voltage is betwwen power supply and reference voltage.
The angular range can be adjusted freely by the external resistance.
It can completely replace the precision conductive plastic potentiometer.
Unitary structure design, hign strengh and high protection.
Environment and vibration resistant, high protection grade.

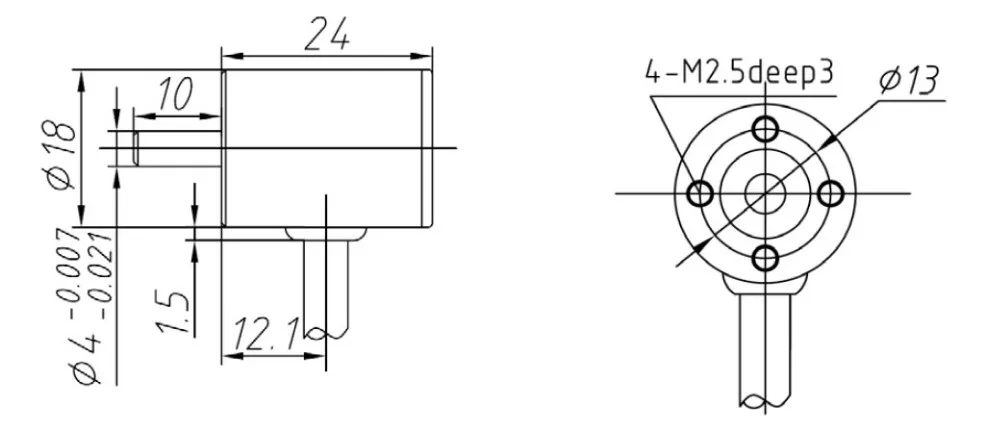

Compact, small size, shell diameter 18mm.
Built-in two sets of ball bearings, suitable for industrial environmen

Detailed Images
Packing & Delivery

Packing Details : Standard strong export carton box

Delivery Details : 2-3 days after full payment in regular product, according to quantities.

Our Company

   Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in parking heater and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges:  2kw 3kw 4kw 5kw air heater, 5kw, 8-12kw water heater, knob switch heater, remote heater and GSM heater.

 Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Australia, Europe, America and Russia and other countries and regions in the world.

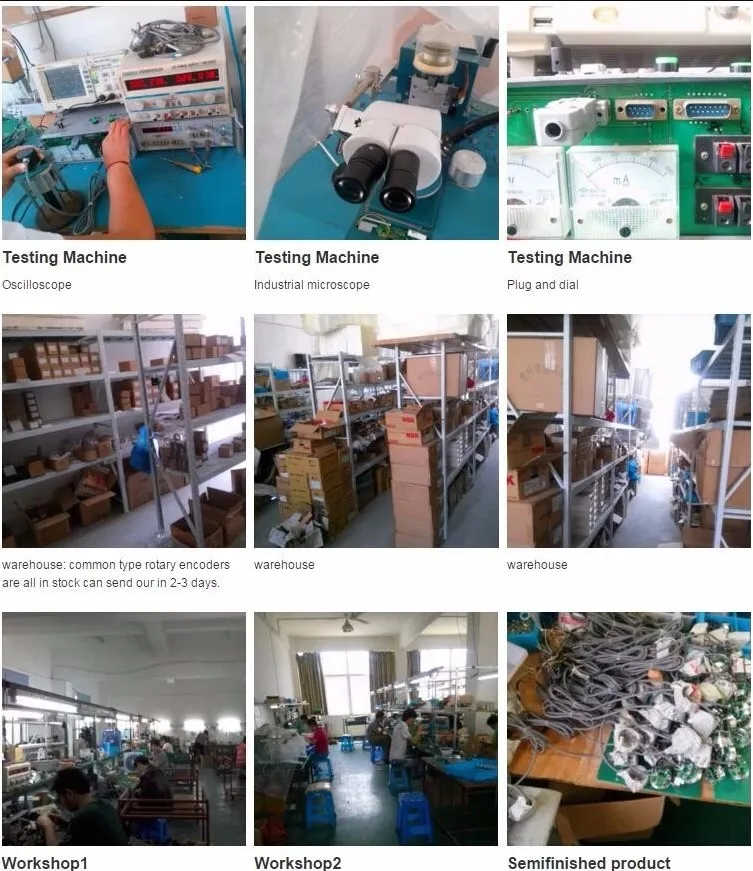

Welcome to our factory
