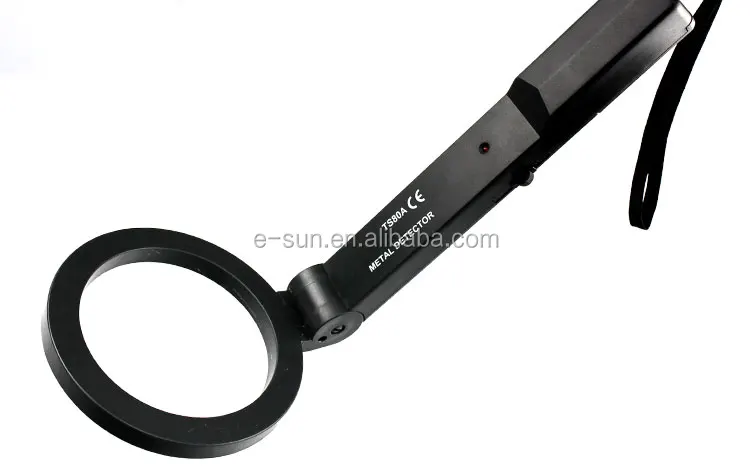

Handheld Pro Metal Detector Adjustable Sensitivity Security Tool Body Scanner High Sensitivity Metal Alarm All-Sun TS80A

  • 30-49 Pieces
  • >=50 Pieces
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Samples: $30.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $30.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Model Number:
LED light&audio/vibration

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X8X5 cm
Single gross weight:
0.41 kg
Package Type:
please see picture for more detail.
Picture Example:
Lead Time :
Quantity(Pieces) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 5 8 45 To be negotiated
Product Description




1. A Red LED lights when the detector detects metal.

2. Pressing and holding the Desensitize button reduces the detector's sensitivity by about 50

percent,so you can scan for example near floors which contain large amounts of steel rebars,

or scan in the places where only larger objects are required to be detected.

3. The earphone jack lets you connect the earphone to the detector so that you can scan in privacy.



Follow these steps to install the battery

1. Remove the battery cover.

2. Remove the exhausted battery carefully.

3. Connect a new battery(9V,6F22 or equivalent)to the battery connector and place it in the battery


4. Reinstall the battery cover.

5. If the LED lights continuously and the detector sounds continuously when the detector is far away

from any metallic object,the battery is low and should be replaced immediately.If you are using a

rechargeable battery,you should charge it.


How to use the body scanner

1) Set the On/Off switch to "ON" to turn the Body Scanner on, or to "OFF" to turn it off. When it is

turned on, the audio will "chirp" briefly, this is normal;

2) To conserve battery life, always make sure the Body Scanner is off when not in use;

3) The Body Scanner emits a high-pitched tone whenever it detects metal a long tone for large objects,

and a short tone for small objects;

4) Before using the Body Scanner, always test it by turning it on and scanning a small metal object

(such as a coin) make sure the tone sounds and the indicator lights up using a smooth, even speed

to scan. It sounds a high-pitched tone whenever it detects metal.

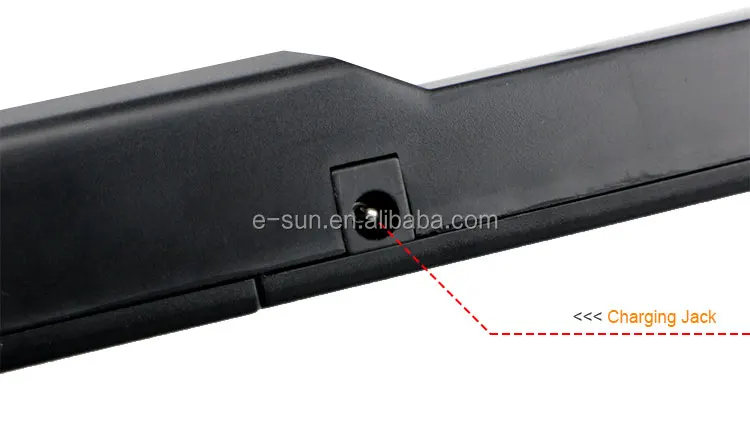

Charging a Nickel-Cadmium battery

1) Set the On/Off switch to OFF and install the battery in the Body Scanner.

2) Insert the AC adapter's plug into the Body Scanner's recharge/earphone jack.

3) Plug the AC adapter's other end into a standard AC outlet;

4) Charge the battery for 14 to 16 hours.

5) Unplug the AC adapter from the AC outlet first. Then unplug it from the Body Scanner.

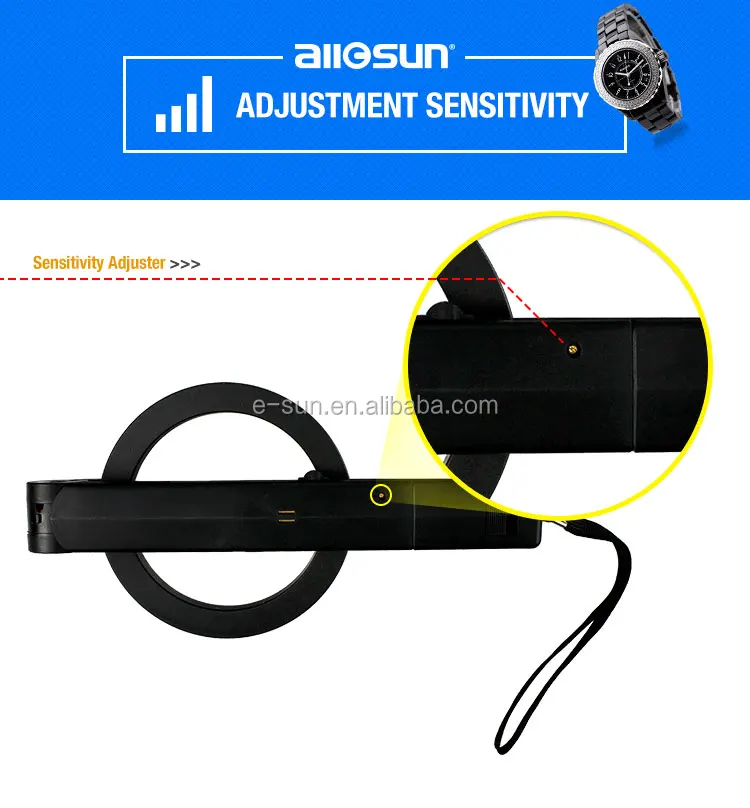

Adjusying the body scanner sensitivity

The Body Scanner is set to the optimum sensitivity level for most security scanning applications.

You can adjust the sensitivity level for specialized applications, which require higher or lower sensitivity.


1) Remove the rubber cover from the handle. There are two small holes in the middle.


2) Insert the tip of a small screwdriver through the 1/8-inch hole in the handle until it touches the adjustment control inside. (see figure 1- the adjustablehole

is sensitivity. Do not adjust the second hole next to it, which is reserved for factory use only.)


3) Turn the screwdriver slowly until its tip fits in the control slot.


4) Using a test object, adjust the control for the desired sensitivity -clockwise to increase or

counter- clockwise to decrease sensitivity.


5) Keep the same desired distance between detector and test object, adjust the control untildetector

begins to sound. This is your desired sensitivity.


6) Put the rubber cover back on the handle.


Using am Earphone

You can use your Body Scanner with an earphone that has a 1/8"plug, so you can hear the alarm

through the earphones.Insert the earphone's plug into the Body Scanner recharge/earphone jack .

The external sound cuts off automatically.
