Hardwood Sawmill Large Log Cutting Bandsaw Mill Machine with Shield

  • 1-9 Sets
    $9,200.00
  • >=10 Sets
    $8,900.00
Type:
Band Saw Rip Saw Frame Saw Other
Model Number:
MJ3212
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Construction works , wood cutting sawmill
Condition:
New
Use:
Woodworking
Style:
Vertical
Place of Origin:
Hebei, China
Brand Name:
YSDMILL
Usage:
Log cutting timber sawing
Voltage:
380V/50Hz/3Phase
Power(W):
37KW(50HP)
Dimension(L*W*H):
1400*1440*2600mm
Weight:
1800kg
Certification:
ISO/CE/SGS
Warranty:
12Months
After-sales Service Provided:
Field maintenance and repair service
Application:
Wood Sawmill, Round log cutting
Name:
Woodworking Bandsaw machine
Saw wheel diameter:
49inch(1250mm)
Max log cutting diameter:
1000mm
Blade guide elevate:
Motor

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
50.0 kg
Package Type:
Plastic film for main machine, wooden case for saw wheel and spare parts.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 10 11 - 20 >20
Est. Time(days) 7 14 To be negotiated
Product Description

Product Application

MJ3212B Heavy-duty Electric Large size log cutting band saw machine, mainly use for cutting log diameter below 1000mm,The steel saw wheel on YVB49 will machine long working life, when cutting hardwood our machine can adjust the saw wheel rpm by frequency changer, thst function will help the sawyer cutting wood fast and smoothly.

Model
MJ3212
MJ3212B
Max log sawing dia
1000mm
1500mm
Saw wheel dia
49 INCH
49 INCH
Saw wheel rpm
650r/min(Frequency changer is optional)
650r/min(Frequency changer is optional)
Saw blade spec
1.25*150 *8300mm
1.25*150 *9100mm
Main power
37 kw(50HP)
55 kw(75HP)
Saw guide elevate
0.75kw
0.75kw
Saw wheel elevate
2.2 kw
2.2 kw
Voltage
380V/50HZ/3phase
380V/50HZ/3phase
Weight
2200kgs
2400kgs
Overall size
1400*1440*2600mm
1400*1440*3000mm
Working

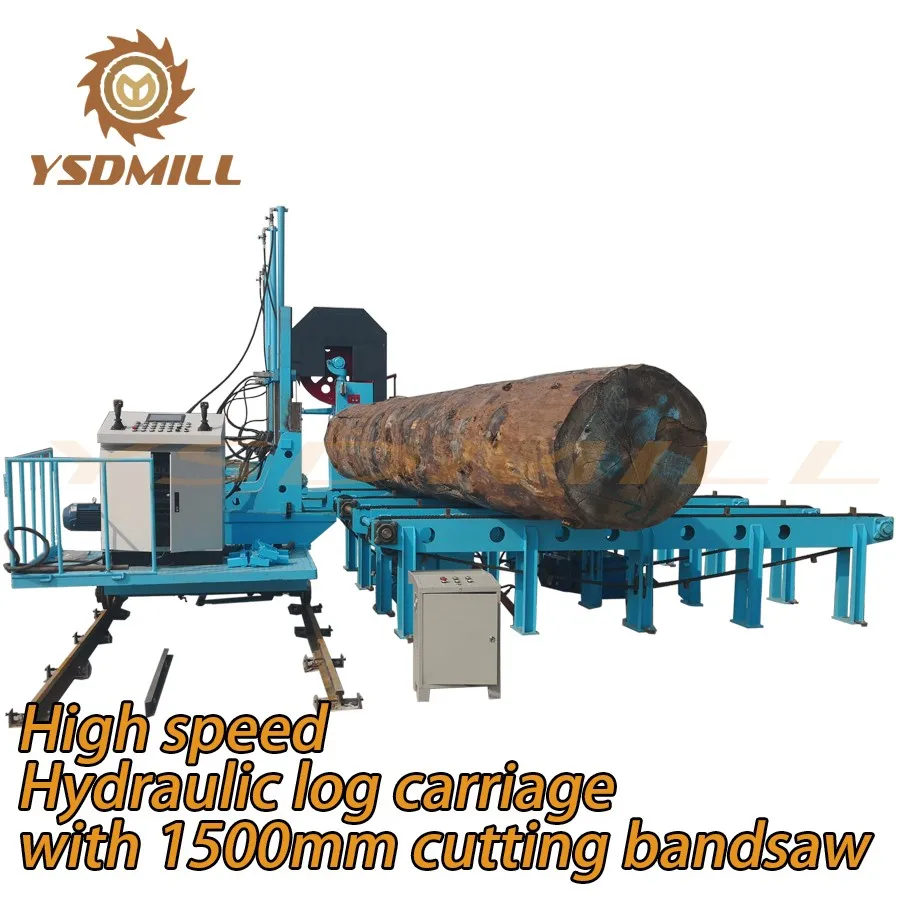

Band sawmill Log Carriage
Band sawmill Log Carriage

Main Features

1) Cast iron band saw body and base.

2) Automatic saw blade guide and saw wheel elevate.

3) Steel saw wheel for long working life.

4) Big size 49inch saw wheel for smooth harwood cutting.

5) Easy operation and maintenance .

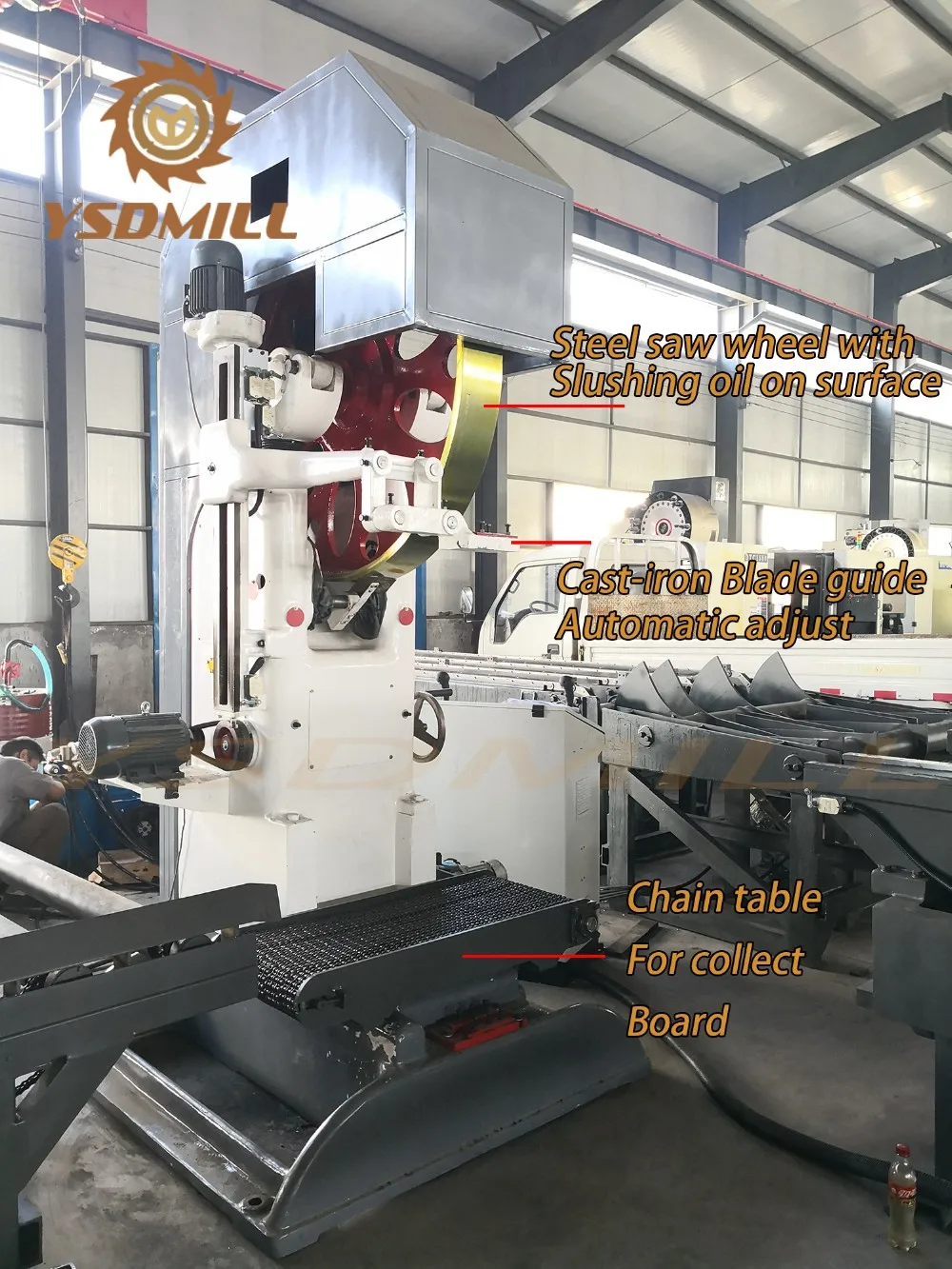

Detailed Images

Steel saw wheel

Name: Bliwing Cylinder

Brand: YSDMILL

Original: CHINA

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

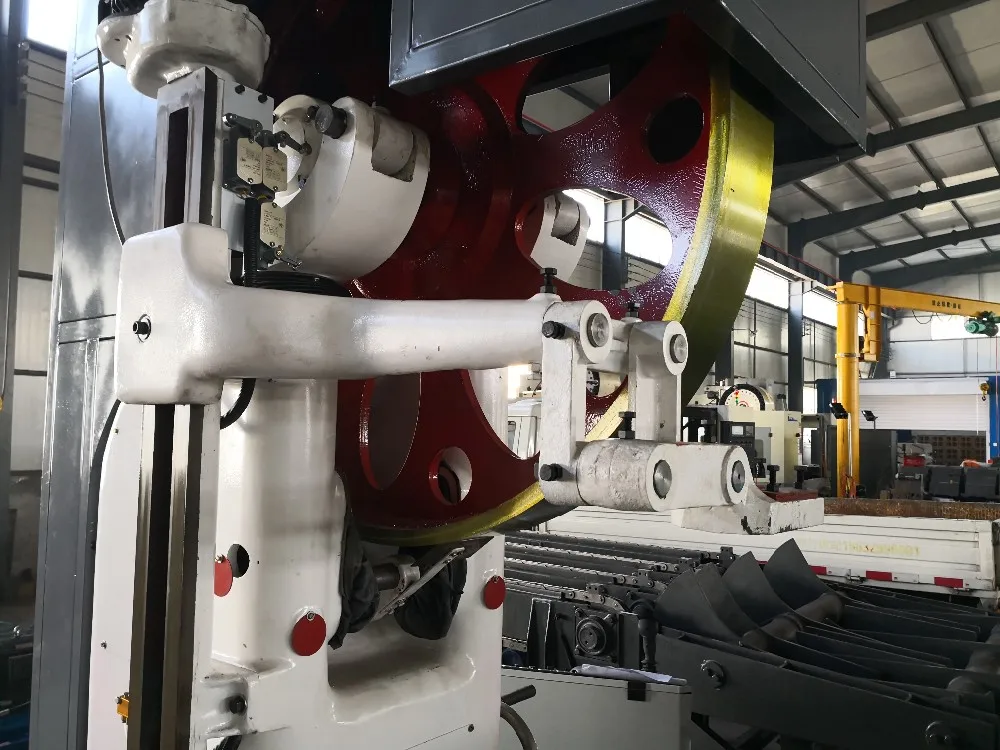

Cast iron saw blade guide

Name: Blade guide
Brand: YSDMILL
Original: CHINA
Stronger blade guide to keep blade stable cutting

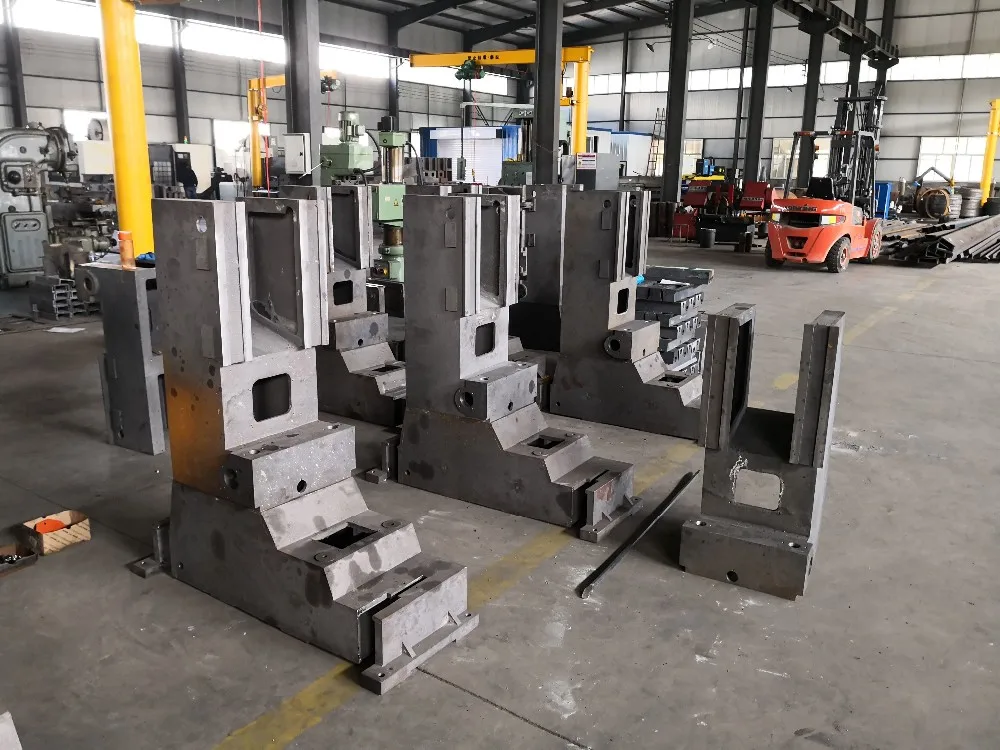

Band saw base

Name: Cast iron materials
Brand: YSDMILL
Original: CHINA
Stronger band saw base, easy installation.

FAQ

How to choose suitable bandsaw and log carriage?

Q1. Minimum-Maximum log length/Diameter
A:We nned to know your log diameter and length to recommend you the standard model or customer made model accord to your log specification.

Q2. Do you need electric or diesel engine power? Our machine standard voltage is 380V/50Hz/3Phase,How about the voltage in your factory?
A:We need to know which place you will use the machine.

Q3. Would you please tell us the wood name you need cutting? Is it soft or hardwood?
A:Our woodworking band saw can cut both soft and hardwood, but the power and some parts is different.

Q4.We have both vertical  and horizontal and table saw, all machine can customer made as your request.
A:We can customer made band saw with log carriage and Automatic trunk cutting sawmill line for you requirement
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our Company

What YSDMILL do.

We are professional woodworking sawmill machinery manufacturer with 30 years experience, we have our own R&D team and CNC machining center for high quality product .

Professiona production team.

Our production team have more experience for machine processing and installation, testing. All our machine will test in factory before shipping to customer.

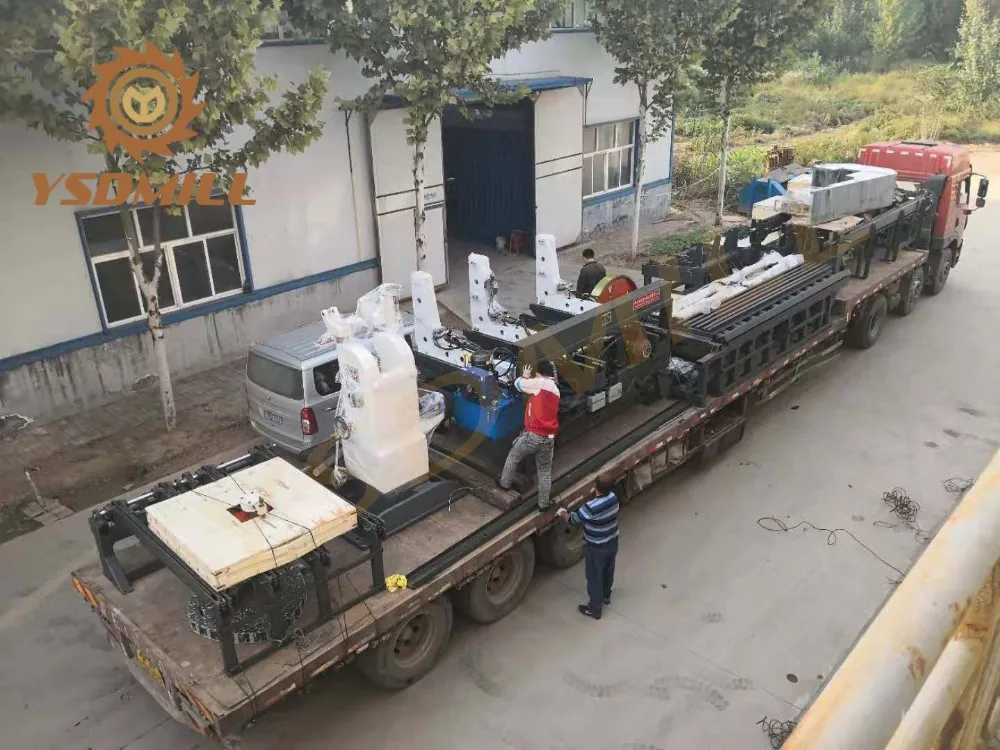

Packing & Delivery
Packaging
Size
1400*1440*2600mm
Weight
2200kg

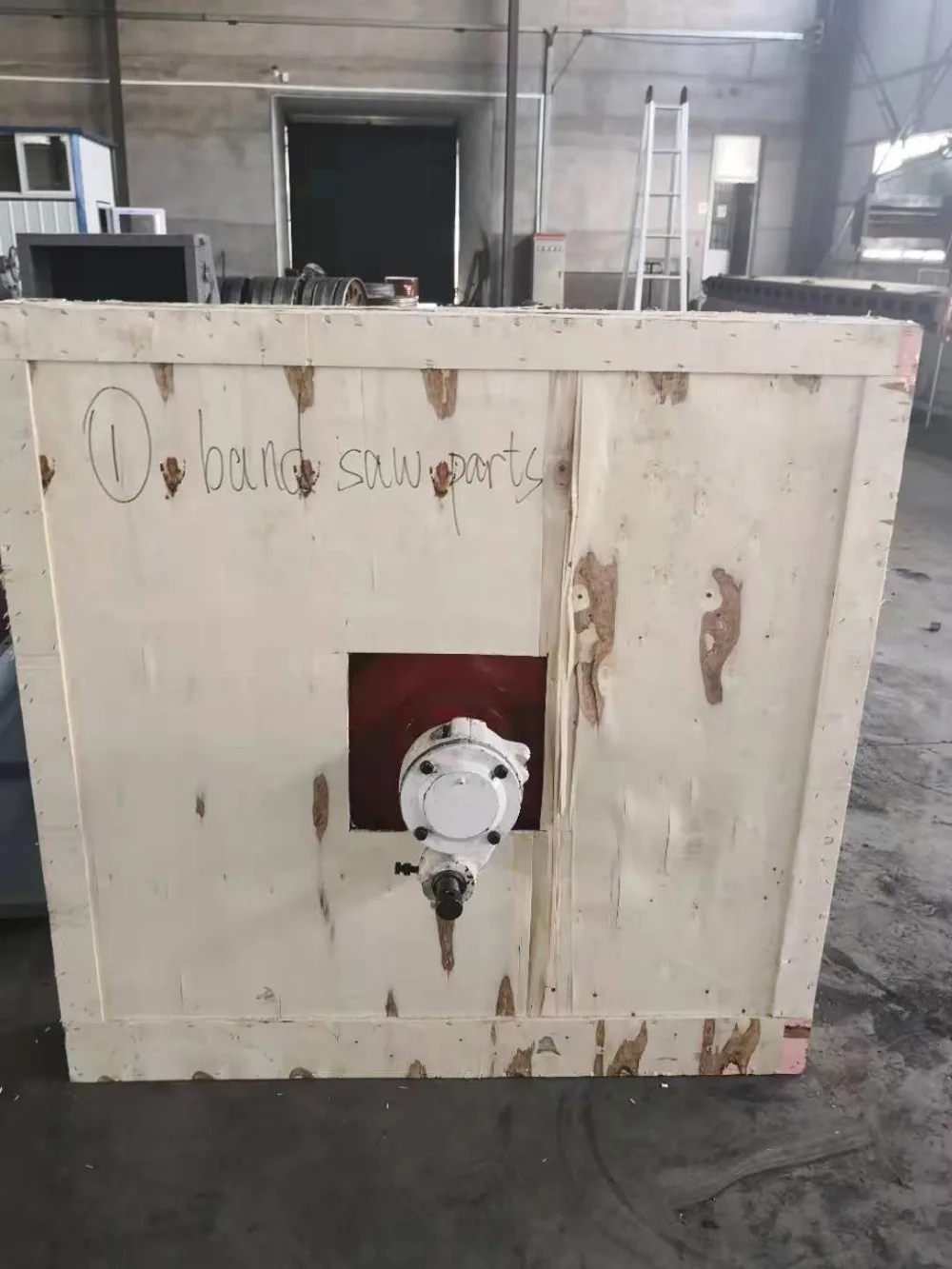

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
1400*1440*2600mm
Weight
2200kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
