Hematite Limonite Siderite Chromite Magnetic Separator

  • 1-4 Sets
    $200,000.00
  • >=5 Sets
    $180,000.00
Model Number:
CTB CTS
Power(W):
1000-1100
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Magnetic Separator
Production Capacity:
high
Place of Origin:
Shanghai, China
Brand Name:
Clirik
Voltage:
220V/380V
Dimension(L*W*H):
According to the models
Weight:
3000-4500 kg
Certification:
CE&ISO2008:9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Application:
Dividing minerals into magnetic and non-magnetic materials
Keywords:
Magnet Separator
Machine type:
Metal Ore Magnetic Beneficiation Equipment
Price:
Negotible
Model:
CTB/CTS
Motor:
AC Motor
Features:
High Recovery Rate Easy
Capacity:
50-300 Tph
Name:
Hematite Limonite Siderite Chromite Magnetic Separator
Color:
Customers' Requirements

Packaging & Delivery

Selling Units:
Single item
Single package size:
120X50X40 cm
Single gross weight:
68.0 kg
Package Type:
wooden box
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Hematite Limonite Siderite Chromite Magnetic Separator



Our Product



Introduction of Hematite Limonite Siderite Chromite Magnetic Separator

The machine can continuously feed and discharge ore, with large magnetic field depth, large working gap and high processing capacity. For a rough selection, it can increase the recovery rate and reduce the second-stage grinding load; before the strong magnetic operation, the ferromagnetic mineral in the ore can be removed to prevent magnetic blockage.



Use Range of Hematite Limonite Siderite Chromite Magnetic Separator



Wetly classify fine-grained ferromagnetic minerals or remove strong magnetic minerals from non-magnetic minerals.



Features of Hematite Limonite Siderite Chromite Magnetic Separator



1 Both are new and efficient wet magnetic separator equipment;
2 The magnetic system uses NdFeB magnets with high magnetic energy product and high coercivity. The magnetic field strength is high and the depth of action is large. The magnetic field strength has a demagnetization rate of less than 5% for 8 years;
3 Large-angle magnetic system with field strength gradient and smooth transition, increasing the length of the sorting strip and the number of magnetic flipping, achieving efficient separation of magnetic minerals and non-(weak) magnetic minerals;
4 The magnetic system is coated with non-magnetic stainless steel to ensure that the magnet does not fall off;
5 According to different uses and sorting conditions, each series of magnetic separators has different magnetic system design and tank structure;
6 The tank structure is semi-reverse flow type. It can also be made into a downstream tank according to the sorting conditions and user requirements;
7 The cylinder body is made of non-magnetic stainless steel and covered with wear-resistant rubber, and the service life of the cylinder is significantly improved;
8 The permanent magnet roller has strong adaptability to production and can withstand large fluctuations in ore supply, fluctuation of feed size and slurry concentration;
9 It can obtain superior ore dressing indicators with high grade and high recovery rate at the same time;
10 Each series of magnetic separators can be used together, or one of them can be used alone, and all of them can obtain excellent beneficiation indexes;

11

 Reasonable design, reliable operation and convenient maintenance.





Technology Data of Hematite Limonite Siderite Chromite Magnetic Separator





(part data of our magnetic separator, more information welcome to contact us)



Working principle of Hematite Limonite Siderite Chromite Magnetic Separator



The machine can continuously feed and discharge ore, with large magnetic field depth, large working gap and high processing capacity. The principle is that when the slurry enters the magnetic field, the ferromagnetic mineral is adsorbed on the surface of the cylinder, the weak magnetic and non-magnetic minerals are thrown off, and the ferromagnetic mineral adsorbed on the surface of the cylinder rotates with the cylinder and is taken. In the magnetic field, flush the water into the concentrate tank to complete the sorting operation. The same cylinder can be equipped with three tanks, namely a co-current tank (CTS), a counter-flow tank (CTN) and a semi-counterflow tank (CTB) to suit different sorting requirements. The downstream tank is suitable for rough selection of ore size of 6-0mm; the counterflow tank is suitable for rough selection of ore size of 0.6-0mm; semi-counterflow tank is suitable for rough selection and selection of ore granularity of 0.5-0mm, especially suitable for A selection of minerals with a particle size of 0.15-0mm.



Our Service





Pre-Sales Service



♥Online interactive service

♥Offline interactive service

♥Solution design service

♥Visit reception service





After-Sales Service



♥Installation and debugging service

♥Training service

♥Other more service(Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 8 hours.)

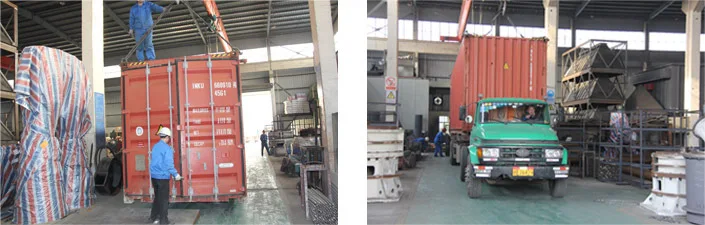

Packing&Shipping





 1.Seaworthy packing with sheet, fixed box, etc.

 2. Container Loading

 3. Delivery time: 15 days after receiving deposit.

 4. All payment terms are available.



Our Company



Shanghai Clirik Machinery Co., Ltd located in Pudong New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we beliveonly focus can be professional.



Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.





Our Certification

Our Working Site

Our Customers Visiting

Our Exhibition



FAQ



1. Quality control

All the equipment offered by Shanghai Clirik Machinery Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Clirik Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.

2. Way of payment
Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.

3. Delivery time
Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.

4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).(you are also welcome to take the rule of Alibaba Trade Assurance)

5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.

6. Installation
Clirik has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.

7. Equipment warranty
Equipment from Shanghai Clirik Machinery Co., Ltd. with 18 months warranty, can be extended to 12 months as request.
