Hi-rib lath production line

Feedback Ratings
US $69000.00 / Set | 1 Set (Min. Order)
Model Number:
ABE25-1000x500
US $69000.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Source:
Mechanical
Place of Origin:
China (Mainland)
Brand Name:
Anber
Voltage:
380V 50HZ
Power(W):
15Kw
Weight:
2850Kg
Dimension(L*W*H):
1300mmx1920mmx1775mm
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Keyword:
Hi-rib lath

Packaging & Delivery

Selling Units:
Single item
Single package size:
1300X800X900 cm
Single gross weight:
8200.0 kg
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(day) 60 To be negotiated
Product Description

Product Description

The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.Its excellent mechanical performance, light weight make it suitable for segmentation pouring concrete specially. This machine has advanced scientific and a wide range of practicability.



Equipment Composition:
1.Decoiler
2.Punching Machine
3.Forming and cutting integrated machine
4.Hydraulic cutter (on forming machine)
5.Collecting table
6.Electric control cabinet


Main Technical Parameters:

4.Hydraulic cutter (on forming machine):
No. Name Parameter
1 Shear force Hydraulic fluid 40#,system pressure 10MPa,
hydro-cylinderφ63×300mm
2 Cutting blade Material:Cr12MO1V1,Hardness:HRC58-62
3 Cutting speed Adjustable, encoder count, length cut
4 Motor Power 5.5KW,1440rpm
5 Voltage Three phrase,AC 380V/50Hz;
6 Size L380×W1096×H1870mm
7 Weight 395Kg



5.Collecting table
Abstract:Made by welding with the profile.
No. Name Parameter
1 Size L 3520×W 1020×H1 712 mm
2 Weight 187Kg

1.Decoiler(Model ABE-KL850):

No.
 Name
Parameter
1
 ID
Φ420 ~520mm Adjustable
2
Loading weight


2500Kg
3
 Material width


850mm
4
 Centerline height
962mm
Decoiling speed






3.5rpm
6
Tension form
Manual(Rotate)
7
Motor
Power:2.2KW
Rotation speed:1420r/min[380V/50HZ]
Reducer
Speed ratio of reducer 135.83×3
9
Voltage
3-phase,AC380V/50Hz
10
Size
L1250×W2095×H1562mm
11
Weight
800 kg

2.Punching Machine:(Model ABE25-1000×500)

No.
 Name
Parameter
1
Punching force(Nominal pressure)
250 KN
2
Expanding speed
 430~500 strokes/min
3
Highest speed
3.5m/min
4
Feeding distance
7.5mm
Press force
1.5×2 KN
6
Slide stroke
±8mm
7
Link rod adjust distance
10 mm

Pay-off Motor
Power:2.0KW
rotate speed:2000r/min
Speed ratio of reducer i:5
9
Mold driven
V belt(B type)
10
Motor
Power:15Kw,rotate speed:1440r/min
11
Voltage
3-phase,AC380V/50Hz
12

Mode
Effective trolley:1mm
material:Cr12MO1V1
Hardness:HRC58-62
13
Size
L1300×W1920×H1775mm
14
Weight
2850Kg

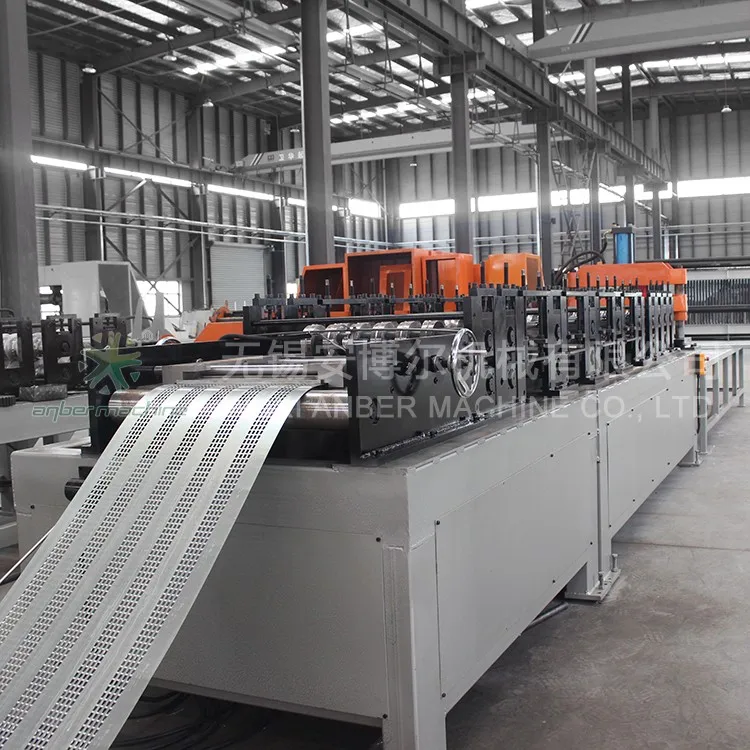

3.Forming and cutting integrated machine:(Model ABE-CX690)

No.
 Name
Parameter
1
Former roller
10 passages (10 up, 10 down), roller diameter: φ173.27mm(max),material: 40Cr, HRC48
2
Driven type
20A roller chain driven+gear
3
Press type
Bolt press
4
Motor
Power:5.5KW ,rotate speed:1440r/min;Speed ratio of reducer:i 49.16
Voltage
3-phrase,AC 380V/50Hz;
6
Size
L5350×W1430×H1700mm
7
Weight
3500Kg

4.Hydraulic cutter (on forming machine):

No.
Name
Parameter
1
Shear force
Hydraulic fluid 40#,system pressure 10MPa,hydro-cylinderφ63×300mm
2
Cutting blade
Material:Cr12MO1V1,Hardness:HRC58-62
3
Cutting speed
Adjustable, encoder count, length cut
4
Motor
Power 5.5KW,1440rpm
5
Voltage
Three phrase,AC 380V/50Hz;
6
Size
L380×W1096×H1870mm
7
Weight
395Kg

5.Collecting table
Abstract:Made by welding with the profile.

No.
Name
Parameter
1
Size
L 3520×W 1020×H1 712 mm
2
Weight
187Kg

Main Features


Detailed Images

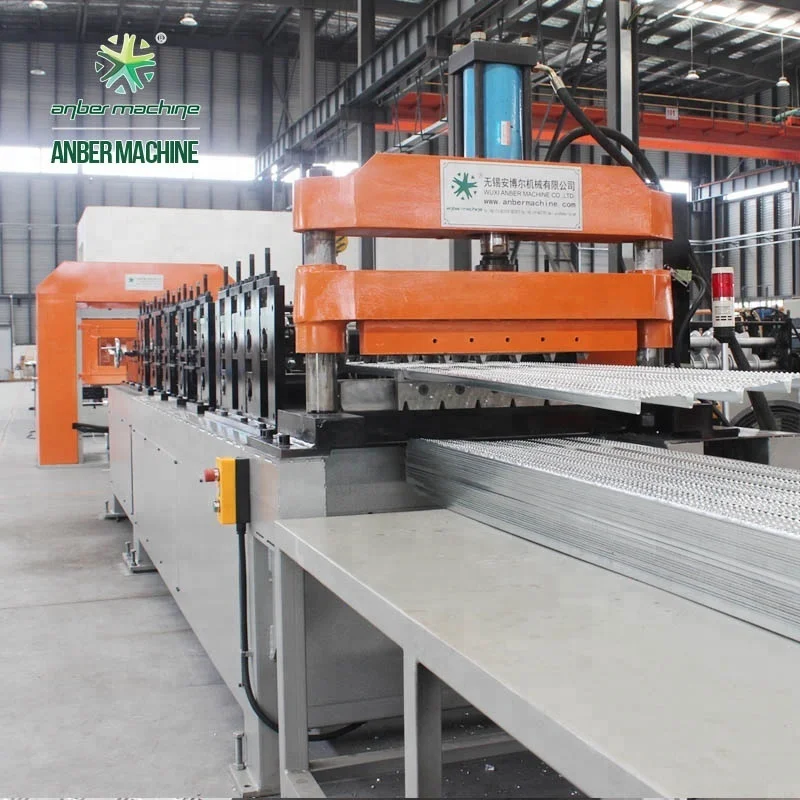

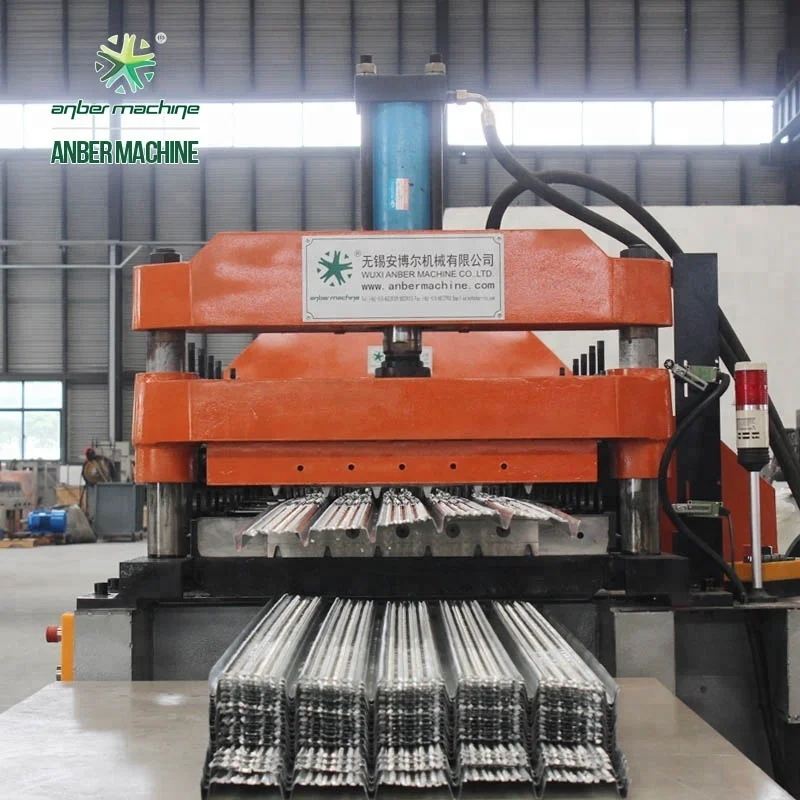

Hydraulic cutter (on forming machine):

Collecting Table:

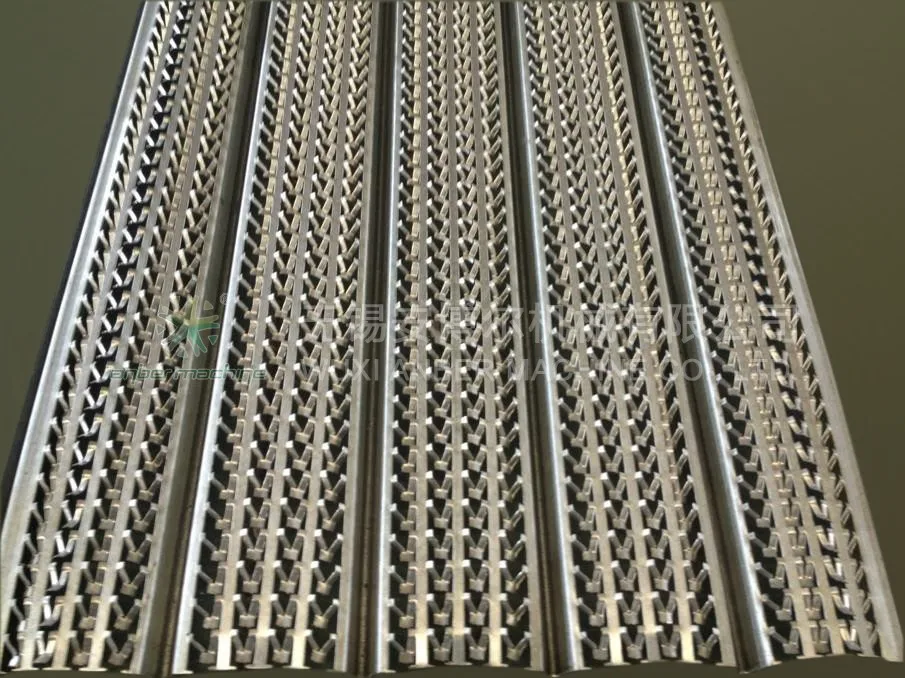

Finish Product(Hi-rib lath):

Our Company

Anber Machine Co.,ltd. before was named Anber Machine co., Ltd., as it grown bigger, is the manufacturer and seller of the expanded metal mesh machine. The expanded metal mesh machine(metal expander) is devided into the heavy-duty expanded metal mesh machine(standard metal mesh machine), expanded metal mesh machine for filter(filter mesh machine) and light-type metal mesh machine(micro mesh machine).
1.Grating type expanded metal mesh machine
Grating type mesh machine ABE-8-2000
Heavy duty expanded mesh machine ABE-6-2500
Coil in Metal expander ABR-6-2000
2. Fence type expanded metal mesh machine(standard metal mesh machine)
Fence mesh machine ABE-4-2000
Fence type expanded mesh machine ABE-2.5-2000
Standard metal mesh machine ABE-4-1300
Standard metal expander ABE-2.5-1500
3.Expanded metal mesh machine for filter (filter mesh machine)
Filter mesh machine ABE-1.5-1250
High speed Filter mesh machine ABE-300-1000
Filter type expanded mesh machine ABE-200-1000
Filter type metal expander ABE-120-1000
4.Light-type expanded metal mesh machine (micro mesh machine)
Micro metal mesh machine ABE-500
We also can produce accessory machines for the expanded metal mesh machine, such as decoier, recoiler, flatten machine, metal mesh slitting machine, cutting machine. We can also produce the finished products: expanded metal mesh, securilath, expanded foil, expanded diamond metal lath, self-furred "dimpled" metal lath, self-furred "grooved" metal lath, regular expanded metal, flattened expanded metal, expanded metal grating, plain steel expanded metal, galvanized steel expanded metal, aluminum expanded metal, stainless steel expanded metal, brass expanded metal, titanium expanded metal, PVC coat expanded metal, aluminum foil expanded metal, Heavy-type expanded metal.
Besides, if you have some special requirement, we can design the full production line especially for you.

Certifications
Contact
FAQ

Q:Are you a trading company or manufacturer?

We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.

Q:What is your factory strength?

All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

Q:Where is ABO Building factory?

We are in Kunshan, 1hour driving from Shanghai airport.

Q:What about the payment Terms?

 Normally deposit 50% in advance.

Q:What is your available port for shipment?

Shanghai seaport.
