High Flexible Control Cable Drag Chain Train Used as a date and signal cable for power supply chains

Feedback Ratings
  • 100-199 Meters
    $99.00
  • 200-399 Meters
    $66.00
  • 400-499 Meters
    $55.00
  • >=500 Meters
    $1.00
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Meters)
Customized packaging (Min. Order: 500 Meters)

More

Graphic customization (Min. Order: 500 Meters) Less
Contact Supplier
Samples - $10.00 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
derul
Model Number:
DERUL00003
Insulation Material:
PVC
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Copper
Jacket:
PE
Product name:
trailing cable
Color:
Customized
Certificate:
ISO9001,CE
Number of Cores:
customized
Voltage:
300v/500v
Conductor:
Copper Core
Sheath:
PVC Sheath
Sheath color:
Buyer's Request
Cable type:
Twisted Pair
Feature:
Excellent Resistance

Packaging & Delivery

Selling Units:
Single item
Single volume:
1 cm 3
Single gross weight:
10.0 kg
Package Type:
cartoon box or roll
Picture Example:
package-img
package-img
Lead Time :
Quantity(Meter) 1 - 100 101 - 500 >500
Est. Time(days) 3 7 To be negotiated
Product Description

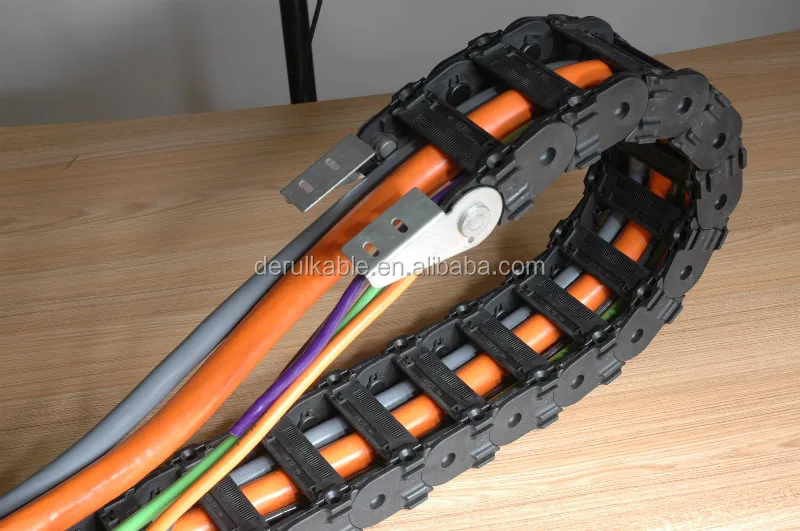

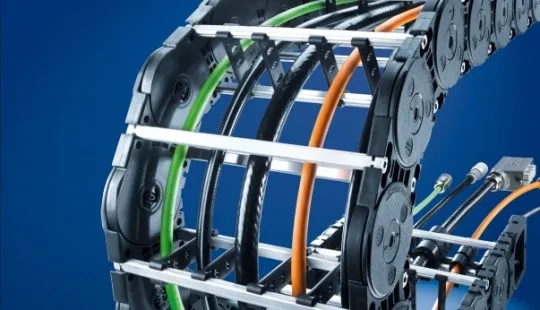

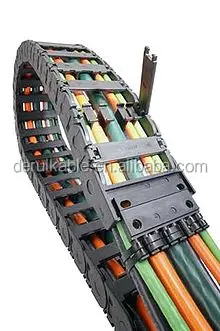

High Flexible Control Cable Drag Chain Train Used as a date and signal cable for power supply chains
Application:

Application range:

Trailing cables are used for high mechanical stress, especially for applications with frequent winding and unwinding with simultaneous tensile and torsional stress.

Trailing cables are frequently used in building machinery, conveyors and lifting systems, and cranes.

Trailing cables are mainly used in industrial electronic systems, automatic generation lines, warehousing equipment, robots, fire fighting systems, cranes, CNC machine tools and metallurgical industry. When equipment units need to move back and forth, in order to prevent cable entanglement, abrasion, pull-off, hanging and scattering, cables are often placed in cable tow chains to protect the cables, and the cables can also move back and forth with the tow chains.

Trial in dry or wet rooms, without the installation of free continuous reciprocating motion with strong stress relief or forced guidance, especially in frequent reciprocating motions in industrial environments, such as woodworking machinery, machine tool processing equipment, logistics conveyor systems, crane applications and so on.



Shielding, PVC insulation, digital identification core wire, PVC inner and outer sheath, proven to be reliable, economical solution

information

Core products in power towline applications

Meets electromagnetic interference requirements

Application range

For power tow chains or moving mechanical parts

For measuring, controlling and regulating circuits

Power circuit in automation engineering electrical equipment

Assembly line, production line, all machines

Equipment installation engineering



Cable structure

Ultra-thin bare copper wire stranded conductor (6 types)

Core insulation: PVC

The core wire is twisted with a short pitch

PVC inner sheath, grey

Tinned copper braided shield

Non-woven wrapping

PVC outer sheath, grey (RAL 7001)



Technical certification

Core wire based on VDE 0245 / 0285

Outer sheath in accordance with VDE 0245/0285

Transmission distance ≤ 10 m

Product Features

Low viscosity surface

Flame retardant in accordance with IEC 60332-1-2

For wet indoors

Designed for bending cycles up to 2-8 million times in a power chain

Can be used outdoors only in the specified temperature range, UV protection

*Above specifications can be adjusted to customers' needs.


Detailed Images
4 CORES CABLE
No.
DERUL00003
Vlotage
300/500V
Spec.
4 cores
Application
industrial electronic systems,cranes
Cable diameter.
8MM
Certification
CE, ISO9001
Packing & Delivery
