High HAE28 DC 3V 360 Degree SSI Absolute Type Angle Sensor Encoder

Feedback Ratings
  • 1-49 Pieces
    $50.00
  • 50-99 Pieces
    $48.00
  • >=100 Pieces
    $45.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
HAE28U3V10A0.5
Usage:
angle sensor
Theory:
Hall Sensor
Output:
hall sensor, SSI
Shaft Dia:
28mm
Voltage:
3v
Resolution:
10bit
Protection class:
IP65
Angle:
360°
Starting torque:
≤3Ncm
Application:
Manipulator
Warranty:
12 Months
Material:
shell:Aluminum Alloy Shaft: Stainless Steel

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X12X10 cm
Single gross weight:
1.5 kg
Package Type:
carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

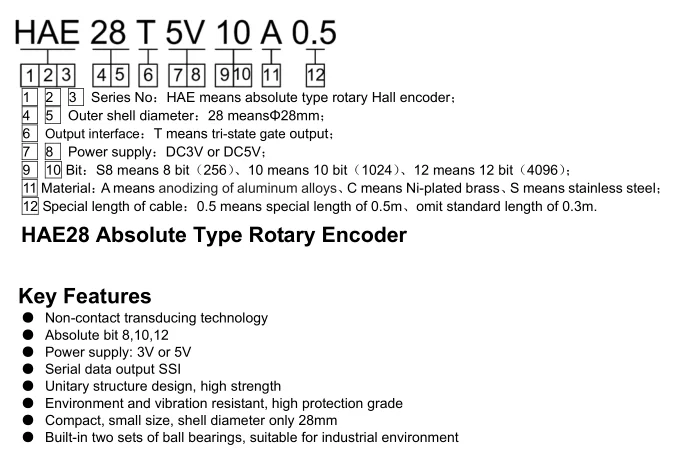

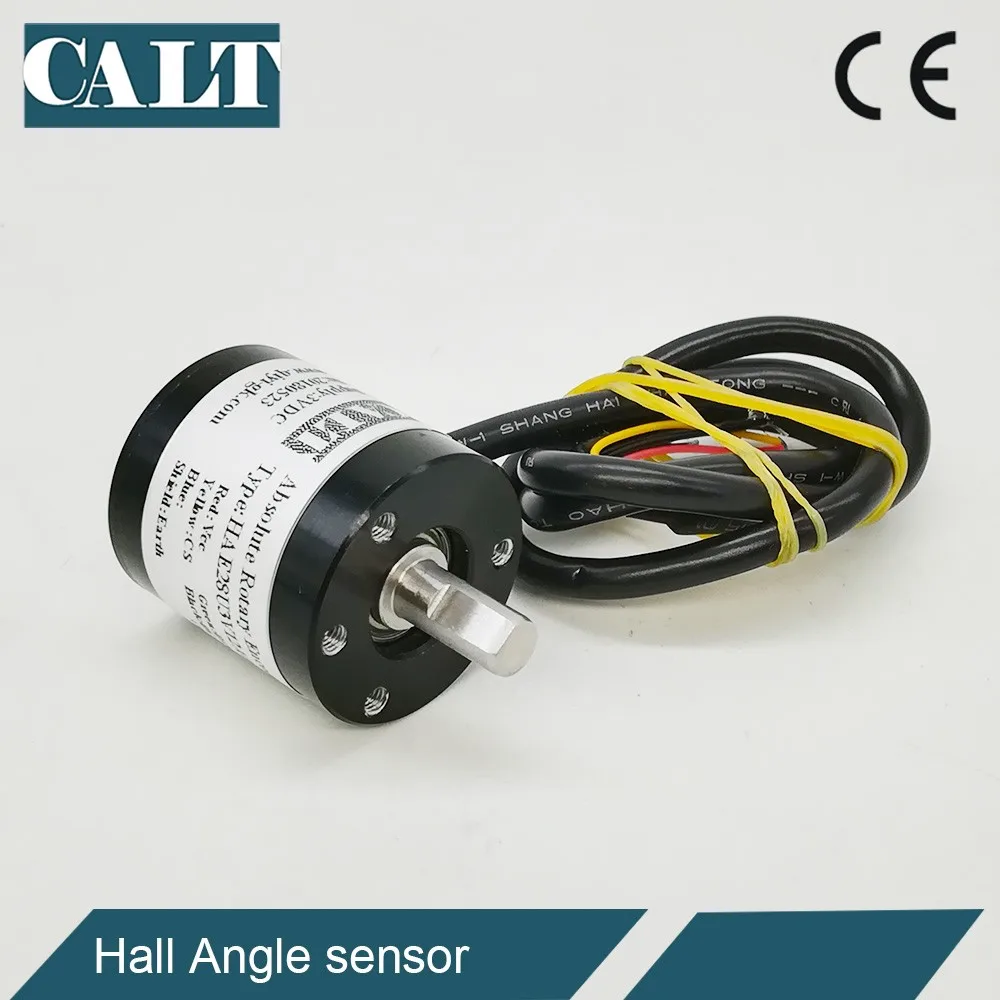

HAE28 3V Absolute Type Rotary Encoder Hall Angle Sensor

Detailed Images
Packing & Delivery
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
