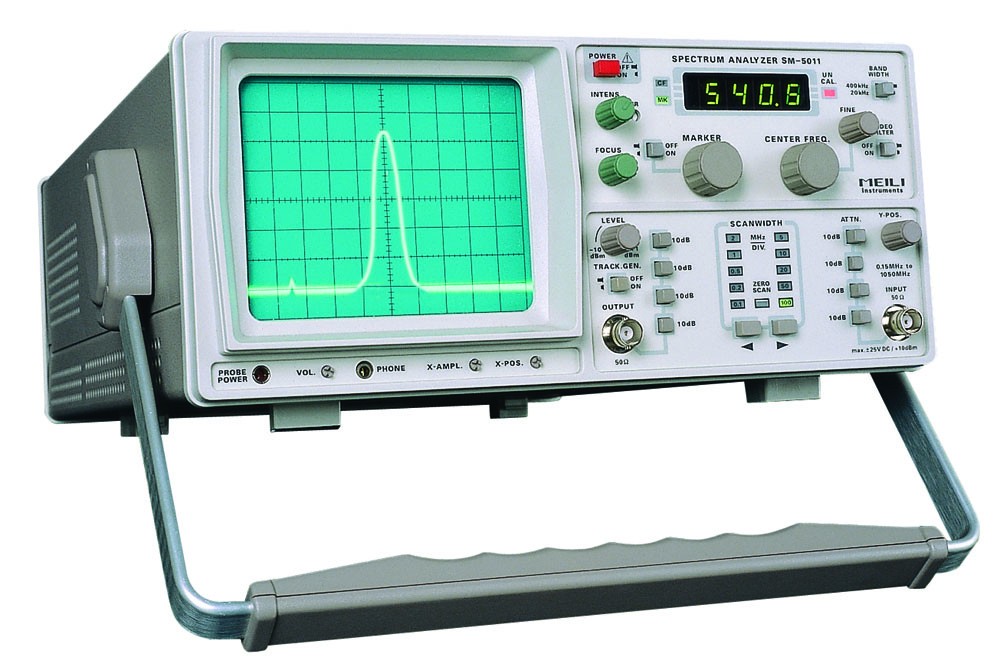

High Precise 1GHz SM-5011 Spectrum Analyzer with high accuracy

Feedback Ratings
  • 1-9 Units
  • 10-19 Units
  • 20-49 Units
  • >=50 Units
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customized logo (Min. Order: 50 Units)
Contact Supplier
Samples - $750.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Tracking feature:
Input frequency Response:
1050MHz, 3dB
Frequency Display Resolution:
Input Power Supply:
220V or 110V option
DC Output:
Probe +6V
AM demodulation output:
Impendance of load≥16Ω
Factory warranty 1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X38X23 cm
Single gross weight:
10.0 kg
Lead Time :
Quantity(Unit) 1 - 100 >100
Est. Time(days) 5 To be negotiated

Products descriptions

SM5010/5011 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CATV/MATV system as well as the test and trouble diagnosis of cellular phone system. Combined with the near field probes of Mz530, it can detect the missing fields of radio frequency

SM5011 is equipped with a tracing signal generator, and in the combined use of spectrum analyzer and tracing signal generator, it can complete the work which cannot be done by other frequency sweep system, such as sweep generator, oscilloscope etc...


Input frequency response0.15-1050MHz, 3dB
Display accuracy of central frequency+/-200KHz (frequency sweep width +200KHz)
Accuracy of mark frequency+/-0.1% (frequency sweep width +100KHz)
Frequency display resolution100KHz (4½ bit LED display)
Frequency sweep width0.1MHz/div-100KHz/div with 1, 2 and 5 step system
And 0Hz/div (0 frequency sweep) Accuracy: +/-10% (each range)
Intermediate frequency bandwidth20KHz and 400KHz
Video filter(When on) 4KHz
Amplitude range-107~+13dB
Reference level-27dB~+13dB (10dB for every step) +/-2dB
Average noise level-97dB(20KHz intermediate frequency width)
Display range of CRT screen80 dB(10dB/div)
Display range of vertical display+/-2dB (2 With attenuator) 250MHz signal
Input attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Maximum input level+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB)
Frequency stabilityOver 150KHz/hour
Input jack typeBNC
Input impedance50Ω
Power supply220V/110V; +/-10%; 50Hz/60Hz
Tracing signal generator (SM-5011 ONLY)
Input frequency response0.15-1050MHz, 3dB
Output level range-50~+1dBm (4x10dB) +/-3dB
Output attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Input jack typeBNC
Input impedance50Ω
DC output+6V (for probe)
AM demodulation outputLoad impedance ≥16Ω





Company background

MCH Instrument Co. Ltd, was established in 1995, founded by Mr Huang Jing Wen, (CEO & Director of company)

We Build up our own Brand – MCH series in measuring, electronic tester instrument equipments such as Oscilloscope, spectrum Analyzer, Function & signal generator, Frequency counter, DC Power Supply unit Etc….

After 20 years of growing, MCH become strong, not only in product manufacturing, but do have own expert teams in management and products R&D,

MCH won a lot of achievements in China, and we archived ISO9001:2008. Most of our products are CE, ROHS certified

We do have OEM & ODM services

S. E. Q (Service, Economic pricing, Quality) is our concern, we know what you need, and we know what we have.

THAT WHY, Your concern is our target.

Looking forward to building up our partnerships.






Our service


S. E. Q (Service, Economic pricing, Quality) is our concern, we will serve you better, we try our best to ensure all the inquiries and requirements will reply ASAP not more than 24hours

After sales service

-All our products have 12 months warranty

-Components and spare parts will deliver for free once the causing traced within warranty period

-We have technical teams will serve you once you face any products issue, thru voice or video conference.

Packing & delivery

standard export cartons:
1.2 units per carton
2.carton dimension: 500*390*240mm
3.Gross weigth: 8kg/pc
