High Quality Cheap Prices WC67Y-100 acl cnc hydraulic press brake

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
WC67Y-100/4000
Condition:
New, New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TONGWEI
Material / Metal Processed:
Plastic
Automation:
Automatic
Extra Services:
Buffing / Polishing, Machining
Certification:
ce, ISO CE
cnc system:
DA41
hydraulic system:
atos
operation method:
operation method
Type:
Horizontal
Voltage:
380
Power(W):
7.5
Machine Type:
Beading Machine
After-sales Service Provided:
Overseas service center available
Raw Material:
PIPE
Power:
Hydraulic
Supply Ability
Supply Ability:
150 Set/Sets per Year
Packaging & Delivery
Packaging Details
simple packing and OEM Packing available.
Port
shanghai
Lead Time :
15days

Specifications

acl cnc hydraulic press brake
Major Market:
North America, South America

WC67Y-100/4000 hydraulic press brake machine







* The lear plane selects and uses the WC67Y/K series breaking curved machine up;

* Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);

* Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;

* Rear material adopt the average silk pole and precise ball two kind silk poles;

* Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.

* Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision;

* Electrically adjustable and manually fine-tune the backgauge distance slide strock, and features a digital display device, a convenient;

* The upper die with deflection compensation device, the machine can be used for more than 250 tons and length of 4000mm deflection compensation agencies.

High Quality Cheap Prices WC67Y-100 acl cnc hydraulic press brake



Technology paramerers



                                 Hydraulic press brake (Series WC67Y/K)
ModelPressure
KN
Worktable length
mm
Distance between columns mmDepth of throat mmStroke
mm
Max height between
worktable and ram    mm
Main motor  KWWeight
KG
Dimension
(LxWxH)
mm
WC67Y/K-40/25004002500192522080300430002650x1100x1950
WC67Y/K-50/250050025002015220100340437502650x1250x2100
WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
WC67Y/K-160/320016003200259032020047511105003260x1580x2775
WC67Y/K-160/400016004000304032020047511125004060x1580x2925
WC67Y/K-160/600016006000480032020048011195006060x1580x3480
WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
WC67Y/K-300/320030003200253040025058018.5180003300x2100x2980
WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
WC67Y/K-400/400040004000318040032063030300004060x2220x3630
WC67Y/K-400/6000400060004700400320630304500060602x2203x980
WC67Y/K-500/60005000600046005003207030550006080x2760x4000
WC67Y/K-800/600080006000460050040090037720006100x3250x4300

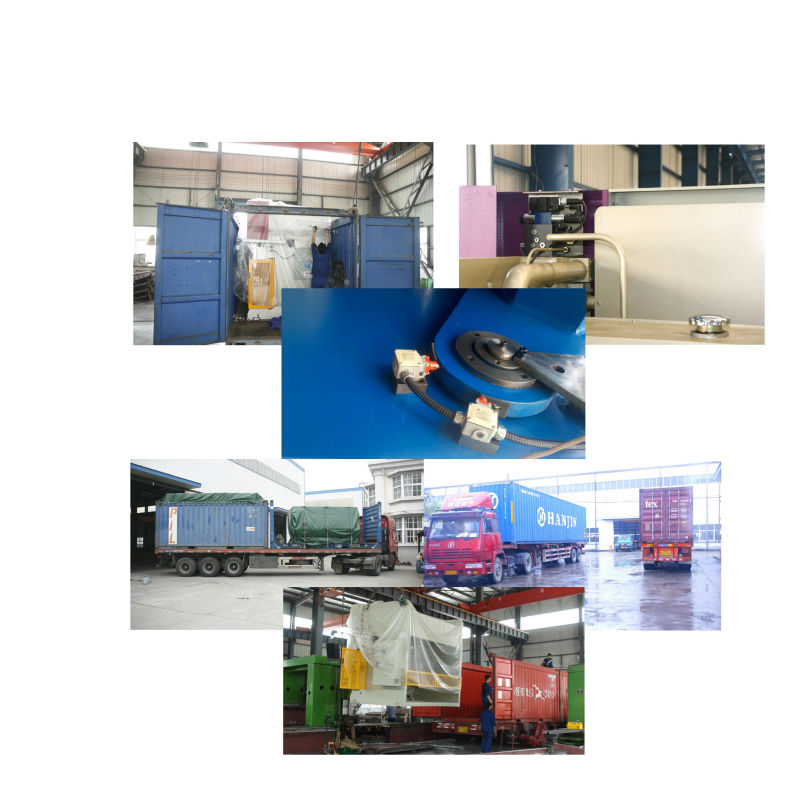

    Machine pictures

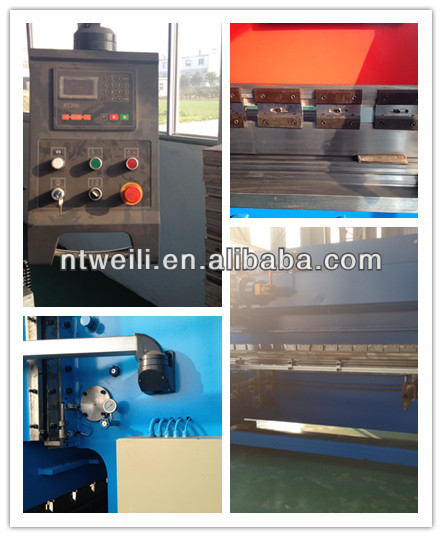

Machine tool details pictures
Press brake namerical control system (option)
