High Quality Leather Cutting Machine Price/ Textile Fiber Cutter

  • >=1 Sets
    $3,500.00
Model Number:
MSSB-900
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
5.5kw
Dimension(L*W*H):
3200mmx1000mmx1200mm
Weight:
800kg
Warranty:
One Year
After-sales Service Provided:
Field maintenance and repair service
Applicable Industries:
Manufacturing Plant
Condition:
New
Application:
Fabric Cutting
Automatic Grade:
Automatic
Production Capacity:
300-500kg/h
Place of Origin:
Henan, China
Brand Name:
MS
Voltage:
380V, 50HZ
Features:
High Speed
Certification:
CE ISO
Input Belt Size:
1400mmx350mm
Output Belt Size:
1400mmx350mm
Cutting Size:
25mm-50mm-75mm
Materials Inner Size:
150mm
Product name:
Leather Cutting Machine Price
Cutting materials:
nylon, waste cloth
Color:
Customized
Knife Size:
420x70x20mm
Knife Materials:
Cr12mov
Supply Ability
Supply Ability:
50 Set/Sets per Month Leather Cutting Machine Price
Packaging & Delivery
Packaging Details
wooden case or iron box will be used to cover Leather Cutting Machine Price
Port
Qingdao, Guangzhou, Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Description

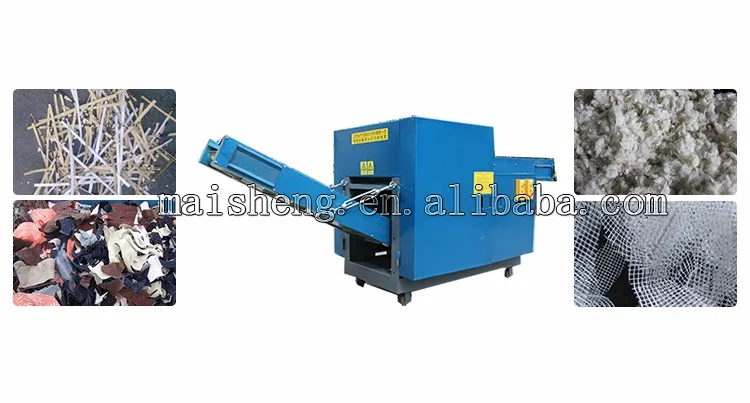

Product Application of Leather Cutting Machine Price

1. PVC feed and output conveyor.

2. Electric cabinet which has dual control + power indicator + thermal protection + current meter + voltmeter.

3. Iron roller and rubber roller can suitable for the different raw materials.

4. Alloy steel spinning blade and fixed blade combine together to get good effect .

5. Different final product size through changing the spinning blade quantity.

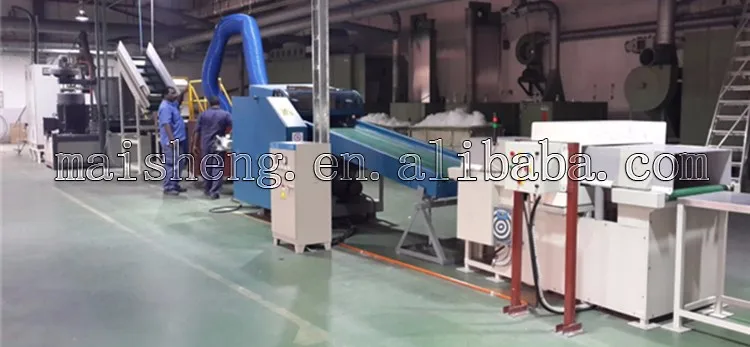

6. Can also combine with other machines to make the waste recycling line.

7. Application: this fiber cutting machine can quickly cut up all kinds of scrap cloth, waste cotton yarn, chemical fiber, linen, leather, paper, non-woven fabrics and other materials.

Main Features

1. Powerful, can deal with different kinds of materials.

2. We have different models, making it suitable for different customers.

3. Integral cast steel knives make sure the durability , security design ,Ensure safe and smooth production .

4. The final product can be strips or very small pieces. And the

product size can be customized based on your requirements.

5.Installed with wheels, easy to move.

6. Easy to operate and maintain.

Specification
Model
MS-950
MS-900-4
MS-1600-4
Cutting motor
11kw-4
5.5kw-8
15kw-8
Conveyor motor
1.5kw-4+3kw-2
1.5kw-4
2.2kw-4
Voltage
380v /50hz
380v /50hz
380v /50hz
Triangular belt
B*2700mm
B*2600mm
C*3550mm
Capacity(kg/h)
100-300
300-500
1000-2000
Conveyor belt (mm)
1400*350
1400*350
2800*680
Cutting size(mm)
1-50
25/50/75
Min5-10mm, Max30mm
Spinning blade number
6(adjustable)
4(adjustable)
4(adjustable)
Fixed blade number
2(double-edged)
1(double-edged)
1(double-edged)
Dimension (mm)
3200x1000x1150
3200x1000x1200
6200x1600x1500
Weight(kgs)
760
700
1760
Certifications

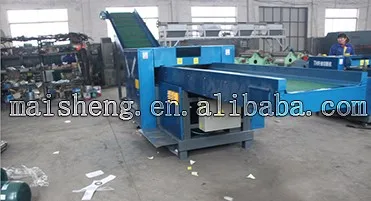

Detailed Images

Machine Parts

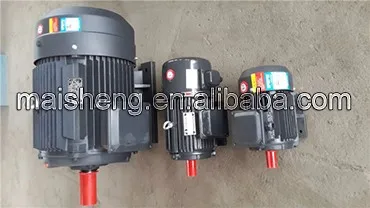

Name: Motor


Copper motor, long life span. Also can be customed as your requirements

Main Features

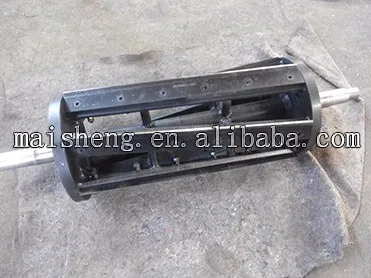

Name: Rotation Shaft

It has adopted 45# steel as the main construction materials, diameter is 70mm. The using quality has been largely increased.

Machine Parts

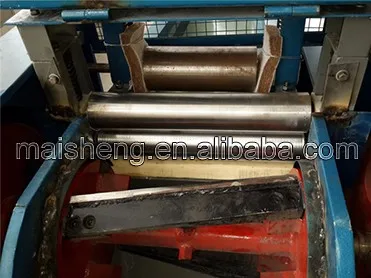

Name: Cutting Knives

Knives are made of Gr12MoV, spray paint has been used in this part to protect it from rusting. For other factory, they usually purchase the knives and then paint, easy rust

Main Features

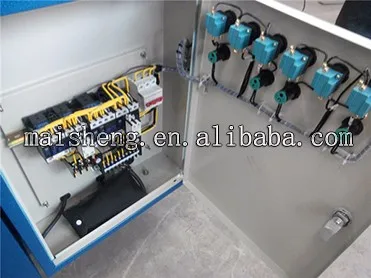

Name: PLC Control System

PLC Control system will make the operation easier, famous electric element has been used in this part

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3400 (L) * 1250 (W) * 1330 (D) mm
Weight
800 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3350 (L) * 1140 (W) * 1280 (D) mm
Weight
830kg



Packaging Details
Iron packing can be choosed to pack this machine, iron frame has been used to control the machine
