High Quality Small Desktop Wood CNC Router Machine Price

FOB Reference Price:Get Latest Price
$1,999.00 - $3,599.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PEM-4040
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Hubei, China
Brand Name:
perfect laser
Voltage:
AC220V/50HZ
Dimension(L*W*H):
0.88*0.93*1.5m
Certification:
CE ISO
Warranty:
12 months
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Power stroke of X,Y,Z axis:
400*400*80mm
Size of working table:
520*540mm
Running location precision of X,Y,Z axis:
±0.03mm
Power stroke of Z axis:
120mm
Spindle speed:
6000-24000rpm/min
XY Running sensitivity:
0.02mm
Working style:
Stepping motor (Option :Servo Motor)
Engraving order:
G Code.uoommg
precision of X,Y,Z axis:
±0.01mm
Power(W):
1.5kw
Weight:
150kgs
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
compound wooden cases which comply with export standard , package size :88*93*150cm, 150kg, suiatble for air shipment or DHL
Port
shanghai
Product Description

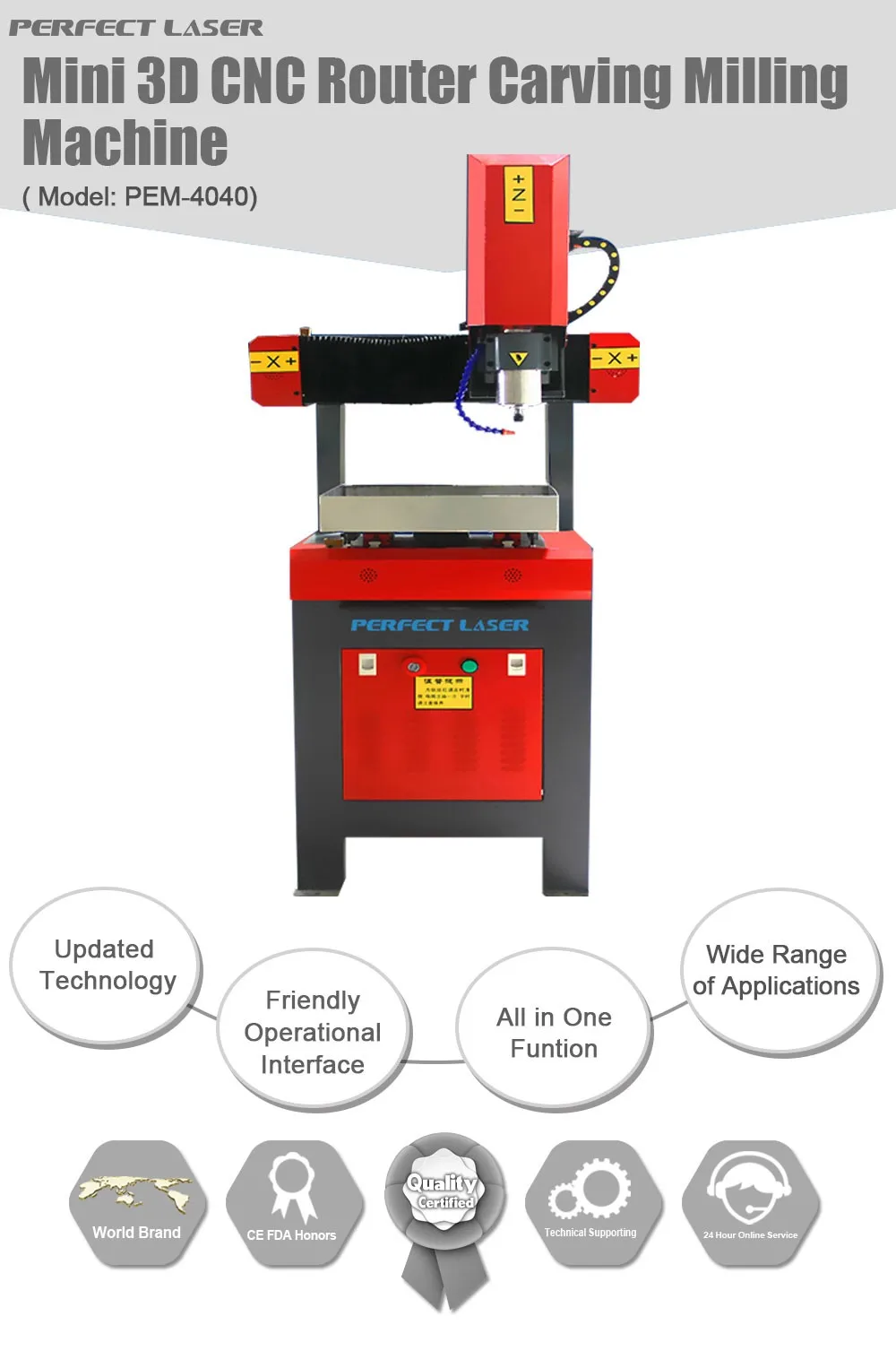

High Quality Small Desktop Wood CNC Router Machine Price


(Model:PEM-4040)

Skype: perfectlaser08 Whatsapp: +8613659885038 mail :sales08atperfectlaser.net

PEM-4040 3D CNC router is with high-speed main spindle, cooling of water circulation, mini 3D CNC router has little noise and pollution.

The engine bed of 3D CNC router is made from pure aluminum, which ensures the parallelism, vertical and greatly increases the precision and speed of the engine bed.

The mini CNC milling machine is applied in cutting of kneading board of large size and making of large-scale relief and label.

Samples

Perfect Laser standby type mini CNC routers are widely used advertising, seals processing, handcrafts, special instruments processing, little moulds processing, etc. And the engraver can engrave kinds of metal or nonmetal stuff, such as: iron engraving,iron cutting, copper engraving, copper cutting ,aluminum engraving, aluminum cutting, plastic engraving, plastic cutting ,wood engraving, wood cutting .etc.

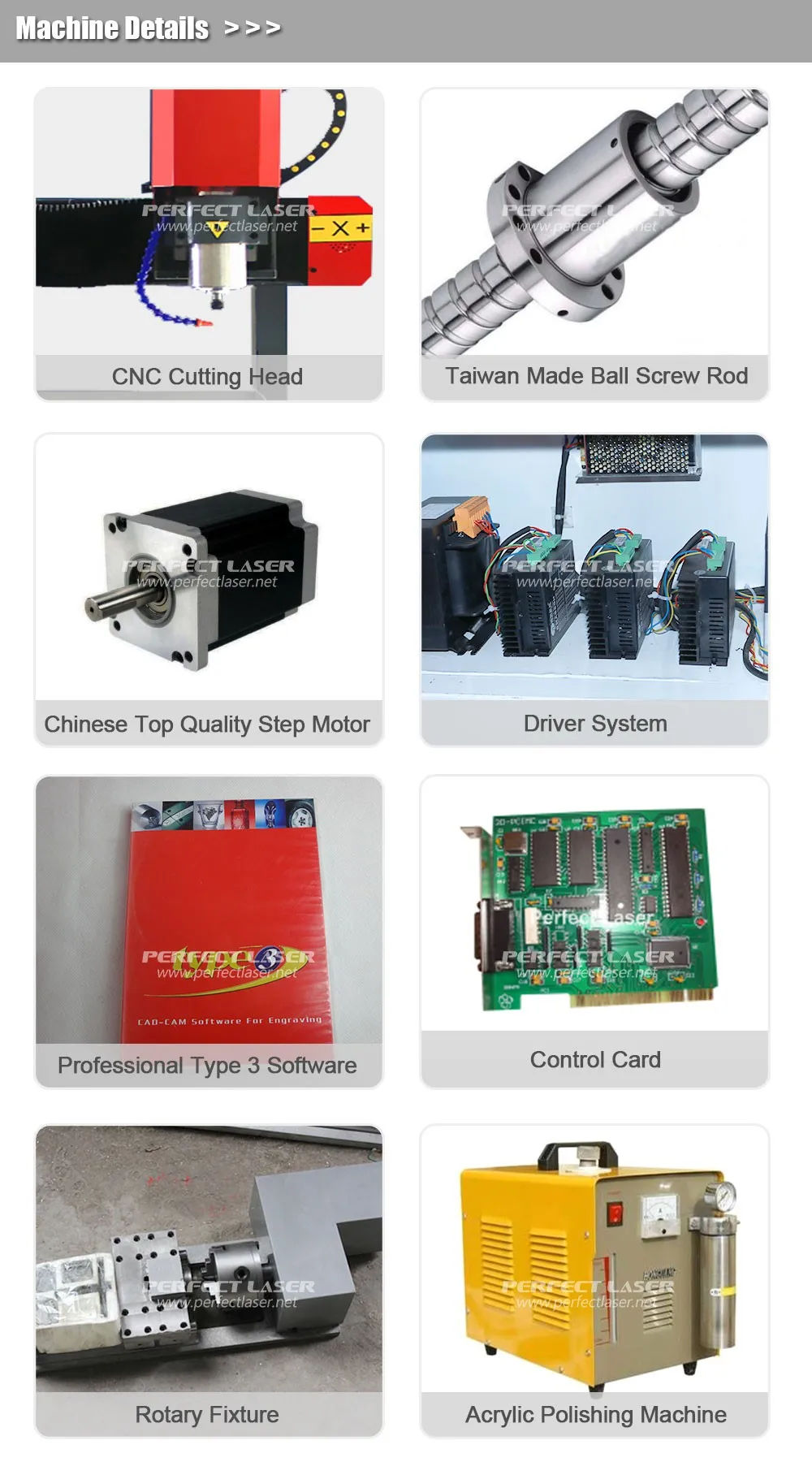

Detailed Images

1. X, Y, Z axis use imported ball bearing guide screws. CNC router milling machine's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main spindle, 3D CNC router is an suitable product for manufacturing construction models, labels and moulds in batches.

2. High speed calculation. The mini CNC router engraver uses DSP64 contouring control system and FPGA technology which can continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.

3. Steady data transmission. 3D CNC router uses ISA/IP DNC/IP technology straight association, and the 3D CNC router can associate the machine without interruption, no limitation of the amount of the document.

4. Double-nut guide screw. The mini CNC router engraver uses Germany-imported high-precision ball bearing guide screw which can eliminate cracks automatically. Coordinated with the imported shaft coupling, and the 3D CNC router can realize precise control. The mini CNC router engraver uses straight line guide rail (cylinder or square), which can ensure the working life.

5. Own big internal memory capacity of 32M, enable machine to store 30 processing files simultaneously and open or process any of them.

Technical Data
Model
PEM-4040
Power stroke of X,Y,Z axis
400*400*80mm
Size of working table
520×540mm
Power of main axle
1.5KW
Running location precision of X,Y,Z axis
±0.03mm
Repeating location precision of X,Y,Z axis
±0.01mm
Power stroke of Z axis
120mm
Working style
Stepping motor (Option :Servo Motor)
Spindle speed of frequency conversion main axis
6000-24000rpm/min
Working voltage
AC220V/50HZ
Engraving order
G Code.uoommg
Optional main axis and Cartridge
φ3.175.φ6
XY Running sensitivity
0.02mm
Optional Item
DSP Remote Controller(for offline working)
Quality Control

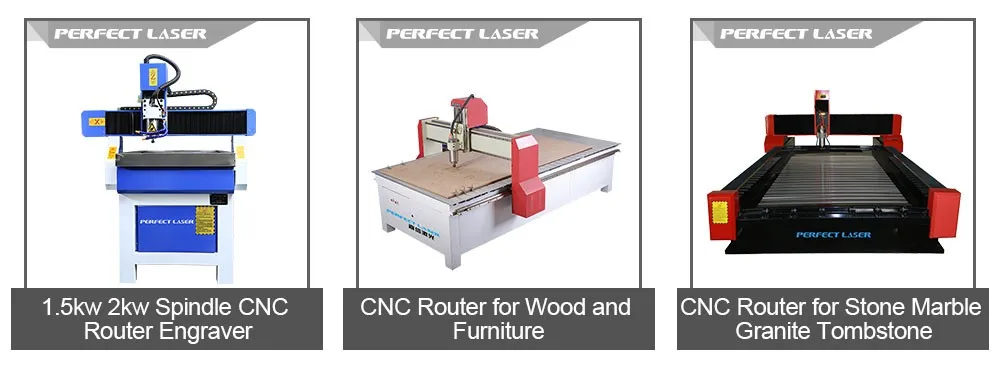

Related Products
