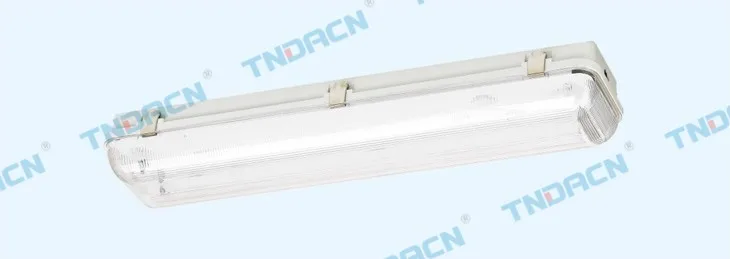

High Quality tri- proof Explosion Proof IP65 White Plastic Fluorescent led Light Fixture

  • 1-39 Pieces
    $75.00
  • 40-99 Pieces
    $72.00
  • >=100 Pieces
    $68.00
Emitting Color:
White Cold White
Model Number:
BYS52
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
170-250VAC
Lamp Power(W):
28
CRI (Ra>):
80
Lamp Luminous Flux(lm):
6400
Working Lifetime(Hour):
20000
Working Temperature(℃):
-25 - 55
Place of Origin:
Zhejiang, China
Brand Name:
TNDACN
IP Rating:
IP65
Certification:
CCC,CQC,
Lamp Body Material:
Plastic
Temperature Class:
T1-T6
Cable outer dia(mm):
8-14
Emergency:
DC6
Wire inlet:
G3/4"
Anti-corrosion:
WF2
Ex rating gas:
ExnR II T4 Gb, ExnR II T3Gb
Lamp Luminous Efficiency(lm/w):
104

Packaging & Delivery

Selling Units:
Single item
Single package size:
57X16X10 cm
Single gross weight:
3.0 kg
Package Type:
Cartons,Wooden cases or others as you are required.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Product Description
Power
Voltage
Charging Time
Emergency      Time
Emergency
Time
Cable Outer
 Dia.(mm)
Cable Inlet(G)
28×1(J)
28×2(J)
~220V DC6V*
24h*
0.3s*
90min*
φ8~φ14
3/4
Ex-mark
Protection Degree
Anticorrosion grade
ExdⅡCT6 equivalent Ⅱ2G Exd ⅡCT6 (European standard)

DIP A20 TA, T6 equivalent to Ⅱ1D ExtD A20 T6 (European standard)
IP65
WF2
Type
A
B
C
D
E

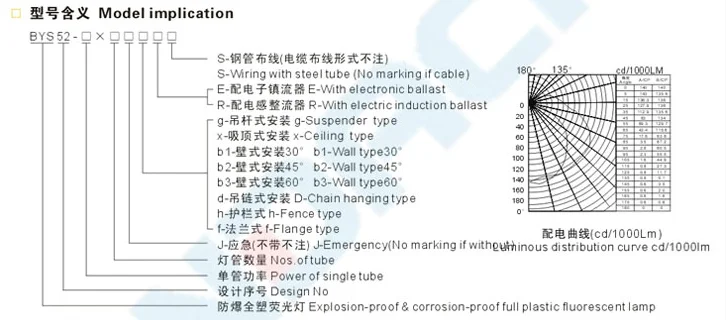

BYS52-20×□
570
520
95
156
72
BYS52-40×□
1260
850
95
156
72
No.
Description
Remark
No.
Description
Remark
1
Lamp
Self-prepare
9
Hook
Self-prepare
2
Pipe clamp
10
Chain
3
Flexible connecting pipe
11
Wall mounting rack
4
Platform bend-rod type
12
Eye bolt
5
Platform tube
13
Platform Light Junction Box
6
Connecting pipe
14
U-tube clip
7
Ceiling mounting
15
Bottom board
8
Ceiling feet
Applications

1.Can be used in group IIA, IIB and IIC explosive atmosphere, zone 1, zone 2, zone 20, zone 21 and zone 22 flammable dust atmospheres.

2.Temperature class: T1~T6.

3.Indoor or outdoor (IP65, IP66* indicate it when ordering).

4.Can be used in the chemical, petroleum refining, petroleum exploitation, offshore platform, tankers, military industry and other dangerous places.

Features

1.The enclosure is moulded by reinforced polycarbonate. It has some advantages of high intensity,strong impact resistanced, high temperature resistant and cold resistance;

2.Thsi kind of lamp housing is the latest and superfine lamp of T5, whose futures are as following;

a)Short length can control the lighting more accurately.

b)Great lighting effect can more accord with the actural illumination environment. The lighting effect of lamp tubes can reach 104lm/W.

c)It has many times to be on -off and has a long working life. The working life can be lasted 20000 hours.

d)High luminous maintenance rate and slow optical decay. After 10000 hours,the luminous maintenance rate can reach92%.

e)To improve the distributions of light beam, it has great color rendering, energy conversation and environmental protection. The luminous flux of T5 Tubes with 28W is more than T8 tubes of 36W's.

3.Reflector is eambered specially. After it has been designed by special software design of distribution for two times, and passed the actual test. The distribution of light beam can be more reasonable;

4.Inner electronic ballast is our company's special explosion-proof ballast, and it has protection functions of short circuit and open circuit. For the phenomenons of tubes aging effect and air leakage, it should have standby circuit in order to keep it working. The high energy saving is COSф≥0.98,and it has the wide range of input voltage. It can keep constant power output and have no impact on the lighting effect output within 172V~250VAC;

5.Buckle structure is used between the enclosure and transparent cover to get together more tightly. The special sealing strip can be sealed doubly and its protection is more perfect;

6.Convenient maintenance. You can just put the screwdriver into the ventage of buckle to open and close;

7.Add an emergency device to meet customers'requirements.
