High Speed 32mm Wide Aluminum Fin Machine for Aluminum Radiators

  • 1 Pieces
  • >=2 Pieces
Model Number:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Jiangsu, China
Brand Name:
After-sales Service Provided:
Field installation, commissioning and training
1 Year
High Speed Aluminum Fin Machine for Aluminum Radiators
fin use:
radiator, condenser or other heat exchanger products
fin type:
working principle:
fin rolling mechanism
fin wide:
automation level:
fully automatic
pneumatic system working pressure:
PLC brand:
Delta, Taiwan
Fin Rolling Unit Life:
about 200, 000,000 fin crests
fin foil feeding Speed:
Product Certification Verified
CE Certified.
Valid from 2017-12-28 until 2022-12-27

Packaging & Delivery

Selling Units:
Single item
Single package size:
350X110X190 cm
Single gross weight:
1800.0 kg
Package Type:
Plywood wooden case or steel box
Picture Example:
Lead Time :
Quantity(Piece) 1 - 1 2 - 2 >2
Est. Time(days) 14 10 To be negotiated
Video Description
Product Description

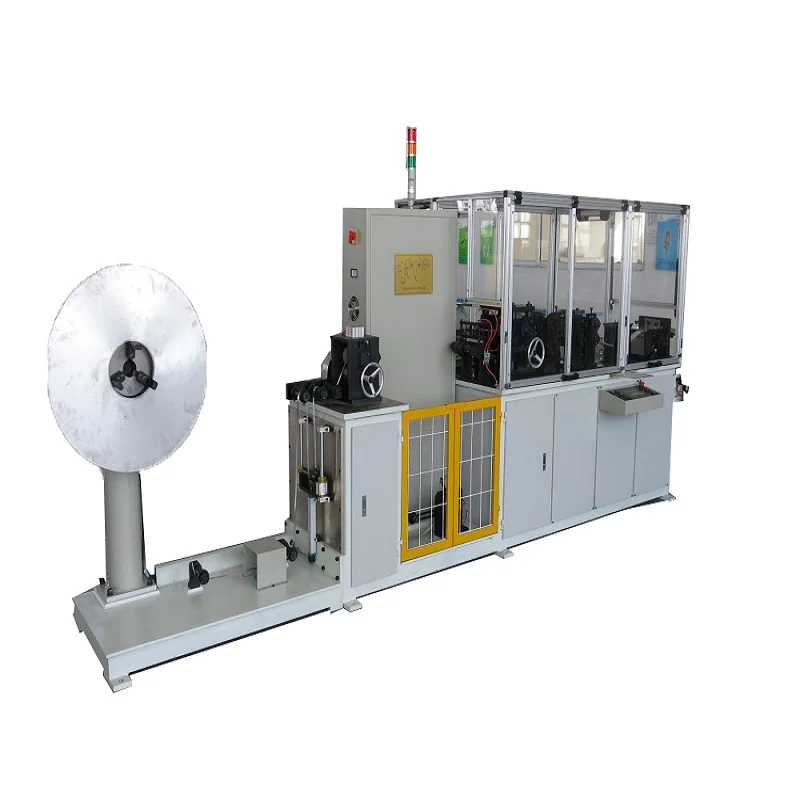

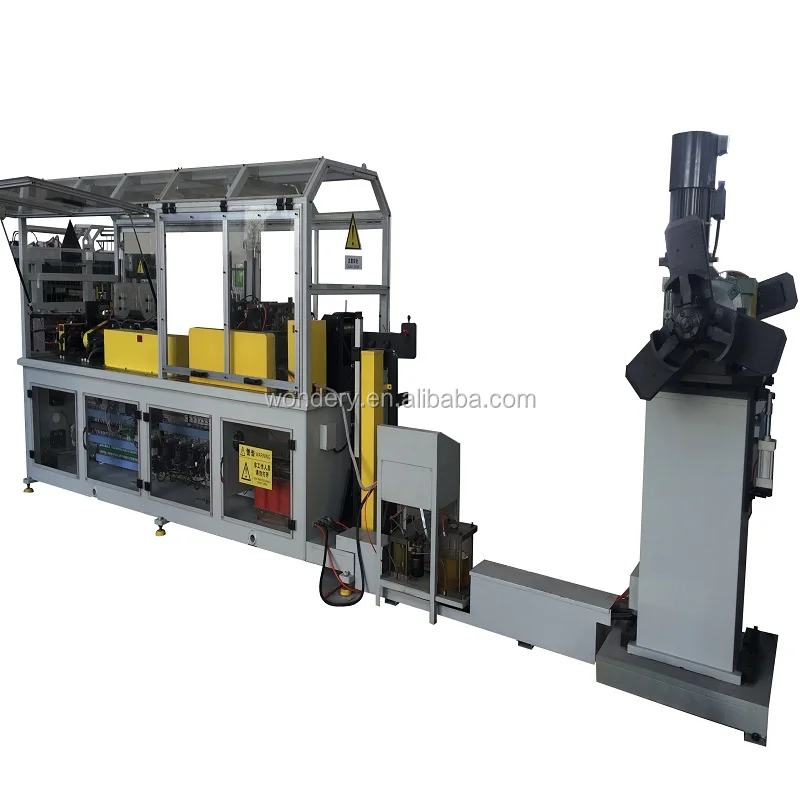

High Speed Auto Radiator Aluminum Fin  Machine
 The aluminum fin machine It is equipped with additional devices such as magnetic powder arrester, motorized feeding device, pneumatic decoiling device, and endless screw fin counting device. The machine employes a combined control through human-machine interface, PLC control system, and the pneumatic control system. The speed for the feeding motor and the main shaft motor are both through imported inverters.
The feeding speed can automatically follow the fin making speed, and the aluminum fin machine counts the fin quantity through the servo motor and photolectric transducer. When the aluminum fin machine is working continuously, the fins are cutted at a fast speed ( near zero speed cutting). The aluminum fin machine has a high counting accuracy and a high anti-interference ability. The coil rack has a tightening, braking and arresting device, and the coil plates stops rotating at the same time when the master machine stops working. The aluminum fin machine allowes a control over the fin height and the fin-to-fin distance. The human-machine interface displays the working frequency of the master machine, fin count, product quantity, and faults. The aluminum fin machine has two working status, manual and automatic. The aluminum fin machine is equipped with main shaft inching button and stepping inching button for easy test-running of the machine. The aluminum fin machine is also equipped with a strip breakage and intertwist alarm device. The aluminum fin machine halts automatically when faults occur.

Main Technical Parameters
Feeding speed: 0-280m/min (stepless speed regulation)
Fin height: 3-25mm
Fin height accuracy: ±0.02mm (fin height≤12mm)
±0.03mm (fin height≥12mm)
Cutting accuracy: ±0 fins
Cutting time: 60 times/min
Raw material thickness: 0.04~0.15 (copper strip)
0.08~0.30 (aluminum strip)
Fin distance adjustment range: ±0.6mm ( when the fin height is kept unchanged)

Main Features

1) The 100m per minute aluminum radiator fin machine is our standard machine model, and is equipped with PLC and HMI control system. It is very stable in performance, and the finished product has a high product efficiency.
2) Our factory has its own machining centers, and CNC mills. The fin forming roller and its blades are all made by our own, which makes our machine cost more competitive in the market.
3) The fin forming roller is changeable, and different fin models can be produced on the same machine.
4) The minimum fin thickness for the wavy fin is 0.06mm which saves the customer's cost.
5) The 280m/min radiator fin making machine is be equipped with our patent lubrication system. The micro spray lubrication system can save about 60% lubrication.

Detailed Images

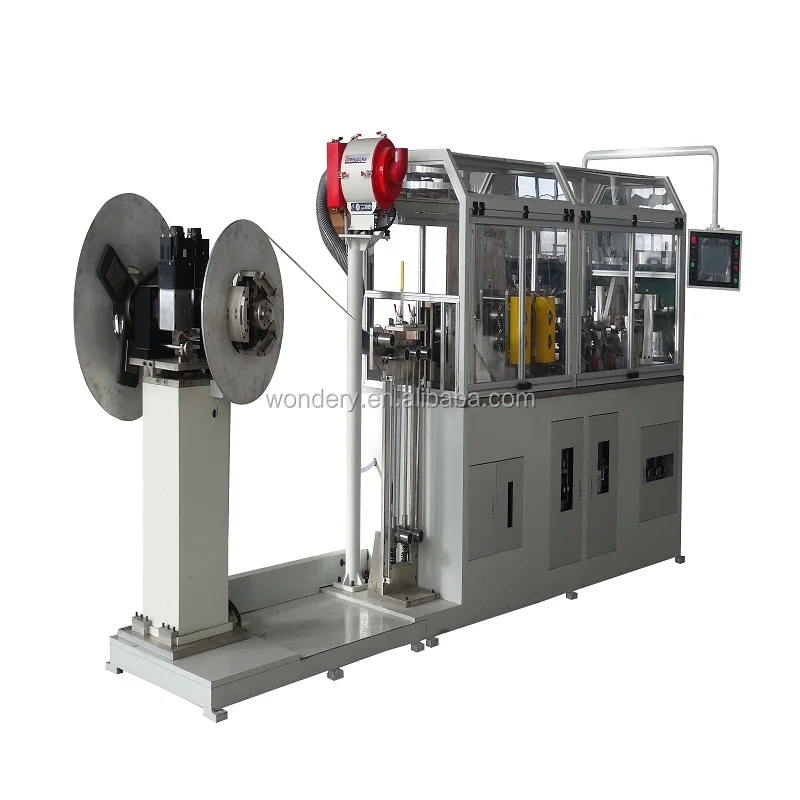

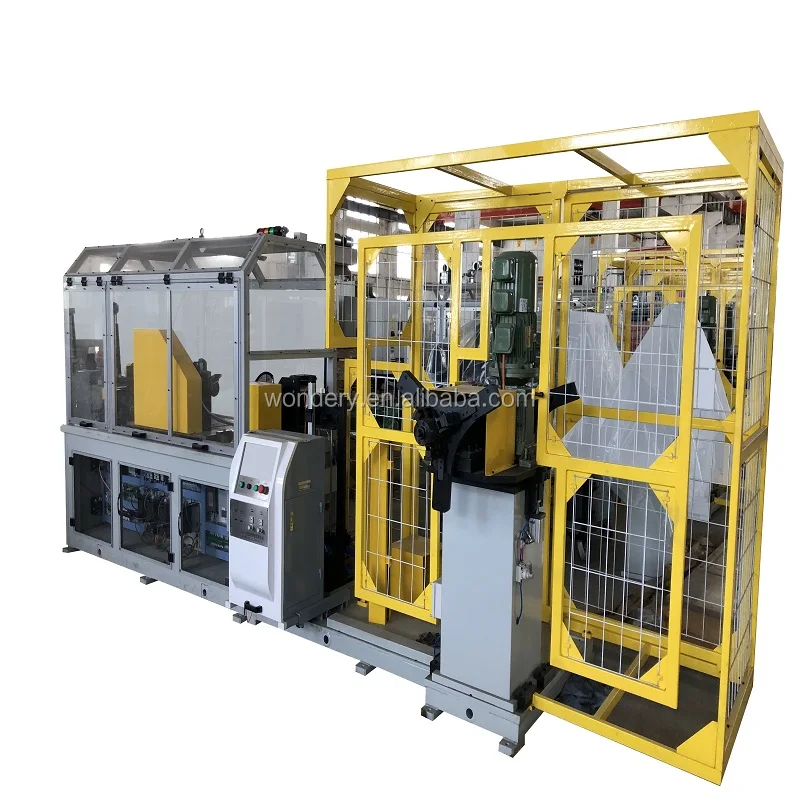

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the aluminum fin machine, training how to use the aluminum fin machine.

* Engineers available to service machinery overseas.

Packing & Delivery
6 T

Packaging Details
The normal package is steel case package. The fin machine is also called as radiator fin making machine, fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine, corrugated fin making machine, radiator fin rolling machine, fin forming machine, radiator fin rolling machine.
