High Speed Position Displacement String Pot Sensor 8000mm 10000mm Stroke Transducer Absolute SSI MODBUS RTU

Feedback Ratings
  • 1-9 Pieces
  • 10-99 Pieces
  • >=100 Pieces
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
stock length (Min. Order: 1 Pieces)
output (Min. Order: 1 Pieces)
Contact Supplier
Samples - $825.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
Position Sensor
Optical Sensor
Digital Sensor
Sensing method:
Stoke Range:
Wide Range
Output Signal:
Operating Temp:
Protection Class:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X25X20 cm
Single gross weight:
8.0 kg
Package Type:
export carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

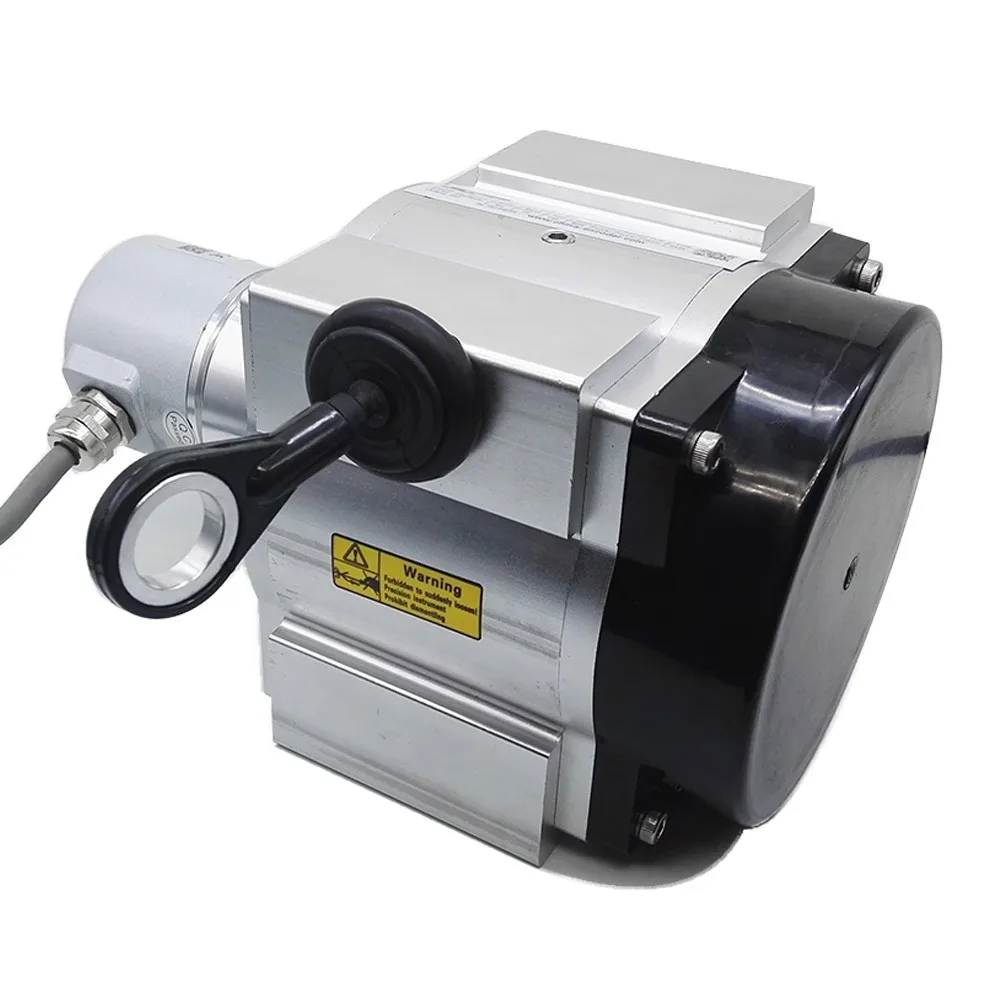

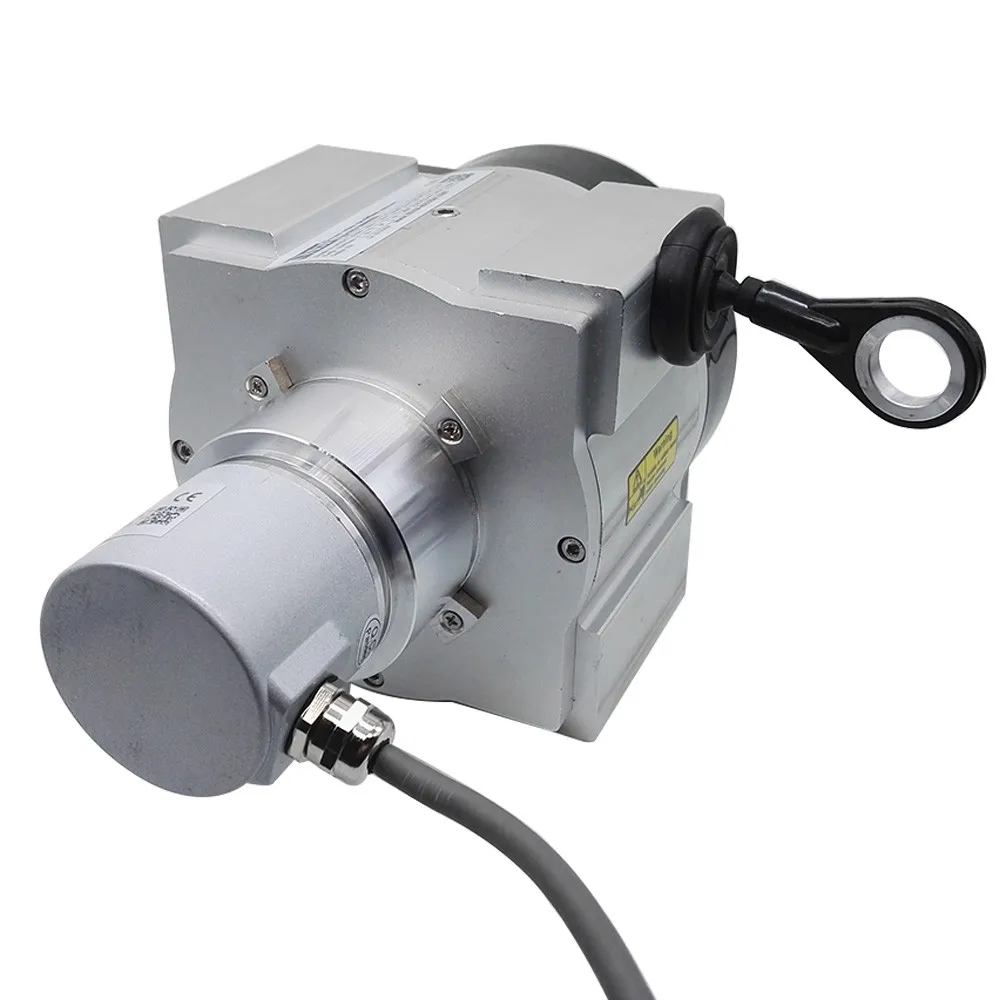

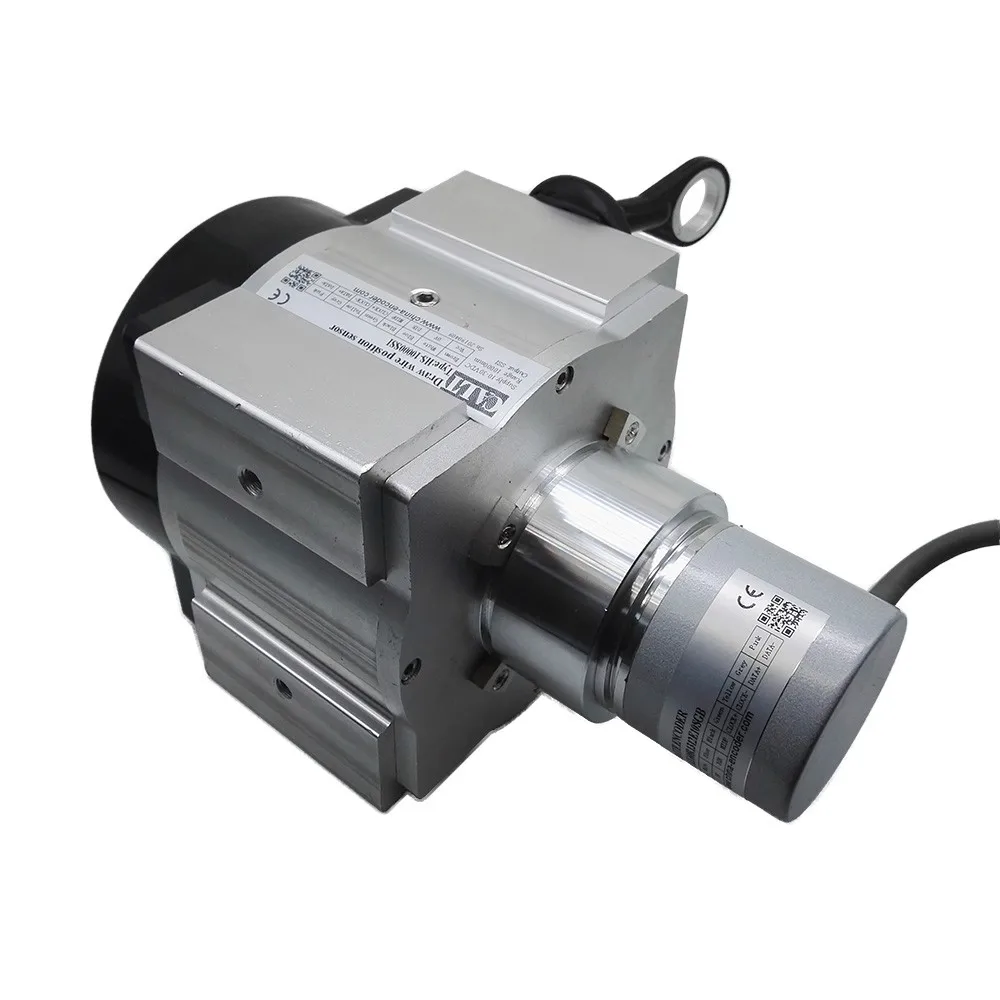

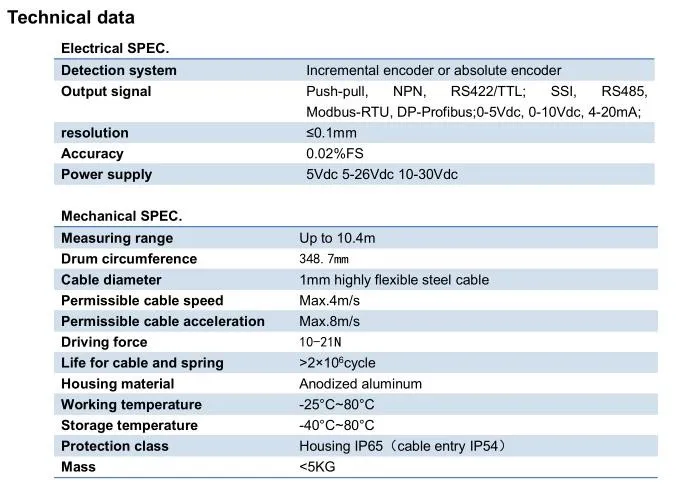

High Speed Position Displacement String Pot Sensor 8000mm 10000mm Stroke Transducer Absolute SSI MODBUS RTU

 Very robust construction for mechanical engineering and industrial plant application.
 The spindle structure of measuring drum, to ensure measurement accuracy up to 0.02%FS, max speed up to 4m/s.
 Max measuring range up to 10.4 meters
 Variety of signal output optional: voltage output, push + pull, open collector NPN, RS422 (line driver), SSI, RS485, Modbus RTU, Profibus-DP
 Easy to install and to use
 Protection class IP65 (IP54)

Functional description

The linear movement of a flexible steel cable, which can have a length of up to 10.4 m, is converted into a rotary movement with the aid of a measuring drum. The measuring drum is connected to the shaft of an encoder. In this way a change in displacement of the measuring cable causes the shaft of the encoder to rotate by a directly proportional amount which can be recorded.

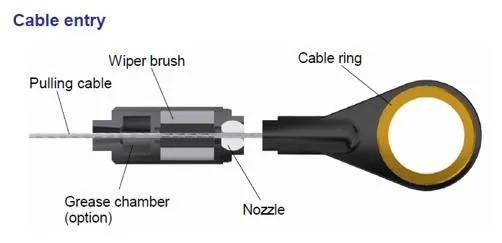

The restoring force of the spring drive holds the measuring cable tight at all times and prevents any sagging which would otherwise induce an error. The measuring drum moves axially on a spindle ensuring that the cable is wound up precisely and reproducibly wrap for wrap in the helical groove of the drum.
