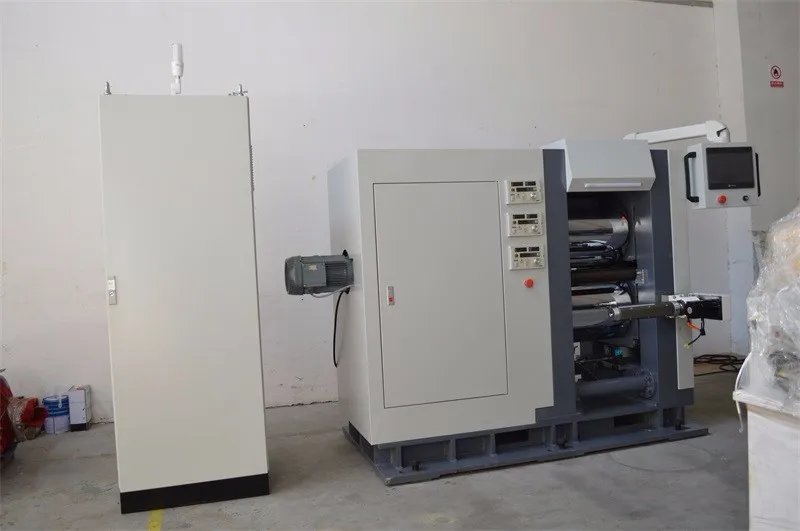

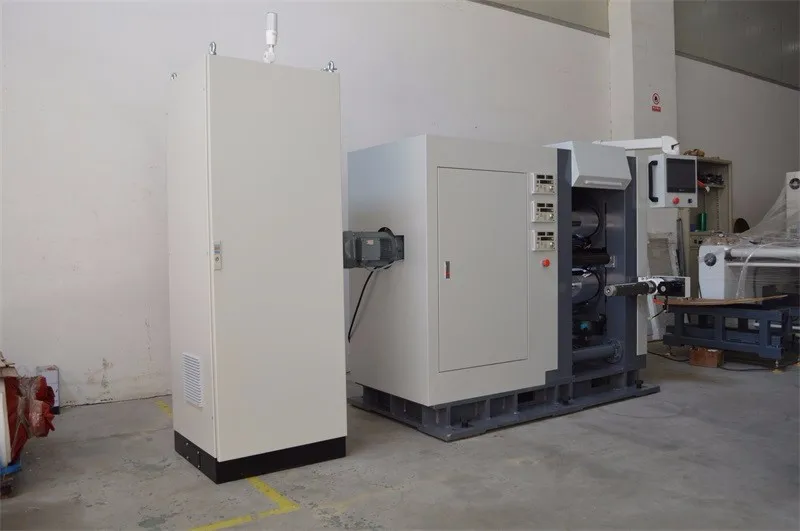

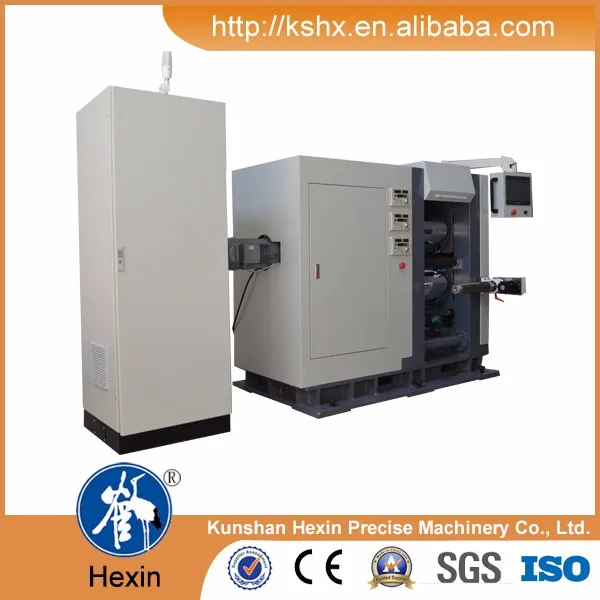

High precise graphite film rolling mill machine

FOB Reference Price:Get Latest Price
$1.00 - $85,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Cold Rolling Mill
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
HEXIN
Model Number:
HX-400Y
Voltage:
380V
Power(W):
3KW
Dimension(L*W*H):
2050mm*750mm*1600mm
Weight:
3 Ton
Certification:
ISO
color:
white with gray
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
The packaging for graphite film rolling mill machine is plywood case .
Port
SHANGHAI PORT
Lead Time :
One month
Product Description

Product Application

1. Graphite film Calendering machine
This machine is used to calender the graphite film roll .it’s suitable for roll material ,cold calender .


Main parameter for high precision graphite film rolling mill machine
Roller size
φ400mm×450mm
Roller material
9Cr2Mo
Hardness of roller
HRC 65-68
Roller surface quenching depth
≥10mm
Roll surface roughness
Ra≤0.2um
Roller roundness
≤±1um
Roller mounted radial run out tolerance
≤1um
Roll gap adjustment range
0-2.0mm
Max. pressure
100T
Main motor power
3KW(380V 50HZ)
Speed
0-12.5m/min
Machine control
PLC ,touch screen
Dimension
2050mm×750mm×1600mm
Max. Unwinding diameter
Φ300mm
Max. feeding width
Φ300mm

Main Features

1. This machine is equipped with constant tension control .make sure the machine running steady .

2. The precision could reach ±1 um ,make sure the Thermal Conductivity and density could meet your requirement .

3. Low noisy ,with touch screen control .


Application

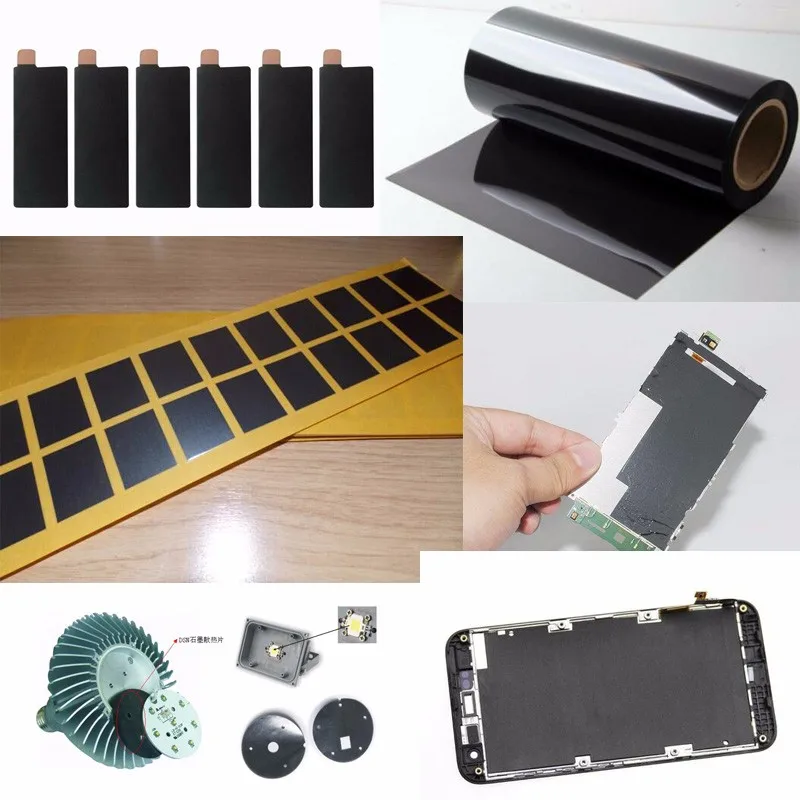

applicable to calender all kinds of natural graphite flake/film calendering. battery pole ,magnet material ,absorbing wave material ,etc .

Packing & Delivery
Packaging
Size
2050mm (L) * 750mm (W) * 1600mm (D)
Weight
3.0 T



Packaging Details
The normal package is plywood box(Size: L*W*H). We will pack the machine by stretch film first ,then package it by plywood case .
