High quality mobile phone case making machine /silicone mobile cover making machine / silicone cell phone cover making machine

$47,000.00 / Set | 1 Set (Min. Order)
Clamping Force:
150T
$47,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Products customized (Min. Order: 1 Sets)
Samples: $47,000.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $47,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Plastic Processed:
LSR
Ejector Stroke(mm):
150 mm
Ejector Force(kN):
4.3 kN
Theoretical Shot Volume(cm³):
300 cm³
Injection Rate (g/s):
30 g/s
Injection Weight (g):
165 g
Screw diameter (mm):
28 mm
Weight (KG):
5300
Machine Type:
Hydraulic
Place of Origin:
Guangdong, China
Open Stroke(mm):
550 mm
Model Number:
TYM-L5068
Brand Name:
TYM
Power (kW):
12.1 kW
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Key Selling Points:
High Productivity
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Turkey
Showroom Location:
Turkey
Injection Rate:
30g/s
Opening Stroke:
250mm-550mm
Injection pressure:
200kg/cm2
Opening stroke:
250mm - 550mm
Pump pressure:
21Mpa
Ejection Stroke:
150mm
templete dimension:
600mm *680mm
Dimension(L*W*H):
2700mm *1750mm * 3600mm
Voltage:
7.8T
Condition:
New
Style:
Vertical
Plastic Type:
Thermoplastic
Automatic:
Yes
Clamping Force (kN):
130 kN
Distance between Tie Bars:
450mm
Certification:
CE
Type:
liquid silicone rubber injection molding

Packaging & Delivery

Selling Units:
Single item
Single package size:
240X160X340 cm
Single gross weight:
5300.000 kg
Package Type:
standard plywood case or based on the detailed request of our client for this mobile phone case making machine/ silicone phone cover making machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated

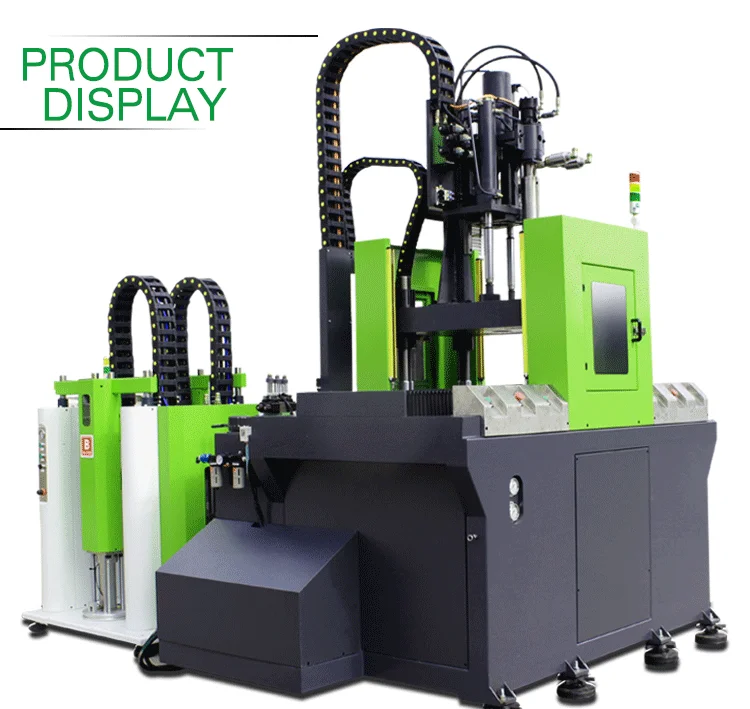

Vertical Liquid Silicone Rubber (LSR) injection molding machine

Closing the mould downward, two kinds of models can be chose – single sliding board and double sliding board. For double sliding board LSR machine, one upper moldboard and two lower moldboards are installed, which improves the production efficiency. The sliding out structure on the machine makes the production more conveniently and more safely. Also the vertical mould opening and closing is more suitable for producing the overmold (inmold) LSR parts which has inserts.



The main feature of the vertical LSR molding machine:

A. Advanced sliding rail structure, which can reduce the oil pollution and make the machine works faster and steadier.

B. Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

C. Meet the requirements on multi-station production.

D. High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.



Mechanical Characteristics for TYM-L5058-2

TYM-L5058 Vertical LSR injection molding machine

Injection Unit

Shot Volume

165 g

Injection Rate

30 g/s

Injection Pressure

19.6 T

Clamping Unit

Clamping Force

130 T

Opening Stroke

250-550 mm

Tie-Bars Pace

500*580 mm

Ejection Force

7.8 T

Ejection Stroke

150 mm

Others

Pump Pressure

21 Mpa

Motor Power

12.1 KW

Heater Power

9 KW

Mould Orientation Ring Diameter

Φ 100 mm

Machine Weight

6 T

Machine Dimension

2.5*1.6*3.6 m
