High speed Fiber laser marking Printing Machine for stainless

  • 1-9 Sets
    $2,500.00
  • >=10 Sets
    $1,900.00
Power(W):
10w
Model Number:
10w
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Laser Type:
Fiber Laser
Working Accuracy:
0.3mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Marking
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Shandong, China
Brand Name:
shenhui
Certification:
CCC, CE, GS, ISO, SGS, UL
Warranty:
3 years, 3 Years
Product name:
Fiber Optical Laser Marking Machine
Applicable Material:
Metal
Laser source:
Max
Keywords:
Online Flying Fiber Laser Marking Machine
Name:
Stainless Steel Metal Marking
Marking Speed:
0-7000mm/s
Laser wavelength:
1064nm
Marking Depth:
0.01-5mm(Optional)

Packaging & Delivery

Selling Units:
Single item
Single package size:
84X23X70 cm
Single gross weight:
50.0 kg
Package Type:
wood
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description

Applicable Industry:
Mainly used to mark on various plastic buttons and electric devices, to mark code on CMOS

chip, color paper and food package. It can also be used in the scope with high requirements,

such as clock, jewelry, module, bitmap marking etc..

Introduction:

Fiber laser marking machine is the new generation marking system developed by our company

with advanced laser technique,it adopts fiber laser to output laser an achieves to marking

function after high speed scanning oscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small, the out put beam is qualified, high reliability.





Fiber laser marking machine pictures



1. Imported high speed galvo scanner. (China brand optional)

2. Red dot positioning, working area: 110*110mm 200*200mm 300*300mm



Max/Raycus laser module 10w/20w/30w/50w(for choice)



Technical Parameters

Type: SH-F10/20/30/50
Laser power: 10w/20w/30w/50w(optional)
Laser wavelength: 1064nm
Marking area: 110*110mm/200*200mm/300*300mm
Laser source brand: Max/Raycus
Laser source lifetime: ≥100,000 hours
Marking line width: 0.01-0.1mm
Marking depth: <1mm depending on the material
Max marking speed: 7000mm/s
Repeatable accuracy: 0.001mm
Min letter: 0.15mm
Cooling system: Air cooling
Modulation frequence: 20kHz-200kHz
Working voltage: AC220V/110V
Unit power: <0.5kw
Software: Ezcad(in English)

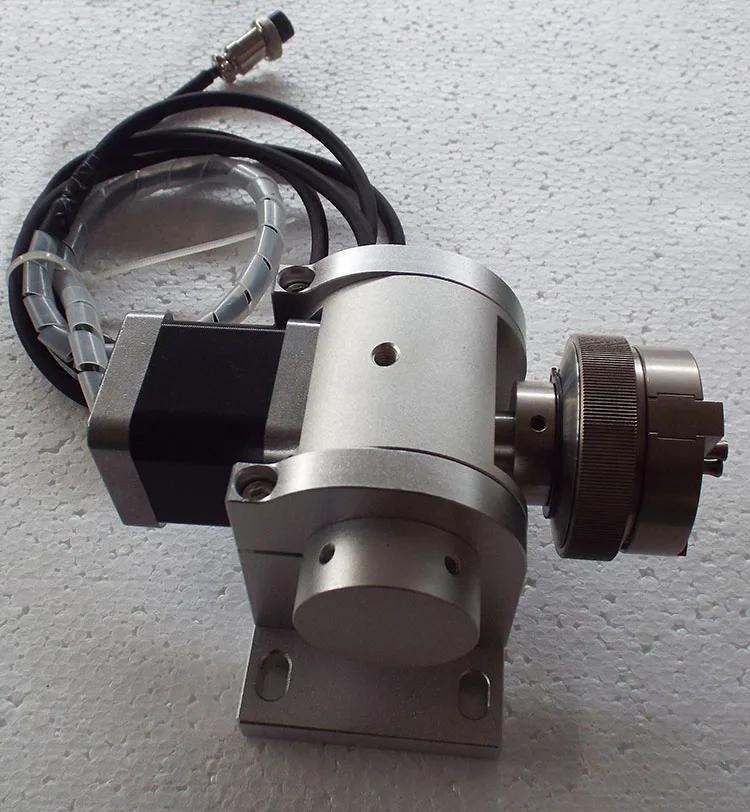

Optional parts: Computer/lens/rotary device
Three type for choice: Table/Separately/Portable
Optional parts

More pictures of fiber laser marking machine
         Separately Type                                     Portable Type


Advantages:
1.Imported high speed galvo scanner. (China brand optional)
2.High precision with repetition as tiny as 0.2mm.
3.Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.
4.Fast marking speed with red dot pointer
5.Simple and convenient operation, easy to learn and handle.
6.Create intelligent designs.
7.Stable structure, little vibration during work.
8.Adopting Air Cooling way.
9.Run without maintenance.
10.No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
11.Low power consumption: low cost, only 0.5kw per hour.
12.Perfect performance, 24 hours continuous working ability.
13.Long working life.


Fiber portable 20w















Machine Details with high quality control.

with 3 years warranty .







Working samples by fiber laser
