High speed high stability Four colors bottle-cap pad printer with 6 moulds

$12,500.00 / Set | 1 Set (Min. Order)
Model Number:
SP4-406ACT
Gross Power:
1500W
$12,500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 2 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field maintenance and repair service, Video technical support, Overseas service center available
Plate Type:
Gravure
Color & Page:
Multicolor
Certification:
CE
Usage:
Cap printing
Type:
Pad Printer
Applicable Industries:
Home Use, Printing Shops, Construction works , Advertising Company
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LC
Automatic Grade:
Automatic
Voltage:
220V
Dimensions(L*W*H):
1470*1580*1460MM
Weight:
750
Warranty:
1 Year
Max. plate size:
100*150 mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
140X91X163 cm
Single gross weight:
771.0 kg
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Our ability

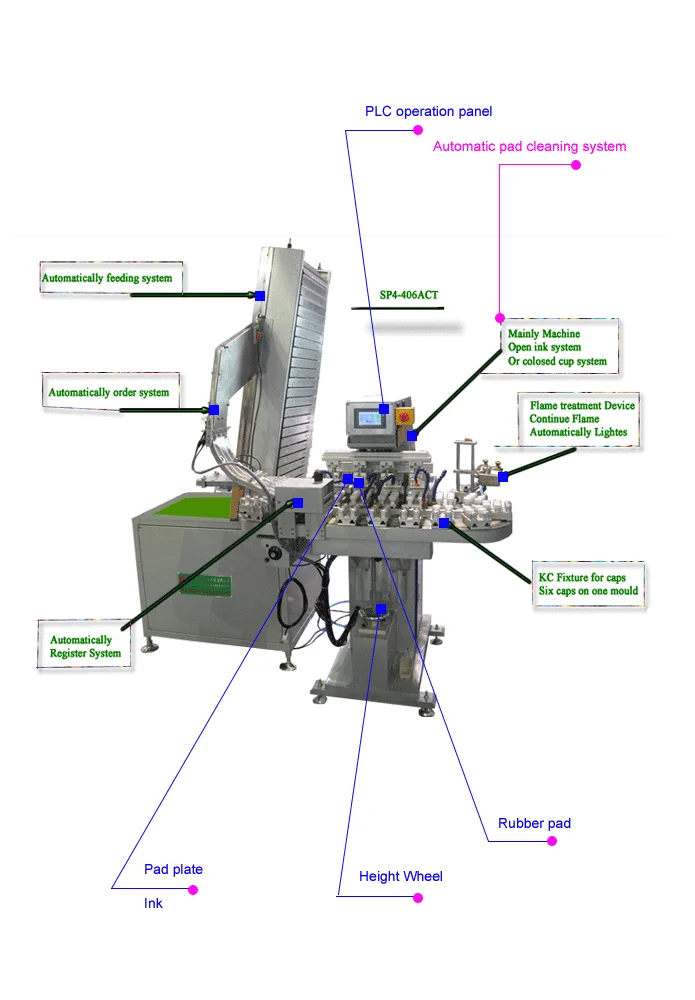

SP4-406ACT Full automatically lid four colours pad printer

Working table type16-station open-type conveyer working table
Ink supply system Open ink well system
Standard plate type and size10mm Thickness steel plate, 100*200mm.
Transport stroke125mm
Colour Number4
Rubber pad of dropping controllSimple-cylinder drive

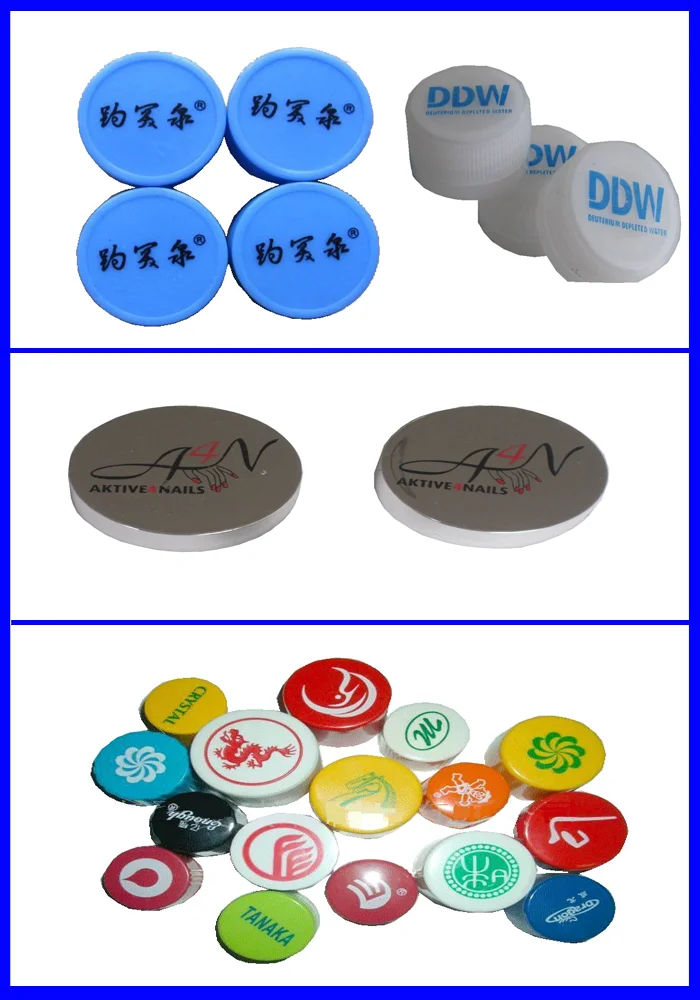

UsageSuitable for all kinds of kid which diameter is under 25mm, Suitable PP PE and other plastics materials.



Application

Is a Pad printing machine for printing plastic packaging bottle lids selling newly developed models, widely used in the beverage industry, oil industry, food industry, printing speed cap. Using aluminum airframe manufacturing, running precise; solenoid valves and cylinders used in Germany and Taiwan products, more sustainable life. Open ink supply, the operation more convenient. Shaker automatic feeding device, smooth running, overprint precision. Flame treatment with a special apparatus for the use of PP PE material of the cap, it can significantly improve the adhesion of the ink, can be printed one mold 6 with the specifications of the cap, the printing efficiency is greatly improved. Standard configuration to use fast-drying solvent-based inks modeled PP can be designed for customers using UV printing inks UV curing device. However, UV printing ink coverage is not enough and slow drying black ink, printing efficiency will be slightly affected.



Specifications

SP4-406ACT Four colours bottle lids pad printer

1.Max. plate size: 100×150 mm;

2.Max. worktable area: 125x200mm;

3.Max. printing area:85×130mm;

4.Max. printing speed: 4000pcs/hr;

5.Printable colour :4;

6.Stroke of table shuttle: 125mm.

Advantages

1, Using shaker automatic feeding system.

2, Microcomputer control action.

3, Equipped with four-digit auto counter.

4, High-strength aluminum alloy body construction, durable.

5, Oil ink roller assembly and disassembly, and easy to clean.

6, Independent of the plastic head of stroke and speed adjustment.

7, Self-balancing of the squeegee, scraping cleanly.

8, Two printing a pattern ink stick, ink get thicker.
9, The printing speed can be adjusted to meet different printing requirements.

10, With a blank line uniform ink functionality.

11, Can be printed on color, monochrome.

12, Independent oil pan seat cover color adjustment structure.

13, Automatic blow dry, color printing easy.

14 Automatic flame treatment plant, the production of materials for PP PE bottle.
15. PP solvent-based inks, instant dry.

16. A multi-mode digital printing, to improve production efficiency.

17 Famous brand pneumatic components, make sure the printing machine can change and stability.

H.S.code8443198000



Our clients



Company Information

       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!







           Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment;
      The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.







Pad printers:

  •  1 color, 2 colors, 4 colors, 6 colors, 8 colors, 10 colors
  •  Closed cup pad printer and open inkwell pad printer;
  •  Customize full automatical pad printer;

Screen printer:

  • Plain screen printing machine and Multi-function screen printing machine
  • Pneumatical screen printing machine, Motor screen printing machine
  • Full automatical screen printing machine

Hot foil stamping machine

  • Manual, Sem-auto plain hot stamping machine and Cylinder hot stamping machine
  • Hydraulic hot foil stamping machine;
  • Full automatical hot foil stamping machine





All Machine has CE certification.

    CE of pad printers

     CE of screen printers

     CE of hot foil stamping machine

     CE of UV exposure machine and UV curing machine.          Etc



Pad printer overview

1. What is a pad printer?

      Pad printing machine is the machine, which uses an indirect printing process, it is very suitable for printing irregular surface of small products, make up for the lack of screen printing process, known as the screen printing twin sisters .

2 . The difference between the closed cup pad printer and open inkwell pad printer

   The open ink-tray pad printer uses the ink-tray as the ink supply way, the ink is exposed to the air, the VOC is easy to volatilize to cause the air pollution, the ink-tray pad printers sells mainly to China, Asia, Africa and Eastern Europe and so on the environmental pollution request is not Too high a country;

    The closed cup pad printer uses the closed cup as the ink supply way, the ink is enclosed in the cup, the VOC can not volatilize to the air, does not have the pollution to the environment basically, the closed cup pad printers sells mainly to Western Europe, On the environment demanding countries and regions.

3. Shuttle pad printer and Turntable pad printer

    Shuttle pad printer is installed shuttle table printing machine, printing back and forth between the colors in the printing, shuttle printing machine can only print one product at a time, more accurate overprint, slower; and Turntable  pad printer is installed Rotary table of the printing machine, a 10-station, 16-station, 22-station in various forms. Turntable pad printing machine stations are required to install the same product for printing, faster, no printing shuttle printing machine accurate.



4. Pad printing machine operating system

    The ordinary printing machine adopts the microcomputer control system to carry on the control, the high-end pad printing machine uses the PLC to carry on the control, specially the servo control system pad printing machine or the automatic pad printing machine, uses the PLC control system quite commonly.

5. Pad printing machine movement characteristics

    Most of the pad printing machine pneumatic control, slower, low cost. With the printing quality and printing speed of the user's high demand in recent years, the use of mechanical control of the pad printing machine more and more common. Pad printing machine automation is the most distinctive trend, the use of automatic feeding system, prepress processing device, servo drive system, automatic printing, drying machine as one of the mechanical and pneumatic motion perfect combination, greatly improving the productivity.

6. How to evaluate the quality of the pad printer

    Pad Printing machine technology content is low, more and more enterprises began to produce and sell pad printing machines, pad printing machines of uneven quality, how to evaluate the quality of pad printing machine is essential. As the majority of brand-name pad printing machine is not sold through the network, so, through Alibaba sales of pad printing machines are low-end pad printing machine.

1) Design of the factory means: a special design department of the enterprise quality is more reliable. China has 70% of the pad printing machine manufacturing enterprises and no special design department, the development of new products on-site assembly by the basic, which is extremely adverse to the standardization of production machinery;

2) Processing means: CNC processing costs are higher, but the parts manufactured high precision; visit the factory must inspect whether the factory has CNC machining capacity;

3) Materials Selection: Material selection is very important. Now fierce competition, the vast majority of domestic factories in the selection of the above efforts, only the brand enterprises are willing to insist on the selection criteria above.
