Highway Toll Gate 2D Barcode Reader Long Range Barcode Scanner QR Code Reader

Feedback Ratings
$65.00 / Set | 1 Set (Min. Order)
Model Number:
E28
$65.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Contact Supplier
Samples - $65.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
USB, RS232/RS485/TTL3.3v/TTL5v/Wiegand
Max Paper Size:
A4 Size
Optical Resolution:
5mil
Scan Speed:
1/72 fps
Brand Name:
TOTINFO
Place of Origin:
Fujian, China (Mainland)
Pixel:
100W
Sensor:
Image CMOS Sensor
Interface:
RS232/USB/Wiegand/RS485/TTL
Depth of Field:
80cm-130cm
Light source:
With Highlight LED Instruction
Weight:
<30g
Size:
65*61*28(L*W*H)
Support Code:
Payment Codes of QR Code, Code 128, 2D barcode etc
Scan Angle:
Roll 360°,Pitch ± 55°,Skew ± 55°
Functions:
Turnstile/Access Control/Smart Parking lot

Packaging & Delivery

Selling Units:
Single item
Single package size:
6.5X6.1X2.8 cm
Single gross weight:
0.03 kg
Package Type:
1.Pack each scanner with PVC bag 2.Put each PVC bag into a white box, and then put into carton which is up to the standard of export package.
Lead Time :
Quantity(Set) 1 - 1 2 - 300 301 - 500 >500
Est. Time(days) 5 15 20 To be negotiated
Product Description





E28 Embedded



BARCODE SCANNER 2D



1.Long Distance Advantage



Support 80cm-130cm barcode scanner reading and decoding.



2.Excellent Function



Anti Strong Sunlight, 360°C Scan Angle View



3.Support secondary development



No need to install the driver. Support secondary development per your demand.



4.Multi interface



Support RS232,USB KBW,USB serial port,RS232,TTL-3.3V,Wiegand.

Model specification

E22-LR1

With LED light instructions

E28D

With highlight LED instructions

Acquisition Performance

Sensor

Image Type,CMOS Sensor

Acquisition Speed

1/72 fps

FOV

Diagonal 56°,Level 50°,Vertical 30°

Reading Performance

Reading Mode

Barcode close to the scanner carema

Depth of field

Test conditions

Depth of field

WeChat,Alipay payment codes

80 - 130 cm

Scan Angle

 Roll  360°,Pitch ± 55°,Skew ± 55°

Support code

Payment codes of QR Code, Code128,etc.

LED

Fill light

White

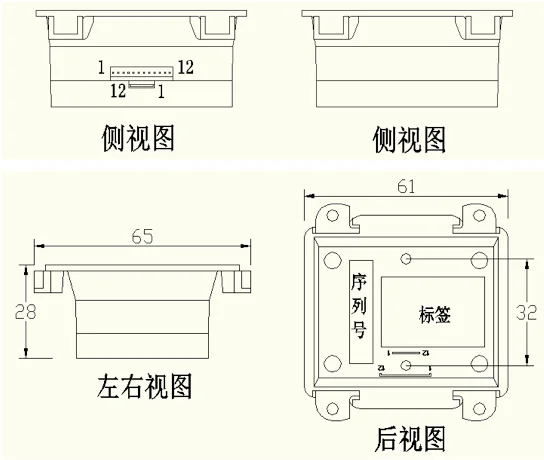

Physical Parameter

Size(mm)

65×61×28(L×W×H)

Weight

<30g

Interface

Socket

Interface

12PIN cable socket, 1.25mm Pitch

12PIN 0.5mm Pitch FPC socket,up and down compatible.

Power supply all 3-3.6V or 3.6-16V

USB/RS232/3V TTL/5V TTL/RS485

Scanning Mode

Command Mode/Sense Mode/Trigger Mode

LED light prompt

Blue: standby condition;  Red:Waiting to read condition;

Green:successful read condition

Buzzer prompt

Yes

Cable(optional)

USB 2m cable,RS232 2m cable

Extensible interfaces

Buzzer,Successful Prompt light,Trigger signal

Environmental Parameter

Operating Temperature

-20℃ ~ 55℃

Storage Temperature

-40℃ ~ 80℃

Humidity

5% ~ 95% RH (non-condensing)

Ambient Light

Max.100,000 Lux

Electrical Parameter

Input voltage

3-3.6V or 3.6-16V

Operating Current



E22-LR1:<200mA(3.3V input),<150mA(5V input)

E22-LR1D:<300mA(3.3V input),<220mA(5V input)

Low Power Current

< 5mA

Installation

Fixed hole

4 directly 3.3mm fixed holes

Screw hole

2 M3*5mm copper nut
