If you have your own special requirements,our machine can be also customized.
profile as following:

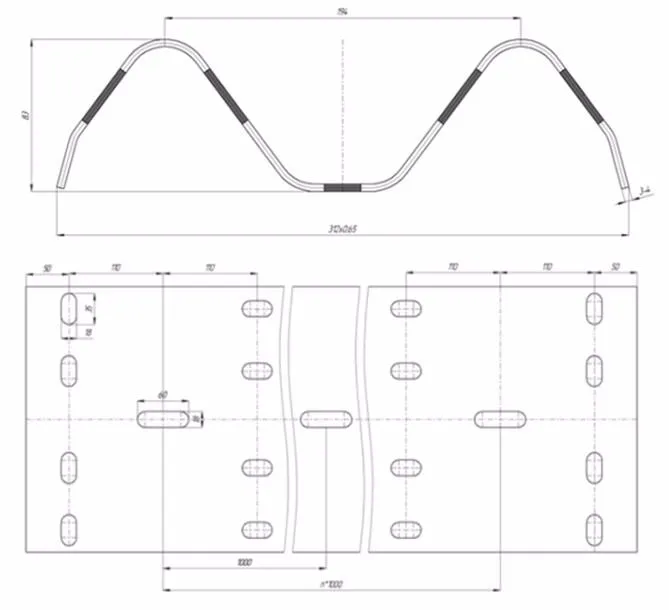

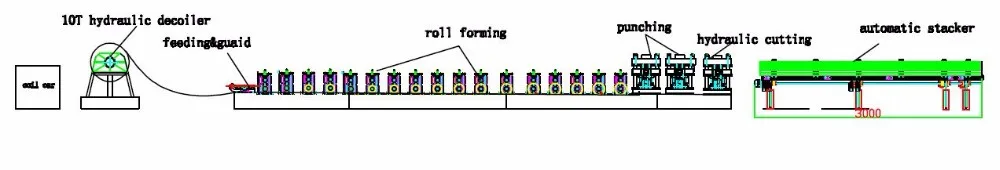

Charing—Feeding inlet（put the strip into the first entrance roller correctly）--Strip flattening—panel punching—forming rollers—Hydraulic cutting（roller forming by main machine）--out table（Finished products out of the machine by breakst）

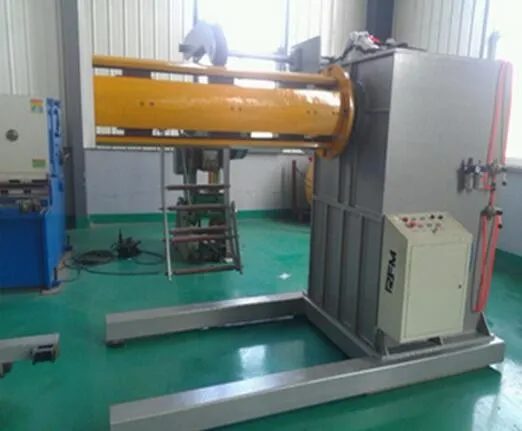

5T hydraulic decoiler:
Steel coil width: from 1000 mm to 1250 mm; Internal diameter of coil: variable, from 480 mm to 530 mm Maximal out diameter:2000mm Maximum coil weight: 5000 Kgs; Coil placement in the coil holder: hydraulic hoist; Pulling of steel from the coil to the pulling mechanism for the start: manual; Suitable of the pulling mechanism for all required thicknesses: included; Device preventing unwinding of the coil from the coil holder: included; Uncoiled metal compensator: included, assures even feeding at all production speeds; Oil cylinder dia:120mm Working speed: 0-15m/min adjustable Main motor power: 5.5KW AC motor Hydraulic power: 4kw

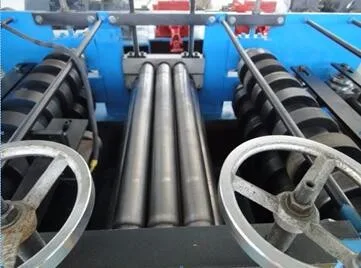

The quantity of leveler rolls must be planned according to thickness 2.0mm to 3.0 mm. Flattener roller: upper is 3 rollers, down is 4 stations（total is 7 rollers） Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC. Diameter of flattener shaft:￠70mm, material is SAE 1045, hardening and tempering

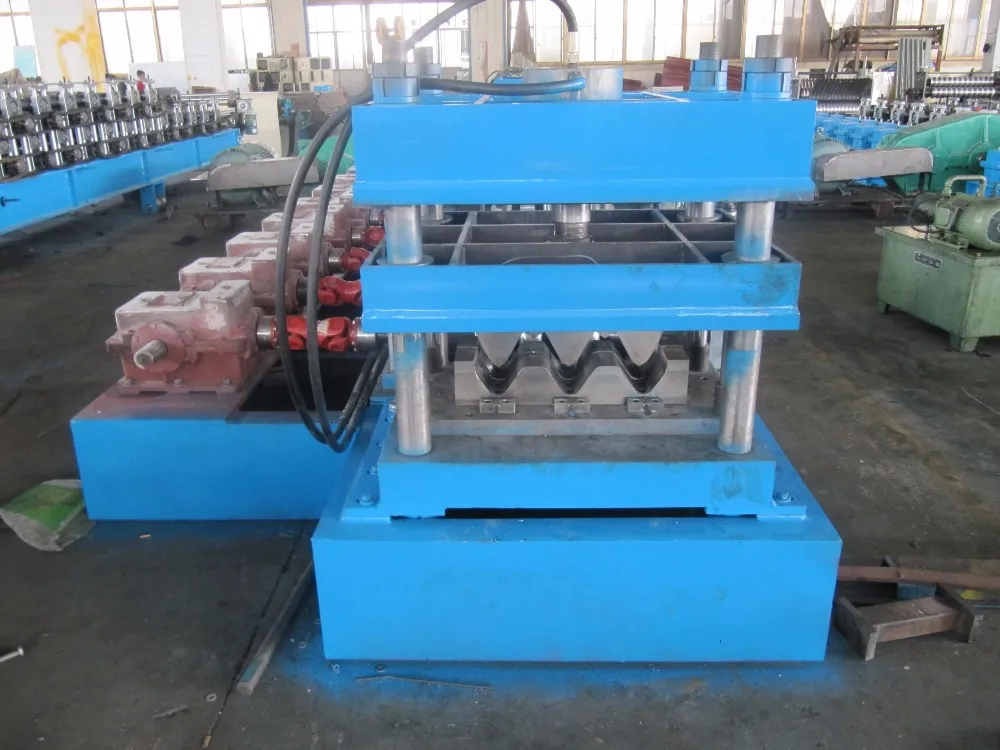

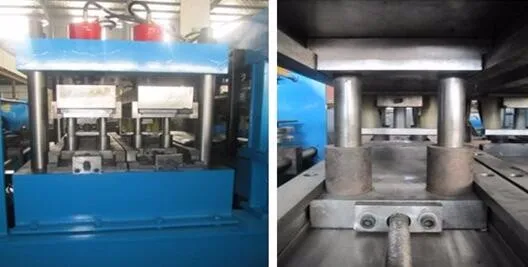

Adopt Hydraulic punching Diameter of cylinder￠140mm Working pressure: 20mpa The punches and dollies will be CR-12, hardness HRC 58-62 Hydraulic power :11KW Dimensions: 1.5m* 1.1m* 1.2m

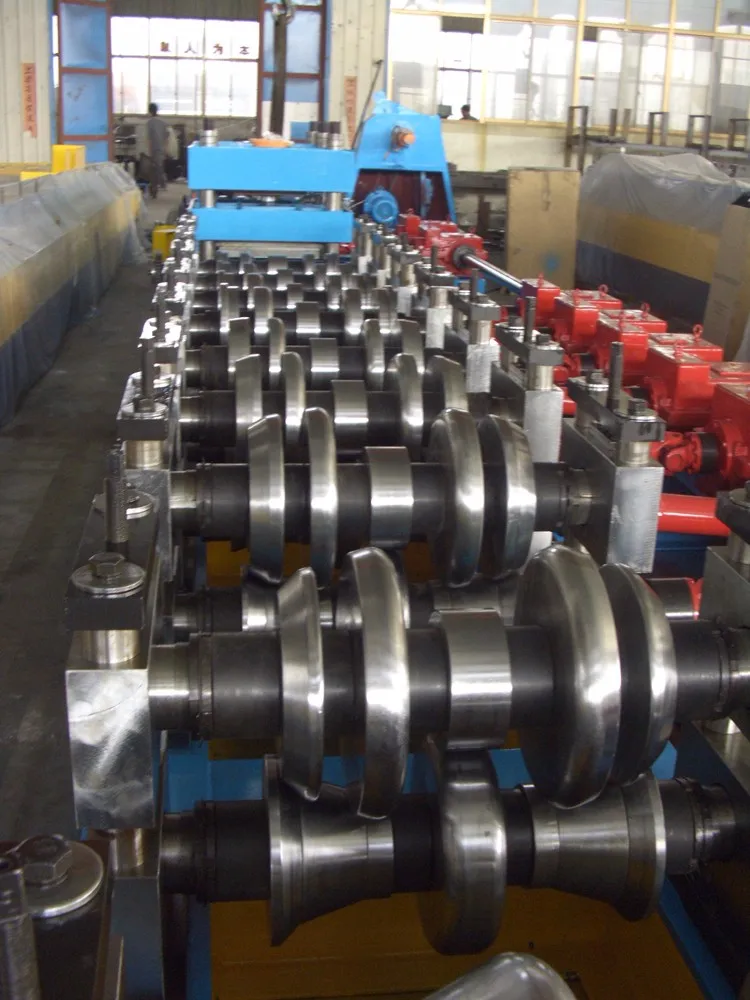

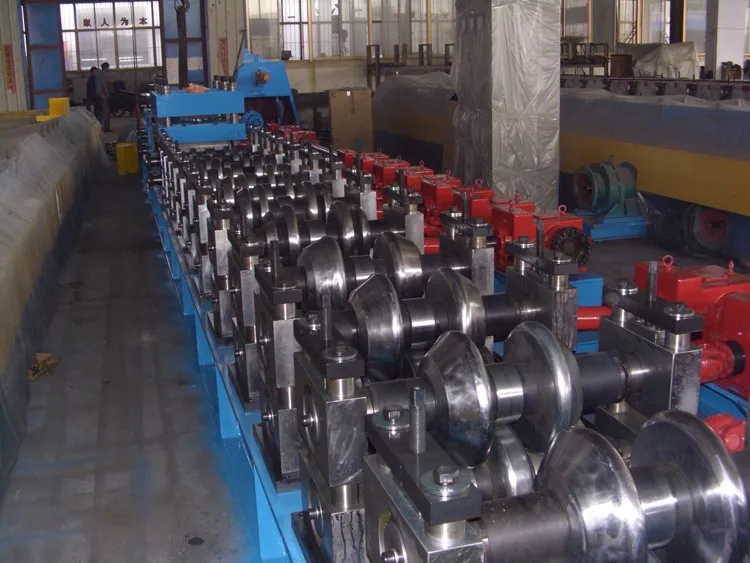

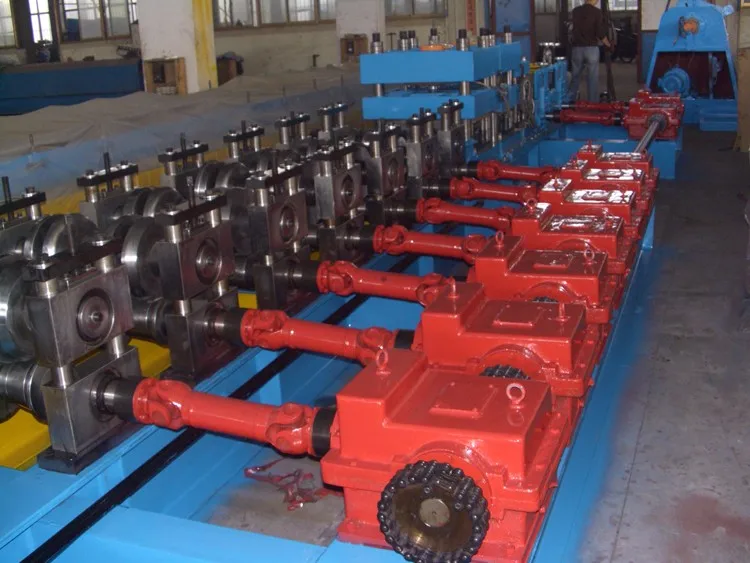

Main motor power : 55 kw Cycloidal pin wheel reducer : BWD14-43-55KW，Place of Origin：Shanghai or Cangzhou Transmission：Gear box【170#】 Shaft diameter: ￠110 mm material: SAE1045 with quenching and tempering Roller material:ASTM1045 chrome plated surface with chrome Forming station: about 16 stations （according the final design） Machine roll forming speed :0m-15m/min（without punching） Machine Voltage, Frequency：Japan Yaskawa（380 V, 50 Hz, 3Phase）

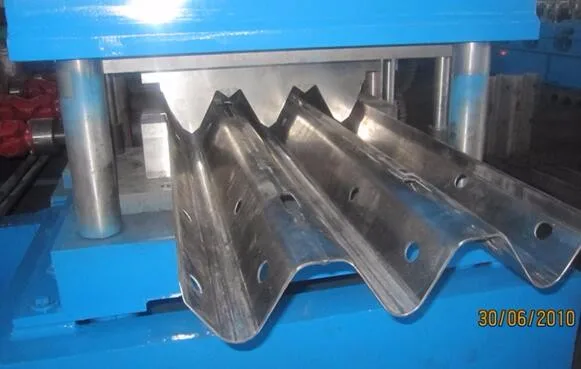

Shearing by hydraulic station
Material of blade:Cr12, 58-62 HRC hardness
Diameter of cylinder￠200mm
Working range :80mm
Jointed by 60mm*40mm tube （adjustable）
One out table with two support roller
Size: 1.0m long*0.8mwide*0.6-1mhigh (adjustable)
Hydraulic power: 11kW Working pressure: 20-25Mpa adjustable Solenoid valve: 3 group Hydraulic oil: 46# hydraulic oil Color: Blue (or base on customer request)
1)Programmable setting of profile length and quantity 2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved 5)PLC brand: Panasonic 6)Frequency converter brand: Yaskawa, quantity: 1 7)Touch screen: Taiwan Weinview
Enginer to test machine for clients.
Clents learning to check the products.
