Hollow tube thread rolling machine knurling machineTB-60A

Feedback Ratings
  • 1-2 Sets
    $12,300.00
  • >=3 Sets
    $11,900.00
Model Number:
TB-60A
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Samples - $12,560.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
connectors, bicycles, auto parts
Production Capacity:
4-25(pcs/min)
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TOBEST
Voltage:
3-380V 50HZ
Power(W):
4042W
Dimension(L*W*H):
1600*1500*1600mm
Weight:
1270KG
Certification:
ISO 9001-2008,CE
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support, Engineers available to service machinery overseas
Color:
Green or customised

Packaging & Delivery

Selling Units:
Single item
Single package size:
160X150X160 cm
Single gross weight:
1400.0 kg
Package Type:
1.tube thread rolling machine knurling machineTB-60A is packed in wooden case 2. neutral package can be accepted
Lead Time :
Quantity(Set) 1 - 3 >3
Est. Time(days) 15 To be negotiated
Product Description

MaIn Features.

1. Designed for tube-type parts designed to support such triangle, roll teeth can guarantee workp     iece roundness, concentricity and perpendicularity .
2. Dual fixed roll pass, spindle speed can be adjusted .
3.Controlled by hydraulic circuit feed, feed smooth, easy operation.
4.After heat treatment gear grinding machine noise, high durability.
5.According to customers‘ requirement, automatic feeding device can be added.

Technical Parameters of TOBEST TB-60A

Diameter for the threads rolled
φ18-φ60/mm
Range of pitch rolled
1.0-4.0P
Length of thread rolled
Fixed and rolling through for option
Spindle speed
220/360/560/750rpm (variable speed)
Outside diameter of rolling die
118mm- 130mm
Inside diameter of rolling die(keyway)
φ40mm
Thread rolling Die Length
50mm
Center distance between die spindles
105-90mm
Output(pcs/min)
4-25(pcs/min)
Swiveling Angle(degree)
±3°
Main power motor
5.5HP
Hydraulic motor
3HP
Max rolling pressure
12T
Supply voltage
380
Weight(reference)
1270KG
Shipping measurement(L*W*H)
1700*1600*1700
Dimension(L*W*H)
1600*1500*1600
Bearing brand
NSK,UBC

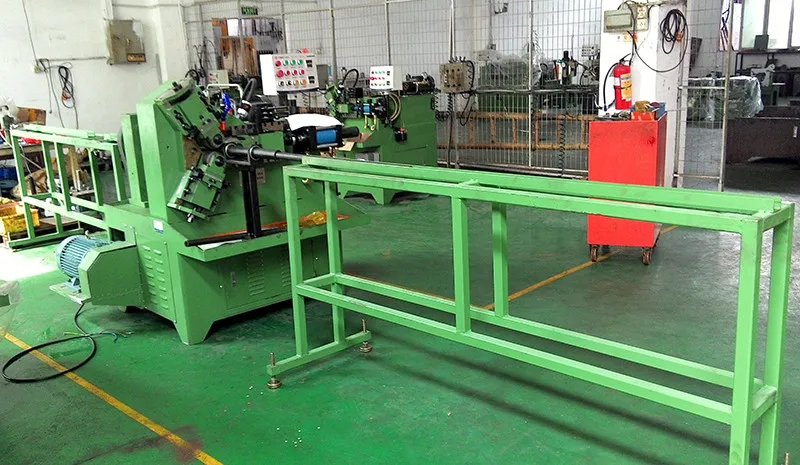

Products display:

Our Company
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ:

1 Payment
What are the terms of payments you offer?
 Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, PayPal and cash only

2 Shipment
How long will it take to deliver goods?
We will deliver the goods within 10 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreehainiud.

What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.

What kind of transportation methods you offer?
We always transport by sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.

How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation. During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers

What Locations can you ship to?
We can send the goods to the whole world if the shipping way can deliver it.

3 Others
What kind of problem will happen usually?
Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.

4 Warrantee & After-sale service:
A. all of our products give 1 year warranty
B. man-made destroy will be exception
C. after the warrantee time, if we still in cooperation, we will give cost repairment if still can repair.
D. for reducing the cost of our customers, we can supply the materials or tech support to them, help them fix the problems in their hands
E. We will pay the delivery charge from us to customers if the repair, return or replacement cases happen
