Hot Sale! Factory low price automatic metal grain bin tank machine

FOB Reference Price:Get Latest Price
$50,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Capacity:
Customized
Dimension(L*W*H):
8m*1m*1m
Condition:
New
Material:
Steel
Place of Origin:
Hebei, China (Mainland)
Brand Name:
TG
Model Number:
Silo
Weight:
7 t
Controlling Mode:
PLC+Touch Screen
Raw material:
steel
After sales service provided:
Service Machinery Overseas
Final product:

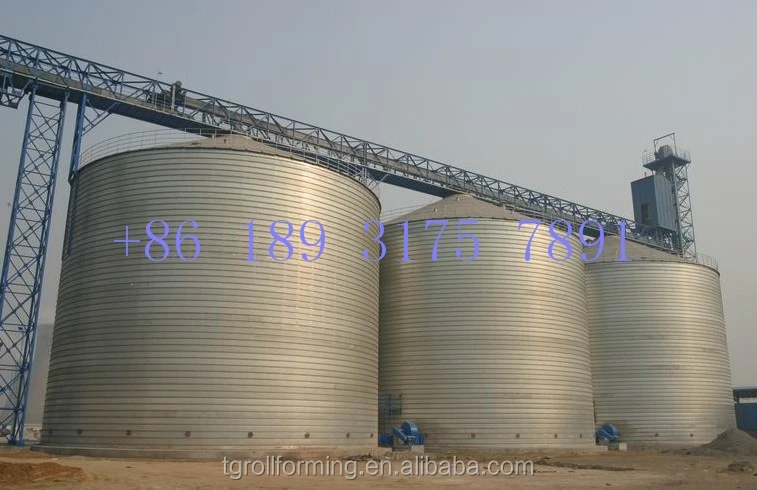

Spiral silo
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard package or ccording to customer's requirement
Port
Tianjin
Lead Time :
Within 50 days after received deposit


Product Description

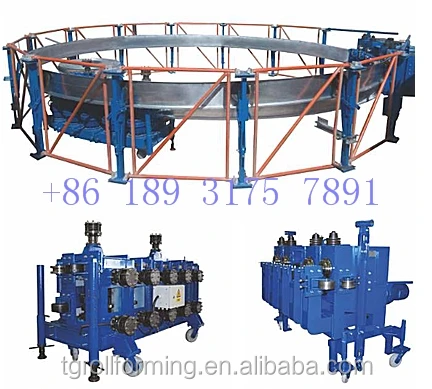

1. Constituent part:

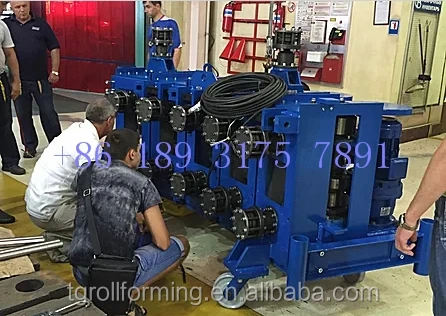

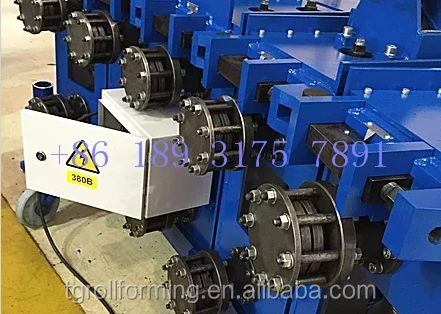

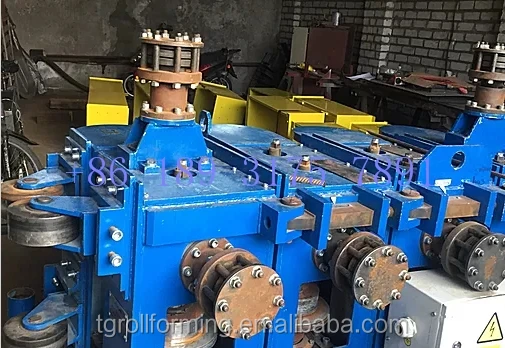

(1)Forming machine: making the material bend and initial machine-shaping, meanwhile, it will bend the material to the silo required radius of curvature.

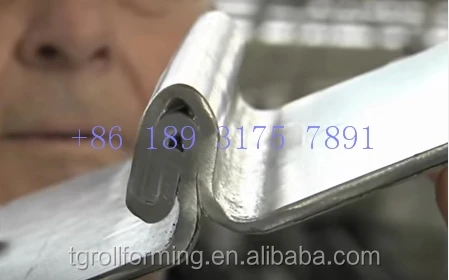

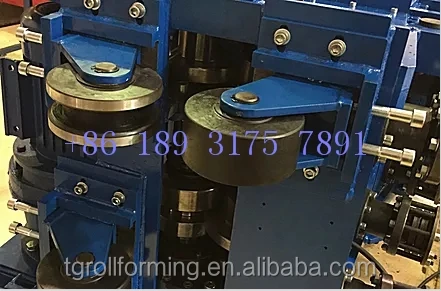

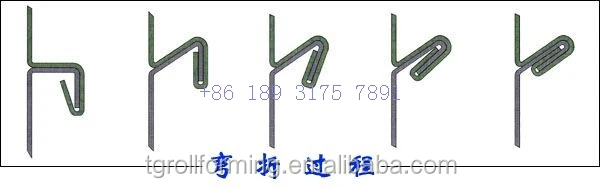

(2)Bending machine: it will roll cooperate with good molding materials bender seaming together
(3)Load bearing support: Given the right diameter of silo. Lifting of the steel silo enclose the top of load bearing support rollers, it can support the spiral rising silo.
(4)Decoiler: Moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.
(5)Join frame: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

2.Weight of machine parts:
(1)Forming machine——3300 kg
(2)Bending machine——3550 kg
(3)Decoiler——230 kg
(4)Load bearing support——80kg
(5)Joint Frame——38kg

3. (1) Required thickness of raw material:
           A,Galvanized sheet——1.5---3mm
           B,Dark steel sheet——1.5---3mm
           C,Chromated nickel steel sheet——1.5---2.5mm
           D,Plastic coatings steel sheet——1.5---3mm
(2) Raw material width: 495mm
(3) Finished width: 350---370mm
(4) Diameter: 4m——25m
(5) Electrical equipment power: 9x3kw=27kw

4. Machine Overview:












Packaging & Shipping











Company Information











Our Services

 Payment terms and after-sale service:



1) FOB Tianjin



2) Payment: 30% T/T deposit, and pay the balance before shipping.



3) Delivery time: 30 working days.



4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.



5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.



6) Installation and training:



1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.



2. Without visiting, we will send you user manual to teach you to install and operate.



3. COST OF INSTALLATION:



The buyer should pay the installation charges (USD 80 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.



 If you have any further question of our Equipment, please feel free to contact me, thanks!
