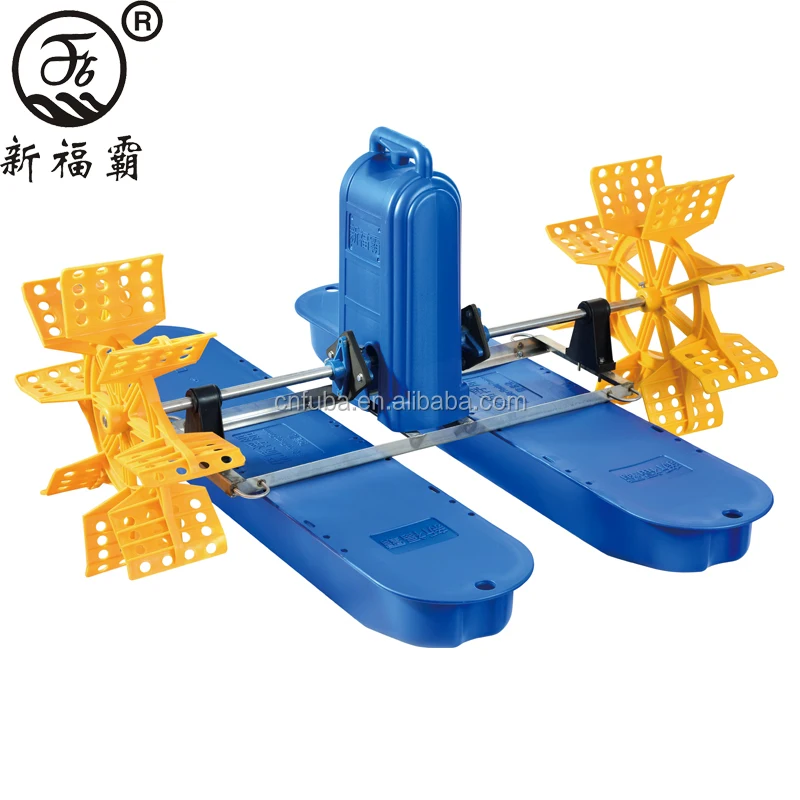

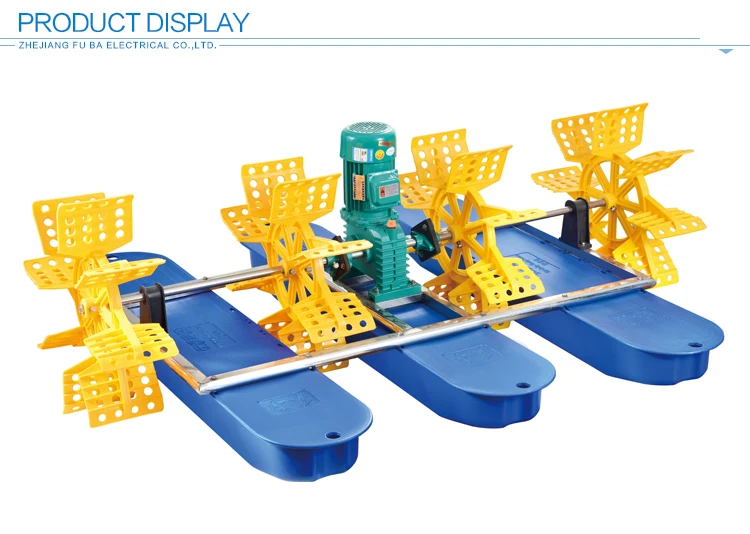

When the motor starts running, impellers will rotate and touche water surface, it will press air into water and therefore increase some oxygen in water. The most importance is working impellers can make sufficient water splash and strong water current. Large amount of splash will take air into water and enrich obviously dissolved oxygen in water. Meantime, water waves and current will eliminate harmful substances like ammounia, nitrite, hydrogen sulfide, etc out of water and finally clean water. All brand new materials produced components to make sure our customers receive high quality items. It can be used both on freshwater and seawater.

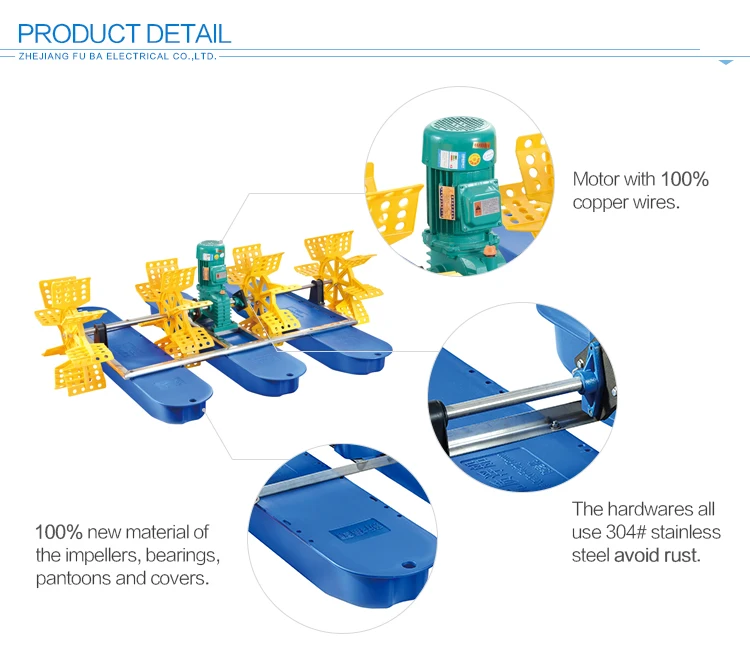

1.High efficiency and saving over 20% electric energy than traditional models. 2.Mechanical seal is available to against oil leak pollution. 3.Built-in protector is available to avoid motor being burnt accidentally. 4.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength. 5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time. 6.The flexible gearing is fixed by the stainless wheel bolt. 7.High oxygenation rate: 2.6kgs/h. 8.Easy installation and maintenance. 9.Stainless steel frame is sturdy with no deformation and high durability.

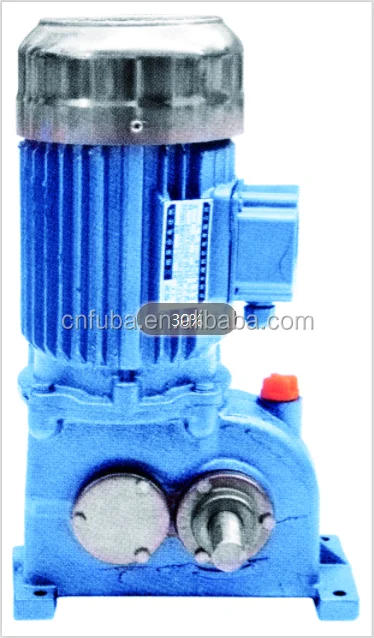

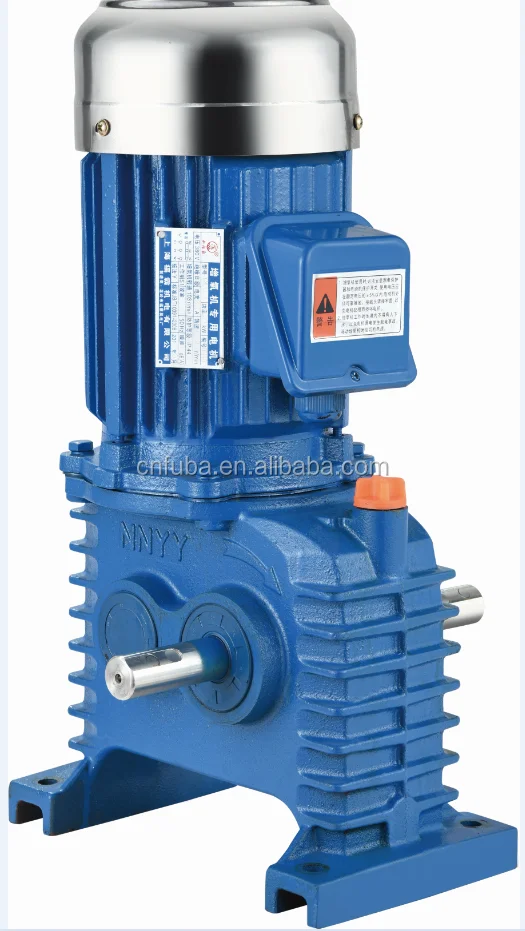

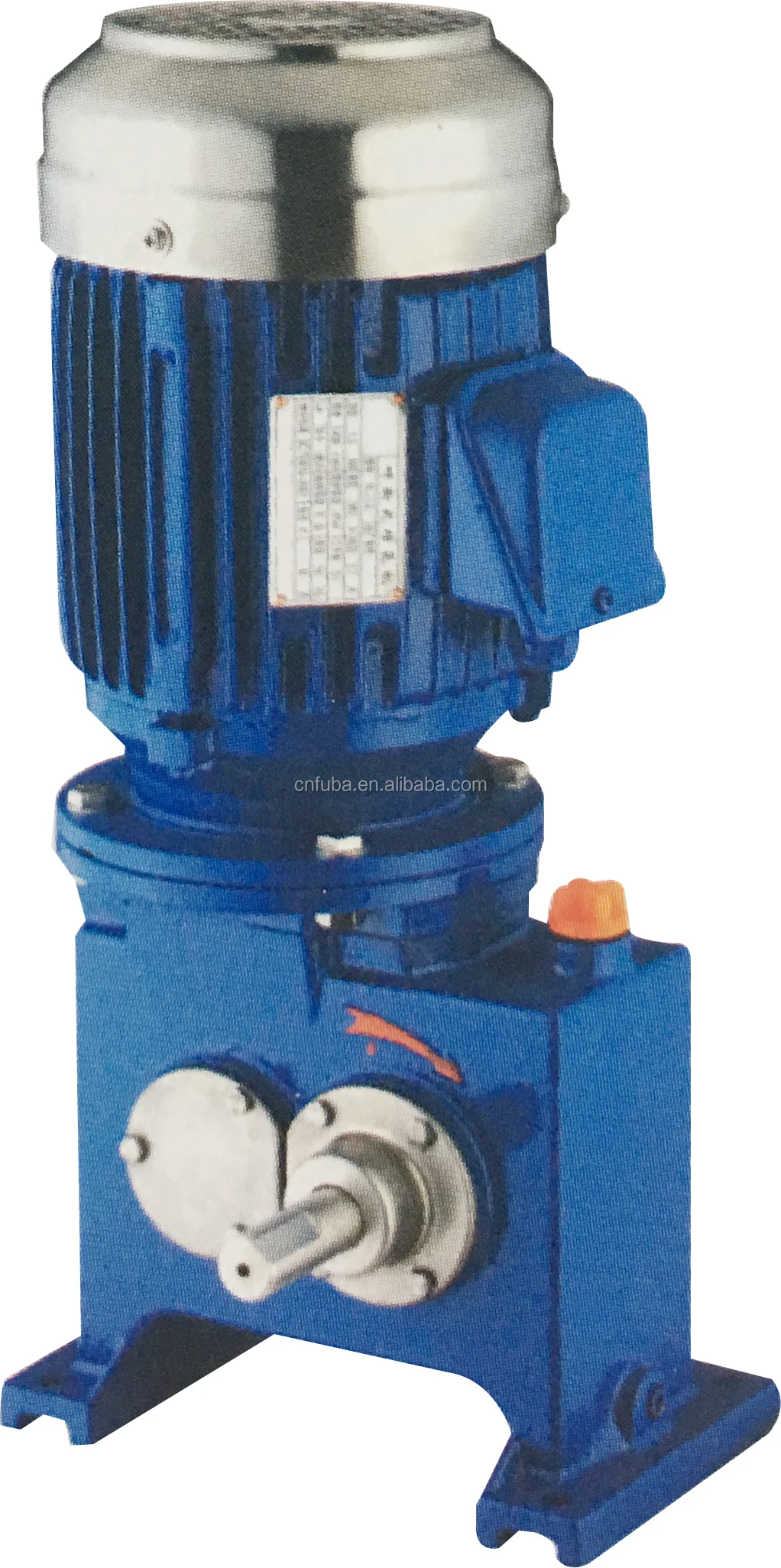

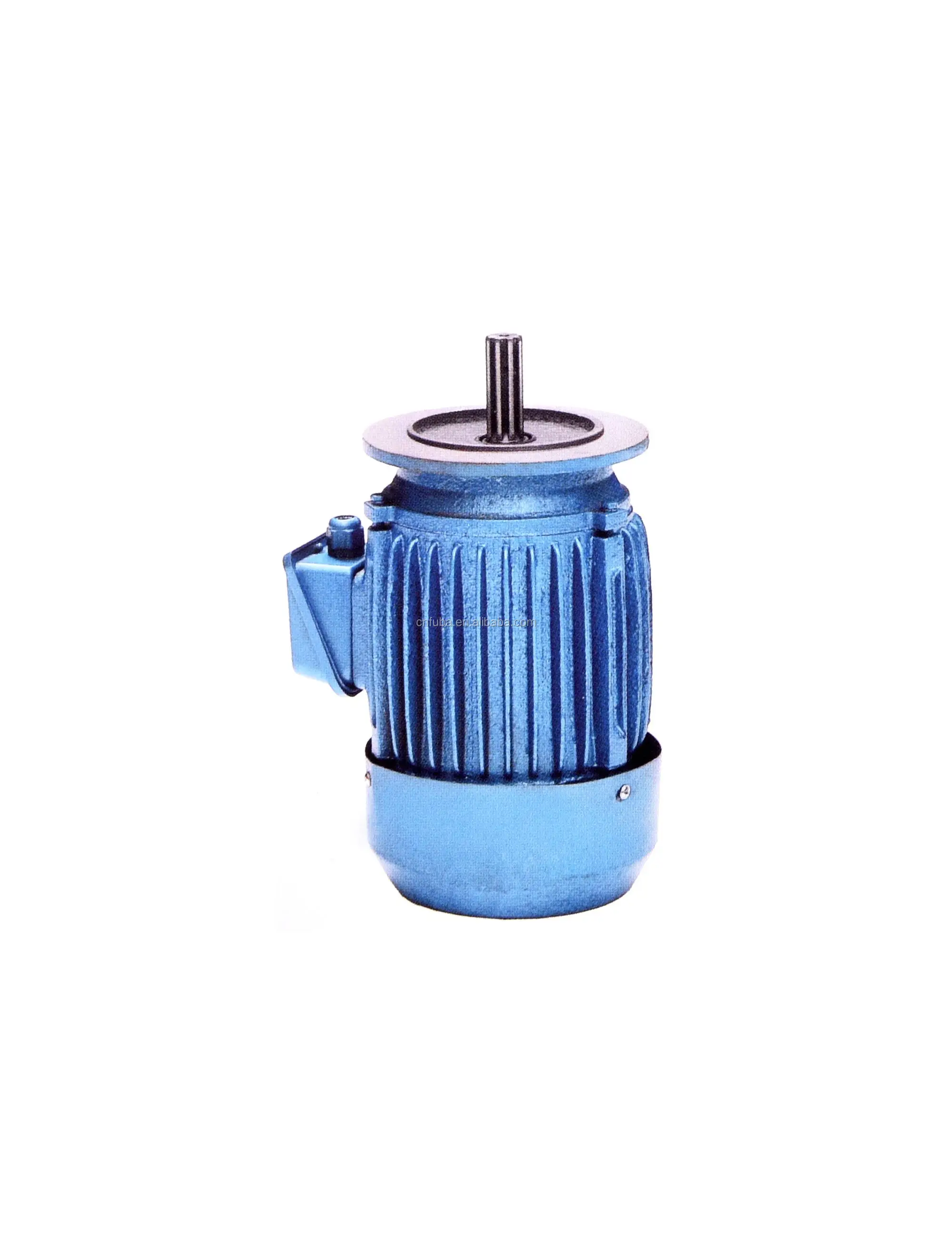

Motor and gearbox
Our high-efficiency paddle wheel motor is made of 100% new copper wire. The bevel gear can substantially reduce motor amperage by 25% as well as input power by 33%, and thus become the perfect choice to couple with our new generation of paddlewheel aerators. it will save energy and your electricity bill. Material:Cast iron case and copper wire motor

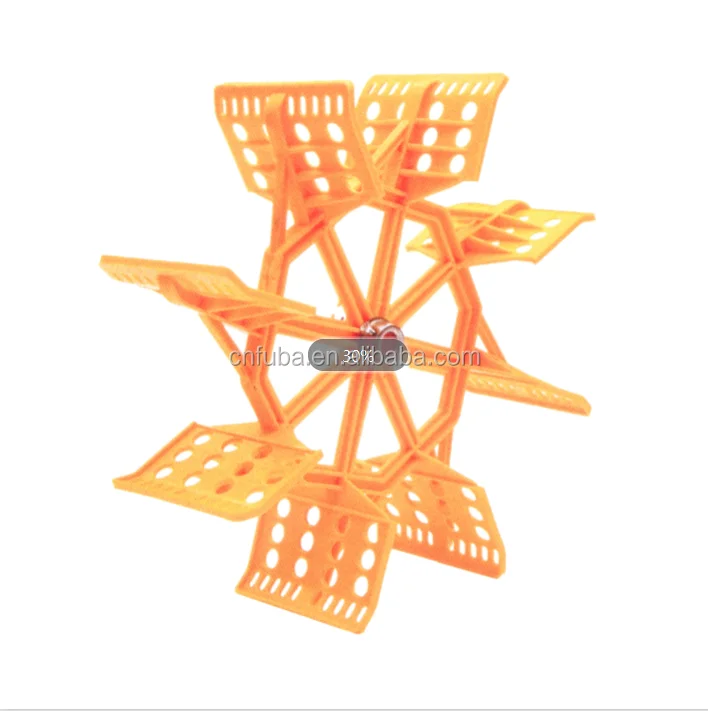

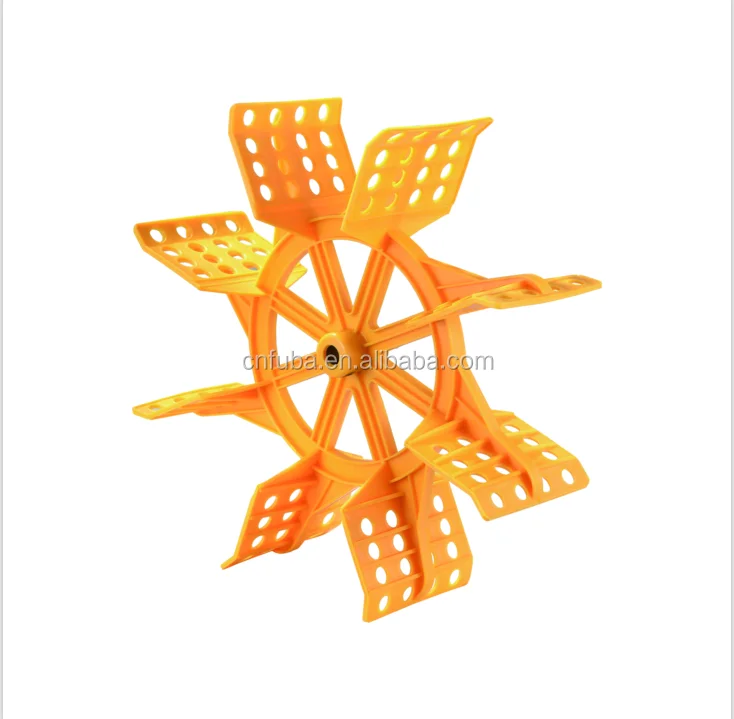

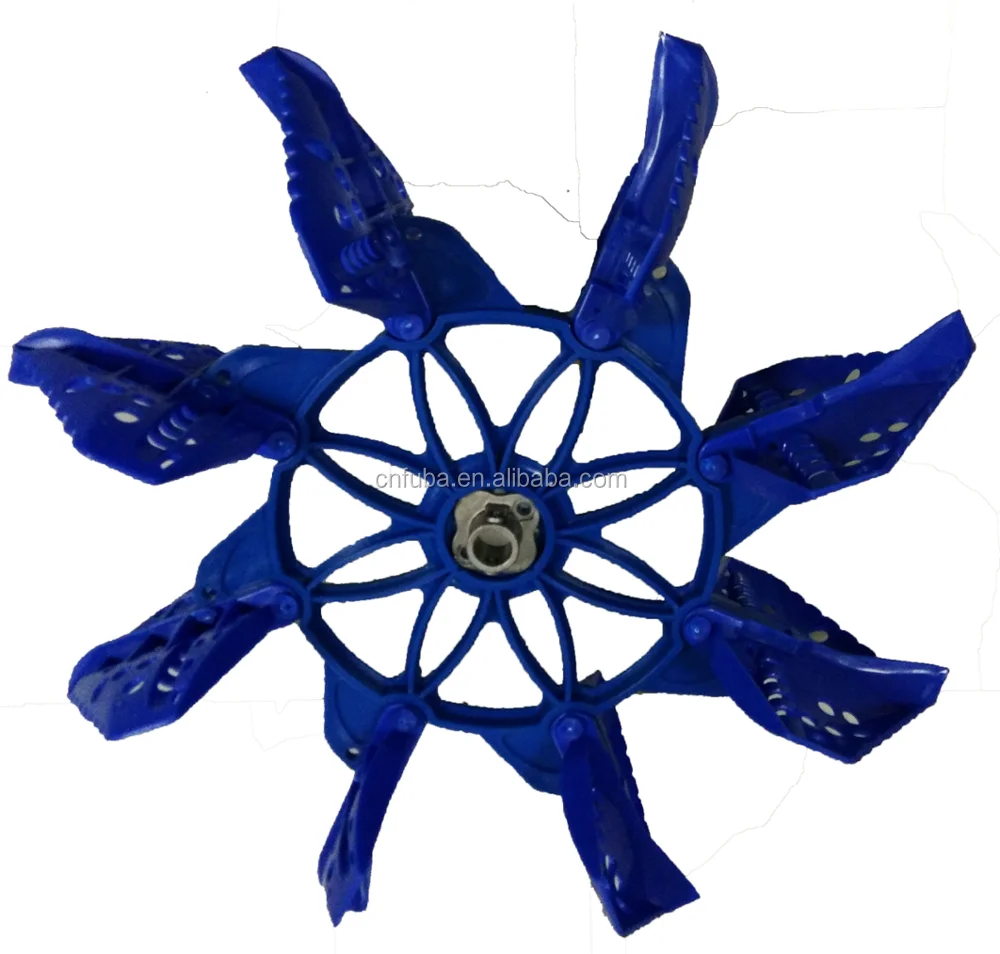

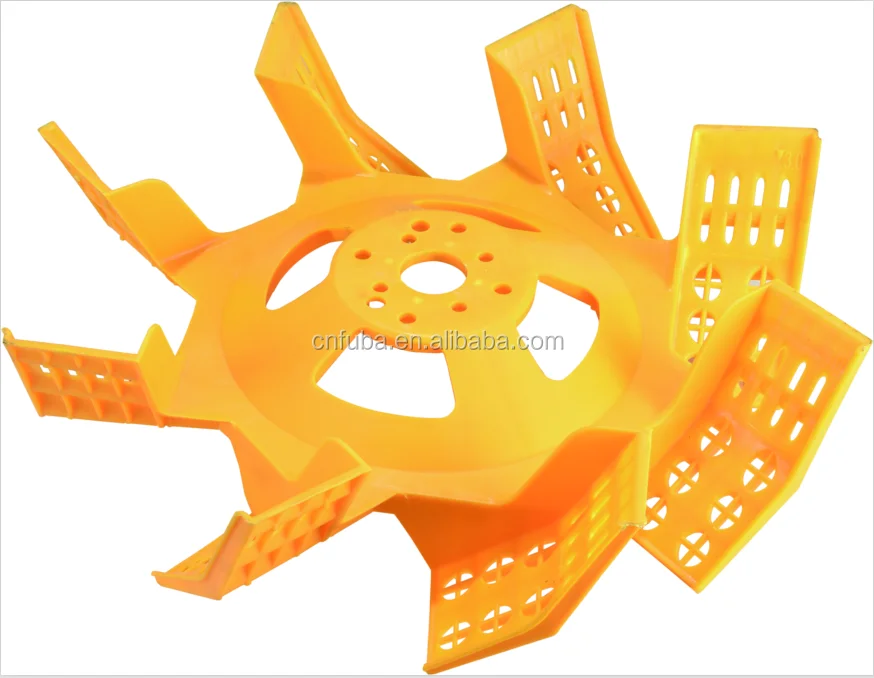

Unique one-piece design with for ified structure made of non-recycled polyproylene material which makes the paddle sturdy, tough,impact-resistant, and less prone to fracture. 8pcs-vane paddle design make more frequent splashes and better DO supply

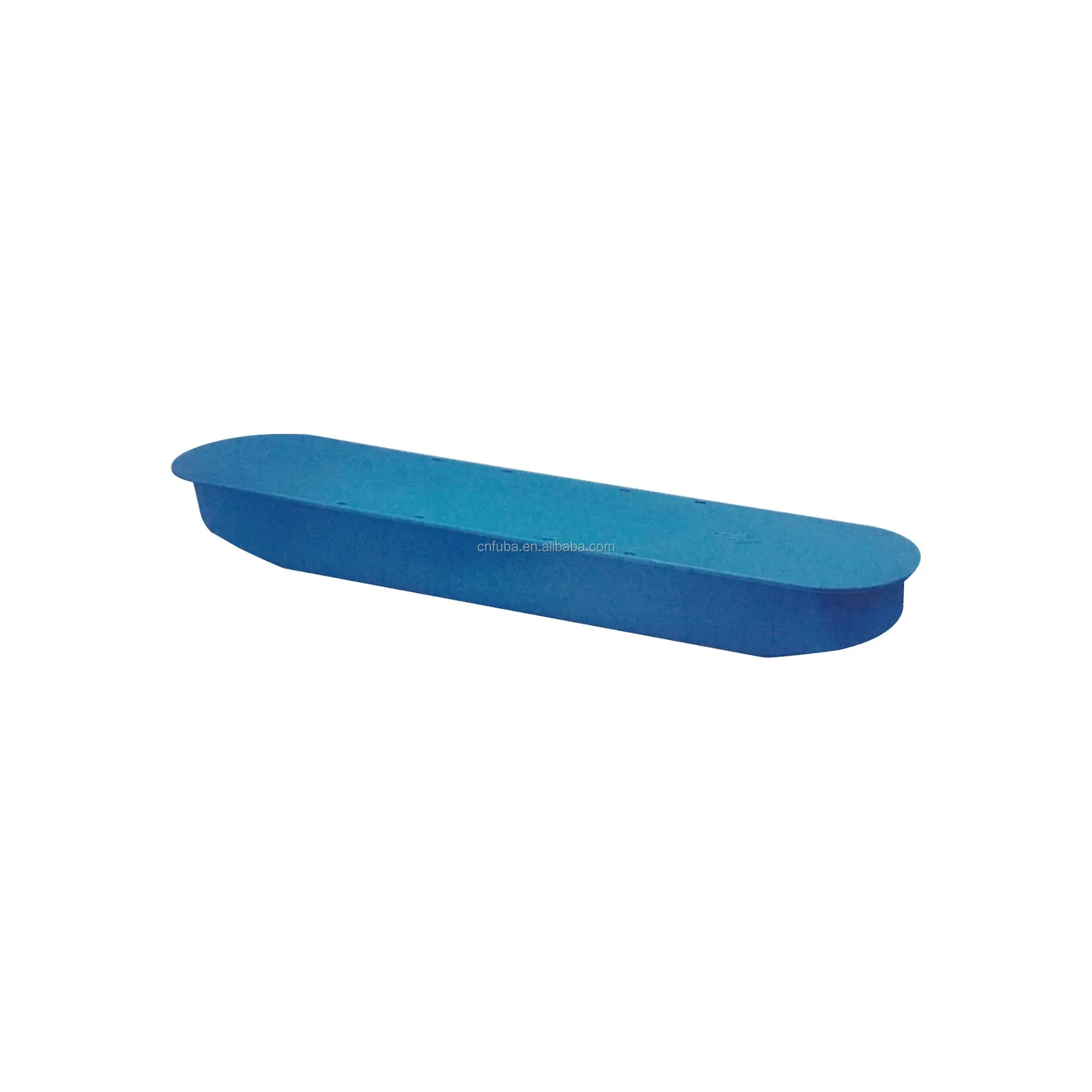

Made from virgin HDPE material with excellent ductility. Integral blow molded formation, no water seeping problem. Excellent in withstanding larger impact, corrosion free and weathering 100% new material with dimensional design for higher stability of the wole machine in operation

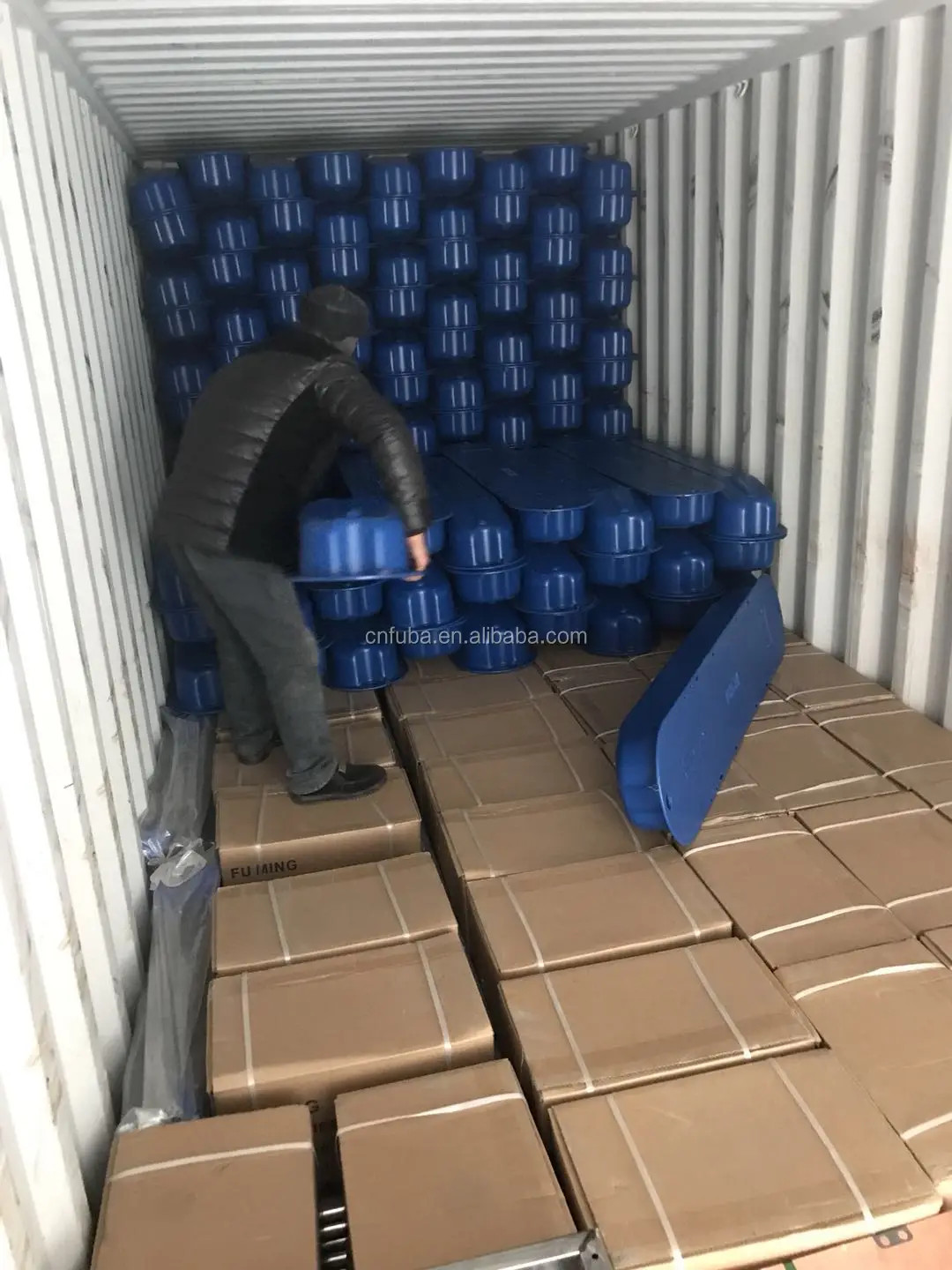

Packing & Delivery
Motor gear box and other components of wooden box packaging, impeller, floating ship bulk. Reducing volume is more beneficial to transportation.
How is the directly effective depth and effective water length of the sunshine paddle wheel aerators?
1.Directly effective depth: A1: 1HP paddle wheel aerator is 1M from the water level 2HP paddle wheel aerator is 1.5M from the water level 2.Effective water length :
A2: 1HP:40 Meters 2HP:70 Meters During the strong water circulation ,oxygen can be dissolved into the water to 2-3 meters depth.The paddle wheel could also concentrate the waste ,splash out the gas ,adjust the water temperature and help the decomposition of organic matters.
How many units fo paddle wheel aerators to be use in the shrimp ponds? 1.According to the stocking density: B1: 1HP should be used 8 units in one HA pond if the stocking is 30pcs /square meter.
2.According to harvesting tons: B2: If the harvest expected is 4 Tons per HA should be installed in the pond 4 units of 2HP paddle wheel aerator;the other words is 1 Ton/1set.
