Hot quad-band gsm gprs module simcom sim900d for derma rolling system

FOB Reference Price:Get Latest Price
US $9-9.5 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Week
Port:
ShenZhen Guangdong
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
simcom
Model Number:
sim900d
Product name:
Hot quad-band gsm gprs module simcom sim900d for derma rolling system
Quad-band:
850/900/1800/1900 MHz
Wireless module:
GSM+GPRS
SMS+DATA:
Voice+fax
Dimension:
24mm * 24mm * 3 mm
Supply Voltage:
3.1V~4.8V
Dissipation Power:
in sleep mode to 1.0
Application:
Mobile Phone
Frequency:
Quad-Band
Service:
Good after-sales service
Packaging & Delivery
Packaging Details
standard package with gsm module simcom sim900d
Delivery Time
Shipped in 2 days after payment

Hot quad-band gsm gprs module simcom sim900d for derma rolling system

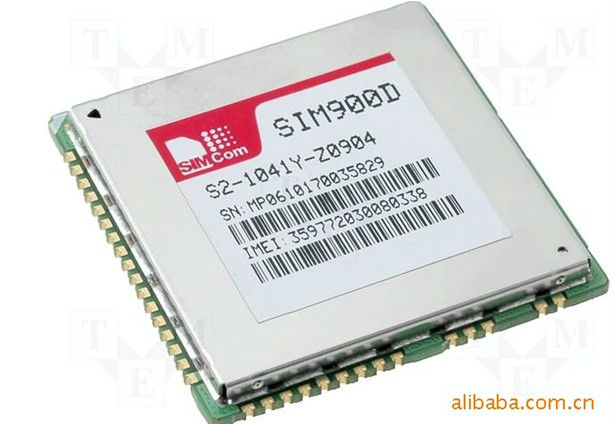

gsm module simcom sim900d







Product Description





SIM900D Desceiption:


   Simcom presents an ultra compact and reliable wireless module-SIM900D. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. Furthermore, SIM900D can be compatible with SIM340DZ.



Featuring an industry-standard interface, the SIM900D delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 33mm x 33mm x 3 mm, SIM900D can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.



Functions





General features:


* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
 – Class 4 (2 W @850/ 900 MHz)
 – Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 33mm x 33mm x 3mm
* Weight: 6.2g
* Control via AT commands (GSM 07.07 ,07.05 and

   SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40 °C to +85°C





Specifications for Fax
* Group 3, class 1



Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack




Specifications for SMS via GSM/GPRS
* Point-to-point MO and MT
* SMS cell broadcast
* Text and PDU mode



Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)



Specifications for Voice
* Tricodec
 – Half rate (HR)
 – Full rate (FR)
 – Enhanced Full rate (EFR)
Hands-free operation
(Echo suppression)
AMR
 – Half rate (HR)
 – Full rate (FR)



Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Embedded SIM (option )
* Antenna pad
* GPIO
* ADC
* Charge interface for Li battery
* PWM



Compatibility
* AT cellular command interface



Certificates:
* ROHS
* REACH
* CE
* GCF



Certificates(on going)
* FCC
* IC



Language Option Switch languge to help reading: French German Italian Russian Spanish Portuguese
  • French
  • German
  • Italian
  • Russian
  • Spanish
  • Portuguese



Hot quad-band gsm gprs module simcom sim900d for derma rolling system

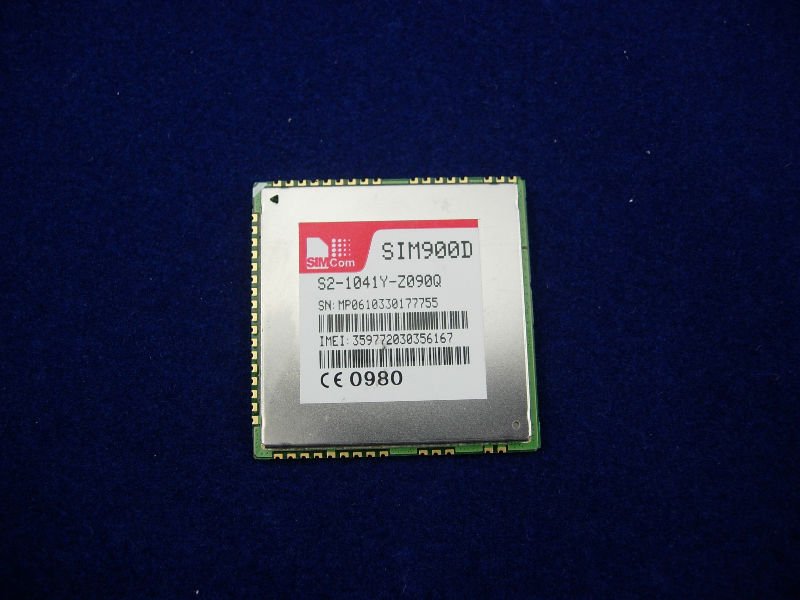

Detailed Images
