HuiYang ZLP1000 Q235 Steel suspended working platform

Feedback Ratings
  • 1-4 Sets
    US $2925.00
  • >=5 Sets
    US $2825.00
Color:
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order:: 5 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HuiYang
Model Number:
ZLP1000 Suspended Platform
Material:
Steel
Table Size:
2.3*0.9
Application:
Tall Building Maintenance
Overall Dimensions:
2.3*0.9*2.1m
Certificate:
ISO9001/CE/TUV/3C
Surface treatment:
Powder Coating and Aluminum Alloy
Lift Mechanism:
Telescoping Lift
Voltage:
220V/380V/415V
Max. Lifting Height:
200m

Packaging & Delivery

Selling Units:
Single item
Single volume:
4000000 cm 3
Single gross weight:
1120.0 kg
Package Type:
1-6 sets packed in wooden case. More than 6 sets will be packed by metal pallet in container..
Lead Time :
Quantity(Set) 1 - 50 >50
Est. Time(day) 15 To be negotiated
Product Description

Product Application

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all. HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

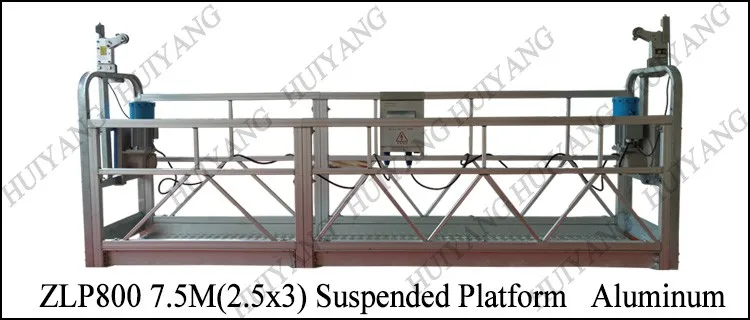

1. Working Platform: Material Q235 Steel with Painting; Material Q235 with HDG; Material Aluminum
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With caster wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Surface with Painting or Hot-dipped Galvanized
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.


FAQ.
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term? T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date.
We will send new parts to replace right away.
7. Can you make suspended platform with our brand? Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.

The Certificates of our Suspended Platform:
1) ISO9901 2008 Certificate. Certificate No.04615Q12251R0S
2) CE Certificate. Verification of EC Type No.EC.1282.0A141028.NCDTU22

3) 3C Certificate. Certificate No.2015010301798994

Certifications
Detailed Images

Machine Parts

Components 1

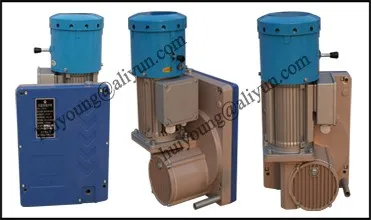

Name: Hoist Brand: HUIYANG
Model: LTD8.0 Quantity: 2 sets
Lifting Speed 9.3±0.5m/min Lifting Force: 8.0KN
Name: Motor Brand: Tianjin YONGHENG
Power: 1.8kw*2 Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed 1420rpm Weight:52kgx2

Components 2

Name: Safety Lock Brand: HUIYANG
Model: LST30 Quantity: 2 sets
Locking Rope Angle 3°~8° Allow impulsive force: 20KN
Steel Wire Diameter 8.3mm Weight:5.5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.




Components 3

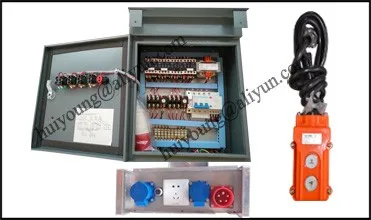

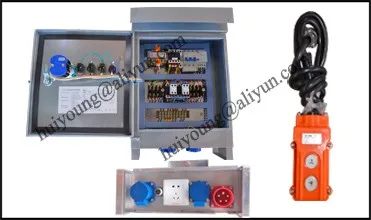

Name: Electrlic Cotrol Cabinet Brand: HUIYANG
Surface HDG With manual Switch
Components Brand: Schneider or CHNT
On Electric Control Cabinet,there are 4 buttons
and a 220V 50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )

Components 4

Name: Steel Rope Brand: XINYU

Length=100m 4pcs "4x31SW+FC Diameter=9.1mm"

Weight:25kgx4

Name: Nylon Safety Rope 100m 1pcs

Counter Weight: Cement or Cast Iron


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Fast Quotation and PI Feedback

After-Sales Service


*Video Training: Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineer Online Service.
* Email Instruction.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

Packing & Delivery
Packaging
Size
1M/1.5M/2.5M (L) * 1.2M (W) * 2M-2.3M (H)
Weight
1.2 T



Packaging Details
MOQ: 1set

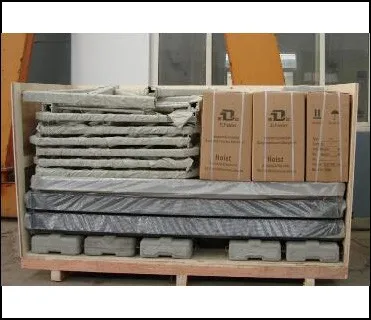

1-4 sets packed in wooden case.
More than 4 sets will be packed by metal pallet in container
Packaging
Size
1M/1.5M/2.5M (L) * 1.2M (W) * 2M-2.3M (H)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
