Huiyang ZLP630 scaffolding for high-rise buildings

Feedback Ratings
  • 1-3 Sets
    US $1900.00
  • 4-9 Sets
    US $1820.00
  • >=10 Sets
    US $1760.00
Color:
- +
available
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUIYANG
Model Number:
ZLP630
Rated Load:
630kg
Working Cage:
6m(2+2+2)
Lifting Height:
100m
Lifting Speed:
9-11m/min
Certificate:
CE, CCC, ISO9001
Material:
Steel Q235
Surface:
Powder Painting/ Hot-dipped Galvanized
WhatsApp:
86-18553491835
Lift speed:
9.3M/min
Voltage:
220V/380V/415V

Packaging & Delivery

Selling Units:
Single item
Single volume:
3 cm 3
Single gross weight:
950.0 kg
Package Type:
Wooden Case
Lead Time :
Quantity(Set) 1 - 3 4 - 10 11 - 30 >30
Est. Time(day) 7 15 25 To be negotiated
ZLP630 Parameters
Working Principle:

The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

Usage and Application:

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.

Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.

Contact: Miss Ann WhatsApp:86-18553491835 Company Video: https://youtu.be/uDPE69dO-pY

The Parameters of ZLP series Suspended Platform
      Type
ZLP500
ZLP630
ZLP800
1.   Rated Load
500kg
630kg
800kg
2.   Lifting speed
9.3m/min
9.3m/min
9.3m/min
3.   Lifting height
100m
100m
100m
4.   Hoist
LTD6.3
LTD6.3
LTD8.0
4.1 Voltage-3 Phase
380V(415V/220V)
380V(415V/220V)
380V(415V/220V)
4.2 Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
4.3 Power
1.5kw x 2
1.5kw x 2
1.8kw x 2
5.   Safety Lock
LSG20
LSG20
LSG30
6.   Electric Cabinet Parts
Schneider or CHNT
Schneider or CHNT
Schneider or CHNT
7.   Platform Sise (LxWxH)
(2.5+2.5)x0.69x1.42m
(2+2+2)x0.69x1.42m
(2.5+2.5+2.5)x0.69x1.42m
8.   Steel Wire Rope
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs
D=9.1mm; 4x31SW+FC
9.   Electric Cable
(3x2.0+2x1.0mm2)  100m
(3x2.0+2x1.0mm2 ) 100m
(3x2.5+2x1.5mm2)  100m
10. Suspended Jibs
340kg
340kg
340kg
Lifting  Parts Weight
410kg(Steel)
290kg(Aluminum)
480kg(Steel)
340kg(Aluminum)
530kg(Steel)
380kg(Aluminum)
Counter Weight
Cement; 750kg
Cement; 900kg
Cement; 1000kg
Qty of 20" Container
13 sets
13 sets
10 sets

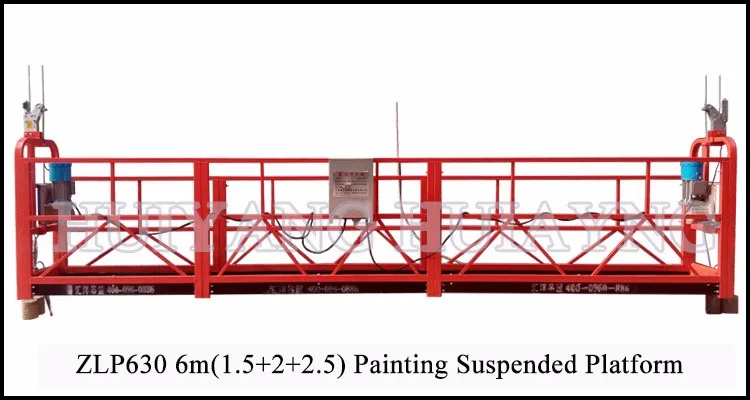

ZLP630 Detail


1. Working Cage:  Material Q235 Steel with Painting;  Material Q235 with HDG;  Material Aluminum

 1.1  Working Cage is the workplace at heights for the workers.

 1.2  L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3)  W=0.69m; H=1.42m;
 1.3  With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.


2. Suspension Mechanism:    Surface with Painting or Hot-dipped Galvanized

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.


3. Components:
LTD8.0 Hoist, 1.5kw, 2 sets;
LSD30 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

Components Detail

Components 1

Name: Hoist                                    Brand: HUIYANG

Model: LTD6.3                                Quantity: 2 sets

Lifting Speed 9.3±0.5m/min        Lifting Force:  6.3KN


Name: Motor                                   Brand: Tianjin YONGHENG

Power: 1.5kw*2            Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed 1420rpm           Weight:48kgx2

Components 2

Name: Safety Lock                    Brand: HUIYANG
Model: LSG20                             Quantity: 2 sets
Locking Rope Angle: 3°~8°      Allow impulsive force 20KN
Steel Wire Diameter: 8.3mm    Weight: 5kgx2


Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

Components 3

Name: Electrlic Control Cabinet    Brand: HUIYANG
Surface HDG                                     With manual Switch

Components Brand: Schneider or CHNT


On Electric Control Cabinet, there are 4 buttons and a 220V

50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )

Components 4

Name: Steel Rope                   Brand: Fasten

Quantity: 4pcs                         Length=100m/pcs;

Diameter=8.3mm                    Weight:25kgx4

4x31SW+FC


Nylon Safety Rope 1Pcs=100m
Electric Cable: 1Pcs=100m (3x2.0+2x1.0mm2)
Counterweight: (Optional) Cement or Cast Iron

Certifications
Company Introduction

HUIYANG Company Introduction.

Ningjin Huiyang Construction Equipment Co., Ltd,established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.

Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.


No matter what structure needs, everything is easier with Huiyang!


 Tel: 86-18553491835  https://www.facebook.com/an.ann.58910049

Our Service

Pre-Sales Service

* Factory Show.

* Consulting Support

* Fast Quotation and PI Feedback

* View our Factory.

* Sample testing support.

After-Sales Service

* Video Training: Installation Instructions.

* Engineer Online Service.

* Email Instruction.

All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

FAQ.

1. How much is this suspended platform?
    Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
    We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
    Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
    Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?           T/T or L/C at sight.
6. Spare parts & guarantee?
   If any parts get damaged because of quality within 12 months after shipping date.

   We will send new parts to replace right away.
7. Can you make suspended platform with our brand?    Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.

Packing & Delivery
Packaging
Size
3m³
Weight
940kg (without Counterweight)

Packaging Details
MOQ: 1set
1-5 sets packed in wooden case.
5-13 sets be nude inside the Container.
Packaging
Size
3m³
Weight
940kg (without Counterweight)

Packaging Details
MOQ: 1set
1-5 sets packed in wooden case.
5-13 sets be nude inside the Container.
