Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
DK series
Item:
Hydraulic dead weight tester
Pressure range:
0~100MPa
Function:
calibration pressure transmitter or gauge
Accuracy:
0.050.02%FS, 0.02%FS
Tester type:
Hydraulic pressure type
Medium:
25# transformer oil or mixer of transformer oil and kerosene oil
Parts:
Piston system, Base, weights and others
Material:
Stainless Steel base and weight
Warranty:
24 months
Delivery:
7-15 days
Supply Ability
Supply Ability:
80 Piece/Pieces per Week Hydraulic dead weight tester
Packaging & Delivery
Packaging Details
Hydraulic dead weight tester
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
any port of China
Lead Time :
Quantity(Pieces) 1 - 2 >2
Est. Time(day) 15 To be negotiated
Dead Weight Tester
Product Description

Description of Hydraulic dead weight tester

DK dead weight tester is designed on the base of YS piston dead weight tester and KY Deadweight Tester, with structural optimization, super wear-resistant and perfect reliability. The highest process of DK piston dead weight tester is 0.005%; The max pressure range is 160MPa. DK dead weight tester adopt modular structure, a platform can be installed in different piston systems, achieve economic and practical purposes.

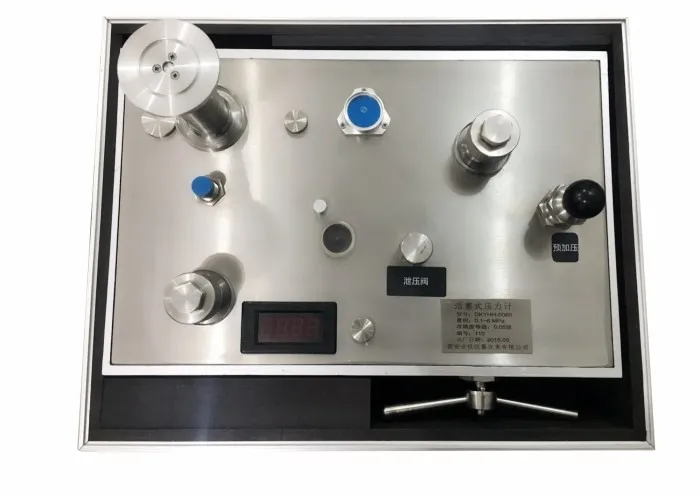

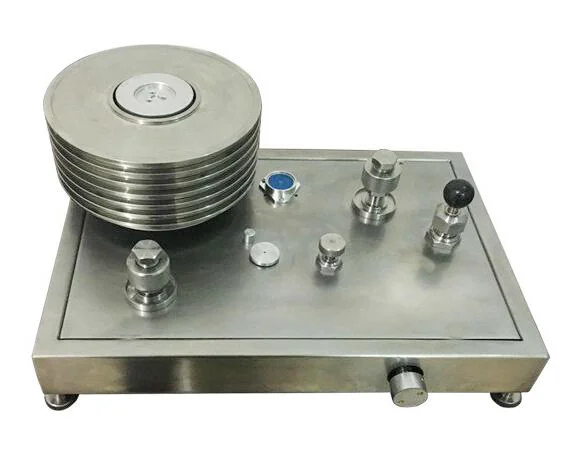

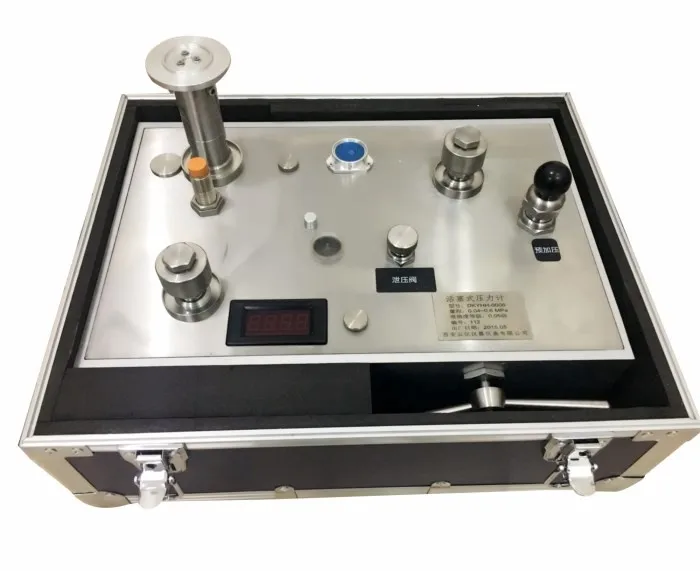

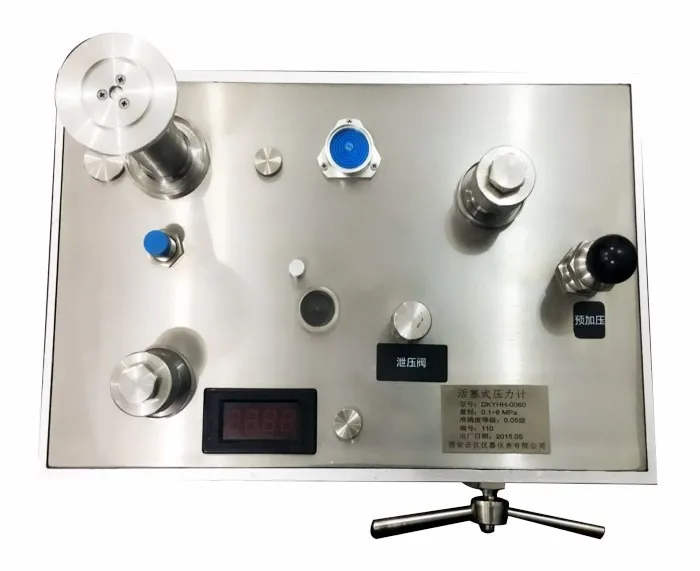

Detailed Images
Specification
Item
Hydraulic dead weight tester
Pressure range
0-160MPa
Accuracy
0.05, 0.02
Piston System Material
Tungsten carbide (hardness102)
Displacement indications
Scale indication (lighting instructions optional)
Thread Size
M20×1.5 or other type
Pressurization System
Small-diameter pressurized screw, need replace the seals, but longer life
Base material
Cast iron base
Pressure optional of Hydraulic dead weight tester
DKHH uncertainty:0.005%rdg(Medium: sebacic acid ester)
DKHH0025
(0.1—2.5)MPa
DKHH0006
(0.04—0.6)MPa
DKHH0060
(0.1—6)MPa
DKHH0600
(1—60)MPa
DKLP0100
(1—100)MPa
DKHH uncertainty:0.02%rdg (Medium: sebacic acid ester )
DKHH2025
(0.1—2.5)MPa
DKHH2006
(0.04—0.6)MPa
DKHH2060
(0.1—6)MPa
DKHH2600
(1—60)MPa
DKHH2100
(1—100)MPa
DKHH uncertainty:0.05%rdg (Medium: sebacic acid ester)
DKHH5025
(0.1—2.5)MPa
DKHH5006
(0.04—0.6)MPa
DKHH5060
(0.1—6)MPa
DKHH5600
(1—60)MPa
DKHH5100
(1—100)MPa
DKHH uncertainty:0.02%rdg (Medium:distilled water)
DKHH2025W
(0.1—2.5)MPa
DKHH2006W
(0.04—0.6)MPa
DKHH2060W
(0.1—6)MPa
DKHH2600W
(1—60)MPa
DKHH uncertainty:0.05%rdg (Medium:distilled water)
DKHH5025W
(0.1—2.5)MPa
DKHH5006W
(0.04—0.6)MPa
DKHH5060W
(0.1—6)MPa
DKHH5600W
(1—60)MPa
Features

Feature of piston hydraulic dead weight tester


1. High accuracy.
2. Professional manufacturer
3. Max pressure up to 300mpa
4. Fast delivery.
5. Factory price

Application

Application of piston hydraulic dead weight tester


Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices
