IEM stereo True diversity UHF metal in ears system monitoring sound

  • 2-99 Sets
    $220.00
  • 100-199 Sets
    $180.00
  • >=200 Sets
    $168.00
Type:
Audio Mixers
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OKMIC
Model Number:
OK-782TX+OK-7102R
Power:
10mw/50mnw/100mw
Frequency Range (Hz):
500-960MHz
Dimension (L x W x H):
1*1*1
color:
black
Certificate:
CE ROHS
Material:
Metal
Frequency Response:
50HZ-16KHZ
Product Name:
wireless tour guide system
Effective operating range:
100m
Frequency bandwidth:
12MHz
output frequency:
10mx/50mx/100mx
Application:
singers/stage on performance, singers/
Use:
Portable

Packaging & Delivery

Selling Units:
Single item
Single package size:
52X96X59 cm
Single gross weight:
5.0 kg
Package Type:
color box IEM stereo True diversity UHF metal in ears system monitoring sound
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 15 To be negotiated

IEM stereo True diversity UHF metal in ears system monitoring sound

With us your business in safe, your money in safe

1. Competitive advantage products

2. Factory price

3. Confidentiality agreement

4. Quality assurance contract

5. After-sales service 24*7



It can be matched with numerous receivers,6 transmitters use at the same time

This system is used in classroom teaching, wireless guide, simultaneous translation, sound broadcast listening system and wireless auditing

system of large conference, hi-fi, replacing complex and heavy monitor devices with advanced electronic processing

technologies,eliminate the feedback from monitor devices,make the performance perfect.





SPECIFICATION:
UHF PLL 72channels wireless tour guide system
TRANSMITTER (OK-003UT)
Operating frequency :500-980MHz
Frequency stability:0.005%
Transmitter power output:10mw(H),5mw(L)
AF gain adjusting-20dB to +35dB
Frequency response:50Hz-15KHz ±3dB
Power supply :2 * AA batteries ,standing time :about 8 hours
Special charging hole
with ACT(IR)function
 Input Power: 10MW/50MW/100/MW
RECEIVER (OK-7102R)
Operating frequency :500-980MHz
AF output voltage adjusting knob
Frequency response:50Hz-15KHz ±3dB
AF output change: earphone/line output
Noise locked +pilot tone locked
Power supply :2 * AA batteries ,standing time :about 8 hours
Special charging hole
with ACT(IR)function
distance :60-100meters



Features

1. Double tuned true diversity automatic selection eliminate the receiving dead

angle avoiding disconnect the communication.
2. Each channel presets multiple frequencies.
3. Audio output has two different modes, mono and stereo.
4. Infrared automatic synchronization technology, reset with transmitter automatically.
5. Auto Scan function can search channel quickly without interference.
6. 8 receive sensitivity,can adjust SQ value according to different performance environment,

so as to avoiding noise interference.
7.The receiving panel can display the signal strength at the same time.The signal strength

can be displayed at the same time, action antenna, battery power, the intensity of the audio.
8. It has operation locking function to prevent misoperation.



Deatails of tour guide receiver



Accessories

1. Desktop stereo transmitter (OK-003UT)...1pcs
2. Body-pack stereo diversity receiver (OK-7102R)..1pcs.
3.Body-pack pick up J-3 (Use with OK-8002T body-pack transmitter)..1line
4.Hi-fi earphone(Use with OK-7102R body-pack receiver)..1pcs
5. Audio cableL-52/J3 ...2lines
6. Video camera/camera installing supportMJ-6....1pcs
7. AA alkaline battery....4 grams
8. Specification.1pcs

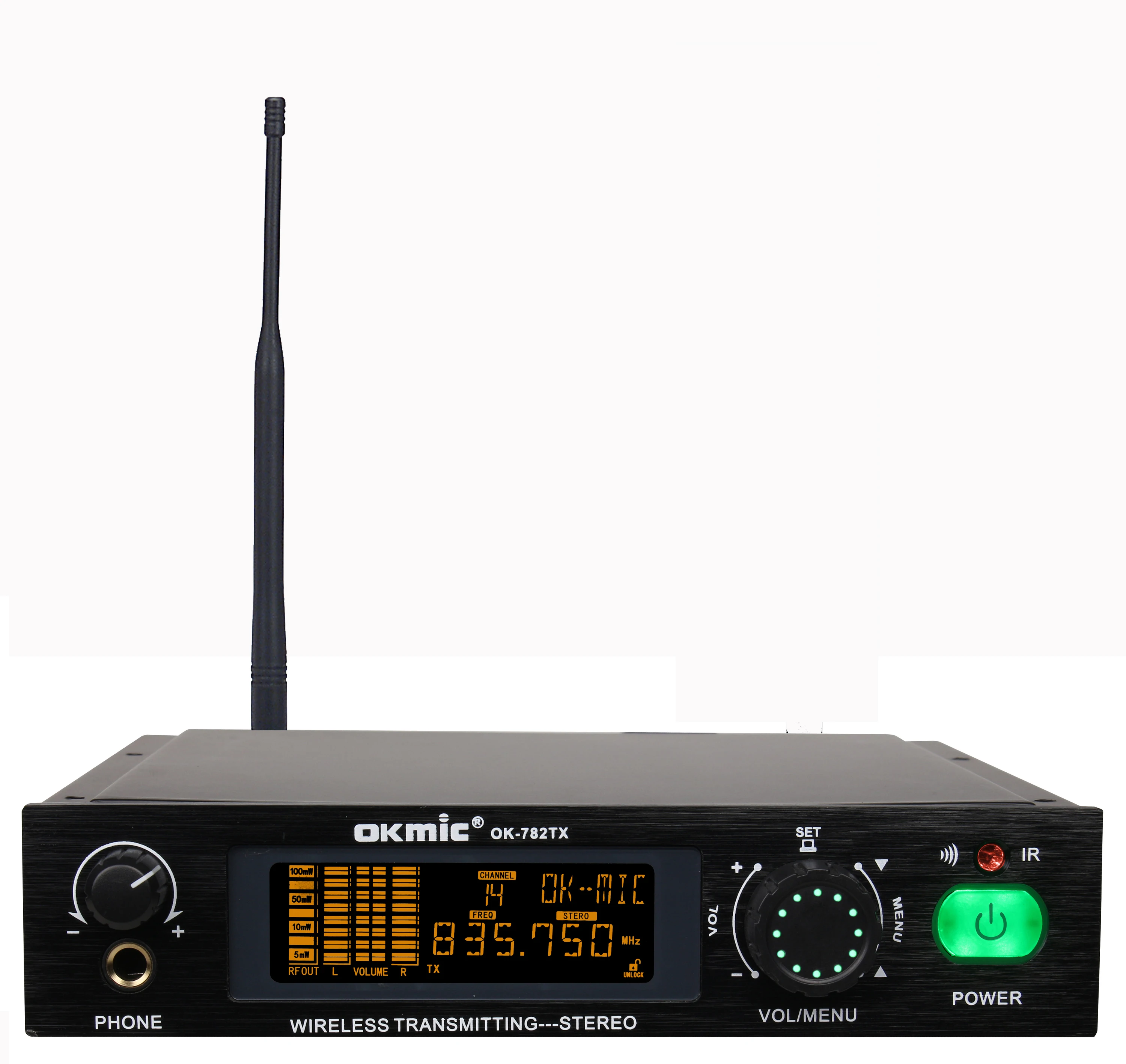

Another choice of the desktop transmitters: ( Metal panel)

The same parameter of OK-003UT(plastic panel)



More choice of the receivers

1.The PCB, prices are different.

2.OK-7102R can rechargeable by USB cables.(Scan function)



Application of wireless tour guide system
