IGBT YUELON lead induction melting furnace

FOB Reference Price:Get Latest Price
$4,300.00 - $4,700.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF-35
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
YUELON
Voltage:
3 Phase 380V
Dimension(L*W*H):
520*270*450
Weight:
35kg

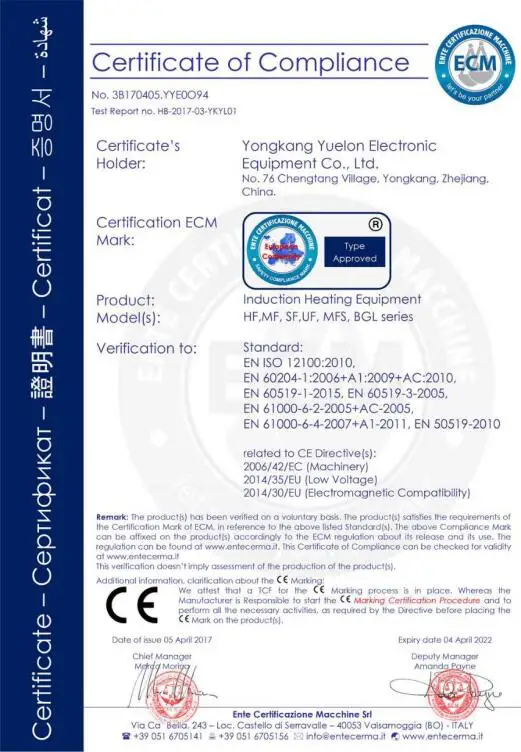

Certification:
CE Certificate
Warranty:
12 Months
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Melting Material:
Metal
Frequency:
1-20KHz
Duty cycle:
100%
Energy:
Water
Feature:
Energy-saving
Max Input power Frequency:
35KW
Input voltage:
3 Phese 380V
Max water temperature:
<40℃
capacity:
1kg~500kg
Power(W):
35kw
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
stand wooden case
Port
ningbo/shanghai
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 7 To be negotiated



Product Description

The composing of the medium frequency melting furnace:

MF induction heating generator   Compensating capacitor    Melting furnace

Options:

Infrared sensor   temperature controller  hydraulic pump  water cooling system others



Induction melting furnace features

1. MF melting furnace can be used for the melting of steel, stainless steel, brass,cooper,gold and so on.

2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quantity casting parts.

3. Wide frequency range from 1KHZ to 20 KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.

4. Compared with SCR medium frequency furnace, it can be energy at least 20% and up.

5. Small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the colleges and researching companies to used.

6. 24 hours non-stop melting ability.

7. Its easy to change melting furnace to different capacity, different materials,different way of pouring out, to suitable for all kinds of requirements.



 Main models about medium frequency:



CategoryModelMaximum Input powerOscilating frequencyMaximum Input currentInput voltageThe range of operating voltageDuty cycle
Medium frequency seriesMF-1515KW1-20KHZ23A3phase 380V50Hz70-550V100%
MF-2525KW36A
MF-3535KW51A
MF-4545KW68A
MF-7070KW105A
MF-9090KW135A
MF-110110KW170A
MF-160160KW240A
MF-240240KW360A
MF-300300KW1-20KHZ480A



Model

Max input power

Maximum melting capacity

Max. melting capacity of Steel ,stainless steel

Max melting capacity of Gold, silver, copper, bronze

Max melting capacity of

aluminum

MF-15  15KW furnace

15KW

3kg

10kg

3kg

MF-25  25KW furnace

25KW

5kg

20kg

5kg

MF-35  35KW furnace

35KW

10kg

30kg

10kg

MF-45  45KW furnace

45KW

18kg

50kg

18kg

MF-70  70KW furnace

70KW

25kg

100kg

25kg

MF-90  90KW furnace

90KW

40kg

120kg

40kg

MF-110 110KW furnace

110KW

50kg

150kg

50kg

MF-160 160KW furnace

160KW

100kg

250kg

100kg

MF-240 240KW furnace

240KW



400kg

 150kg
  MF-300 300KW furnace            300KW  500kg 200kg



Induction melting furnace features:

1. MF melting furnace can be used for the melting of steel, stainless steel, brass,cooper,gold and so on.

2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quantity casting parts.

3. Wide frequency range from 1KHZ to 20 KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.

4. Compared with SCR medium frequency furnace, it can be energy at least 20% and up.

5. Small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the colleges and researching companies to used.

6. 24 hours non-stop melting ability.

7. Its easy to change melting furnace to different capacity, different materials,different way of pouring out, to suitable for all kinds of requirements.
