IIC color sensor module TCS34725 color sensor for Arduino Programming

Feedback Ratings
  • 2-9 Pieces
    US $9.10
  • 10-49 Pieces
    US $8.90
  • 50-199 Pieces
    US $7.30
  • >=200 Pieces
    US $5.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Customized packaging (Min. Order:: 1000 Pieces)

More

Graphic customization (Min. Order:: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S161
Application:
Detect color
Material:
PCB
Condition:
New100%

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X9X11 cm
Single gross weight:
0.3 kg
Package Type:
Standard Package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 2 To be negotiated

Description

IIC color sensor uses TCS34725 color sensor for color recognition.The TCS34725 is a cost- effective RGB full-color color recognition sensor, which uses optical induction to identify the surface color of objects.Support red, green, blue (RGB) three primary colors, support light induction, can output the corresponding specific value, help you restore the color true.In order to improve the precision and prevent the interference of the surrounding environment, we added a lens cover on the sensor, effectively reducing the external interference sensor of stray light and making the color management more accurate.The board is equipped with two highlighted leds to enable the sensor to function normally under low ambient light.The module uses I2C communication and has 4P antiplug interface, which is more convenient.

Specifications

  • Item name:IIC color sensor
  • Item code:RB-02S161
  • Brand:ALSRobot
  • Original:China
  • Size:25*40
  • Fixed hole:M3*2
  • Interface type: 4P anti - plug interface
  • Signal type: IIC communication
  • Lamp
  • Working voltage: 5V
  • Working current: 100mA
  • Pin definition:
    +: power positive
    - : power supply negative pole
    SDA: IIC data port
    SCL: IIC clock port
    LED: two onboard LED control ports, suspended or high level on, low level off
    INT: output interrupt pin. See TCS34725 data manual for details
  • Connection wire: 4P sensor connection wire
  • Detection range: red, green, blue and white light detection
  • Working temperature: - 40 ~ 85 ℃

pictures

RB-02S161-color sensor(4)

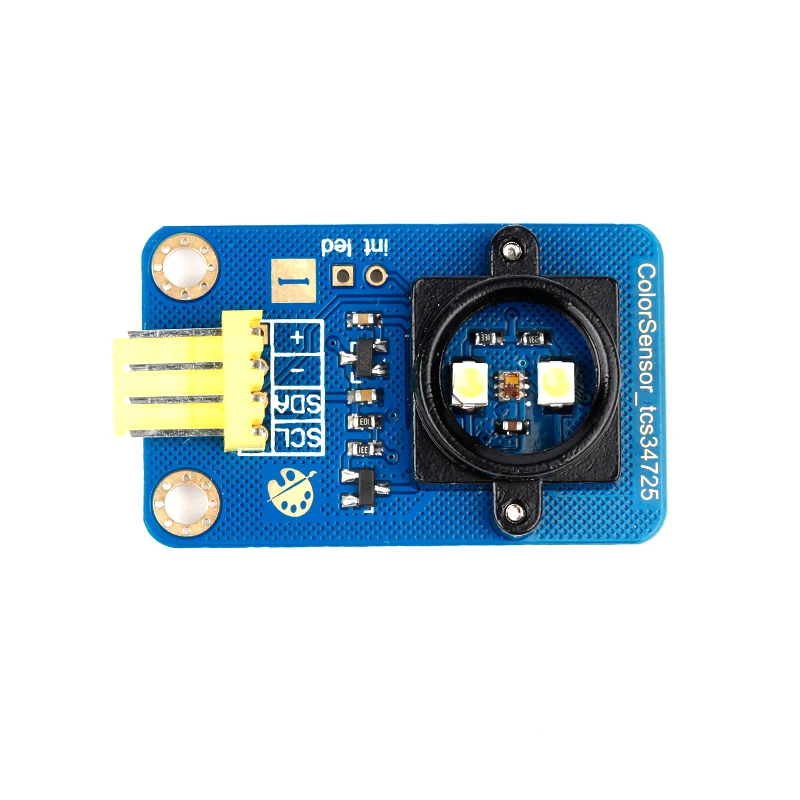

IIC color sensor module interface clear

RB-02S161-color sensor(2)

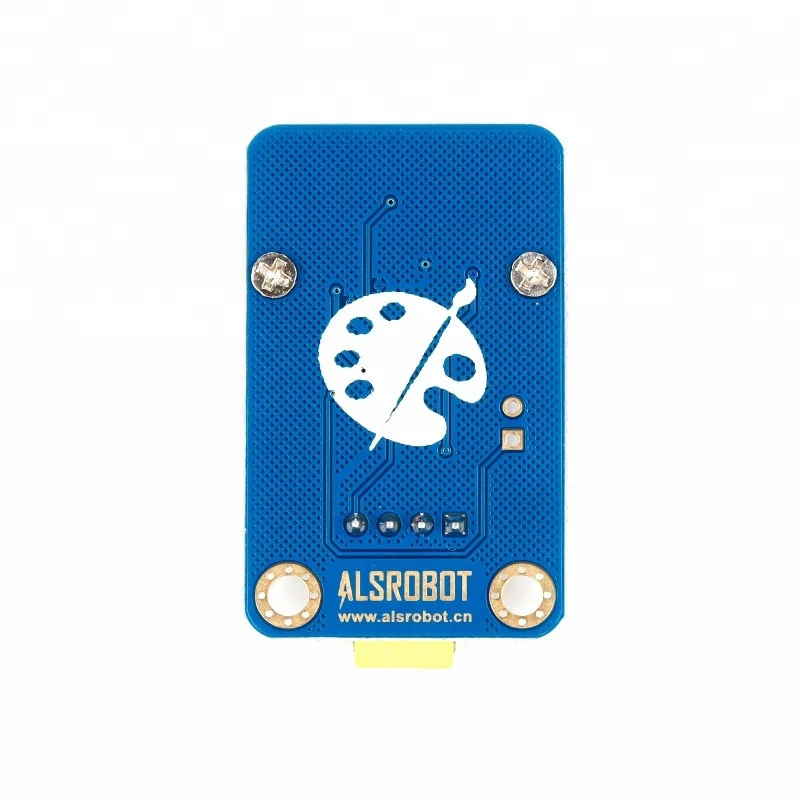

IIC color sensor module ALSRobot brand

IIC Color sensor

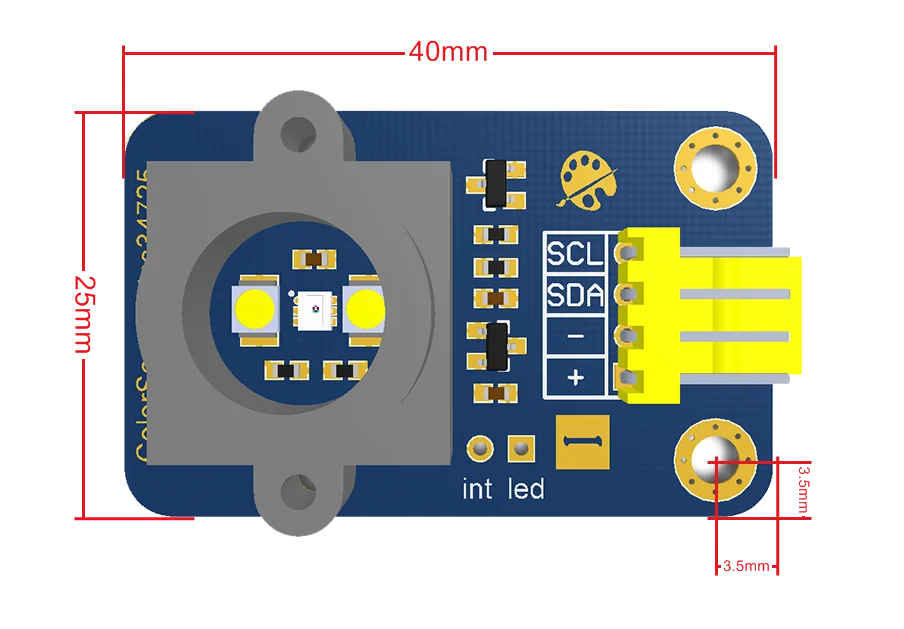

IIC color sensor module size precision

IIC Color sensor 2

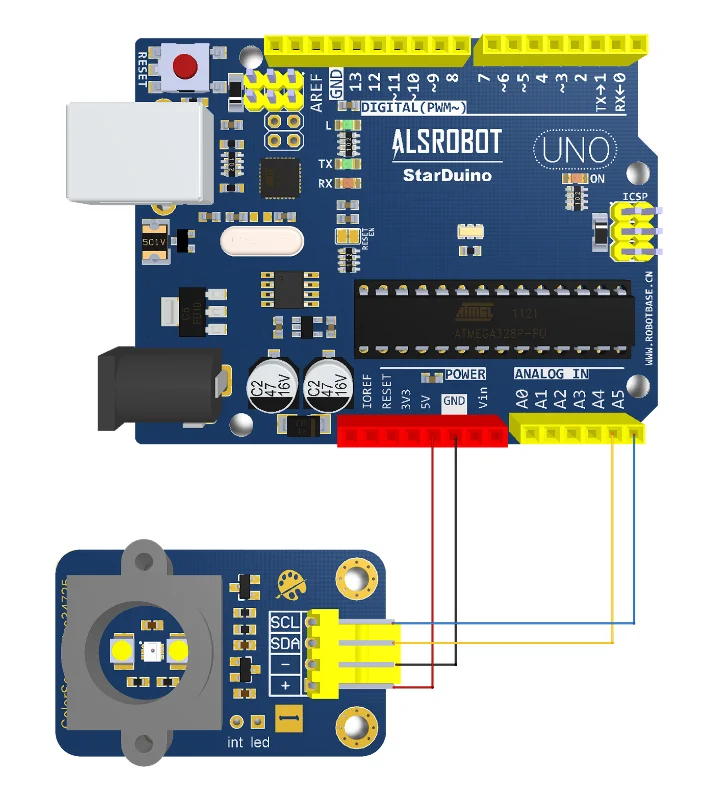

IIC color sensor connect with Arduino UNO R3 controller

RB-02S161-color sensor(3)

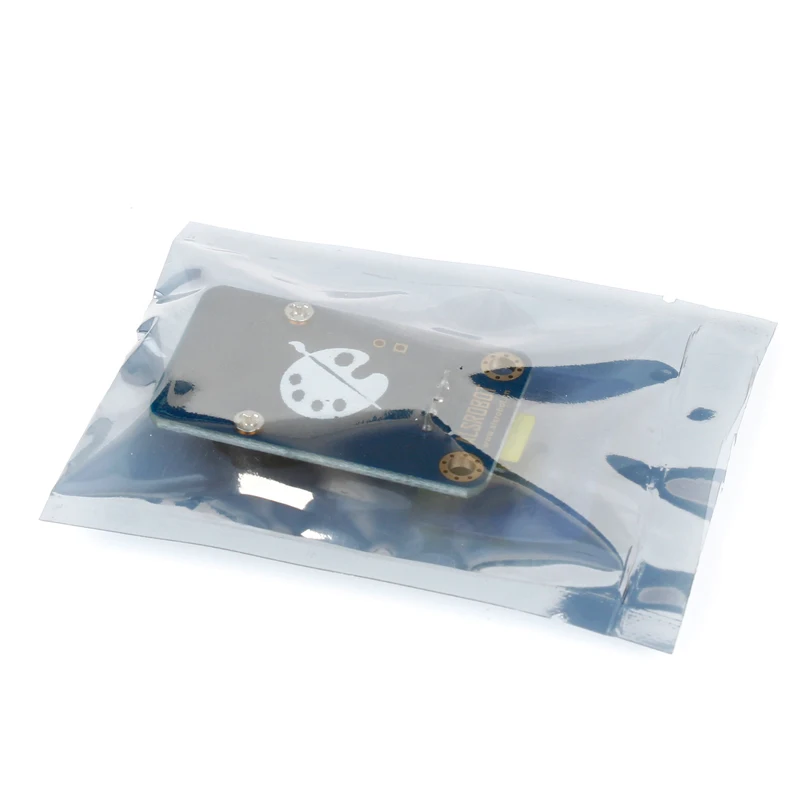

IIC color sensor module package beautiful
