IPTV encoder and multiplexer 32 channel iptv encoder

Feedback Ratings
  • 1-19 Sets
    US $1538.00
  • >=20 Sets
    US $1099.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order:: 10 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
Jiexiang-8448SA
Product name:
32 channel iptv encoder
Intput:
16/32 CVBS inputs , DB15-To-RCA interface
Output:
ASI&IP (MPTS/SPTS) output
Video encoding:
H.264
Protocol:
over UDP/RTP
Language:
English
Weight:
8kg
Dimension(W*L*H):
482mmx328mmx44mm
MOQ:
1 set for 32 channel iptv encoder
Warranty:
5 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X60X16 cm
Single gross weight:
10.0 kg
Package Type:
Carton Case
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(day) 5 To be negotiated

IPTV encoder and multiplexer 32 channel iptv encoder

optic encoder

Technical Indicators

optic encoder



Product Overview



Jiexiang-8448SA multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It adopts the slot structure with one device supporting maximum 2 Jiexiang-8448SA modules. Each module can support 16 channels and work standalone. It is equipped with 16/32 CVBS channels input. It can multiplex the 16/32 encoded TS to generate a MPTS and 16/32 SPTS output through GE output port and one MPTS output through 2 ASI output ports. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.



Technical specification



Input

16/32 CVBS inputs , DB15-To-RCA interface

Video

Resolution

720×576i (PAL-B, D, G, H, I), 720×480i (NTSC-M, J)

Encoding

MPEG4 AVC/H.264(HP/MP/BP)

Bit-rate

1Mbps~5Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IPP (P frame is adjustable)

Aspect Ratio

4:3; 16:9

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 adjustable

Bit-rate

64/128/192/224/256/320/384Kbps each channel

Stream output

IP (1*MPTS and 16/32*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast)

1 MPTS output through 2 ASI output ports (one for back up), BNC interface

System function

Network management (WEB)

English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×328mm×44mm

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz



Order Information





Version I

VersionII

16 CVBS Input

*



32 CVBS Input



 *



Welcome to inquiry for more details!

Skype:Alina_jxdvb

Advantages

optic encoder

          *  16/32×CVBS video inputs with MPEG4 AVC/H.264 Video encoding

          *  Supports PAL (PAL-B, D, G, H, I) and NTSC (NTSC-M, J) SD video formats

          *  Support MPEG1 Layer II Audio encoding and support audio gain adjustment

          *  Support 1 MPTS out through 2 ASI output ports

          *  Support IP output over UDP and RTP

          *  Support Null PKT Filter(only for MPTS, SPTS output without Null PKT)

          *  Support Logo, Caption, QRcode insertion

          *  Real-time effective encoding output bit-rate monitoring

          *  Control via web management, and easy updates via web

          *  Modular design,1U chassis support up to 2 modules

Product Show

optic encoder


Jiexiang-8448SA .jpg

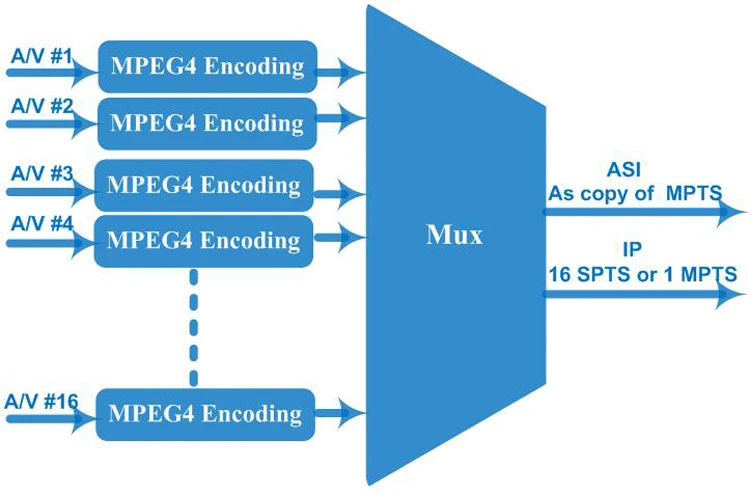

Principle Chart (per daughter module)
