Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
XCY
- Model Number:
-
X30 N2830 N2840
- Products Status:
-
Stock
- Use:
-
Business
- Type:
-
Barebone System
- Screen Size:
-
No Monitor
- Processor Brand:
-
Intel
- Graphics Card Type:
-
Integrated Card
- Widescreen:
-
No
- Display Type:
-
NO monitor
- Optical Drive Type:
-
No DVD
- Processor Main Frequency:
-
2.16 GHz
- CPU:
-
Intel Celeron N2830(2 Cores ,2 Theads 1M Cache, up to 2.41 GHz)
- Processor Graphics:
-
Intel HD Graphics
- RAM Type:
-
8GB/4GB/2GB DDR3 SO-DIMM
- SSD Capacity:
-
30GB/60GB/120GB/240GB mSATA SSD
- OS:
-
Win7 Win8, Win10, Linux,etc.
- Interface:
-
1*HD, 1*VGA, 5*USB, 2*WIFI, 1*LAN
- WIFI:
-
300M Wifi
- Demension:
-
133*125*40mm
- Case Material:
-
Alumnium Alloy
- Warranty:
-
1 Year
Product Certification
- CCC Certified.
- Valid from 2017-11-15 until 2021-07-26
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 20X20X11 cm
- Single gross weight:
- 1.500 kg
- Lead Time :
-
Quantity(Units) 1 - 1 2 - 500 501 - 1000 >1000 Est. Time(days) 5 10 10 To be negotiated
Company Information
Shenzhen Innovative Cloud Computer Co.,Ltd ,established in 2011,is a professional manufacturer which specializes in high quality mini PC,all-in-one PC ,computer motherboards. All along constantly developing new products,so far we have owned more than 40 kinds of independent research products and many patented technology. we have our own R & D department, strong engineer team with rich experience of PCBA, ODM case involved case/ color/ LOGO etc.80% products are exported to Europe/US/south America with strict quality control system from IQC to PQC to QA.
Certifications
The technical expertise of our highly knowledgeable and dedicated staff forms the backbone of our company. From the design stage to installation to our unsurpassed warranty, XCY clients are assured of the highest level of quality and service.
XCY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automation and control, thereby enabling XCY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients.
Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
Product Description
Intel Celeron N2830 N2840 Portable Linux Mini PC Fanless Desktop Computers LAN WIFI DUAL Display VGA HD HTPC TV BOX
Features:
- Strong: Work with any brand monitors; 1*RJ45 Gigabit Lan Nic+ 1*VGA+ 1*HDMI+ 1*USB3.0+ 4*USB2.0
- Noiseless: Fanless system, low consumption, 0dB noise.
- Application: Multi Application in Factory, market, manager rooms, stores, Library, hotel, fanancial and projects, industries, security.
- Low-carbon green: TDP only 7.5W, very economical, saving a lot energy , low consumption but with a very amazing performance.
- Notice:
- We free pre-install cracked version Win7/8/10, Linux need to add 10usd , the OS come with English language by default.
- If your address is remote area for forwarder , you should add extra shipping fees or change the other shipping method.
- The wifi antennas/sata power cable/ bracket to buyer is free gift, we send its according our stock.
Specification | Specification | |
Onboard CPU | Intel® Celeron® Processor N2830 ( 2 cores 2 threads, 2.16GHz up to 2.41 GHz ) | |
Memory | 2GB /4GB/ 8GB DDR3 SO-DIMM(optional) | |

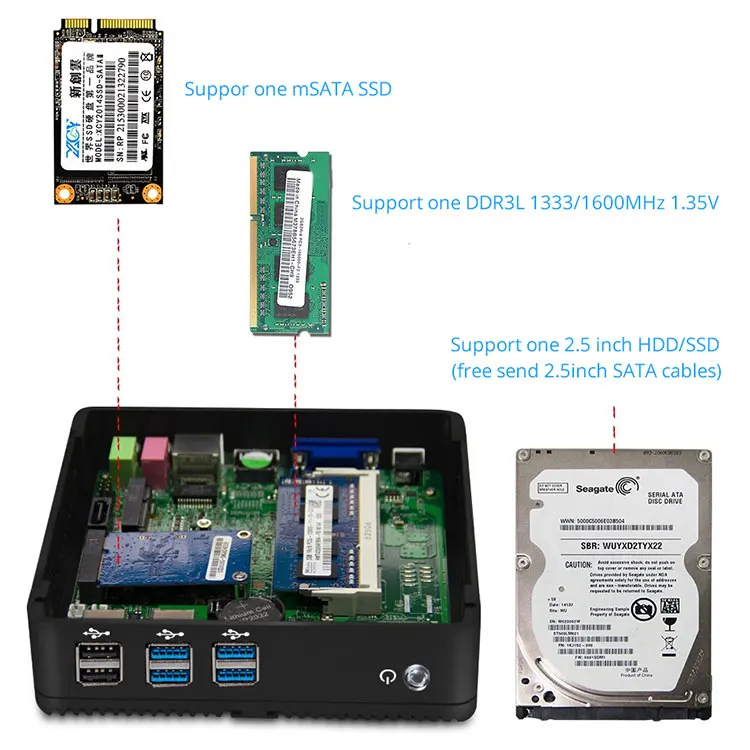

Hard Disk | 32G/64G/128G/256G mSATA SSD (Support MSATA + 2.5"inch SSD or HDD) | |
Integrated Graphics | • Intel HD Graphics • Graphics Base Frequency: 313 MHz • Graphics Max Dynamic Frequency: 750 MHz | |

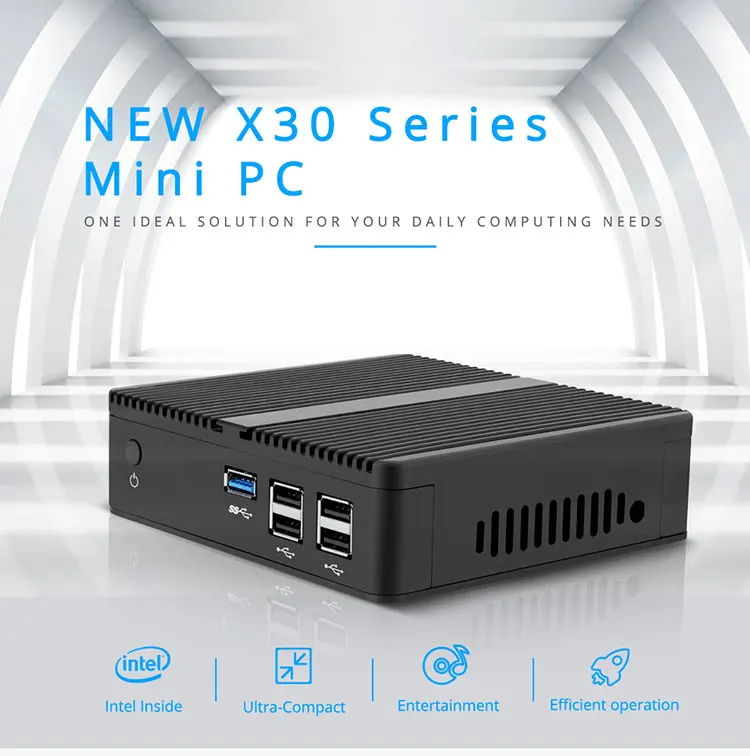

Front-Panel Connectors | • Power on/off • 4 x USB 2.0 • 1 x USB 3.0 | |

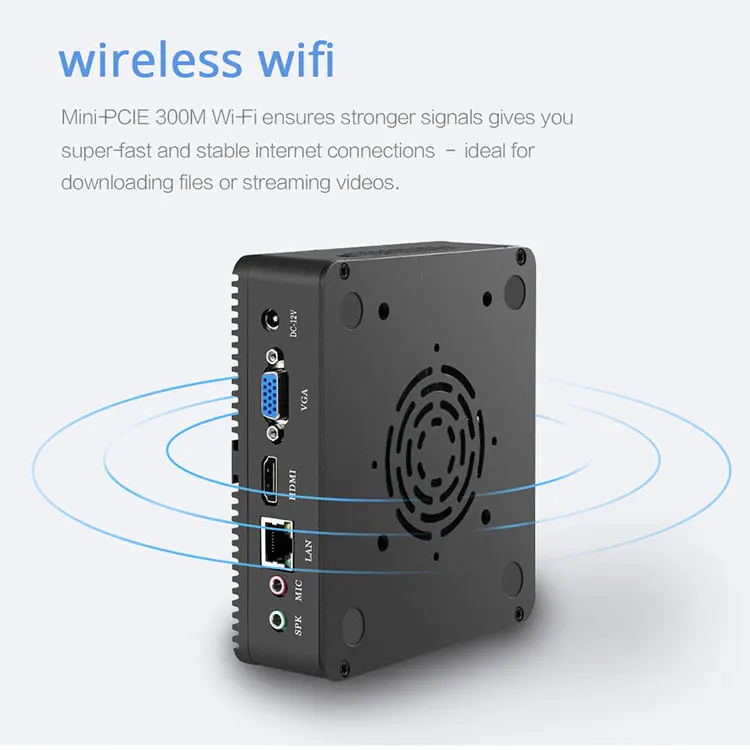

Rear panel connector | • 1 × DC IN 12V/5A • 1 × HD • 1 × VGA • 1 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive) • 1 × SPK • 1× MIC • 2 x WIFI antennas ports | |

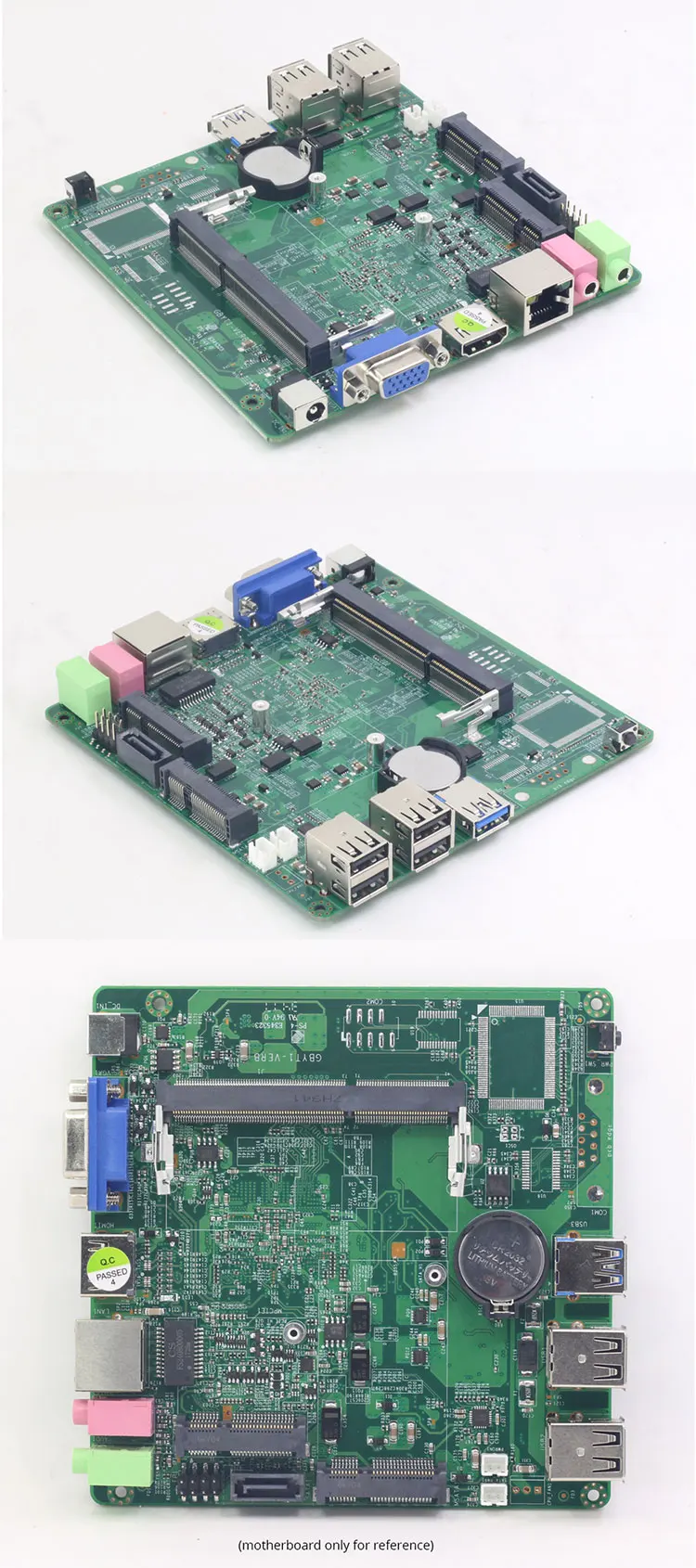

Internal Connectors | • 1 x Mini pcie port (only for mSATA SSD) • 1 x Mini pcie port (only for WIFI) • 1 x DDR3 SO-DIMM Memory Slot • 1x SATA Port • 1 x SATA power connector • 1 x Automatically boot jumper | |
WiFi | With dual antenna,300M,802.11.b/g/n | |
Power Consumption | TDP 7.5W | |
Case Color | Black (Other Color Can Be Customized) | |
Power | Input: DC100-240V AC/50-60Hz Output: DC 12V/5A | |
Operating Temperature | -20-80℃ | |
Storage Temperature | 0℃-80℃ | |
Relative Humidity | 10%~90% (non-condensing) | |
Dimension | 133X125X40 mm | |

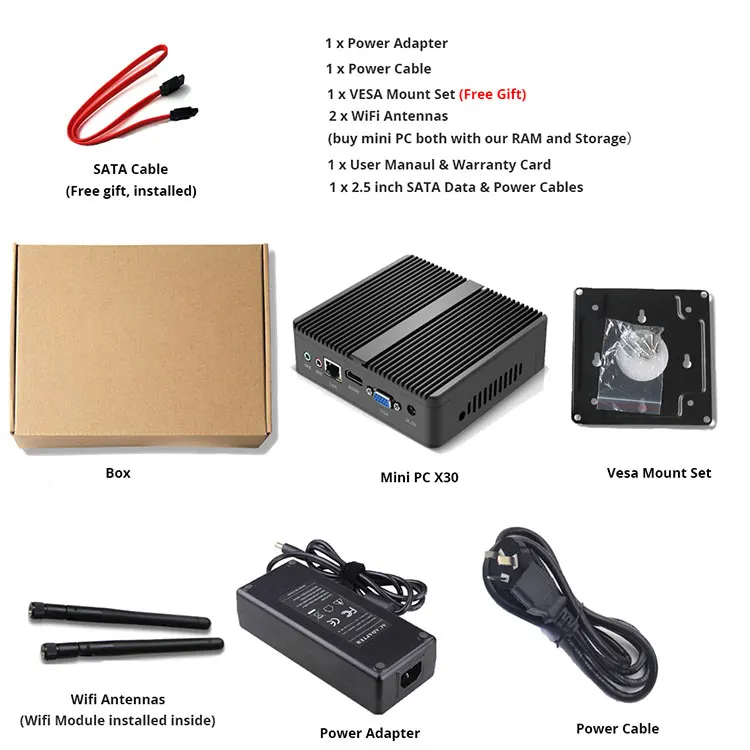

Package Contents | 1x Mini PC 1x power adapter 1x WiFi modlue with dual antennas (If you select NO RAM and NO SSD, there will be no WIFI ) 1x VESA mount 1x User Manual | |
Packaging & Shipping
Notice:
If you buy PC without RAM and SSD, there will be no WIFI module and WIIF Antennas
Plug Type
We Mainly provide 4 type Power adapter(No.1=UL/ No.2=EU/ No.3=UK/ No.4=AU)for you choice. If you need other type, please contact the Bingxin.
No.1 is mainly used in the USA, Canada, Mexico& Japan
No.2 used almost everywhere in Europe& Russia, except for the UK & Ireland
No.3 mainly used in the United Kingdom, Ireland, Malta, Malaysia & Singapore
No.4 mainly used in Australia, New Zealand, China & Argentina.
Payment & Delivery
We accept "L/C, DA, DP, T/T, Western Union, and Paypal. "But it depends on the contract and which country.
Normally, we ship packages via DHL,EMS,UPS,FEDEX. It usually takes 3-7 working days to most countries.We will choose the right logistics according to your country.
Our Service
Our Promise
1. Warranty: 1-year warranty.In the second and the third year, we can repair it for free, but we will charge for the parts that need to change.
2. We can sell one sample for your test.
3. We can provide OEM/ODM services.
4. We ensure great products, services and favorable prices for you. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
Q: Can you put my brand name (logo) on these products?
A:Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q: What payment method do you accept?
A: T/T,Western Union,PayPal, LC
Q: What is the Minimum Order Quantity(MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time of your products?
A: 1-3 days for one sample, 15 working days for a large quantity.
A:Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q: What payment method do you accept?
A: T/T,Western Union,PayPal, LC
Q: What is the Minimum Order Quantity(MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time of your products?
A: 1-3 days for one sample, 15 working days for a large quantity.
