JASU V-1580D Heavy Duty 4 Axis Vertical CNC Milling Machine Centre

Feedback Ratings
  • 1-2 Sets
    US $76660.00
  • >=3 Sets
    US $74360.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JASU
Model Number:
V-1570D
Voltage:
220V/380V
Power(W):
15/18.5kw
Dimension(L*W*H):
3.4x3.3x3.0m
Weight:
15000kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
X/Y/Z TRAVEL:
1500/800/700
Rapid traverse:
20/20/20 m/min
Spindle speed:
6000 rpm
Spindle taper:
BT50

Packaging & Delivery

Selling Units:
Single item
Single package size:
340X330X300 cm
Single gross weight:
165600.0 kg
Package Type:
Fully sealed wooden box with vacuum packing, loading by 20 feet flatrack container.
Lead Time :
60

_01

JASU V-1580D Heavy Duty Vertical 4 Axis CNC Milling Machine Center

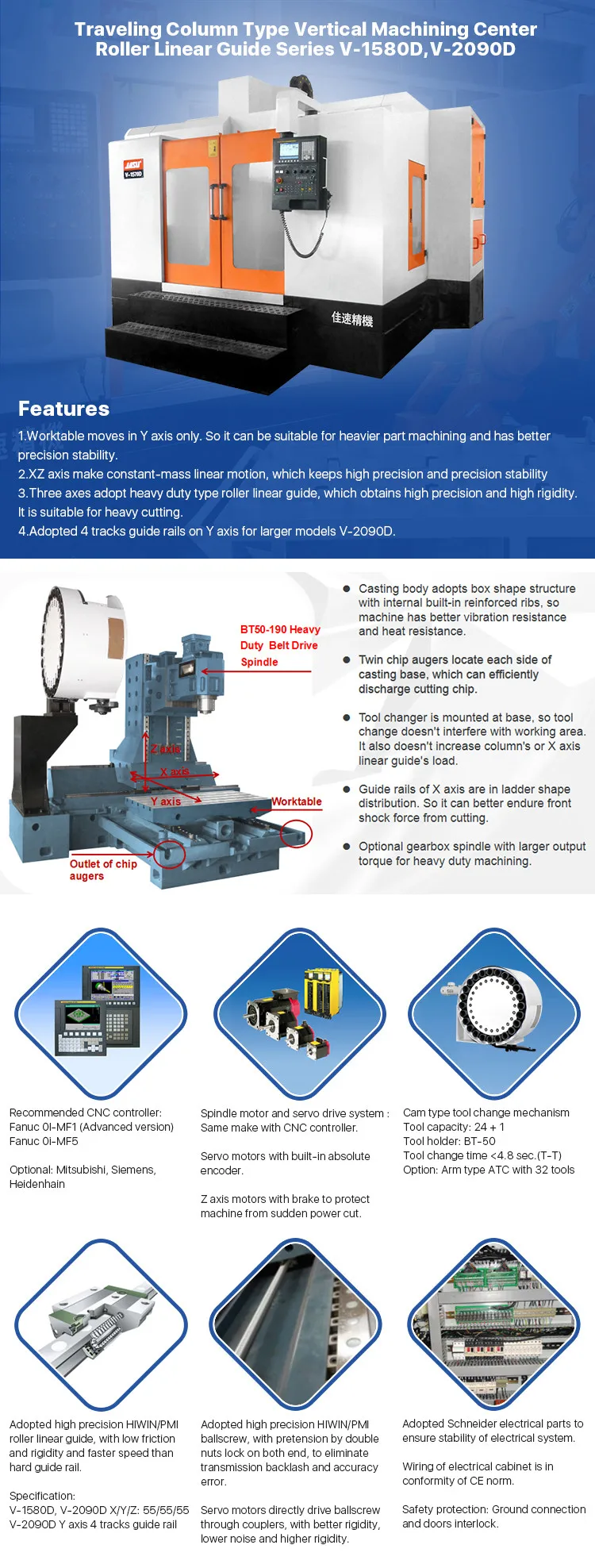

ASU V-D series traveling beam type vertical CNC machine center is middle size range of vertical CNC milling machine center with high speed and high rigidity. It is a new generation of JASU VMC products owning national patent.



The models have full processing function of milling, boring, drilling, tapping and reaming etc. It can be equipped with full enclosed-loop linear scales, high pressure coolant through spindle, 4 axes simultaneous motion etc. It is exactly suitable to the application in various industries, like machinery, automobile, mould, aerospace, motor and valves etc.

This model has been exported to South Korea, Vietnam, Turkey, Russia, Netherlands, Peru etc.

Specification of V-D Series Vertical Machine Center

SpecificationV-1580DV-2090D
Worktable
Table size (L*W)1700 x 800 mm2200 x 1000 mm
T slot size (width * gap)18 x 142 mm18 x 165 mm
T slot number 6 pcs 6 pcs
Max. load capacity 2000 kg3000 kg
Travel
Max. XYZ axis travel 1500/800/700 mm2000/900/800 mm
Spindle nose to worktable 200-900 mm250-1050 mm
Spindle center to column surface950 mm1200 mm
Spindle
Spindle taper BT50/SK50/CT50BT50/SK50/CT50
Max. spindle speed 6000rpm6000rpm
Spindle drive Belt drive Belt drive
Feeding
XYZ axis cutting feedrate1-10000 mm/min1-10000 mm/min
XYZ axis rapid traverse 20/20/20 m/min20/20/20 m/min
XYZ axis ballscrew size XYZ:∅50-P10
XYZ:∅50-P10
Positioning accuracy (JIS)±0.003/300 mm±0.003/300 mm
Repeatability (JIS)±0.003 mm ±0.003 mm
A.T.C.
Tool magazine typeArm type Arm type
Tool capacity 24 pcs24 pcs
Max. tool diameter X length 112 x 300 mm112 x 300 mm
Max. tool weight15 kg15 kg
Toolholder typeBT50/SK50/CT50BT50/SK50/CT50
Tool change time (T-T)4.8 sec.4.8 sec.
Servo motor power
Spindle motor 15/18.5 kw 15/18.5 kw
Spindle torque output (Peak)Cont. 15 min. 245 N.m.@1500rpmCont. 15 min. 245 N.m.@1500rpm
XYZ axis servo motor (Mitsubishi)3.0/3.0/3.0 kw3.5/3.5/3.5 kw
XYZ axis servo motor (Fanuc)3.0/3.0/3.0 kw3.0/3.0/3.0 kw
Coolant motor 0.49 kw0.49 kw
General items
Air required 8 kg8 kg
Power capacity30 KVA30 KVA
Dimensions3.4 x 3.3 x 3.0 m4.5 x 3.3 x 3.0 m
Net weight 15000 kg18000 kg

Specifications are subject to change without notice.



Standard Configuration

No.Standard accesories Qty
1FANUC CNC system package 0i-MF(5), including Beta series servo motors and servo drive
1 set
2Standard RS-232 interface & communication cable, USB, CF card interface1 unit
3Spindle rigid tapping 1 unit
4Arm type ATC T24 1 set
5Tool pressure cylinder 1 pcs
6Pneumatic system 1 unit
7Fully enclosed cover 1 set
8Coolant system 1 set
9Auto centralized lubrication system 1 set
10Working light, working signal light 2 pcs
11Heat exchanger of electrical cabinet 1 pcs
12Spindle air blow, coolant gun, air gun, auto safety door
13Toolkit for setup1 set
14Leveling screws and blocks 1 set
15English operation maintenance manual, Fanuc manual (CD), Electrical manual 1 set



Optional Configuration

No.Optional accessories Remarks
1Siemens CNC sytem 828Dsame price with Fanuc 0i-MF5
2Mitsubishi CNC system M70B
same price with Fanuc 0i-MF5
34th axis function of  CNC system (without motor, drive and hardware)
4Belt spindle 8000rpm
5Direct spindle 8000rpm
6Spindle 10000rpm /12000rpm (BT-40)
7Motor spindle 15000rpm

8Spindle oil chiller
9Oil mist filter
10Spindle gearbox with two shifts
11CNC rotary table (Available size 255, 320)
12Manual or automatic tailstock (Applied with rotary table)

13Tilting rotary table (3+2 axis)5 axis with 4 axis simultaneous control
13Coolant through spindle 30 Bar Only for belt spindle and motor spindle
14Chain type chip conveyor & chip cart
15Oil skimmer
16Renishw tool setter
17Renishaw part probe
18Overseas 2 years warranty for CNC system (For Fanuc and Mitsubishi only)
No free guarantee from CNC system supplier for the exported CNC machine



Main components origin

No.Part NameSupplier
1CNC systemFanuc (Mitsubishi, Siemens)
2Spindle & axis motor and servo drive Fanuc (Mitsubishi, Siemens)
3Spindle Taiwan Kenturn, Volis, Royal
5Spindle bearing NSK
6BallscrewTaiwan Hiwin
7Linear guide Taiwan Hiwin
8Ballscrew bearingNSK
9Ballscrew nutsYSK/YSF
10ATCTaiwan Okada
11Tool cylinderTaiwan Haocheng
12Heat exchangerChina Tongfei
13Lubrication systemTaiwan Ishan
14Coolant systemChina Walrus
15Electrical componentsSchneider
16Air filter unit Taiwan Shako
17Chip conveyor China JASU
18Couplers China Dingding



Notice:

1.The price is based on standard configuration and FOB Guangzhou (Shenzhen/Shanghai). If any optional accessory is required for your job, please contact us by any available way. 2.More information on your workpiece, such as drawing, material, application, cycle time required etc. will be more helpful for us to recommend a suitable solution to you.

3.CAT50, SK50 taper is alternative, it will increase cost US$1000 for tool changer.



3



Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.


Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.


Our company faith is “better and faster, it is JASU”.  We are engaged in providing machines with high quality and best service to create benefit for enterprise and create value for customer.



Overseas Agent Wanted


In order to further develop the international market, we are sincerely invite you to be our agent, on the basis of equality and mutual benefit.



As our agent, quite favorable price, professional technical instruction and excellent after-sale service will be offered.
