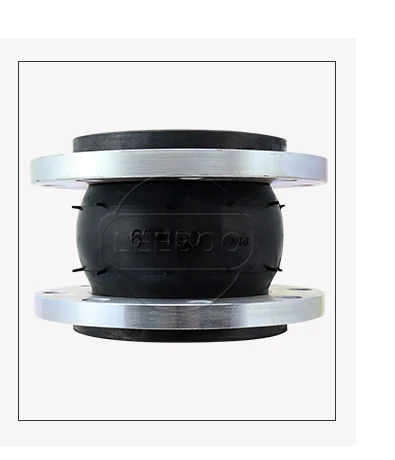

JGD rubber bellow expansion joint with stainless steel flange for pipeline

Product Description



High Quality  JGD rubber bellow expansion joint with stainless steel flange for pipeline



Rubber joints are designed to absorb movements and stress on piping systems, compensate for pipe misalignment, reduce vibration and system noise, protect against start-up forces as well as system surges. Thus, they are also called shock absorbers, pipe compensators, flexible connectors, etc.



The spherical shape design allows even distribution of forces in all directions to have smooth and quiet flow.



Single Sphere Rubber Joint

Product Overviews

Name: JGD rubber bellow expansion joint with stainless steel flange for pipeline

Key words:  rubber bellow expansion joint

Brand: LEEBOO

Model: KXT DN32~DN4000

Technical Parameters

Pressure: 1.0~2.5Mpa

Medium: Air, water, seawater, oil, slurry, weak acid, alkali, etc.

Temperature: -20~+115℃

Application: Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, fire, electricity, etc.

Product Features

High resistance to corrosion.

Absorption of movements, vibrations and stresses.

For more information please visit our official website http://www.xlpipe.com http://www.xinlipipe.com http://www.xinligd.com http://www.xinligj.com

Structure and Function of Single Sphere Rubber Joint

No.PartMaterialFunction
1Floating FlangeGrooved Flanges. Material according to RequestConnection
2Inner & Outer RubberNR, EPDM, Neoprene, IIR Butyl Rubber, NBR Buna-N, FKM/Viton, PTFE, etc.Body Liner
3Middle RubberNR Natural Rubber, EPDM, Neoprene, IIR Butyl Rubber, NBR Buna-N, FKM/Viton, etc.Body
4Cord FabricNylon Cord FabricBody Carcass
5Reinforcing RingMulti-Strand Coppering Steel WireReinforcement



Detailed Images



Detailed Images of Single Sphere Rubber Joint

Photos of Single Sphere Rubber Joint

Quality Comparison of Our Single Sphere Rubber Joint with Others

Project Cases - Application of Single Sphere Rubber Joint



As rubber has superior capability in resistance of acid, alkali, oil and electrolyte, rubber joint has become one of the alternatives of stainless steel and been successfully installed in tough demanding applications such as: Chemical, Petrochemical, Marine, Power Generation, Pulp and Paper, Steel Mills, Water and Wastewater Treatment, Building Construction, Heavy Industry, Freezing and Sanitary Plumbing.

Technical Parameters



Technical Conditions of Single Sphere Rubber Joint



ItemKXT-10KXT-16KXT-25
Working pressure1.0 Mpa1.6 Mpa2.5 Mpa
Burst pressure 2.0 Mpa3.0 Mpa4.5 Mpa
Vacuum 53.3 Kpa (400)86.7 Kpa (650)100 Kpa (750)
Applicable Temperature-20°C~+115°C (-30°C~+250°C under special conditions)
Applicable MediumAir, compressed air, water, sea water, oil, slurry, weak acid, alkali, etc.



Specification of Single Sphere Rubber Joint




Nominal Diameter
Length
(mm)
Axial Displacement
(mm)
Horizontal Deflection
(mm)
Angular Deflection
(a1+a2) °
mminchExtensionCompression
321.259569915
401.595610915
5021057101015
652.51157131115
8031358151215
100415010191315
125516512191315
150618012201415
200821016252215
2501023016252215
3001224516252215
3501425516252215
4001625516252215
4501825516252215
5002025516252215
6002426016252215
7002826016252215
8003226016252215
9003626016252215
10004026018262415
12004826018262415
14005635020282615
16006435025353010
18007235025353010
20008042025353010
22008858025353010
24009661025353010
260010465025353010
280011268025353010
300012068025353010

 - DN4000

Notes:

1. Supply range can be up to DN4000. Large diameter rubber joints should be equipped with limiters/control units.

2. For OEM orders with special requirement, rubber joints should be made according to customers' drawings.

Generally, flange standard is GB/T9115.1-2000, other GB, JB, HG, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO flanges are also available upon request. Material of rubber body can be NR natural rubber, EPDM, Neoprene, IIR butyl rubber, NBR Buna-N, FKM, etc.

3. When rubber joints size above DN200 are used for overhead water supply system, the pipes must be equipped with fixed supports or fixed brackets, otherwise control units should be installed on rubber joints.

4. Matching flanges of rubber joints should be valve flanges or GB/T9115.1(RF) flanges.

Production Flow



Production Flow of LEEBOO Brand Single Sphere Rubber Joint

Dimension Inspection of DN150 Single Sphere Rubber Joint Rubber Body



Showroom, Workshops and Warehouse of Rubber Joint



Packaging & Shipping



Packaging of Rubber Joint



MOQ 1 pc, OEM orders acceptable.
Packing details Plastic/carton box, then seaworthy plywood case, or as per request.
Shipping method By express, by air or by sea
Shipping port Shanghai, Qingdao, Tianjin or as per request.
