JGY-2838 Small DC Worm Gear Brushless Motor With CCW/CW

  • 1 - 499 Pieces
    $13.50
  • 500 - 1999 Pieces
    $13.20
  • >=2000 Pieces
    $12.50
Voltage(V):
12V
Output Power:
6W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASLONG
Model Number:
JGY-2838
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1.8KG.CM
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Totally Enclosed
Speed(RPM):
160RPM
Continuous Current(A):
0.35A
Efficiency:
IE 2
Product Name:
JGY-2838 DC Worm Gear Brushless Slowdown Motor
Rated Voltage:
12v24v dc
Motor type:
Coreless -brush Motors
product character:
motor with inner driver and signal output wire
keywords:
DC worm gear motor
Factory property:
professional manufacturer
warranty period:
one year
quality policy:
life long warranty
OEM service:
yes
rated voltage:
12v
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day worm gear motor
Packaging & Delivery
Packaging Details
international standard packing or negotiation
Port
Chinese Port

JGY-2838 DC Worm Gear Brushless Slowdown Motor

Worm gear motor group

Worm gear motor

Product Description

 JGY-2838 Brushless motor.jpg

Jgy-2838  brushless motor.jpg

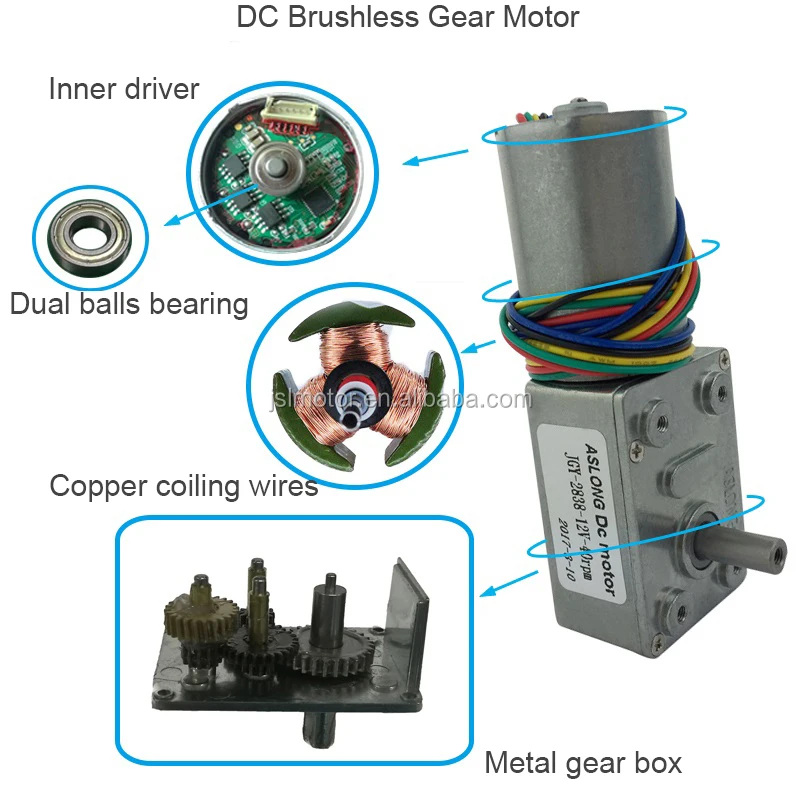

  Product advantage :

       1.Inner dirver for ccw/cw and changing ratation direction ;

       2. High-precision metal gears for reducing noise;

       3. Adoptting high quality dual balls bearing for lengthening motor life.



           several types  RS2838 brushless motor  match with kinds of ratio gear box , for

meeting all kinds of market requirement !

       Factory can offer OEM/ODM servie . like different vlot ,rotation speed,shaft Dia ,shaft lenght etc



 welcome to visit our factory at any time !





Product parameters:

JGY-2838 PARAMETER.jpg

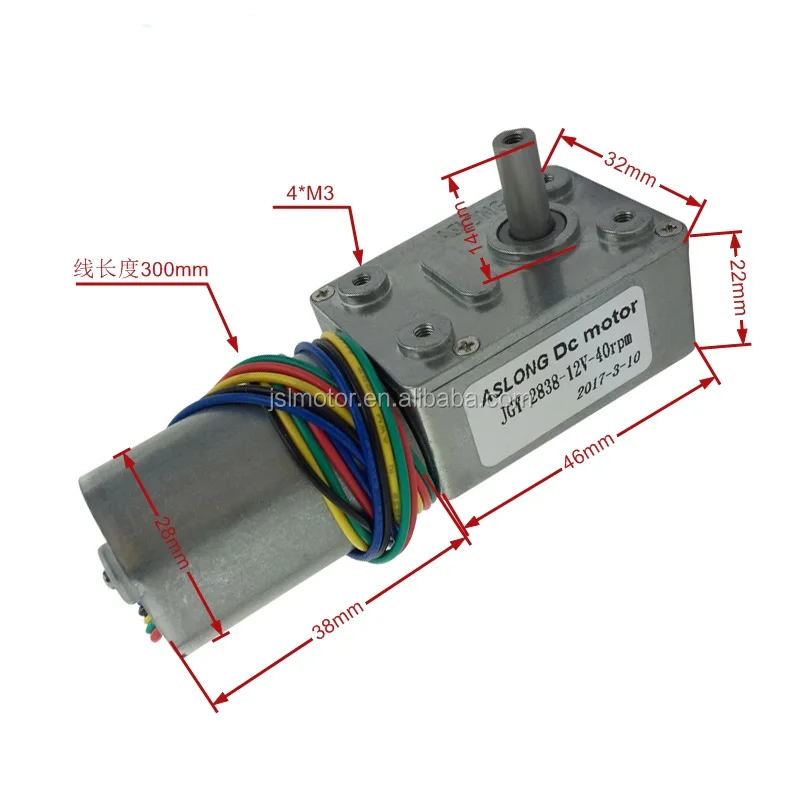

JGY-2838 SIZES.jpg





Stock Information :



More than 1000pcs is in factory store about this type of different  no-load output speed

Model:JGY-2838  Brushless Gear Motor

WorKing Volt Range : 12-24V



Rated Voltage: 12V

No-loading Rotation Speed :160Rpm 40Rpm 24Rpm 18Rpm 10Rpm 6Rpm 3.5Rpm 2Rpm



Rated Voltage: 24V

No-loading Rotation Speed :320Rpm 80Rpm 48Rpm 36Rpm 20Rpm 12Rpm 7Rpm 4Rpm

Connecting Method :



   Black wire and blue wire  connect to  power supply “-”, if the blue wire off , the motor will be brake at once;

   Red wire connect to power supply “+“;

  Yellow wire: controlling  rotation direction ;Which connect to black wrie , the rotation direction will be changed ;

  Green wire:connect to FG Signal wire  , it will be display hall signal ;

  Blue wire: PWM pulse width modulation line, it can connect to  0-5v Pulse width governor;



   Note : To delivery as soon as possible , please tell us  the motor rotation speed;
