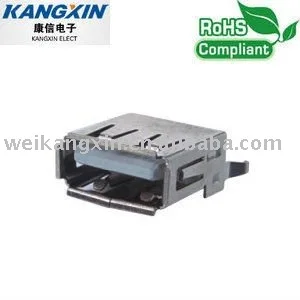

Jack to usb female 1,Factory Established in 1995 2,ISO9001,SGS,ROHS 3,Model:USB AM SMT FALL 4,Rated Load:DC 48V 0.2A
Jack to usb female
USB JACKS SERIES
Specification
Working Temperature
-40°C ~+70°C
Rated Load
DC 48V 0.2A
Contact resistance
≤50mΩ
Insulation resistance
≥100MΩ
Withstand voltage
AC 500V (50Hz)/min
Insertion and extraction force
5~30N
Electrical Life
5,000 cycles Min
Mechanical Life
10,000 cycles Min
Shape and Dimension
Visual inspection:Socket surface is smooth,no damage,crack,pit,and corrosion on metal parts
Features
1,A Type/B Type/Mini Type ect.kinds of connector design
2,Flexibility design for terminal interface to ensure nice contact and prolong the operating force
3,The place that the terminal contacting is gold-plated,it is to fast the data transmiting speed
4,The place that terminal soldering is stannum-plated,it is to make the soldering better
Applications
The Specification is used for USB-connector series of both manufacturing and testing
