Jiangsu factory sale high purity quartz glass tube waterproof for uv lamps insulation of thermal electric

FOB Reference Price:Get Latest Price
$0.61 - $5.00 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Lightbest or OEM
Model Number:
QS23200245
Type:
Clear Quartz Pipe
Color:
Clear
Application:
Semiconductor, water disinfection
Surface Treatment:
Polished
Shape:
One End Closed Quartz Tube, one dome ended
Outside Diameter:
23mm
Ozone Content:
Ozone Free
Dimension:
23*20*245mm
Wall Thickness:
1.5mm
Material:
nature clear fused quartz
Melting point:
1600°C
Certification:
CE, RoHs, ISO
UV Transmittance:
99.9%
Mohs Hardness:
Level 7
OEM:
Available
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export packing: plywood carton, 100pcs/ctn
Port
Shanghai, Ningbo, Qingdao, LianYungang
Picture Example:
package-img
Video Description
Product Details

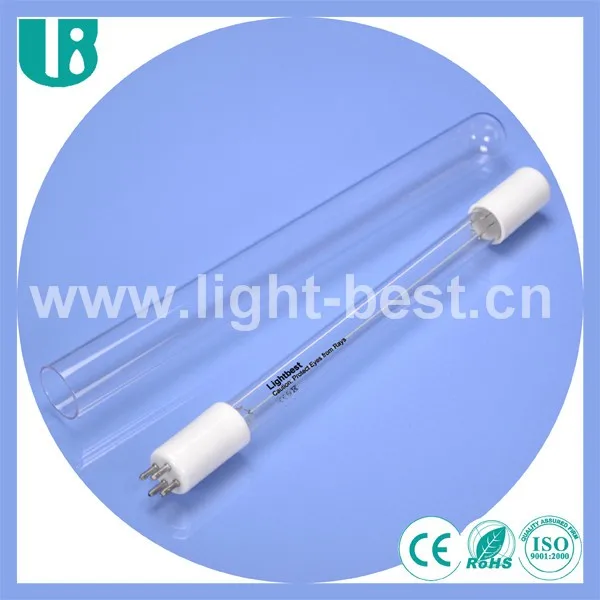

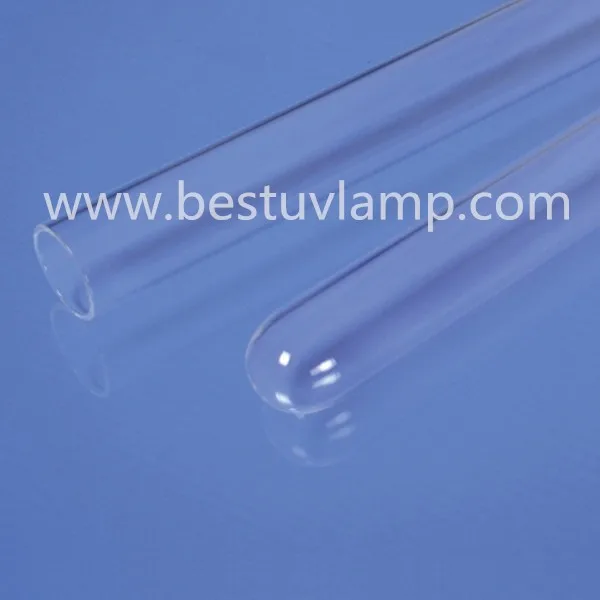

Quartz Glass Tube

Quartz sleeve is a transparent quartz glass tube, manufactured from high-purity quartz sand by advanced continuous melting equipment. As a kind of UV germicidal lamp spares, it is characterized by high purity, high UV transmittance, good thermal stability and remarkable dimensional accuracy, making it an indispensable device for protecting lamps from external damage and extending woking life.

Product Introduction

LIGHTBEST Quartz Sleeves

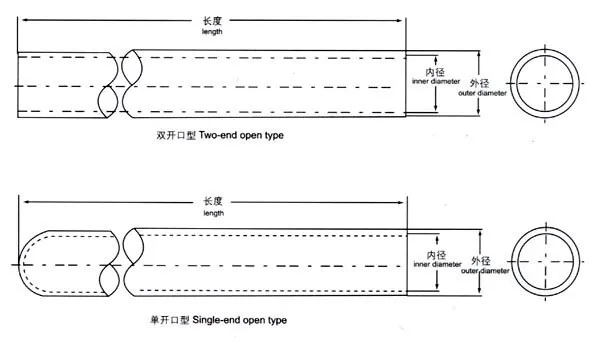

Lightbest offers a wide variety of quartz sleeves, applied extensivley in water treamtent systems, air sterilization units and other specialized equipments. They are avialable in a wide range of diameters and wall thicknesses, double open ended or one dome ended. Also, the length, outside diameter and wall thickness could be customized, though the wall thickness of 1.5mm are most widely used.

Product Parameters
OD(mm)
ID(mm)
Wall thickness(mm)
Applicable lamp type
19
17
1.0
15mm (T5) STD-output and HO lamps w/o lamp bases
20.5
18
1.25
15mm (T5) STD-output and HO lamps with Al. bases
22
19
1.5
15mm (T5) STD-output and HO lamps with Al. bases
22
20
1.0
15mm (T5) STD-output and HO lamps
22.5
20
1.25
15mm (T5) STD-output and HO lamps
22.6
19.6
1.5
15mm (T5) STD-output and HO lamps
22.6
20
1.3
15mm (T5) STD-output and HO lamps
23
20
1.5
15mm (T5) STD-output and HO and Amalgam lamps
24.5
20
1.25
15mm (T5) STD-output and HO and Amalgam lamps
25
22
1.5
19mm (T6) STD-output and HO and Amalgam lamps
28
25
1.5
19mm (T6) STD-output and HO and Amalgam lamps
30
26
2.0
19mm (T6) STD-output and HO and Amalgam lamps
30
26.5
1.75
19mm (T6) STD-output and HO and Amalgam lamps
32
29
1.5
19mm (T6) STD-output and HO and Amalgam lamps
33
30
1.5
19mm (T6) STD-output and HO and Amalgam lamps
36
32
2.0
25mm (T8) STD-output and HO and Amalgam lamps
38
34
2.0
25mm (T8) STD-output and HO and Amalgam lamps
38
35
1.5
25mm (T8) STD-output and HO and Amalgam lamps
45
42
1.5
32mm(T10),38mm(T12) STD and HO and Amalgam lamps
48
44
2.0
32mm(T10),38mm(T12) STD and HO and Amalgam lamps
48
45
1.5
32mm(T10),38mm(T12) STD and HO and Amalgam lamps
F40
36
2.0
PL5W~PL13W uv lamps
F40
37
1.5
PL5W~PL13W uv lamps
F44
40
2.0
PL18W~PL95W uv lamps
others
on request
on request

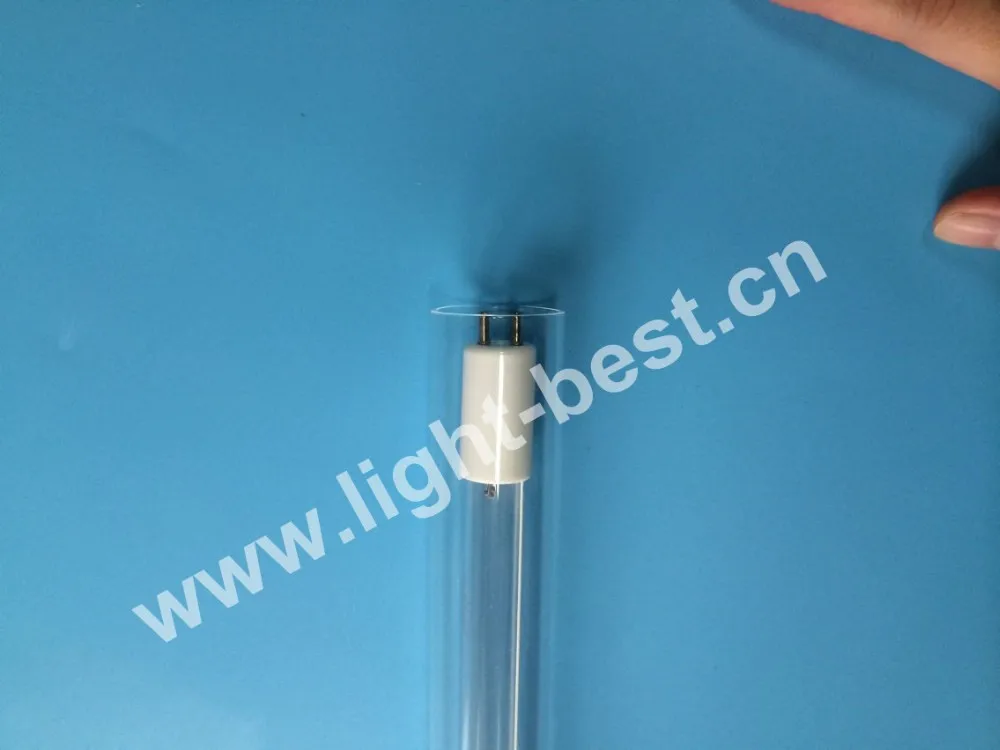

Product Details Show
Why Choose Us

About us

1, 27 years experiences in water and air treatment field.

Service

2, 7x24h online service

Certificates

3, ISO9001, CE, SGS, Rohs etc.

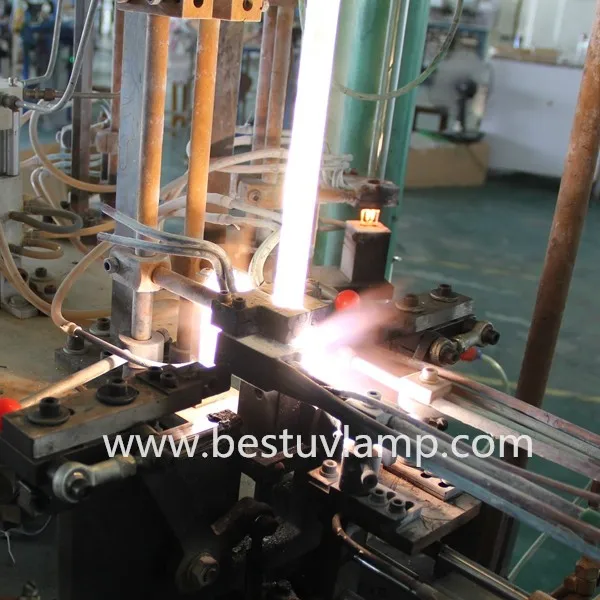

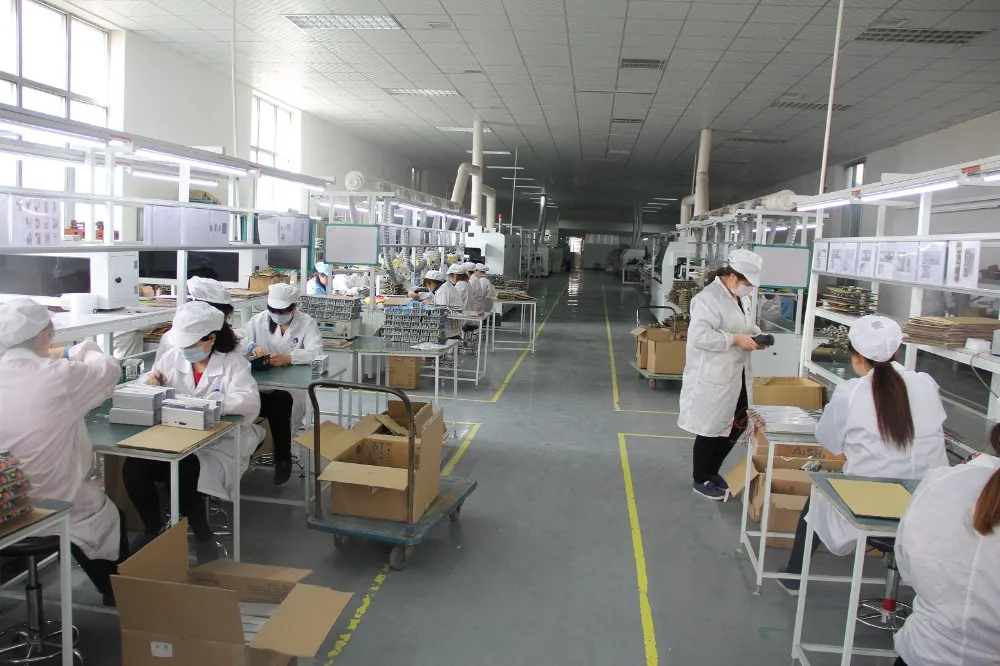

Product Processing

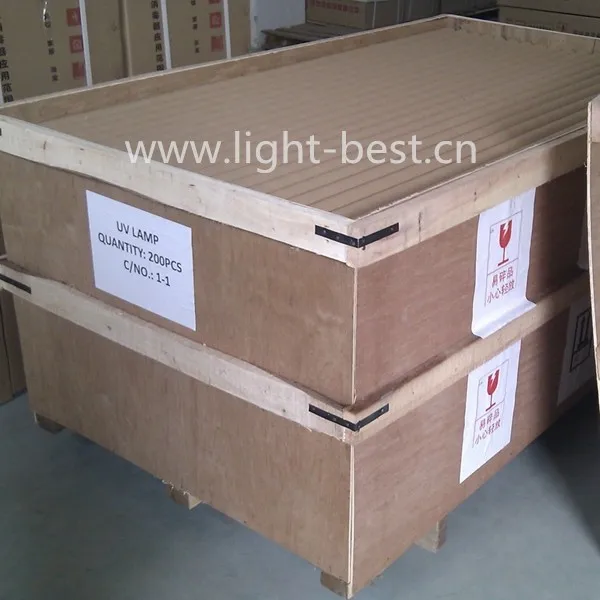

Product Packing
Main Products

Amalgam UV germicidal lamps

Mid. Order: 50 pieces more quatities, more cheaper FOB Price: US $ 9.5-250/piece

Electronic ballast for uv lamps

Mid. Order: 36 pieces more quatities, more cheaper FOB Price: US $ 4.8-150/piece

UV water sterilizers

Mid. Order:  1 Sets more quatities, more cheaper FOB Price: US $35.82-65 /Set

Compact germicidal lamps

Mid. Order: 100 pieces more quatities, more cheaper FOB Price: US $ 2.7-50/Piece

Standard output uv germicidal lamps

Mid. Order: 100 pieces more quatities, more cheaper FOB Price: US $ 1.5-50/Piece

UV air purifiers

Mid. Order: 1 Set more quatities, more cheaper FOB Price: US $ 25-100/Set
