King Pigeon DeviceNet Remote IO Module (4DI+4DO+4AI+2AO) M120D

Feedback Ratings
  • 1-99 Pieces
    $75.00
  • 100-499 Pieces
    $74.00
  • >=500 Pieces
    $72.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
King Pigeon
Model Number:
M100D M110D M120D
Digital Inputs:
8
DI1 supports:
max. 1MHz high speed pulse counter
Analog Inputs:
4
Digital Outputs:
4
DO1:
10Hz~300KHz PWM high speed pulse output
Analog Outputs:
2
power supply:
24 ~ 36VDC
Protection:
ESD 500VDC
Wires Connection:
Shield Twisted wires, CAN V+, CAN_H, CAN_L, CAN_Shield, GND
DeviceNet Protocol:
Volume I, Release 2.0 &Volume II, Release 2.0, Errata 5
Usage:
Auto

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X8 cm
Single gross weight:
0.5 kg
Package Type:
OEM
Picture Example:
package-img
Lead Time :
5

DeviceNet Remote IO Module (4DI+4DO+4AI+2AO)

King Pigeon DeviceNet Remote IO Module (4DI+4DO+4AI+2AO) M120D

The M120d DeviceNet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU,

provides a CANBus interface. It provides multi I/O, supports standard DeviceNet Protocol, can be intergraded into SCADA, OPC server, HMI and other automation systems. It is design for working in the harsh industrial

application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The M120d DeviceNet Remote I/O Module provides 4 optical-isolated digital inputs,DI1 supports max. 1MHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal,

4 digital outputs, DO1 supports 10Hz~300KHz PWM high speed pulse output, or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering

strategy to ensure its reliable.



The M120d DeviceNet Remote I/O Module can work at wide working voltage range, the range is 24 ~ 36VDC with anti-reverse protection design. Also, it provides 1channel 24~36VDC power output for external device to save wiring cost.




Features:

1) Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2) Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection;

3) 1 CANBUS Interface, comply with DeviceNet specification Volume I, Release 2.0 &  Volume II, Release 2.0, Errata 5;

4)  Group 2 Only Server (non UCMM-capable) ;

5)  Support Predefined Master/Slave Connection Set;

6)  Support DeviceNet heartbeat and shutdown messages;

7) Provide EDS file for standard DeviceNet master interface;

8) 4 optical isolated digital input, supports max. 1MHz high speed pulse counter;

9) 4 digital output or relay output, supports 10Hz~300KHz high speed pulse output;

10)DO1 support PWM output;

11) 4 isolated analog input, 12-bit resolution, supports 0~20mA, 4~20mA, 0-5VDC, 0-10VDC;

12) 2 analog output, 12-bit resolution, supports 0-10VDC;

13) High sampling frequency and special filtering strategy to ensure reliability;

14) Provides 1 channel 24~36VDC power source output for external device, saving wiring cost;

15) LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

16) Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;

17) Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.





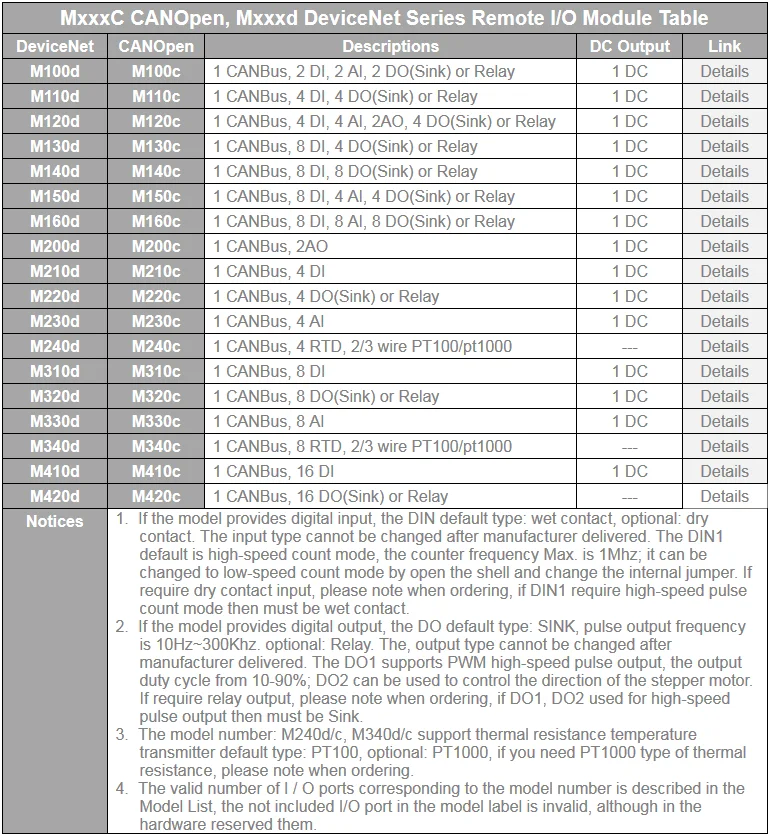

DeviceNet Protocol Remote I/O Module Specifications

• Digital Input

Sensor Type

Wet Contact (NPN or PNP), Dry Contact

I/O Mode

DI or Event Counter

Dry Contact

• On: short to GND=1
• Off: open=0

Wet Contact (DI to COM)

• On: 10 to 30 VDC =1
• Off: 0 to 3 VDC=0

Counter Frequency

High Speed: 1MHz(Only the 1st Channel can be used as high speed pulse counter), Low Speed: 10KHz.

Digital sampling frequency

500Hz

Digital filtering strategy

Continues 3 times

Isolation

Optical Isolated,3k VDC or 2k Vrms

• Digital Output

Type

Sink or Relay

I/O Mode

DO or Relay or Pulse Output

Pulse Output Frequency

10Hz~300KHz(Only the 1st Channel can be used as PWM high speed pulse outputs)

Over-Voltage Protection

50 VDC

Over-Temperature Shutdown

175°C (typical), 150°C (min.)

Load Current

Max. 500 mA per channel

Digital sampling frequency

500Hz

Isolation

If DO is Sink type, then no isolation. If it is Relay, then is electrical isolation.

• Analog Input

Type

Differential input

Resolution

12 bits

I/O Mode

Voltage / Current (jumper selectable)

Input Range

0 to 10 VDC, 0 to 5VDC, 0 to 20 mA, 4 to 20 mA

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C

Sampling frequency

20Hz

Isolation

Electrical isolation

• Analog Output

Type

Differential input

Resolution

12 bits

Output Range

0 to 10 VDC

Drive Current

1A (max.)

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C

Isolation

No

• Working Power Requirements

Input Voltage

24 to 36 VDC, Peak Voltage:+40VDC, Power consumption: Less than 3W;

Input Current

139 mA @ 24 VDC

• Power Output

Output Voltage

24 to 36 VDC

Output Current

139 mA @ 24 VDC

• CANBUS

CANBUS Interface

5.08mm Terminal,

Protection

ESD 500VDC

Wires Connection

Shield Twisted wires, CAN V+, CAN_H, CAN_L, CAN_Shield, GND

DeviceNet Protocol

Volume I, Release 2.0 &Volume II, Release 2.0, Errata 5

MAC ID

Range:0 ~ 63.

Baud Rate Setting

Range:125, 250, 500kbps

Predefined Master/Slave Connection Set Rate

Group 2 Only Server

I/O Operation Mode

Polling

• Physical Characteristics

Wiring

I/O cable max. 14 AWG

Dimensions

105 x 88 x 30 mm

Weight

Under 205 g

Mounting

DIN rail or wall

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 3000 m




Standard Package

1xRemote I/O Module

1xUser Manual

Skype:gsmrtusystem
