LM-TV04S LINK-MI 4 output HDMI/USB video wall processor 4 TV displays 2x2 screen 1080P Video Wall Controller

Feedback Ratings
  • 1-9 Sets
  • >=10 Sets
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
Guangdong, China (Mainland)
Product name:
Video Wall Controller
4 HDMI Output
Remote Control/Chassis keys
Power Supply:
DC 12V

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X29X9 cm
Single gross weight:
6.0 kg
Package Type:
Standard Export Package
Lead Time :
Quantity(Set) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product descriptions

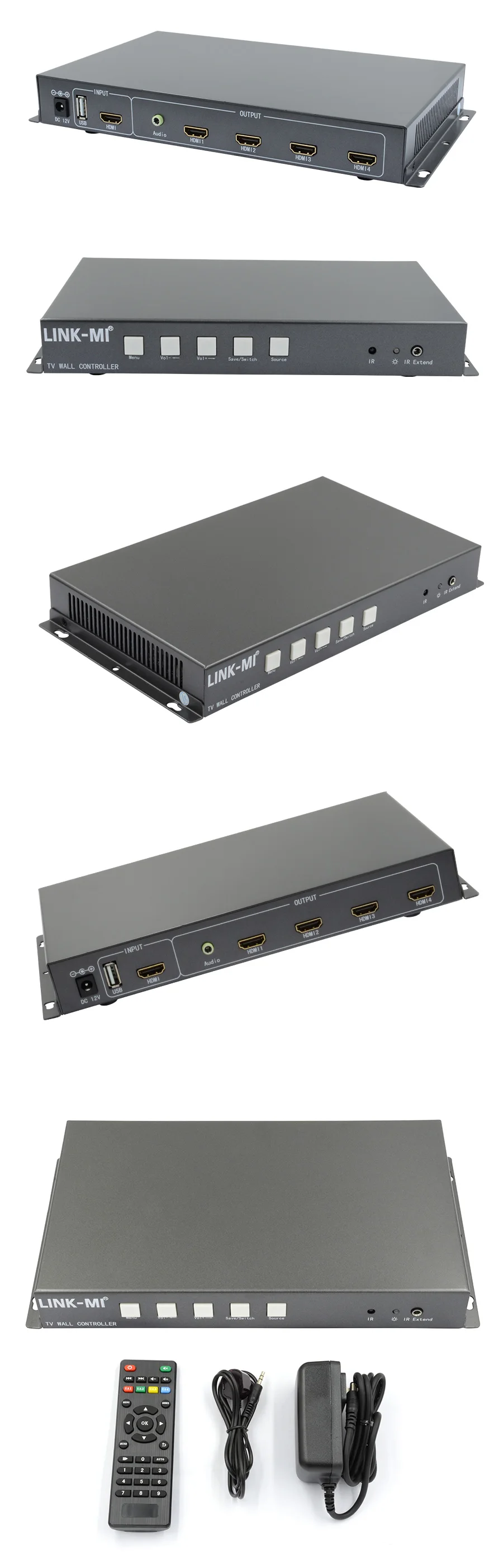

LM-TV04S is a high-definition LCD screen with 4 pictures for LCD TV, ultra narrow edge LCD screen and projector,and support 4 way HDMI signal output,and it can connect four LCD TV or other display devices.We can according to user needs, customized 1x2 1x3 1x4 2x1 2x2, 3x1, 4x1.The product uses high definition processing chip to support the input and output of 1080P. At the same time, it supports 1 channel USB and 1 HDMI inputs, and the input signals can be switched to the large screen for splicing display, and the audio output is synchronized with the corresponding video.The user is simpler and more intuitive in the process of splicing the processor,Infrared remote control and chassis key control are designed in the product.The user carries out one button quick control and full function control through the button or remote control;The operation is more humanized and simpler.
Product features

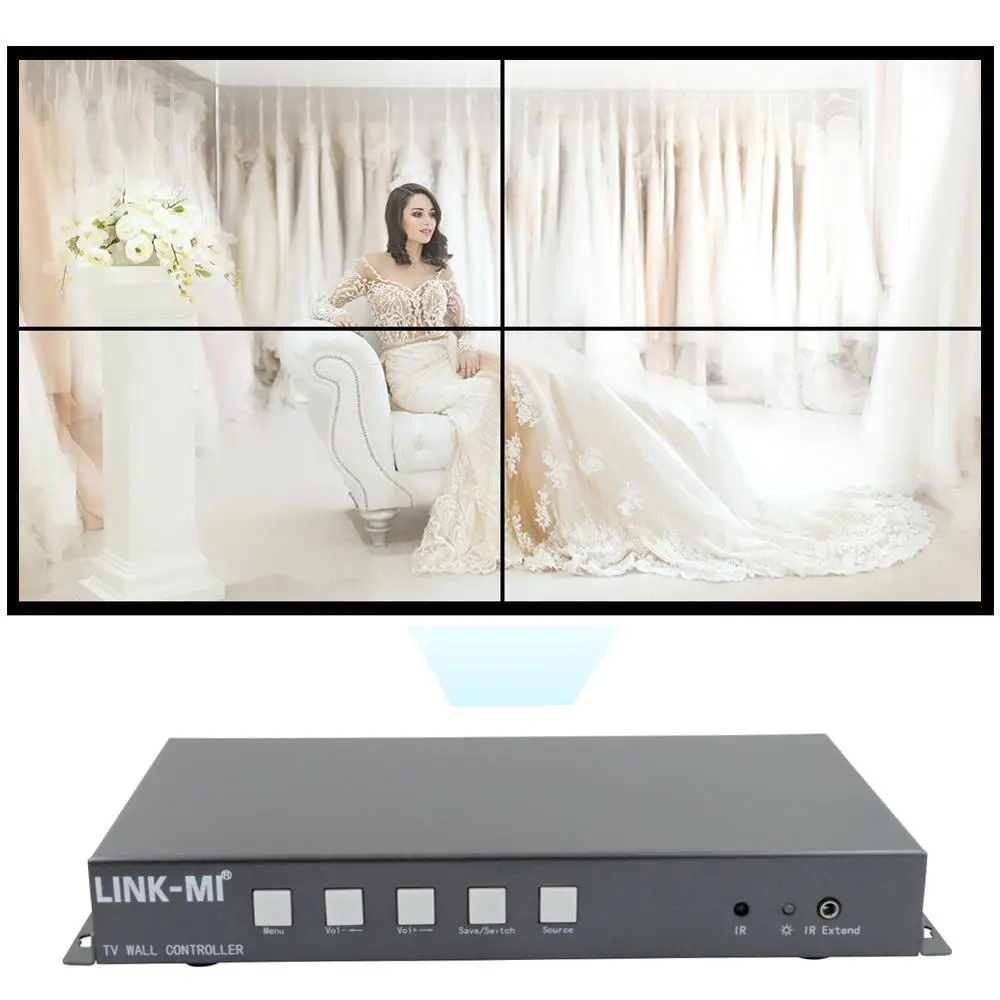

1,Four picture stitching function
  LM-TV04S Splicing LCD processor supports 4 way HDMI signal output,and can connect the four LCD TV or other display devices such as projector, DLP, plasma display unit.The four display units join together to form a super large picture.We can according to user needs, customized 1x2 1x3 1x4 2x1 2x2, 3x1, 4x1.
2,Input signal
    LM-TV04S Splicing LCD processor supports 1 channel HDMI and 1 USB total 2 signal inputs, and the input video signals can be synchronized with audio output and realize splicing display.
3,Mirror Function
   LM-TV04S supports for each display unit to a 180 degree mirror flip. When the user uses common LCD TV splicing, the upper LCD TV is turned 180 degrees, which greatly reduces the splicing gap of liquid crystal, and reduces the distortion caused by the large side seam of the image,as shown below:
4,Edge shielding function
All the tiled display units have a certain physical gap, and in the case of no edge shielding function, the image will appear visually pulling the open image, feeling very unnatural; after the edge shielding treatment of the image without deformation, stretch, visual more natural and realistic.Compare the pictures before and after the edge shield:
5,U disk playback function
LM-TV04S Splicing LCD processor can realize USB playing and splicing function. Users in the realization of the basic function of LCD splicing, and then realize simple video or picture format splicing playback, only need to our product USB interface insert a U disk can be achieved, without the need to configure a computer or other playback equipment, simple and practical.USB can support some commonly used videos, pictures, MP3, TXT documents.LM-TV04S Splicing LCD processor can support video playback can be selected or select, support all video round robin play / pause, fast forward, program list and other functions.
6,Remote control function
The remote controller is specially designed for LM-TV04S, and the functions of the splicer are completely corresponding to the remote control button, and the remote control is not in the market. Red bag remote control can complete the mosaic processor settings, switching, adjustment of all the functions, and the use of ultra sensitive design, remote control distance of 7 to 10 meters.
