LS-D23L32 Fully absorb shock plastic shaft coupling

$3.10 / Piece | 10 Pieces (1 lot) (Min. Order)
1 batch = 10 Pieces
Model Number:
LS-D23L32 4*4
$3.10
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
CNC
Structure:
Universal
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Material:
Plastic
Brand Name:
YUMO
Place of Origin:
Zhejiang, China
Product name:
encoder coupling
Coupling diameter:
16mm
Coupling assembly:
32mm
Inner aperture:
4*4mm
Color:
blue
Rated torque:
0.15 n.m
Maximum torque:
0.3 n.m
Maximum speed:
3000 rpm

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X10X10 cm
Gross weight per batch:
0.2 kg
Package Type:
standard export packing
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 10 To be negotiated

LS-D23L32 Fully absorb shock plastic shaft coupling Coupling

Product Description



Feature:

Steel hubs are zinc plated.They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.The hubs fix to sharts by metric set screws.Maximum operating temperature is 80ºC.



Specification:

 High angular misalignment to 15 °

 High axial and parallel misalignments

 Slient in operation,torsionally soft

 Dampens vibrations, increases bearing life

  Maintenance-free,4000 hour rated life

 Resistant to oils and solvents



 Model description:

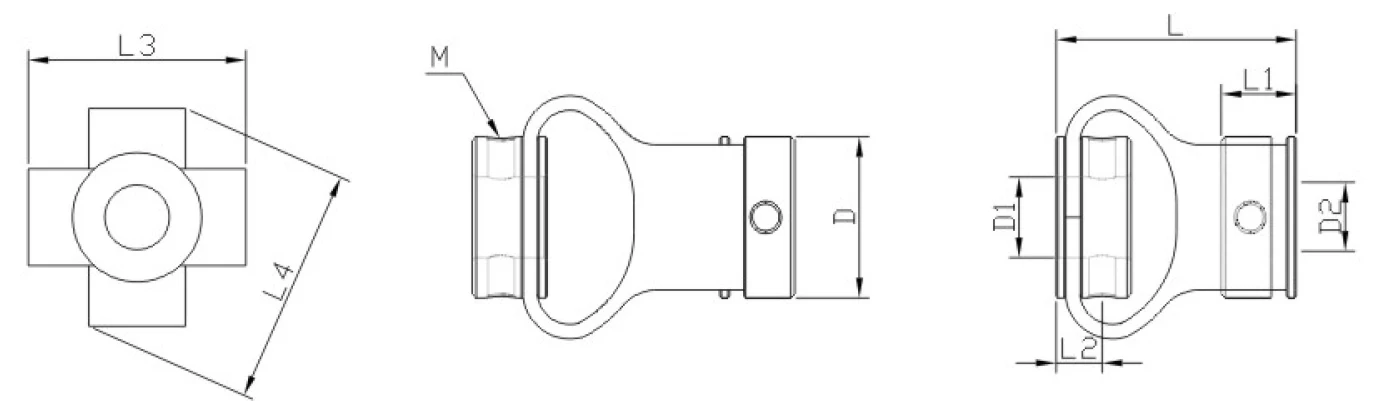

 Product size

Size control table

Proiect type

D

(mm)

L

(mm)

D1-D2

(mm)

M

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

L4

(mm)

Screw tightening torque(n.m)

LS-D-D23L2416243-8M3.08523271.2
LS-D-D23L3216323-8M3.0832327 1.2
LS-D-D27L3020304-11M4.01062832 2.5
LS-D-D27L4020404-11M4.01042832 2.5
LS-D-D40L5026505-14M5.01494550
LS-D-D40L6026605-14 M5.01454550



 Technical parameter

Proiect type

Maximum shaft hole

(mm)

Rated torque

(n.m)

Maximum torque

(n.m)

Maximum speed

(rpm)

Moment of inertia

(Kg.m²)

Allow eccentricity

(mm)

Allowable declination

(°)

LS-D-D23L2480.150.330002.5*10-715
LS-D-D23L3280.150.330005.8*10-726
LS-D-D27L30110.30.630001.8*10-61.56
LS-D-D27L40110.30.630004.7*10-62.510
LS-D-D40L50141.32.630001.1*10-538
LS-D-D40L60141.32.630002.3*10-5312
