LSVISION H.265 Hi3536 Onvif P2P IP Video Surveillance 64CH Network Video Recorder 64 Channel NVR support 16 Sata 1 ESATA

  • 1-9 Pieces
    $1,079.95
  • 10-49 Pieces
    $1,049.95
  • 50-99 Pieces
    $1,024.95
  • >=100 Pieces
    $998.95
Type:
NVR
Channels:
64
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5664
Master Chip:
Hi3536 64 channel nvr
Access bandwidth:
256M
Audio Output:
1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution:
Main stream:up to 3264*2448
Audio Bit Rate:
64Kbps
Bidirectional Talk:
Two-way voice intercom function
Video bitrate:
Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
Motion Detection:
Zones: 396(22x18), Sensitivity: 1~6 (level 6 is highest)
HDD:
16 Sata
Picture capture:
Local Capture&Web Capture

Packaging & Delivery

Selling Units:
Single item
Single package size:
63X59X32 cm
Single gross weight:
16.0 kg
Package Type:
360x260x48mm, 1pcs/ctn H.265 64 channel nvr
Lead Time :
Quantity(Piece) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 25 To be negotiated
Video Description
More Recommendation
Product Description

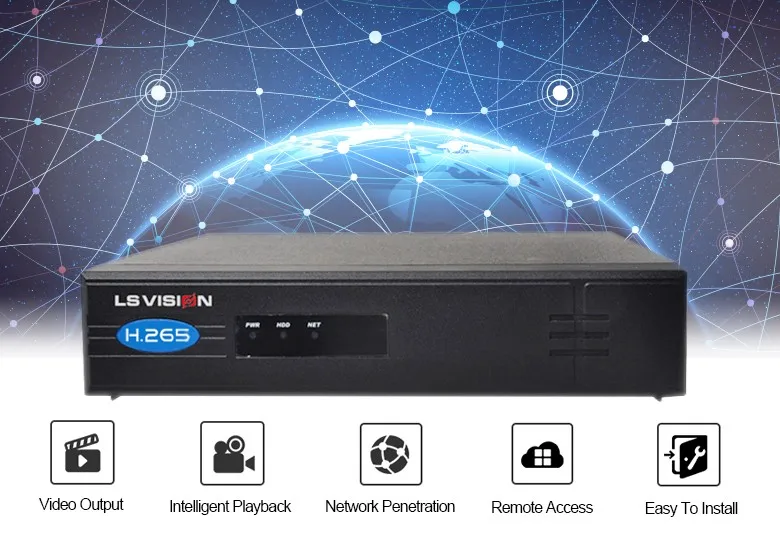

LSVISION H.265 Hi3536 16 Sata Onvif P2P Network Video Recorder 64 Channel NVR


Key Features for 64 channel NVR:


1.Support 16SATA/1 ESATA, 2RJ45 10M/100M/1000M adaptive Ethernet interface

2.Two-way voice intercom,small size:441x448x88mm 16CH Alarm Input and 4CH Alarm Output

3.IP channel maximum resolution:3264x2448

Specification
Module
LS-NF5664 H.265 64 channel NVR
OS
Embedded Linux
master chip
Hi3536
Access Bandwidth
200M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
IPC Input
64ch
CVBS Output
N/A
VGA
1CH,1920×1080,1280×1024,1280×720,1024×768
HDMI
Standard 2.0
3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output
1CH,RCA
Audio Compression
G711A
Audio Bit Rate
64Kbps
IP Resolution
Main stream:up to 3264*2448,Auxiliary stream:D1
Video bitrate
Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
Video decoding
H.265(Main Profile@ L5.0 High-tie)/H.264(Up to High Profile@ Level5.0)

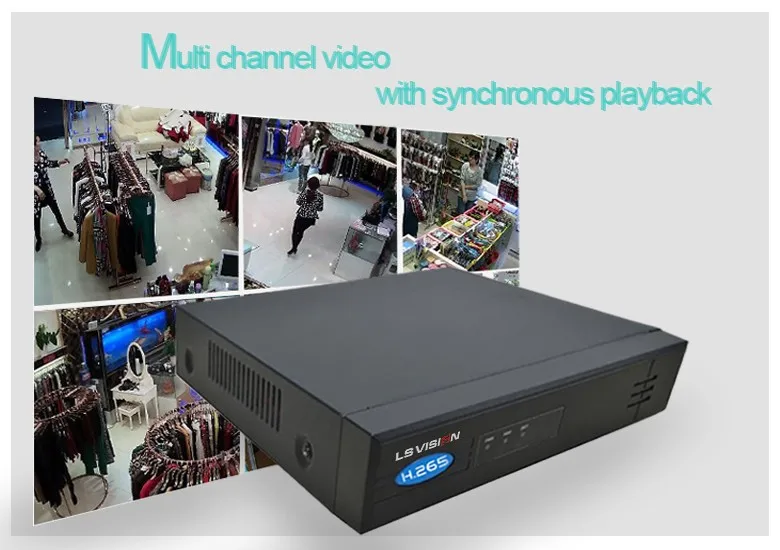

Synchronous Playback
Up to 32CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
16
ESATA
1
POE interface
N/A
Network Interface
2 RJ45 10M / 100M /1000M adaptive Ethernet interface
USB
3 USB 2.0 Interfaces
Alarm Input
16CH
Alarm Output
4CH
RS-232
N/A
RS-485
1RS-485 interface
Dimensions
437*483*143215mm
Weight
15Kg(without HDD)
Power Supply
220V±10% 47Hz~63Hz
Working Humidity
10%--90%
Consumption
30W(without HDD)
Customer Feedback
Product packaging

IP Camera Series Package

There are two color box packaging, LS VISION brand packaging and  packaging without logo.
support OEM service

NVR Series Package

Neutral carton packaging.
NVR can support LS VISION Logo, neutral no logo, or customed logo
Certification
Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

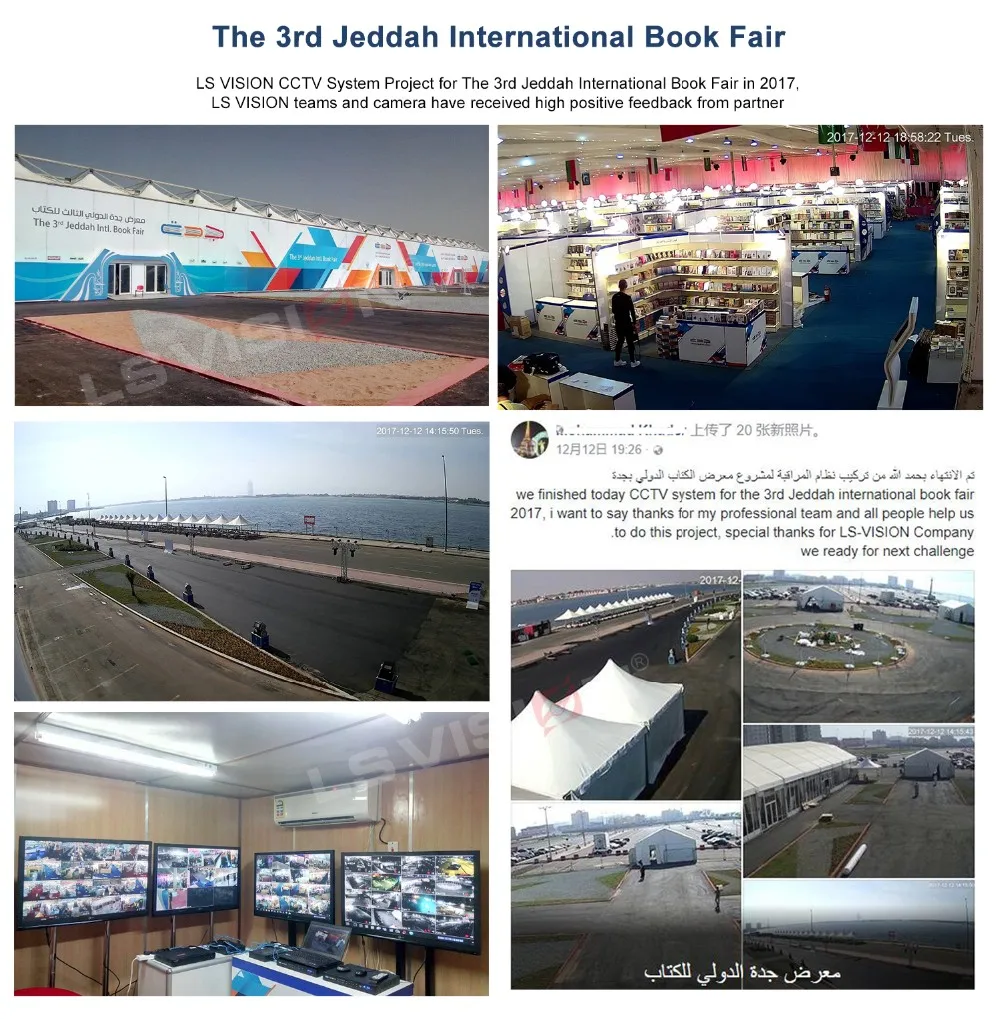

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018;   the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.


In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI Series: Face recognition camera and NVR system.
4G Solar Camera system

Police Body Camera

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, WiFi Indoor PTZ Camera, Smart Doorbell etc.
