- Brand Name:
-
LUXEN
- Model Number:
-
LNSE-300M
- Type:
-
Standard Solar Panel, 385w Polycrystalline Solar Panel
- Size:
-
1979*996*40
- Product name:
-
Monocrystalline solar panles
- Certificate:
-
TUV
- Solar cell:
-
158.75*158.75mm
- Application:
-
Solar Power System
- Junction Box:
-
IP 68 Rated
- Warranty:
-
25 Years Output Power Guarantee
- Connector:
-
MC4 Compatible Connector
- Frame:
-
Anodized Aluminium Alloy
- Front Glass:
-
Glass 3.2mm tempered
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 50X50X50 cm
- Gross weight per batch:
- 68.0 kg
- Package Type:
- Good Packing
- Picture Example:
-
- Lead Time :
-
Quantity(Watt) 1 - 100000 >100000 Est. Time(days) 15 To be negotiated
LUXEN LNSF-370M monocrytalline 370W Solar module
370 Wp PV modules
Electrical Characteristics 72 cells of Solar Panel
| LNSF-365M | LNSF-370M | LNSF-375M | LNSF-380M | LNSF-385M | |
| Maximum Power (Pmax) | 365W | 370W | 375W | 380W | 385W |
| Open Circuit Voltage (Voc) | 47.28V | 47.62 | 47.96V | 48.27V | 48.62W |
| Short Circuit Current (Isc) | 9.96A | 10.02A | 10.07 | 10.13A | 10.18A |
| Voltage at Maximum Power (Vmpp) | 38.63V | 38.93V | 39.23V | 39.54V | 39.81A |
| Current at Maximum Power (Impp) | 9.45A | 9.50A | 9.56A | 9.61A | 9.67A |
| Module Efficiency | 18.52% | 18.77% | 19.03% | 19.28% | 19.53% |
Mechanical Characteristics of Mono Solar Panels
| Solar Cell | 158.75 × 158.75 mm |
| No. of Cells | 72 (6 × 12) |
| Dimensions | 1979 × 996 × 40mm |
| Weight | 23.5 kgs |
| Front | Glass 3.2 mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP67 / IP68 rated (3 bypass diodes) |
| Output Cables | 4.0 mm2, symmetrical lengths (-) 900mm and (+) 900 mm |
| Connectors | MC4 connectable |
| Mechanical load test | 5400Pa |
Need a price? Please click here.
 | Solar Cells:*We use JASOLAR cells, which is the top brand of solar cells. *High power efficiency |
JUNCTION BOX: *We use QC/XT, which is the top brand of junction box. |  |
 | FRAME:*We use Kaibbao products, which is the top brand of aluminum material. *Strong mechanical load resistance up to 5400 Pa |
EVA FILM:*We use First PV brands, which is the top one brand of EVA material. *Light transmittance more than 92% |  |
 | GLASS:*We use CSG glass, which is the top brand of pv module glass. *Anti-reflective coating to increase the module efficiency up to 2% Self-cleaning function |
BACK SHEET: *We use Huitian brand, which is the top brand of back sheet materials. *Low moisture permeability against snail trail defect *Excellent electric insulation for high system voltage up to 1500V *Outstanding weatherproof performance |  |

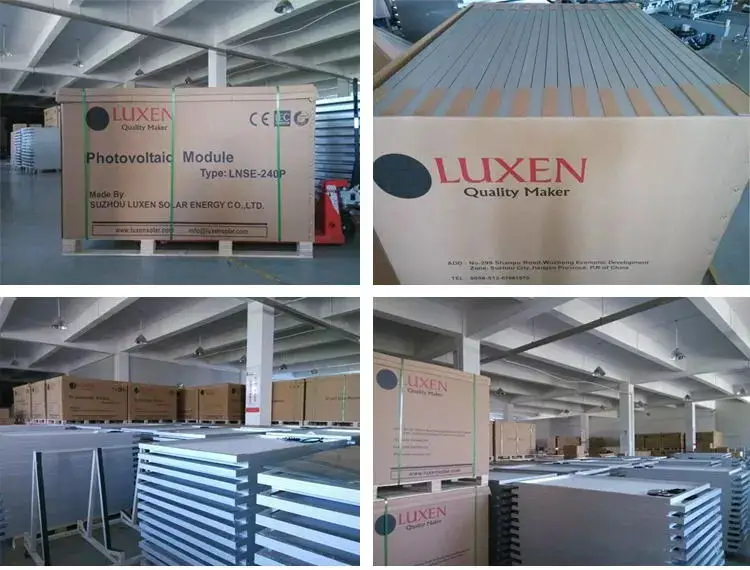

Packing Configuration
| Container | 20’ GP | 40’ GP |
| Pieces per pallet | 26 | 26 |
| Pallets per container | 10 | 22 |
| Pieces per container | 260 | 572 |
1. Are you trading company or factory?

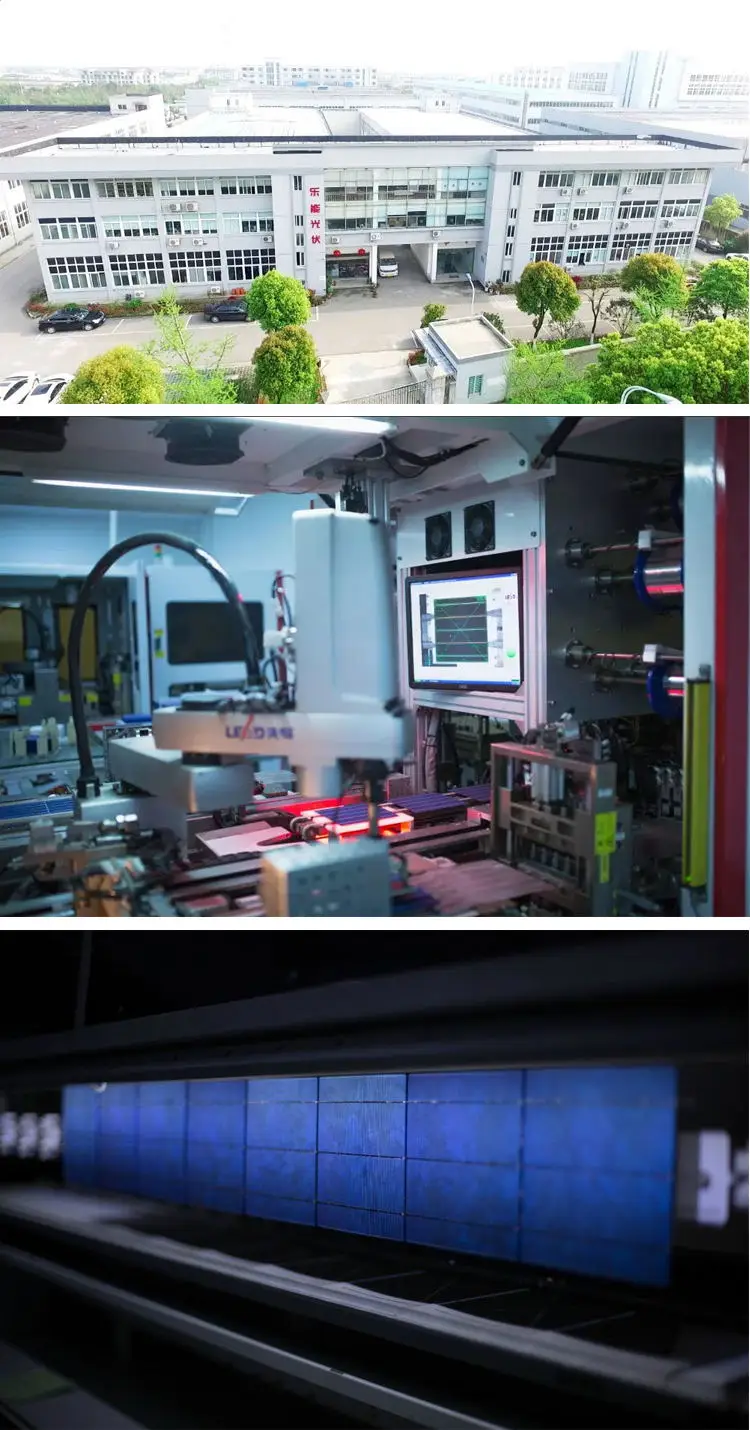

We are factory loacted at Suzhou,China. 20 minutes to Shanghai by High-speed rail.
2.How about the quality and price?
We use brand JASOLAR cell to guaranteed quality stability.
And we can negotiate the price depends on the quantity.
3. When can you send the PV module if I order now?
If less than 3*20'GP containers, can be sent in one week.
If more than 3*20GP containers, can be sent in one month.
The shortest delivery time record is in five days with 5*40'HP containers.
4.How to pay?
We accept WesternUnion,TT,HSBC. And we accept L/C.
If you need other ways, please contact us for sure.
5. If you have other questions, please fell free to contact us.
Hans
Skype: nicehanlee
Mail: hans.lee(at)luxensolar.com
M/Whatsapp/wechat:+86 18320952332
Web: www.luxensolar.com
- Subtotal
- Depends on the order quantity.
