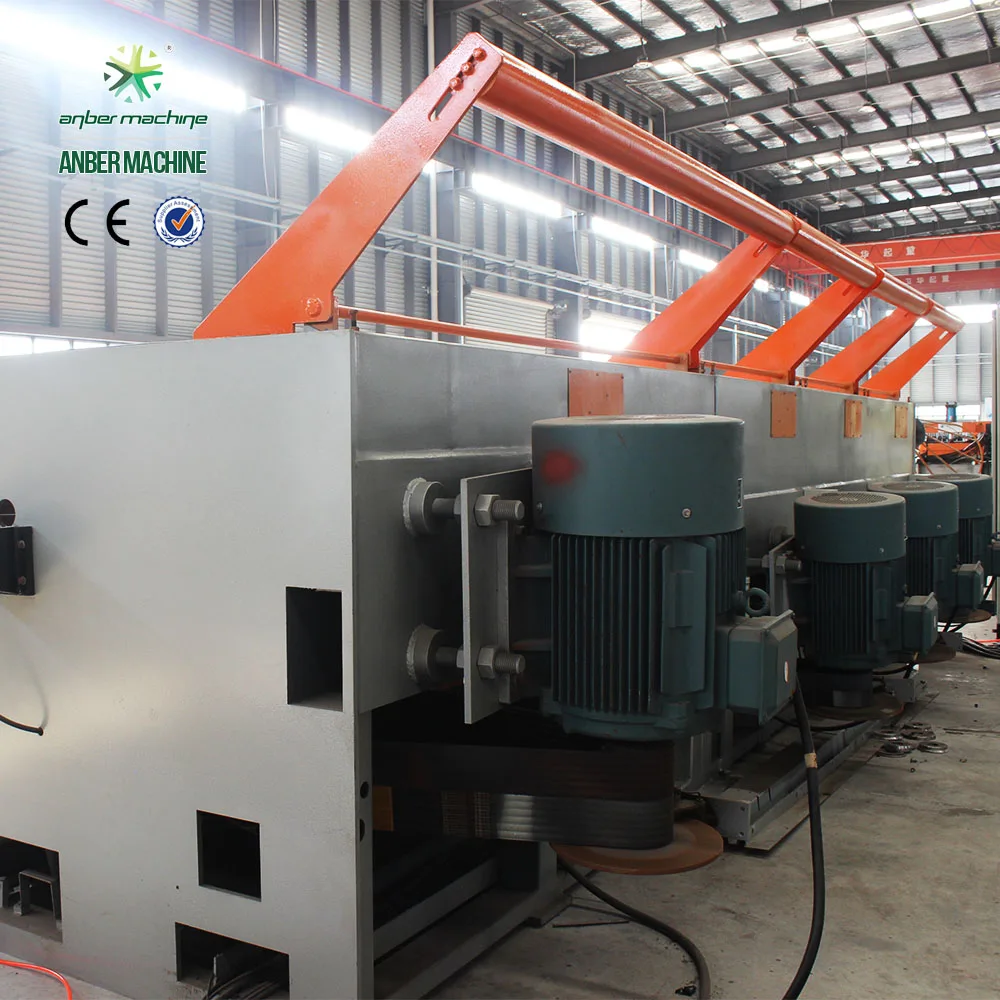

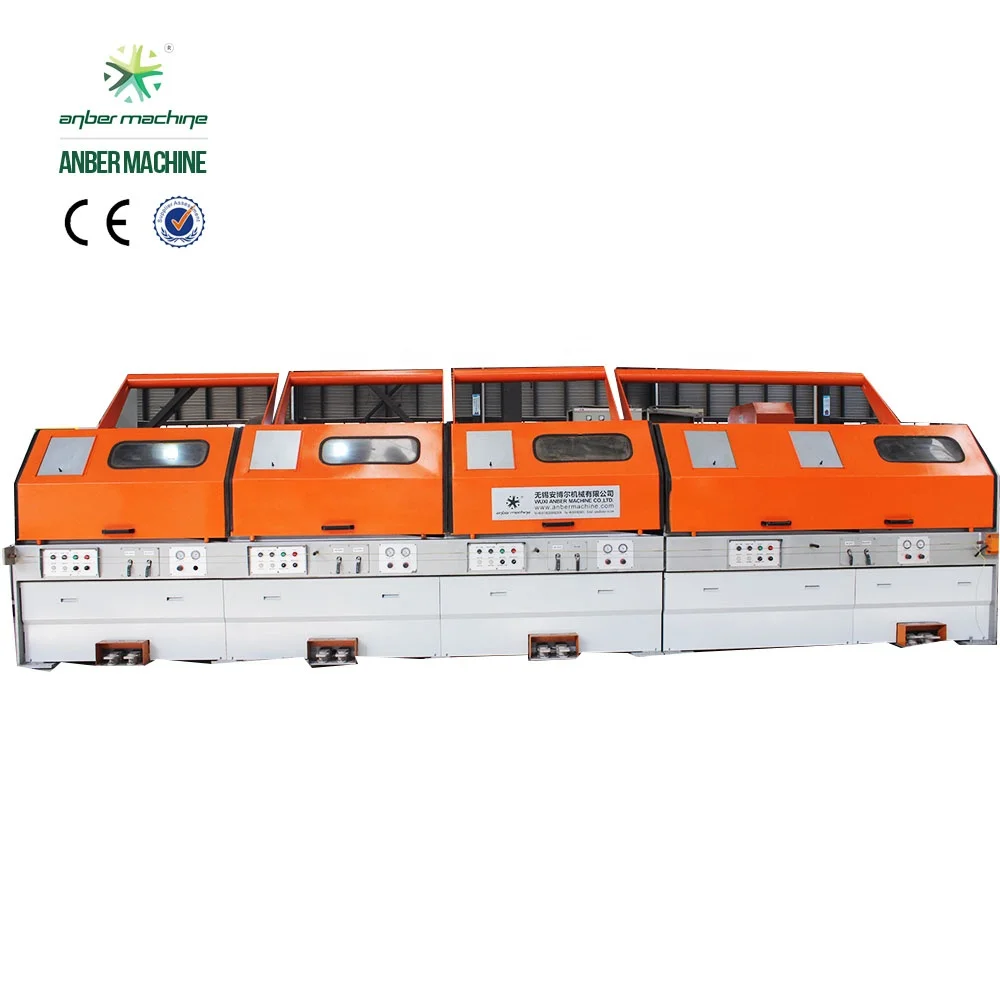

LZ4/560 Straight line wire drawing machine

Feedback Ratings
  • 5-9 Sets
    $13,500.00
  • >=10 Sets
    $9,000.00
Model Number:
ABE-LZ4-560
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ABE
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year
Drawing passage:
3 drawing + 1 ribbing
Capstan diameter:
560
Wire strength:
≤950
Max inlet diameter:
6.5 / 5.5

Packaging & Delivery

Selling Units:
Single item
Single package size:
4465X4635X4652 cm
Single gross weight:
20.0 kg
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 60 To be negotiated
Video Description
Product Description

  Usage of the machine

LZ4/560 straight line wire drawing machine is a kind of tuning roller automatic speed-adjustable, no twist in the drawing process, suitable for middle carbon and high carbon steel wire drawing, mainly for rebar.


  Technical parameters

Name
Unit
Data
Remark
Model
LZ4/560
Drawing passage
3 drawing + 1 ribbing
Capstan diameter
mm
560
Wire strength
Mpa
≤950
Max inlet diameter
mm
Ф6.5 / Ф5.5
Outlet wire diameter
mm
Ф3~4 / Ф2.7
Drawing speed(max)
m/S
8
Capstan cooling
Spray type water cooling
Mold size
Φ42X25
Mold cooling
Single die direct water cooling
Tuning press
Pneumatic
Compressed air required
M3/min
1
Compressed air pressure
Kgf/cm2
6
Start and brake time
S
≤60
Emergency stop
S
≤5
Main motor and power
YVP250M-4P 30KW
1-4#
Machine size
8700×2010×1900
L*W*H
L*W*H

  Machine structure design

1. Composition: the production line includes Overhead wire pay-off + wire random detective + Mechanical descaling machine+ straight line wire drawing machine, tension device and SG800 spooler wire take-up and electric control.

2. Drive: each set of wire drawing machine capstan is driven by AC frequency motor by high-frequency through narrow V belt.

3. Brake: pliers type brake, it also can avoid capstan reversal. Brake block released by spring force.

4. Main drive: the basic part of the main transmission by efficient reducer or belt pulley. Reducer gear material is 20CrMnTi after tempering process, the gear surface is grind after quenching, the structure adopts cast steel without deformation, the gear lubrication is splash lubrication.

5, capstan: capstan material is ZG45, hard layer treated by spraying WC, HRC≥ 60, height: 120mm

6. wire drawing die box: it's open type. Guide roller is installed in the end to ensure wire go straight to the drawing die and mold base to adjust to the steel wire line into the drawing drum, tuning roller is installed on the into the end of the mold base (2 # mould box), place dynamic tuning roller is provided by a small cylinder, tuning the motion of the roller, the sensor output corresponding electric signals, fine-tune the speed of change.Tuning roller pressure on steel wire tension by adjusting pressure change, the pressure regulating range between 1.5 ~ 6 MPa.

7. tension device: to match the speed of the wire drawing machine and the wire take-up.

  Cooling system

1. Capstan cooling: spray internal cooling type, cooling ring fixed inside of the box frame, capstan rotate relate to the cooling ring, when the water flow at high speed, the water will spray out from the narrow gap.

2. Drawing die cooling: Wire drawing die with direct water cooling, regulate the inlet pipe valve to control the water height. When change wire drawing die, close the inlet valve and empty the water quickly, then change the mold, the seals in front and back of the drawing die can use copper pad.

  Easy broken parts



Name
Material
Parts
Capstan 1
45
Die box
Capstan 2
45
Die box
Capstan
ZG45
Capstan
Roller
45
Middle die box
Tension roller
HT250
Tension device
Our Company

Wuxi Anber Machine Co., Ltd. profile:
Business type: manufacturer and seller of kinds of wire mesh and fence making machine
Service: OEM service
Primary competitive: low in price and maintainance, high in quality and performance.
Products list:
Expanded metal mesh machine: heavy duty expanded metal mesh machine, expanded metal fence machine, diamond expanded mesh machine, angle bead machine, plaster stop machine, rib lath machine, hi-rib lath machine, brickwork reinforcing machine, brickwork reinforcement machine

Welded wire mesh machine: welded mesh fence/panel machine, welded mesh machine for construction, reinforcement mesh welding production line, space welded mesh machine for buildings

Wire drawing machine: iron wire drawing machine, stainless steel wire drawing machine, tin wire drawing machine, copper wire drawing machine, rod break down

PVC coated production line: for the fence, galvanized coating production line for the fence, wire PVC coated line

Other wire mesh machine: razor barded wire machine, barded wire machine, gabion mesh machine, gabion mesh fence machine and full automatic gabion mesh production line, hexagonal wire netting machine, chain link fence weaving machine, automatic chain link fence weaving machine, semi-automatic chain link fence weaving machine, hinge joint knot field fence machine and perforated metal mesh machine.

We also have rich experience in producing the wire mesh and fence products, such as expanded metal mesh, angle bead, plaster stop, welded mesh panel, welded mesh fence, chain link fence, gabion mesh, gabion mattress, double twist rockfall netting, welded mesh box, fasteners, Our factory is located in Wuxi, China. It is famous for its good wire mesh machine and wire mesh products. And was named "AAA" factory by our National Industrial Authority.

We hope to have chance to establish good business relationship with all the friends who are interested in our products. We will expect your visit to our factory.

Certifications
FAQ

Q:Where is ABO Building factory?

We are in Kunshan, 1hour driving from Shanghai airport.

Q:What is your factory strength?

All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

Q:Are you a trading company or manufacturer?

 We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.

Q:What is your available port for shipment?

   Shanghai seaport.

Q:What about the payment Terms?

 Normally deposit 50% in advance.

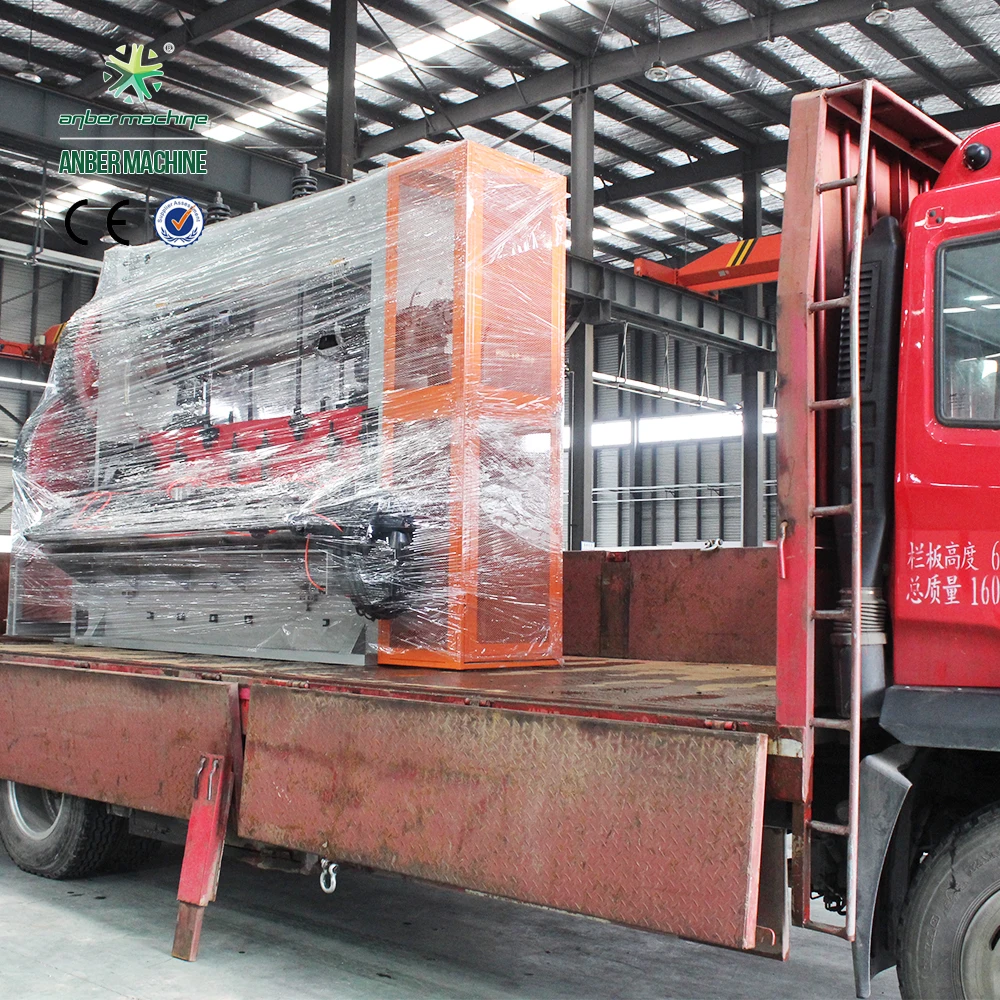

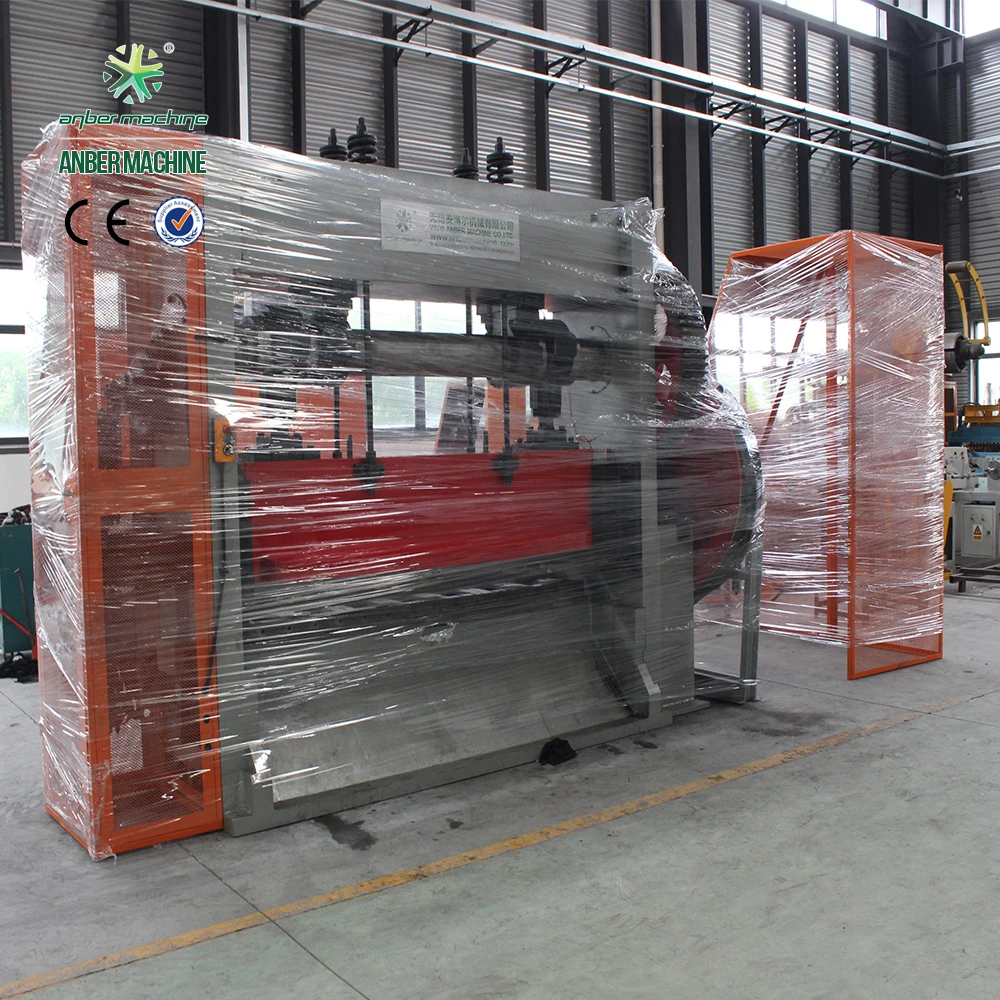

Packing & Delivery
