Latest Model Super Performance Mountain Electric Bicycle

Feedback Ratings
US $2280.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Wattage:
> 500w
Voltage:
48V
Power Supply:
Lithium Battery
Wheel Size:
27.5"
Motor:
Bafang Max Ultra Mid drive motor
Certification:
CE
Frame Material:
Aluminum Alloy
Foldable:
No
Max Speed:
>50km/h
Range per Power:
> 60 km
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FREY
Model Number:
AM1000-C
Product name:
Latest Model Super Performance Mountain Electric Bicycle
Motor power:
48V 500W,750W,1000W for choice
Battery:
48V 17.4AH lithium battery
Charger:
54.6V 5A Smart Charger
Front fork:
ROCKSHOX RECON 150mm travel air suspension
Rear suspension:
ROCKSHOX MONARCH 190*51MM
Group set:
SHIMANO M410 8 speed set
Brake:
MAGURA MT5 Ne(Power cut function)
Tire:
CST BFT 27.5*3.0
Size:
M L

Packaging & Delivery

Selling Units:
Single item
Single package size:
165X28X87 cm
Single gross weight:
40.0 KG
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(day) 30 To be negotiated

To all clients:

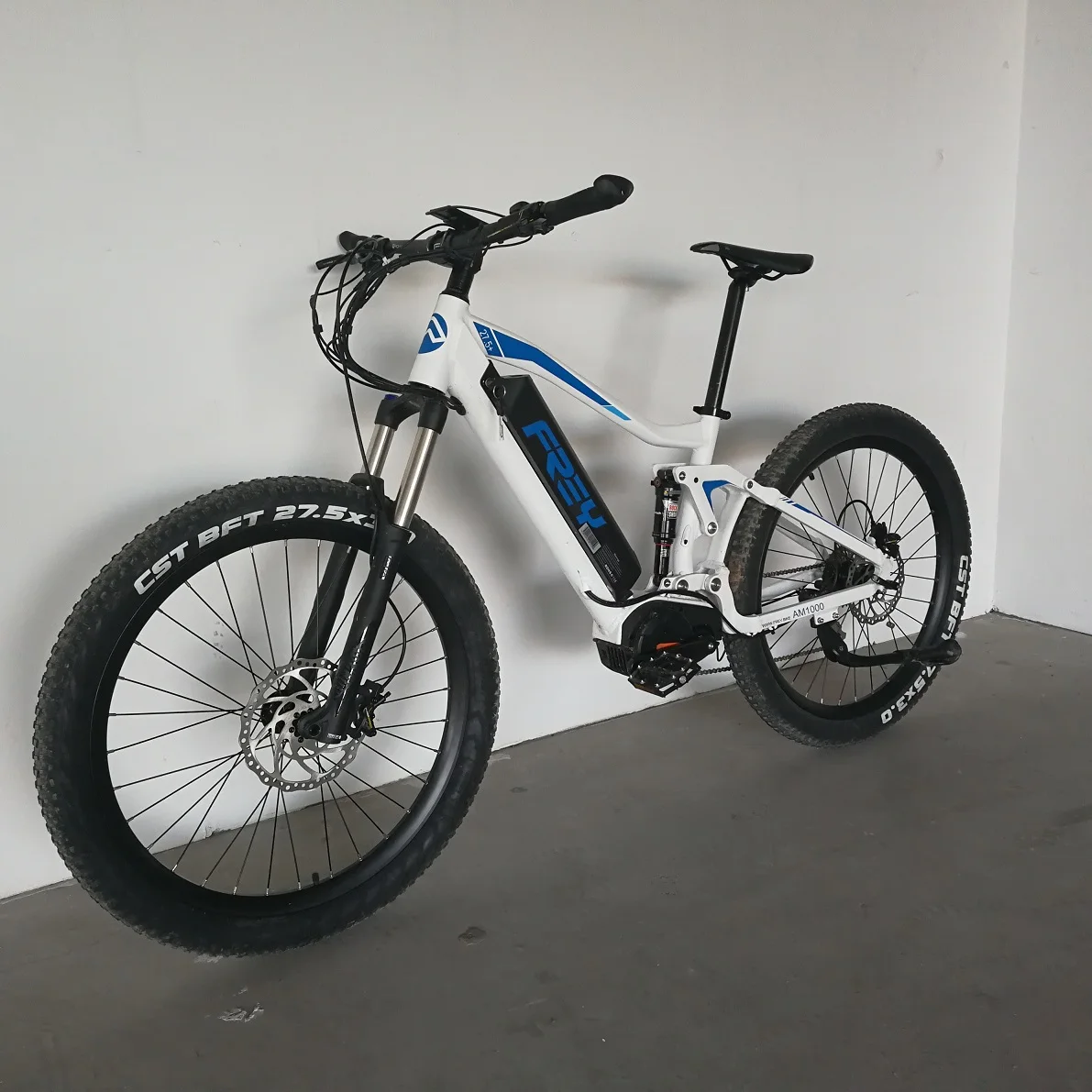

AM1000 all frame has been upgraded in 2018 version as below the second picture showed. with more details improved and it has a better performance now. From 2018 February, all orders you placed will come with 2018 frame. base on different configuration, the bike price will be between 2000-3280USD for your choice.



Welcome inquiry and place order now!

Delivery time: From 28th,March by the order placed date.







https://www.alibaba.com/product-detail/2018-FREY-AM1000-full-suspension-electric_60737872787.html?spm=a2747.manage.list.25.241c71d2PflVLr (Copy and paste the address in browser to view 2018 AM1000 more details)



Latest Model Super Performance Mountain Electric Bicycle





 FRAME SIZESMLXL
 TOP TUBE608.3633644
 SEAT TUBE430470520
 CHAIN STAYS474.3474.3474.3
 HEAD TUBE ANGLE66.566.566.5
 SEAT TUBE ANGLE757575
 BOTTOM BRACKET DROP10.210.210.2
 HEAD TUBE LENGTH150145145
 FORK LENGTH554554554
 REACH438.5461.7469.7
 STACK625.5630.1639.3
 WHEEL BASE1234.61259.71271.7
 STAND OVER HEIGHT850860870

 ♦ Mid drive: 48V/1000W

 ♦ Battery: 48V 17.4AH lithium battery

.png


AM1000-C

¯¯¯¯¯¯

High end full suspension eMTB fit with Bafang Ultra 1000Watt mid drive system and 48V 17.4AH Panasonic battery. 5 levels pedal assistance + Thumb throttle available. Good for mountain bike riding as Enduro bike, ALL Mountain bike type with front and rear 150mm travel.

Range: > 100kms per charge.














FRAMEWORK

ELECTRIC SYSTEM

FRAME

Al alloy 6061#, unique design suspension system

BATTERY

48V/17.4Ah with 78pcs 2900mA cells

FRONT FORK

ROCHSHOX RECON 150MM travel

MOTOR

MM G510.1000    Rated power: 1000W

REAR SUSPENSION

ROCKSHOX Monarch 200*57MM

Mid drive         Max Torque: 160N.m

HANDLEBAR

PROMAX 780mm lengh

CONTROLLER

BAFANG matching controller system in motor

HANDLE STEM

PROMAX 50mm length

PEDAL SENSOR

Speed & Torque sensor integrated

HEADSETS

NECO H383EM with sealed bearings.

DISPLAY

COLOR LCD: DP C18.UART

SEAT POST

PROMAX aluminum alloy

CHARGER

AC100-240V, 50-60Hz, OUTPUT:54.6V,3A

SADDLE

SR brand saddle for mountain bike





WHEEL SETS

TRANSMISSION

RIM

Double-Wall thicker alloy for mountain bike 32H

CRANK WHEEL

44T alloy crank wheel with protector plate for chain

SPOKES

Strong steel in black

CRANK ARM

Alloy 170mm crank arm

TIRE

CST BFT 27.5*3.0”

BB PART

Pedal sensor integrated

FRONT HUB

NOVATEC D041SB 110*15mm

PEDAL

Wellgo brand mountain bike

REAR HUB

NOVATEC D042SB with 4 bearings

DERAILLEUR

SHIMANO RD-M360

BRAKE SYSTEM

GEAR SHIFTER

SHIMANO SL-M360

BRAKE LEVER

TEKTRO E725 brake lever with power cut switch

FREEWHEEL

SHIMANO 8 speed cassette

BRAKES

TEKTRO E725 4-piston brakes Front&Rear:203/180mm discs

CHAIN

KMC 8 speed chain







_DSC6469  yi.jpg
