Long range professional dual band vhf uhf ham radio fm transceiver with 1105 channels

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    $150.00
  • >=100 Pieces
    $100.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Shengda
Model Number:
SD-9800
Name:
dual band vhf uhf ham radio fm transceiver car two way mobile radio
Frequency Range:
RX: 108-520,700-999.99; TX: 136-174,400-470
Output Power:
VHF:50/20/10/5W; UHF:45/20/10/5W
Channel Capacity:
1105
Channel Spacing:
5/10/12.5/15/20/25/50/100 KHz
Operating Voltage:
DC13.8V±15%
Frequency Modulation:
F3E, F2D, F2A
Operating temperature (℃):
-20℃~ +60℃
Dimensions(W*H*D):
140mm*42mm*168mm
Weight:
1kg
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
mobile antenna will be put in a plastic transparent package, and all antennas will be put in good quality catdboad box,for mobile antenna
Port
XIAMEN
Lead Time :
Shipped in 5 days after payment
Product Description

Welcome to Shengda Communication

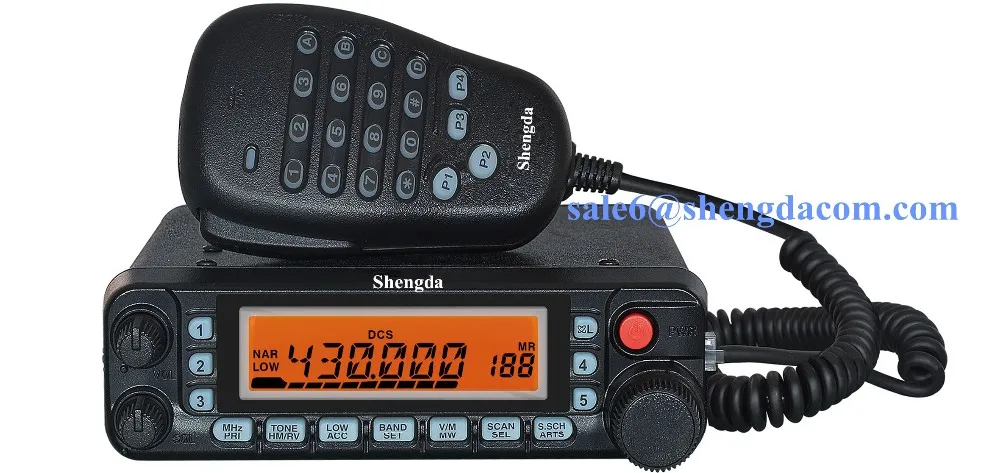

Model: SD9800

SD-9800 Dual Band Mobile Radio

Dual Band TX, Five Band RX, AM+FM RX
VFO/Channel/Priority/Programmable Scan
Dual Band Watch
Emergency Call
Support Multi-scan Modes
Split Type Panel
Large Screen Display
Internet Connecting
Communication Range Auto Alert
MIC Auto Gain Control
Automatic Repeater Shift
CTCSS/DCS/DTMF Encode and Decode
Automatic Power Off                                                     General Specification

Frequency Range RX: 108.000-520.000 MHz & 700.000-999.990 MHz;

TX: 136.000-174.000 MHz & 400.000-470.000 MHz
Output Power VHF:50/20/10/5W; UHF:45/20/10/5W
Channel Capacity 1105
Channel Spacing 5/10/12.5/15/20/25/50/100 KHz
Operating Voltage DC13.8V±15%
Operating Temperature -20℃~ +60℃
Frequency Modulation F3E, F2D, F2A
Maximum Deviation ±5KHz (Wide Band), ±2.5KHz (Narrow Band)
Sensitivity 0.8uV (10dB SINAD, 108-137 MHz) 0.2uV (12dB SINAD, 136-174 MHz & 400-470 MHz)
Maximum AF Output 2W (8Ω, 10% THD)
Dimensions(W×H×D) 140mm × 42mm × 168mm
Weight 1kg

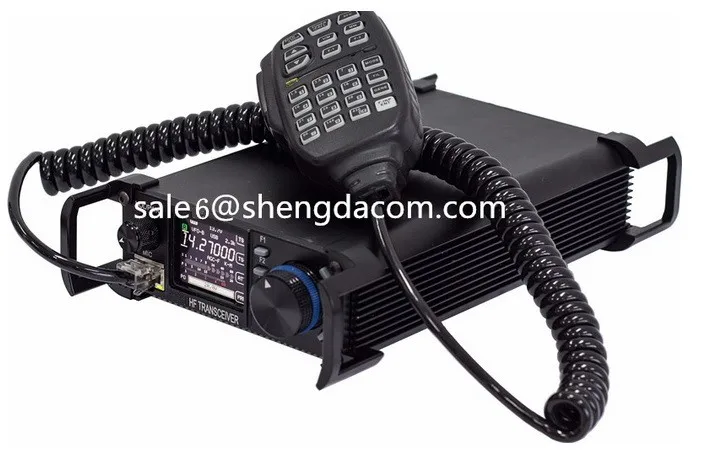

Model: SD108G

SD108G hf low band mobile raido

Basic Specifications:
Frequency range: Receive:0.5~30MHz(Continuous)
Transmitting:All HF Amateur bands including WARC bands
Operating mode: SSB(J3E)     CW (A1A)      AM (A3E)
minimum frequency stepping:10Hz
Antenna impedance: 50Ω
Operating temperature range: Maximum temperature is 55℃
Frequency stability: ±0.5ppm @ Open the power about 5 minute
Operating voltage:12~14.5V DC
Current draw: Receiving: 600mA @Max
Transmitting:7.5A @ Max
Dimensions (mm): 120*45*180(mm) [Does not include the Front and rear handles and the Knob etc bulge.]
Transmitter
Transmitter power:More than 15W(@13.8V)
Modulation mode: SSB balanced modulation:
AM Low level modulation

Spurious response rejection: ≥40dBc
Carrier suppression:≥45dBc                                         IF filter:SSB 2.4kHz(-6dB)
CW 500Hz(-6dB)
Receiving
IF Frequency:10.7MHz
receive sensitivity:
0.5uV @ 12dB SINAD (PRE ON,≤2.0MHz)
0.35uV @ 12dB SINAD (PRE ON,>2.0MHz)
audio output:0.5W@8Ω                                                 Receive Frequency bands:
1.8~2.0MHz
3.5~4.0MHz
5.0~5.5MHz
7.0~7.3MHz
10.0~10.2MHz
14.0~14.5MHz
18.0~18.2MHz
21.0~21.6MHz
24.8~25.0MHz
28.0~28.8MHz
0.5~30.0MHz (*)
Dynamic range:Better than 90db

RIT Frequency controlrange: ±1kHz                      Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

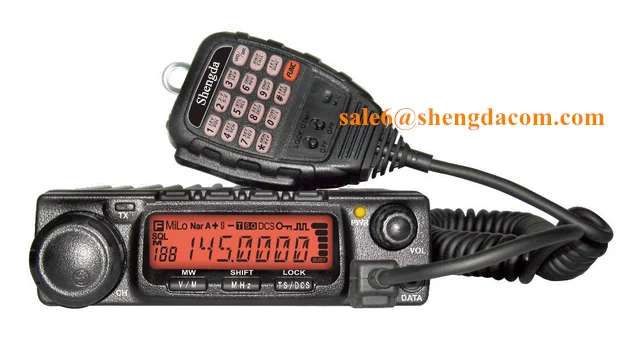

Model: SD-588

SD-588 Single Band Mobile Radio

Frequency: 66-88MHZ or
136-174MHZ or
400-490MHZ or
400-512MHZ or
27-43MHZ or
220-260MHZ(ODM Project)
Function:
Output power: 60W(VHF), 40W(UHF), 25W/10W.
200 programmble memorized channels, the channels can be marked with letter and digits.
CTCSS/DCS/DTMF/2Tone /5Tone decode and encode.
Four different tone-pluse frequencies.
CTCSS/DCS scan.

Compander to reduce noise.
Theft alarm.                                                                                     ANI function( DTMF/ANI, 5-Tone/ ANI) PTT ID.
QHM-03 multifunctional microphone with DTMF

Scramble function( option).                                             Accessories:
Microphone ( with DTMF keypad)
Mobile installing bracket
DC power cable with fuse holder
Hardware kits for bracket
QDM-01 Desktop Mic ( Option)
Can work as HAM radio and professional radio mode after program.

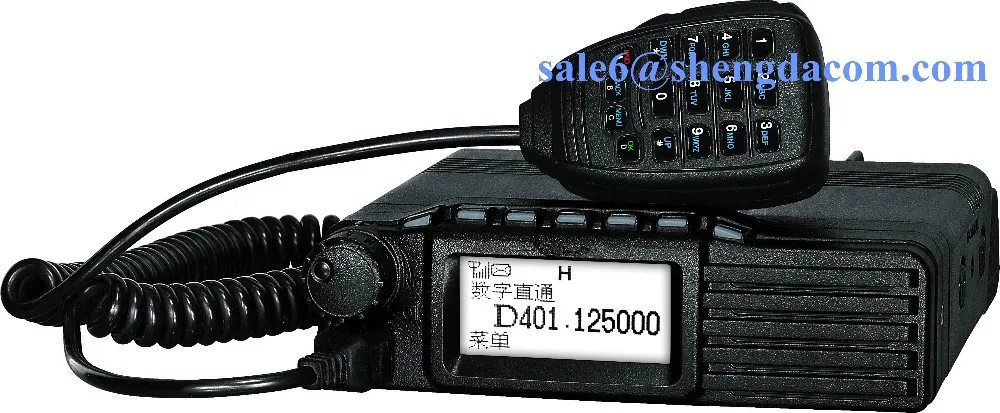

Model: SD-DM1

SD-DM1 Dual Band DPMR Digital Mobile Radio

Digital/Analog/Analog-digital Modes Compatible
Voice Encryption
SMS Function
Remote Stun/Kill/Activate/Revive
Multi-Call Modes: Individual Call, Group Call, All Call
Emergency Alarm
Monitor Function
Call Recording
PC Programmable
GPS Function (Optional)
Scan Function
High/Low Power Selectable

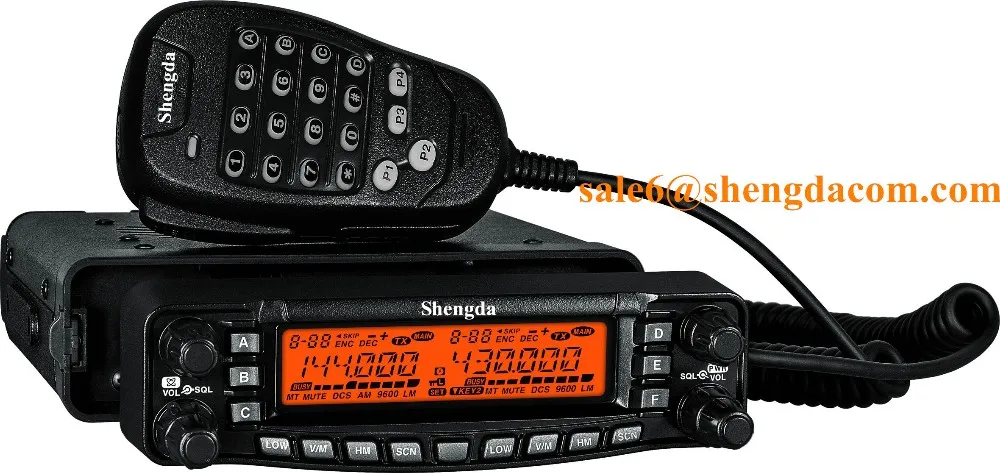

Model: SD-005QB

SD-005QB quad band mobile radio

29/50/144/430MHz Quad Band Operation
Over 800 Memory Channels
CTCSS/DCS Built-in
DTMF Function
Convenient Access to WIRES and Other Internet-linking Systems
Split Type Panel
Cross-band Repeat Capability

Frequency Range

RX:
26-33MHz (CB Band)
47-54MHz
108-180MHz
320-512MHz (320-399.995MHz & 400-512MHz)
700-985MHz(Cellular Blocked

TX:
26-33MHz (CB Band)
47-54MHz
137-174MHz
400-470MHz
Output Power 50/20/10/5W (26/50/144MHz)
35/20/10/5W (430MHz)
Operating Modes F3,F2,F1
Frequency Step 5/10/12.5/15/20/25/50kHz
Power Supply DC13.8 V(±15%)
Frequency Stability ± 2.5 PPM
Operating Temperature Range -20℃~ +60℃
Antenna Impedance 50Ω
Dimensions (W × H × D) 140mm × 41.5mm × 168mm
Weight 1070g

You may also like

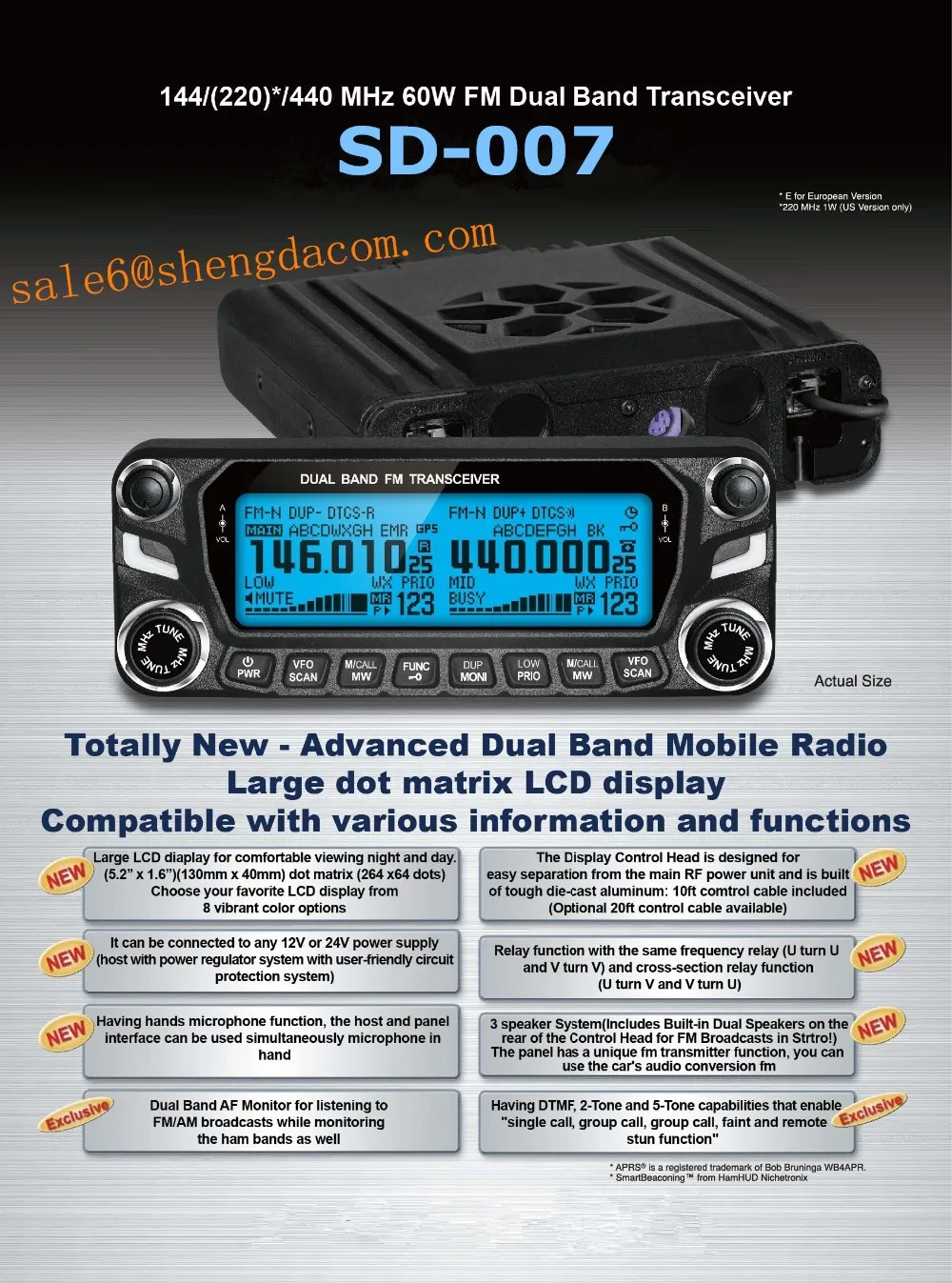

Shengda 2016 new model: SD007VU
