Low Voltage pvc dipping insulated copper bus bar with nickel plate

$1.00 / Piece | 10 Pieces (Min. Order)
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Contact Supplier
Samples - $4.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Model Number:
insulated copper bus bar
Cu (Min):
Alloy Or Not:
insulated copper bus bar
3 holes in a busbar
nickel plate
thickness of plate:
Protecting part:
PVC dipping
Epoxy coated:
Heat shrink tube:
Load Voltage:
220 V to 10 KV
10A to 2800A
Higher operating temperature:

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
0.2 kg
Package Type:
insulated copper bus bar First in poly bag,then in carton.Or as your request.
Picture Example:
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated
Product Details

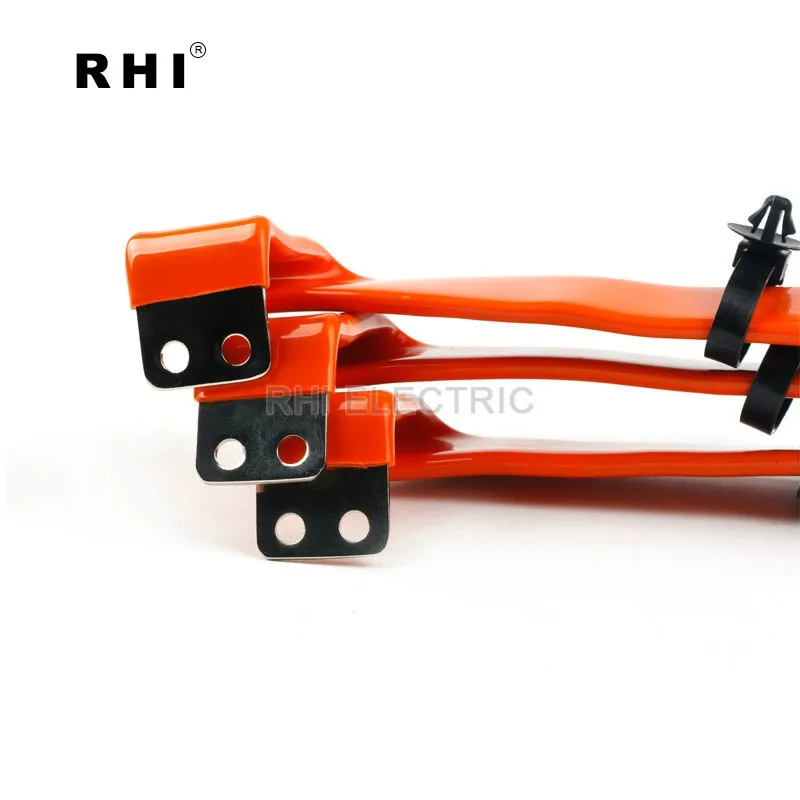

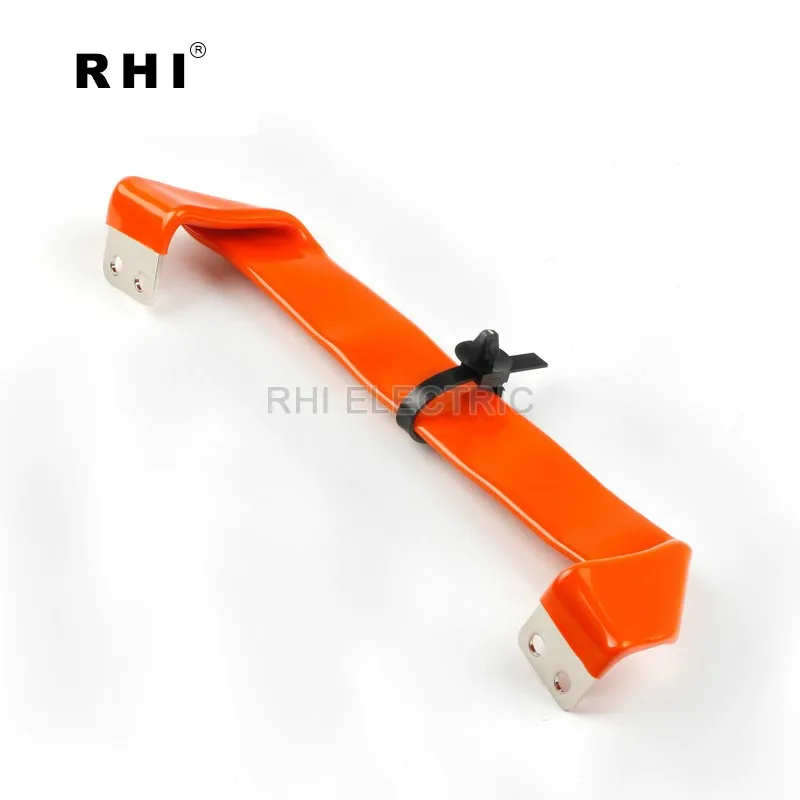

Low Voltage pvc dipping insulated copper bus bar with nickel plate

Flexible bus bar connectors are developed from high conductivity based electrolytic grade copper sheets/foils. The battery bus bars current can be from 100 A to 2000 A. It can be used for HV or LV battery pack like 12V battery, 24 battery or 48V large battery. Welcome to inquiry us now & custom busbar are welcomed
Material Standard :GB : T2 Copper with Min. 99.9% ,DIN: E-Cu58 (Number: 2.0065),EN: Cu-ETP ( Number: CW004A),ISO: Cu-ETP, UNS: C11000, JIS: C1100,BS: C101
Resistance :0.00001Ω
Conductivity :57%
Copper Foil of Single Layer Thickness :0.1/0.2/0.3/0.5/1.0mm,depend on bus bar structure
Insulation Material :PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times.Insulation Performance PE and PVC are good, PVC dipping is better than PE heat shrink tubes
Flame Retardant/Fire Resistance :UL94-V-0 or upon you request
Leakage Testing PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA;
In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA;
Surface Plating :Nickel, tin or silver plated etc
Plating Thickness:Normally 3um to 12um
Salt Spray Testing: In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
Bending Testing Bend 10000 times in 15 radian angle without breakage or fracture.
Temperature Rise Testing :Depend on flexible busbar cross-sectional area,
We can offer all temperature rising test report before delivery if you request
Operating Temperature :-45 to +150 ºC
Copper Foil Tensile Strength ≥500N
Quality Management Standard Meet Auto Industry IATF 16949
Product Show
Product Application
Why Choose Us

About us

1, Standard workshop & comfortable office. RHI is built in 2002. We are specialized in producing new energy products like copper busbar and covers.

Equipment & technology

2, Professional team & First-class equipments. With experienced workers and automatic machines , we guarantee good quality and fast delivery time.


3, All copper busbar size and models can be customzied. Sample order or small order is accepted. Welcome to inquiry us, we'll give you reply in 24 hours.

Busbar tester
Main Products

   Flexible busbar with heat shrink tube


    battery busbar with pvc dipping

  Solid copper busbar with cover

        Copper foil busbar

           Bended copper busbar

          Custom copper busbar
