MD-S280 hydraulic digital oil gas water pressure gauge calibrator

$62.00 - $64.00 / Piece | 5 Pieces (Min. Order)
Accuracy:
0.4%FS
Connection Location:
Radial Direction Mounting
Dial Diameter:
80mm
Type:
-0.1~0...0.1...1.6Mpa
$64.00
- +
available
0~5...10...100kPa
$64.00
- +
available
0~0.16...1.0...10...60MPa
$62.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Meokon
Model Number:
MD-S280
Operating temperature:
-20 - 60℃
Supply:
3V(Battery-powered)
Mounting:
Radial Direction Mounting
Product type:
Oil Filled Digital Pressure Gauge
Pressure range:
-0.1~0...0.1...1.6MPa
Accuracy:
0.4%FS
Connecting Thread:
M20*1.5 G1/4 G1/2 NPT1/2 NPT1/4
Size:
80mm
Case material:
304 Stainless Steel Case
Application:
Oil or Liquid or Gas

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X15X15 cm
Single gross weight:
0.2 kg
Package Type:
box package
Lead Time :
Quantity(Piece) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Video Description

Product Description

This gauge is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and display the pressure accurately in real time, equipped with a largesize LCD. It has a various of features, such as zero clearing, backlight, on/off button, units,low voltage alarm. And it is convenient to install and easy to operate.
The surface and connector of the product is 304SS. It can be used to measure gas,liquid, oil and other non- . corrosive mediums of stainless steel. It applies to these fields:portable pressure measurement, equipment supporting, equipment calibrations.

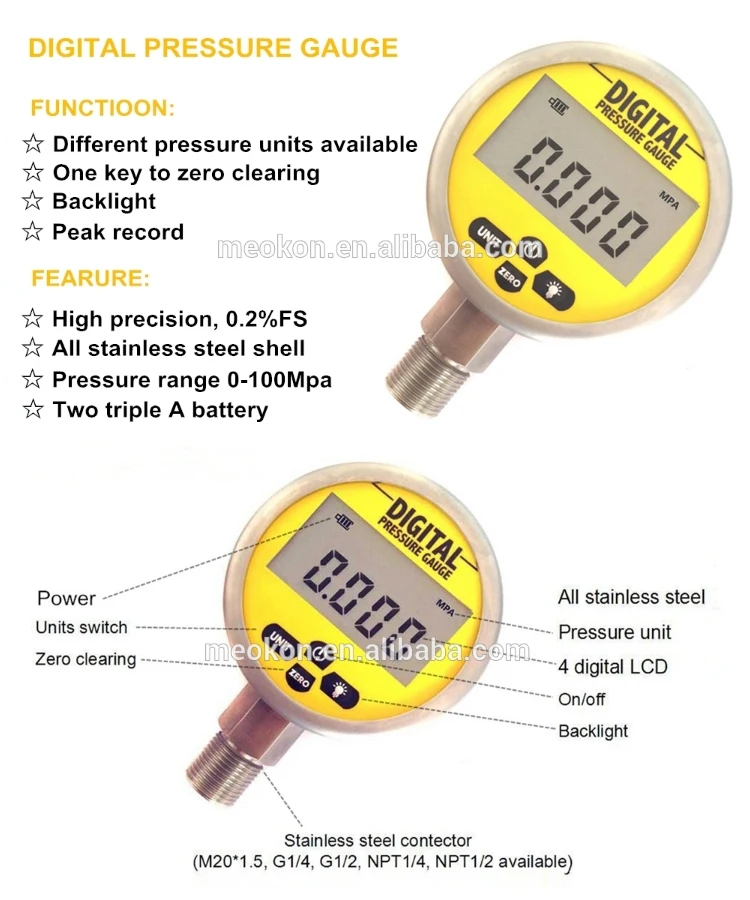

FEATURES:

  • 4 digital LCD showing the pressure accurately in real time

  • Different pressure units available (  kPa, PSI, Kgf/cm ² , BAR, MPa); zero clearing; backlight; on/off button; low voltage alarm

  • Peak record (the maximun and the minimum)

  • Battery-powered, low power design keeping it working more than 12 months

APPLICATION(MD-S280)

  • Machinery and electronic indusry

  • Supporting equipment of instruments and meters

  • Pressure Laboratory

  • Mechanical engineering automation

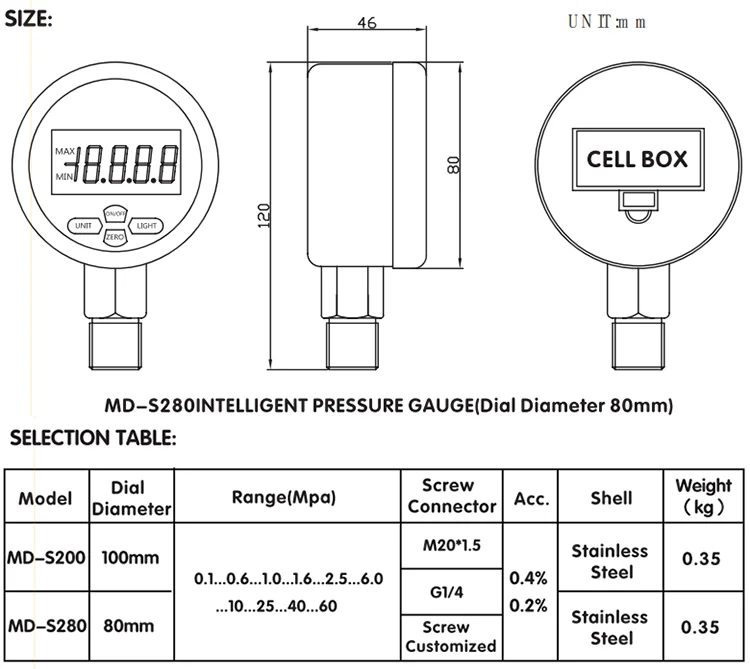

Range

0 ~10...25...50...100kPa

-1 ~2...6...10...16...40...60...100...250...400...600...1000bar

Over Pressure150%
Backlight Color White
Dial Size80mm
Acc. 0.2%FS  0.4%FS
Long-term StabilityTypical:  ±0.2%FS/year
Operating Temperature -20 -60 ℃
Compensation Temperature 0 ~40 ℃
Electric ProtectionEN61326
Sampling Frequency5 Times/sec
Measurement MediumGas, water, oil
Pressure Connection M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4
Connector Material304SS
Shell 304SS
Supply Battery (Triple A battery)
Weight0.35Kg
