MSDS Zeolite Molecular Sieve 13X APG Zeolite X13 Price

FOB Reference Price:Get Latest Price
$1.00 - $2.10 / Kilogram | 10 Kilogram/Kilograms (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Classification:
Chemical Auxiliary Agent
Type:
Adsorbent
Adsorbent Variety:
Molecular Sieve
Place of Origin:
Shaanxi, China
Brand Name:
LV Molecular Sieve 13X
Model Number:
Molecular Sieve 13X
CAS No.:
63231-69-6
Purity:
98%
Other Names:
Zeolite 13X
MF:
Na2O . Al2O3. 2.45SIO2 . 6.0H2O
EINECS No.:
mixture
Usage:
Electronics Chemicals, Petroleum Additives, Plastic Auxiliary Agents
size of molecular sieve 13x:
2.0-3.0mm;3.0-5.0mm;4.0-6.0mm
Static adsorbed water:
≥25
Static adsorbed CO2:
≥18
Quality Management:
ISO9001:2008
shape of molecular sieve 13x:
granular
Stacking density g/ml:
0.66
Qualified rate of particle size %≥:
98
Package water content %≤:
1.5
Application:
MSDS Zeolite Molecular Sieve 13X APG Zeolite X13 Price
Supply Ability
Supply Ability:
50 Ton/Tons per Month
Packaging & Delivery
Packaging Details
MSDS Zeolite Molecular Sieve 13X APG Zeolite X13 Price
1.25KG / Carton Drum
2. 150KG/ Seal Metal Drum
Port
Shanghai port Tianjin port
Lead Time :
MSDS Zeolite Molecular Sieve 13X APG Zeolite X13: 3-15days

MSDS Zeolite Molecular Sieve 13X APG Zeolite X13 Price





Product Description

  13X Molecular Sieve has a pore size of roughly 10A. This is considerably larger than any of the A type openings. This desiccant is used primarily for refinements of liquid and gases because it offers synchronized absorption for bi-molecule and tri-molecule. It can co-adsorb CO2 and H2O, H2O and H2S. 13X Mole sieve also has applications as a desiccant for medical and compressor uses and as a c catalyze carrier. The sequence rate of adsorption is SF6, CHCL3, CHBr3, CHI3, N-C3F8, CCL4, N-C4F10, N-C7H16, CBr4, C6H6, B5H10, (CH3)3N, C(CH4)4, (C2H5)3N, C(CH3)C3CL, C(CH3)3Br, and C(CH3)3CH.

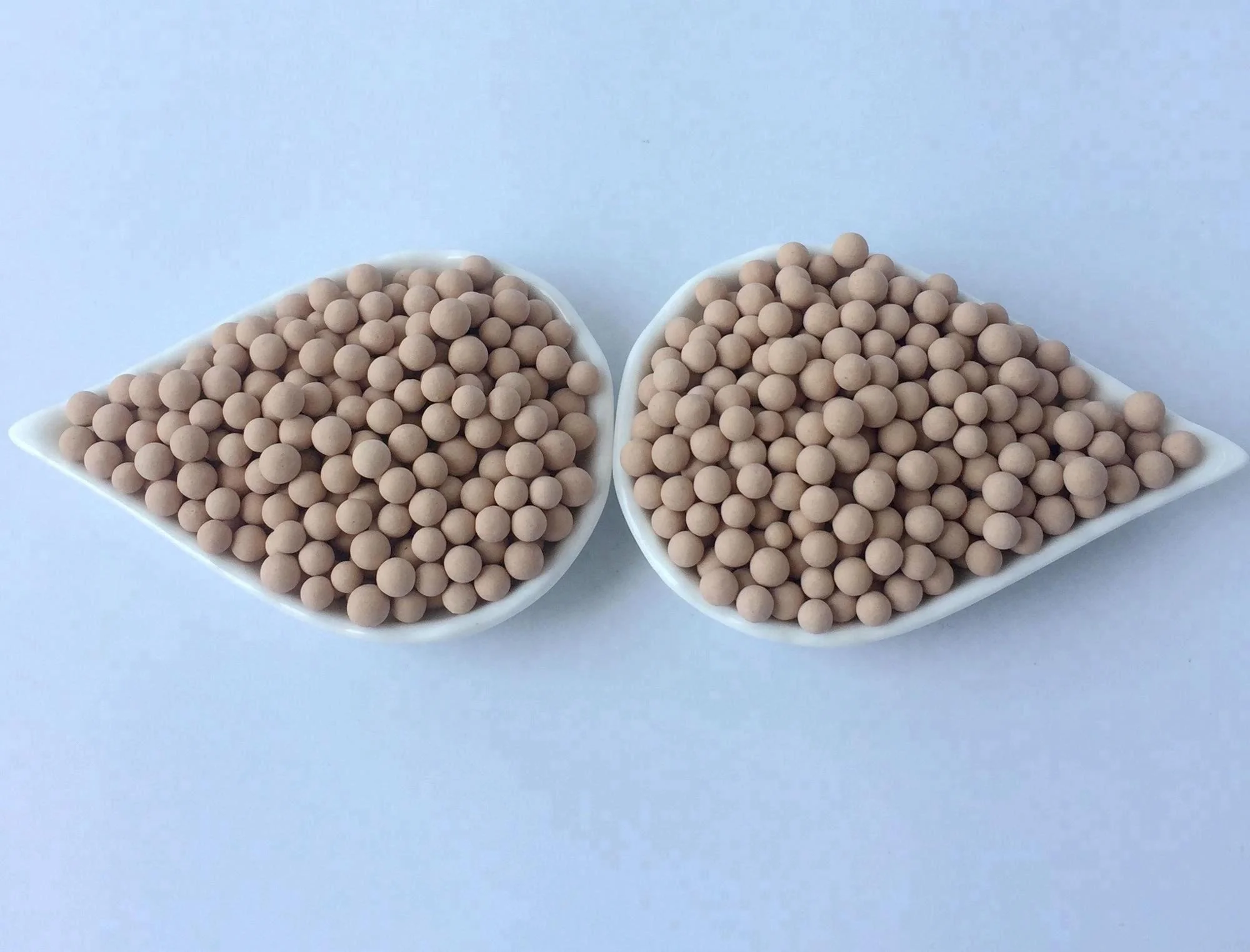

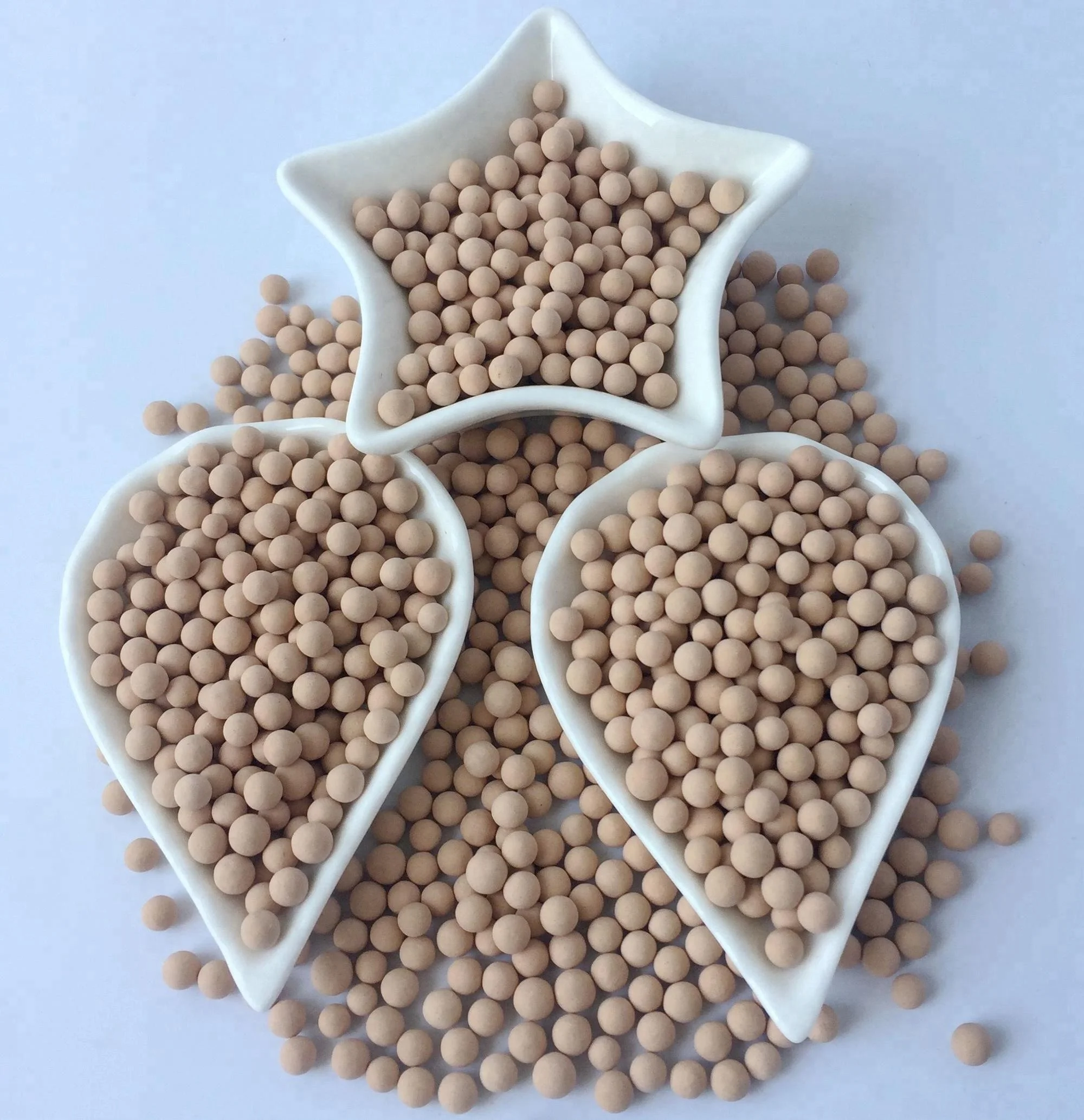

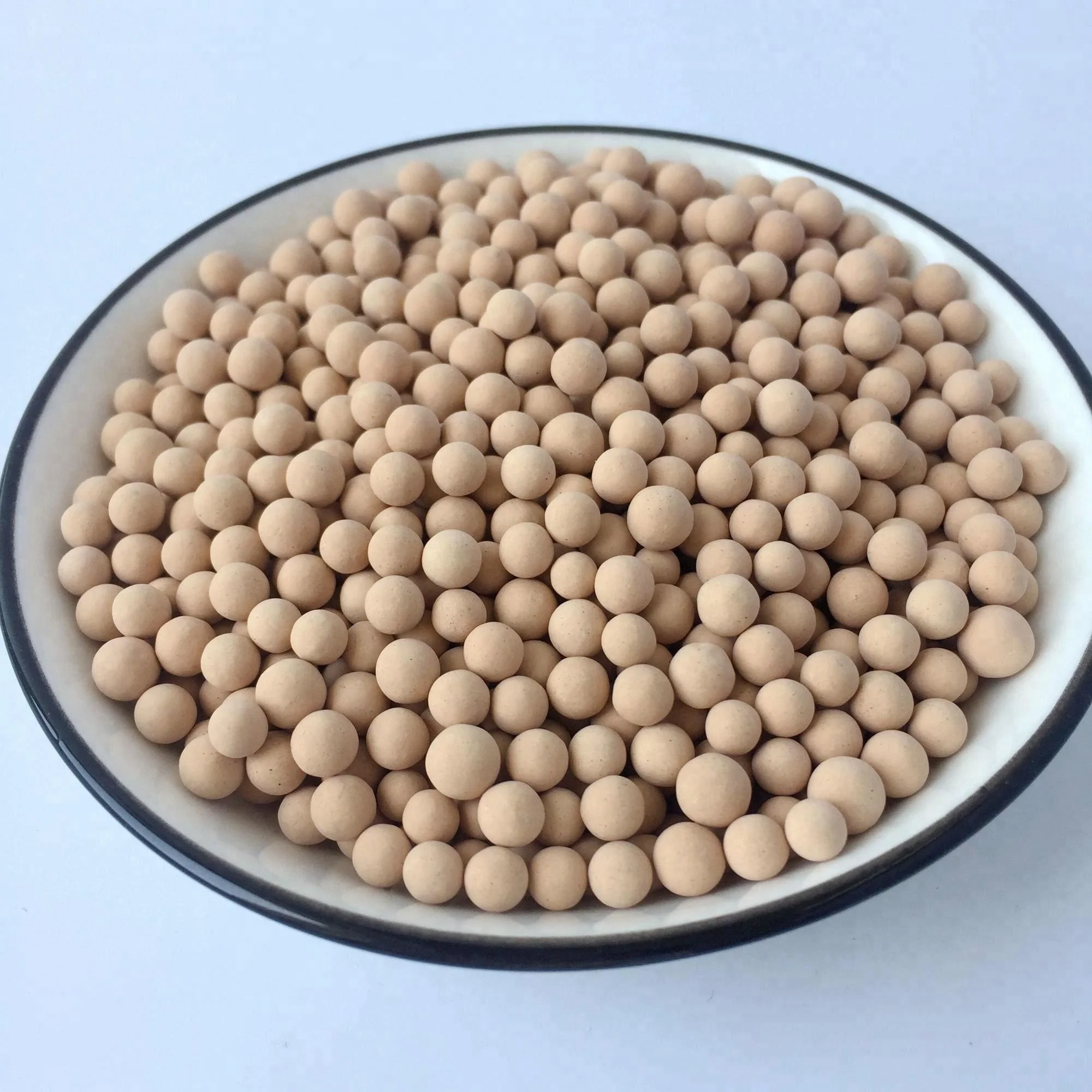

IMG_0811(20180605-104304)IMG_0815IMG_0807(20180605-104008)

Molecular Formula

Na2O·Al2O3·(2.8±0.2)SiO2 ·(6-7)H2O

SiO2/ Al2O3

≈ 2.6-3.6

Normal Pore Opening

10 Angstroms

Shape

Sphere and strip

Color

Light yellow, beige, khaki



 Application of 13X Molecular Sieve :

1) Removal of CO2 and moisture from air (air pre-purification) and other gases.


2) Separation of enriched oxygen from air.


3) Removal of mercaptans and hydrogen sulphide from natural gas.


4) Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc.)


5) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).


6) Removal of n-chained compositions from aromatics.


7) Production of bulk oxygen in PSA units .


8) Production of medical oxygen in small scale oxygen concentrators

application

ZEOLITE 13X MOLECULAR SIEVE.jpg

Specification of  Molecular Sieve  :

Molecular Sieve 13X Typical Physical Properties

Items

Unit

8*12 Mesh

4*6 Mesh

Bead Size

mm

1.6-2.5

3.0-5.0

Bulk Density

g/ml ≥

0.68-0.85

0.65-0.80

Equilibrium Water Capacity @ 25

wt% ≥

24.0-27.0

24.0-27.0

Equilibrium Carbon Dioxide Capacity

wt% ≥

18

18

Heat of Adsorption

BTU/lb of H2O

1800

1800

Crush Strength

Point Contact

N ≥

30-80

80-130

Variation Coefficient

-

0.3

0.3

Attrition Rate

wt% ≤

0.1

0.1

Size Qualification

% ≥

97

97

Package Moisture

wt% ≤

1.5

1.5

The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 13X























































































Packaging & Shipping

 1. 25 KG Per Carton Drum

2. 150 KGS Per Steel Drum

 13X MOLECULAR SIEVE.jpg

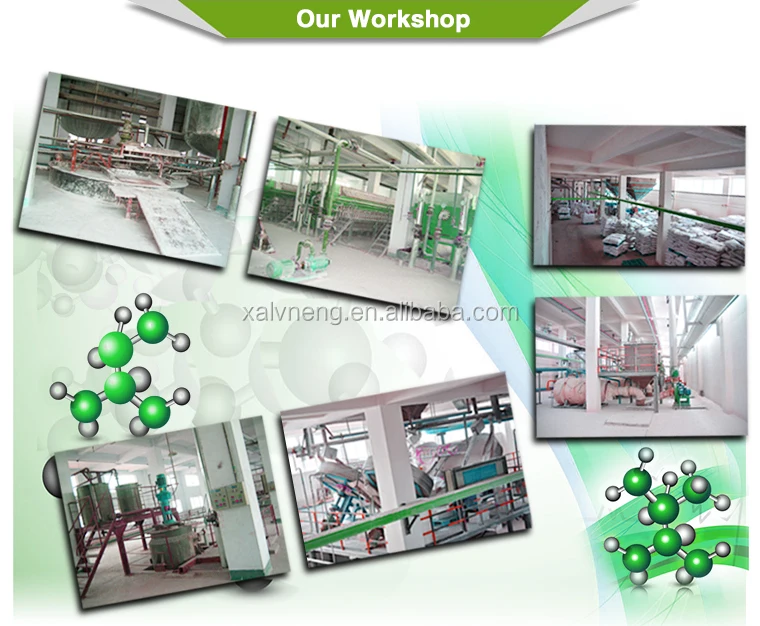

Company Information

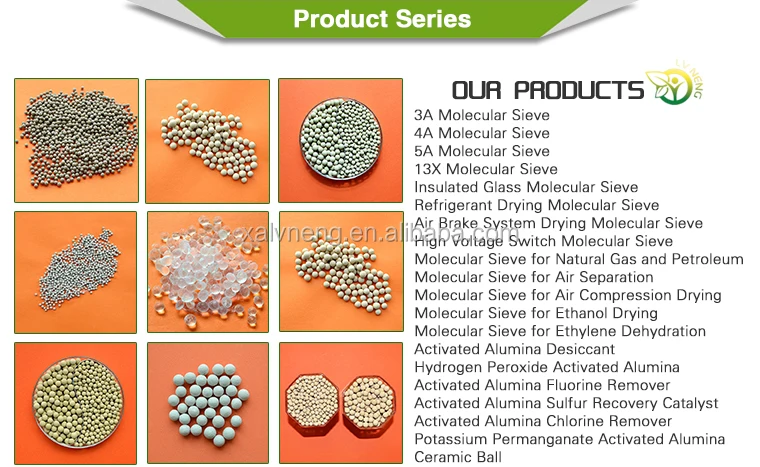

Molecular Sieve Product.jpg
