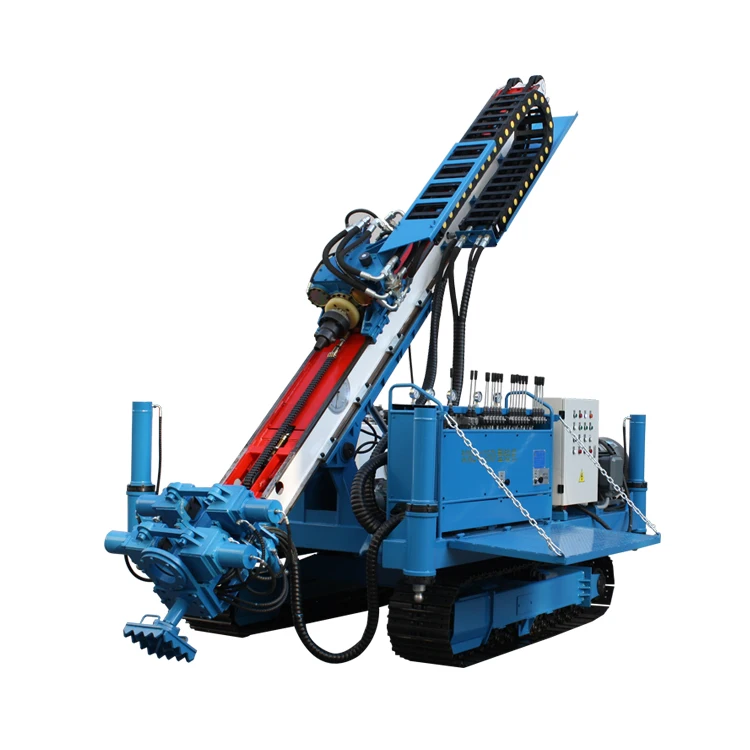

MXL-135D High Efficiency Crawler Hydraulic Drilling Rig

FOB Reference Price:Get Latest Price
$36,031.00 - $47,140.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MXL-135D
Power(W):
55+18.5KW
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
anchor drilling machine
Power Type:
diesel ,electric
Place of Origin:
Jiangsu, China
Brand Name:
ANTIAN
Usage:
railway, tunnel, hydropower station, and other remote areas.
Voltage:
380V
Dimension(L*W*H):
5400*2100*2000
Weight:
6000kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Hole diameter(mm):
150~250
Hole depth(m):
100~140
Rod diameter(mm):
73,89,102,114
Hole angle(°):
0~90
Rotary speed(r/min):
10,20,25,40,50,60,70,100,120,140
Max torque (N.m):
6800
Power head feeding stroke (mm):
3400
Mast sliding frame stroke (mm):
900
Lifting force (kN):
65
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard exported package
Port
Shanghai

MXL-135D High Efficiency Crawler Hydraulic Drilling Rig

Specification



Hole diameter(mm)

φ150~φ250

Hole depth(m)

100~140

Rod diameter(mm)

φ73,φ89,φ102,φ114

Hole angle(°)

0~90

Rotary speed(r/min)

10,20,25,40,50,60,70,100,120,140

Max torque(N.m)

6800

Power head feeding stroke(mm)

3400

Mast sliding frame stroke (mm)

900

Lifting force (kN)

65

Lifting speed (m/min)

0~1.4(adjustable)/7/18/26

Feeding force (kN)

33

Feeding speed (m/min)

0~1.8(adjustable)/14/36/51

Diesel or Electric engine is alternative

Electric engine

Diesel engine



55+18.5+2.2

82

Dimension(L*W*H)(mm)

5400*2100*2000

Weight(kg)

6000



Construction Site



Product Show







Feature&Technology



Production Flow



You May Like

u s q a v m p r p o b t

About us

   Wuxi AnTian Trading Co.,Ltd. is a construciton machinery manufacturer which integrates of scientific researching, producing and sales, especially in the R&D and product customization for marketing demands. The drilling rigs are major in foundation construction, including high-speed railway,city subway, tunnel, basement under high-rise buildings, water-proof construction,etc. By different techniques, we have Multifunctional Anchor Drilling Rig (HDL Series), Anchor Drilling Rig(MXL, MX Series), Jet grouting Drilling Rig (SJ, SJL Series), Crawler Pump Truck (CWP Series). All of them are the essential engineering machines in the construction projects.





FAQ:

Q: Are you original manufacturer?
A: Yes, AnTian is manufacture in anchor and jet grouting machinery in China for more than 20years.



Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.



Q: Which Incoterms 2010 terms can we work?
A: AnTian is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines.



Q: How about your sales performance in China?
A: We have more than 1500 active customers in China. The leading market share of same function products in domestic fields.
